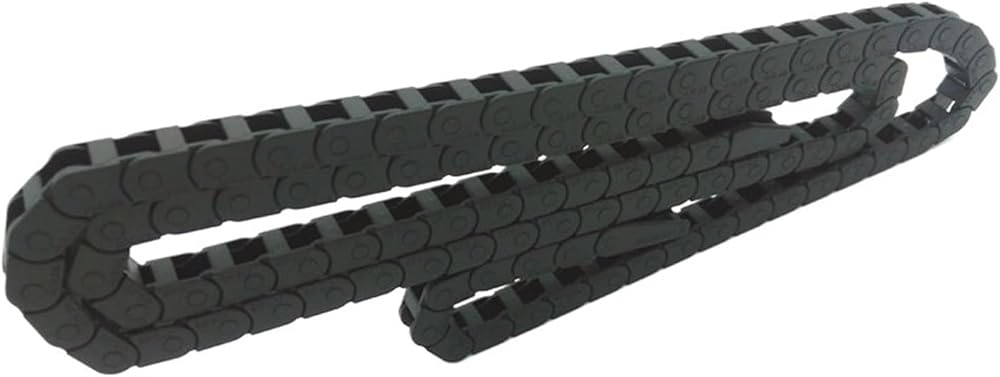

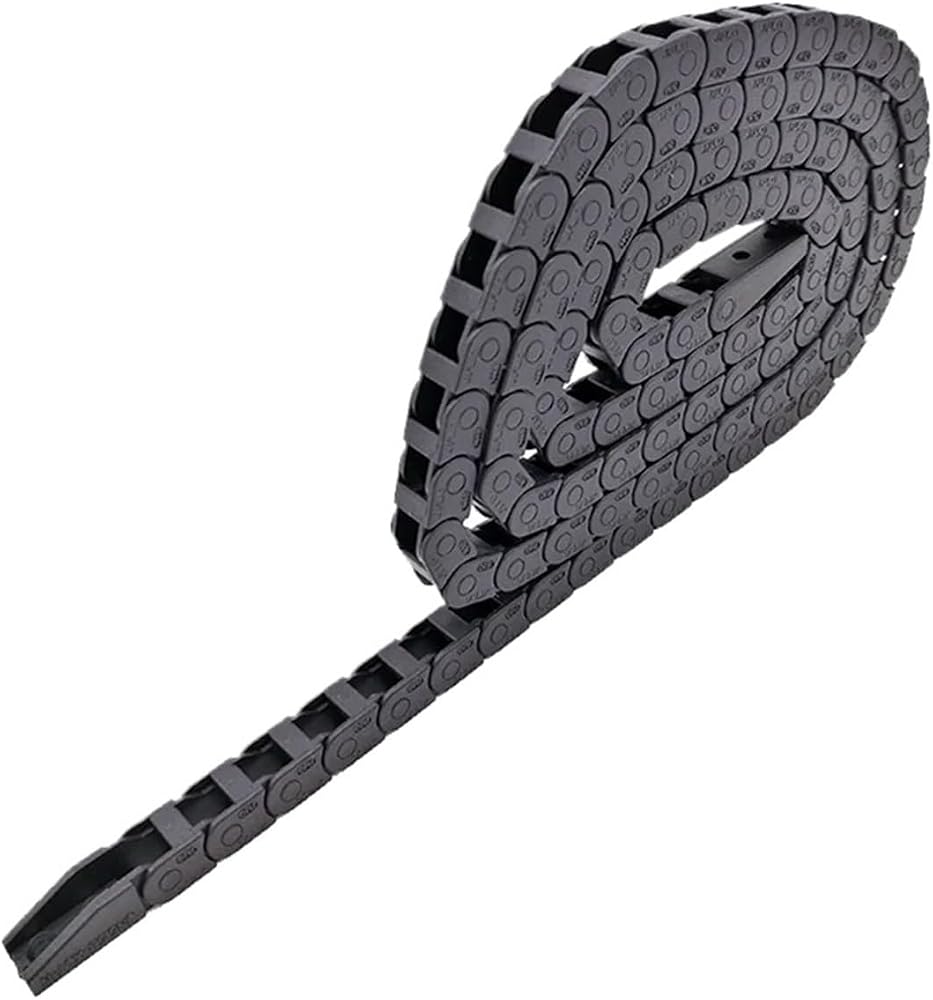

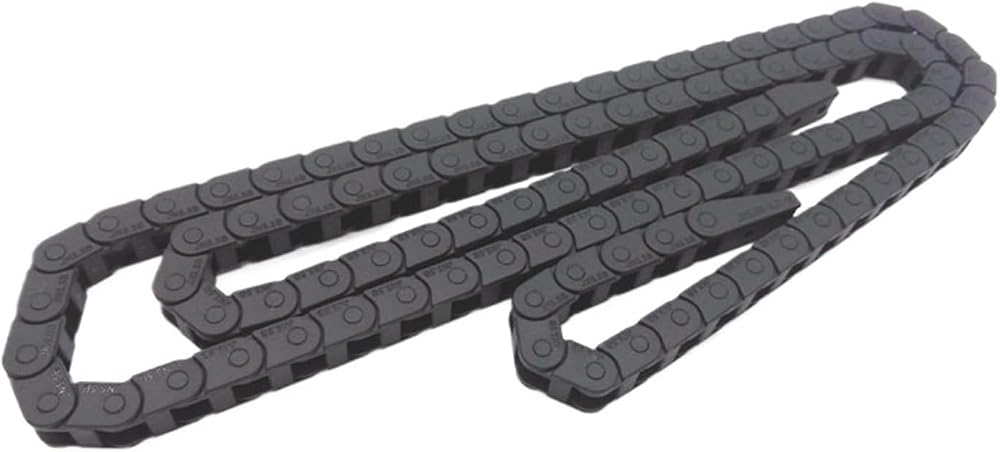

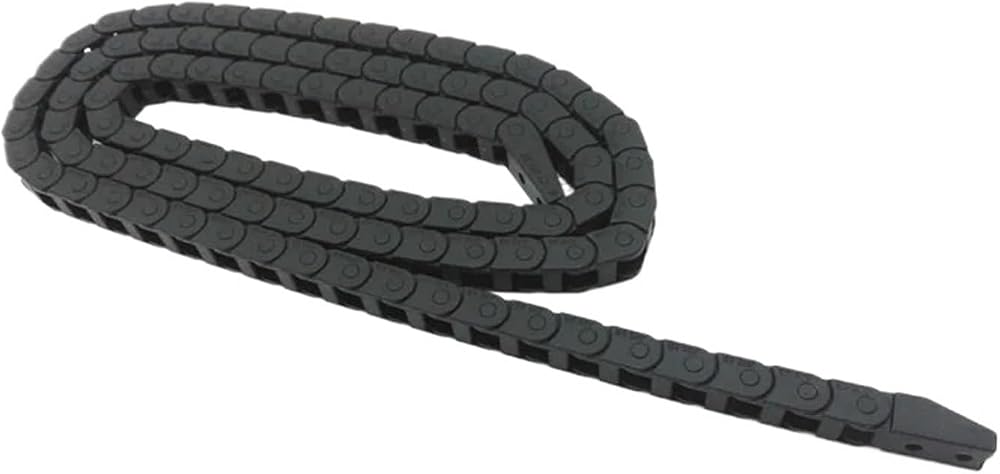

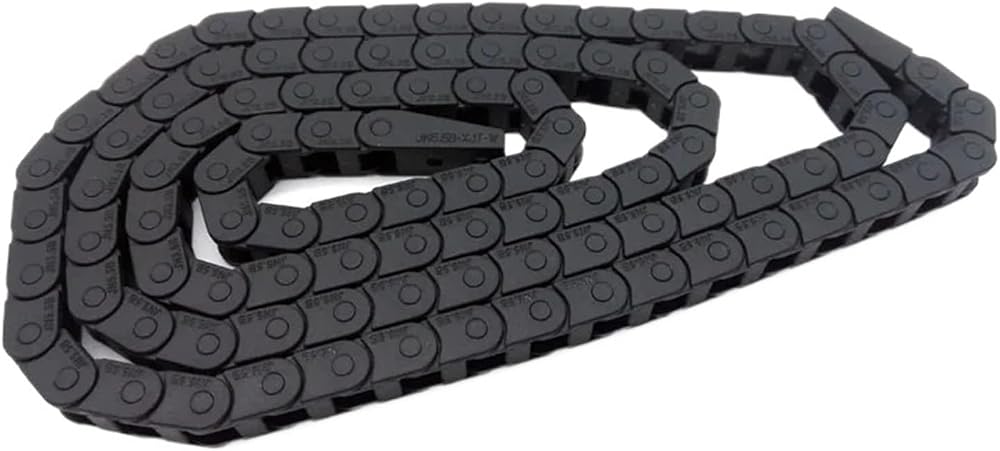

5X5Bridge non opening typeengineering nylon towline with end Connectorcable protection chain drag chain tankschain
Uses and Features:
1) Suitable for use in a reciprocating motion of the occasion, can be built-in cable, tubing, pipe,plumbing, etc. play traction and protection.
2) Each section towline can open, easy installation and maintenance. Exercise low noise,wear-resistant, high-speed movement.
3) The towline has been widely used in CNC machine tools, electronic equipment, stone machinery,glass machinery, doors and windows machinery, injection molding machines, robots, overweighttransportation equipment, automated warehouses.
Plastic towline structure:

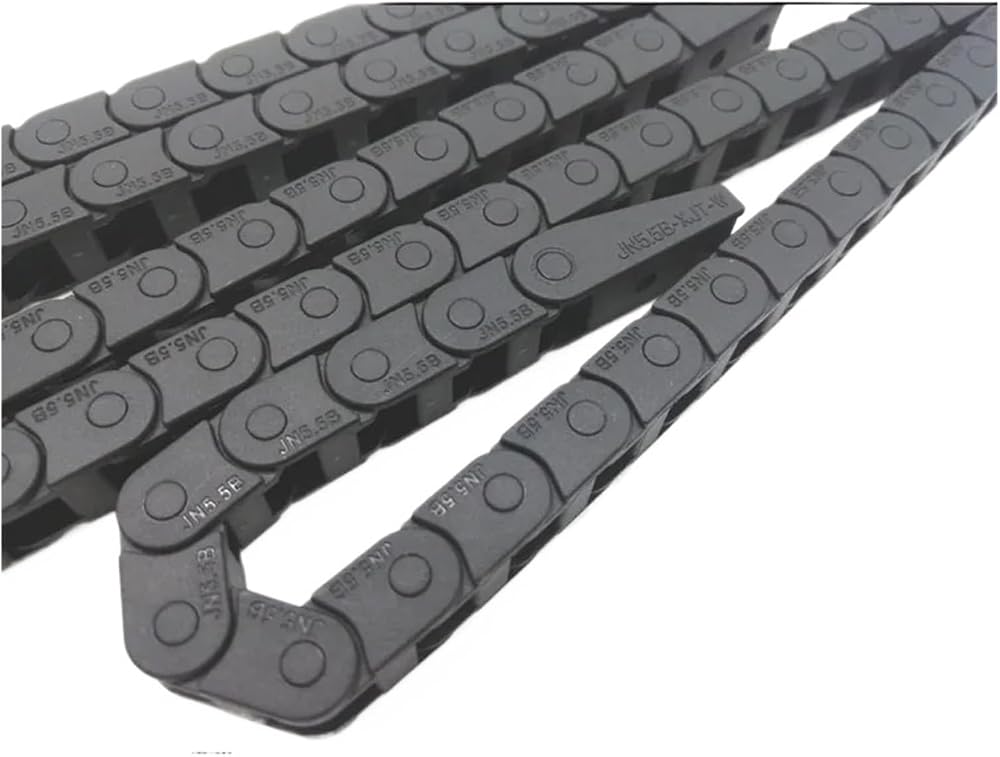

1) The towline shape like tanks chain, composed by a large number of unit links between therotating freely link.
2) Within the same series of towline high, outside the high, the same pitch, towline in width, bend radius R may have a different choice.
3) Unit chain around the chain plate and the upper and lower cover composition, towline can openeach section, easy assembly and disassembly without threading, to the cable, tubing, pipe, pipe,etc. into the towline after opening the cover.
4) Also available separators, the chain separated by space as needed.
==========
Item Type : Mechanical Kit/Hardware Parts
Material : Plastic
Model Number : Miniature Series 5
Standard or Nonstandard : Standard
Inner high * inner width : 5x5mm
Outer high * outer width : 8x8.7mm
Pitch : 8.9mm
Bending radius : R10
Structure : Bridge non opening
Joint type : A Type
Joint hole pitch : A=8mm
