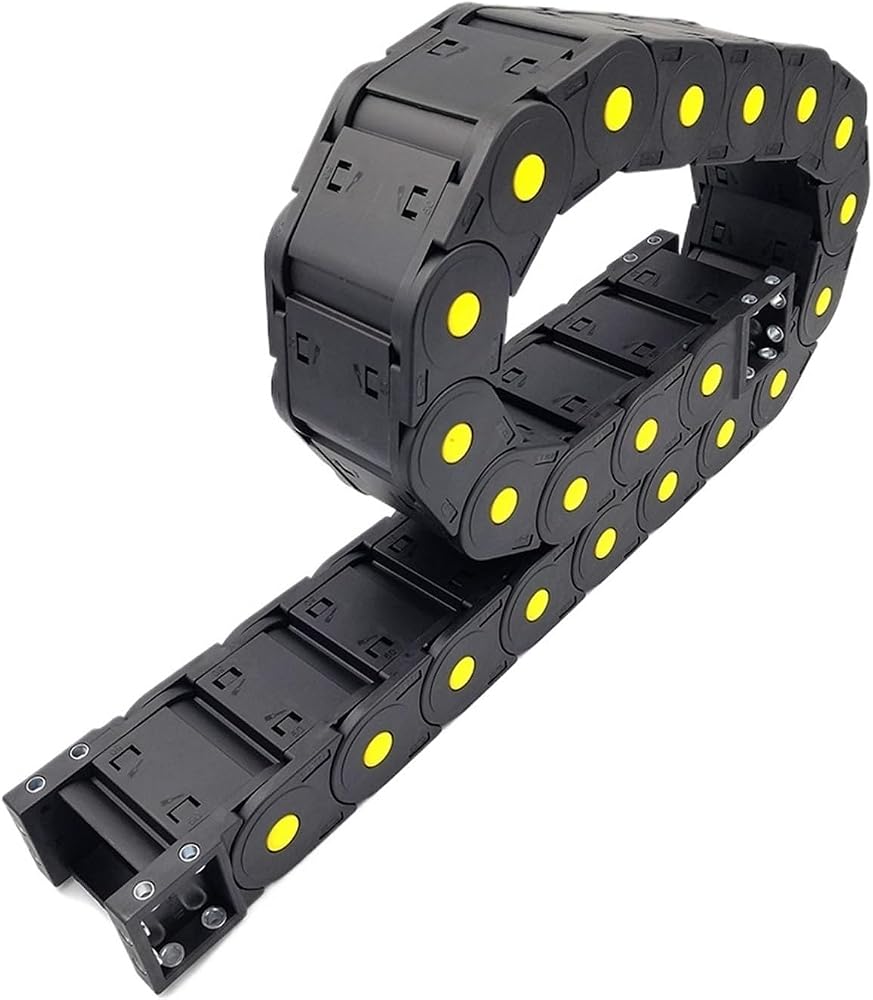

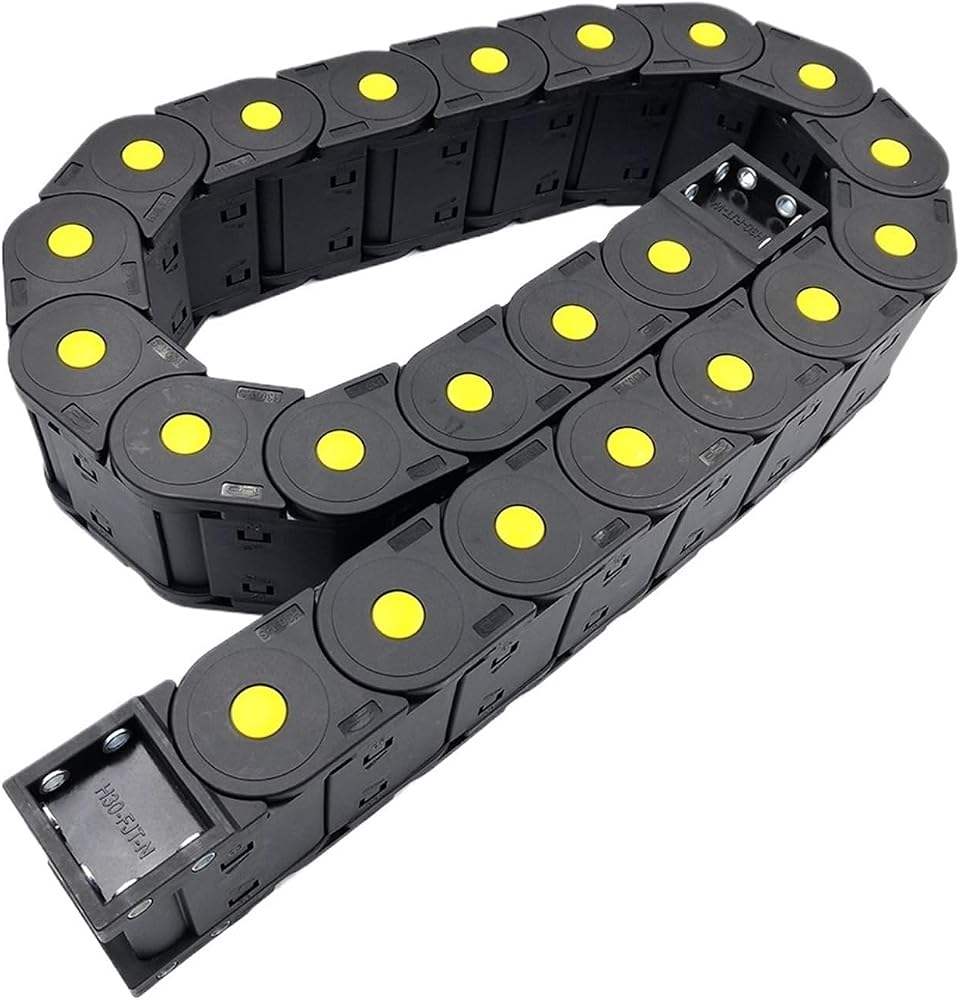

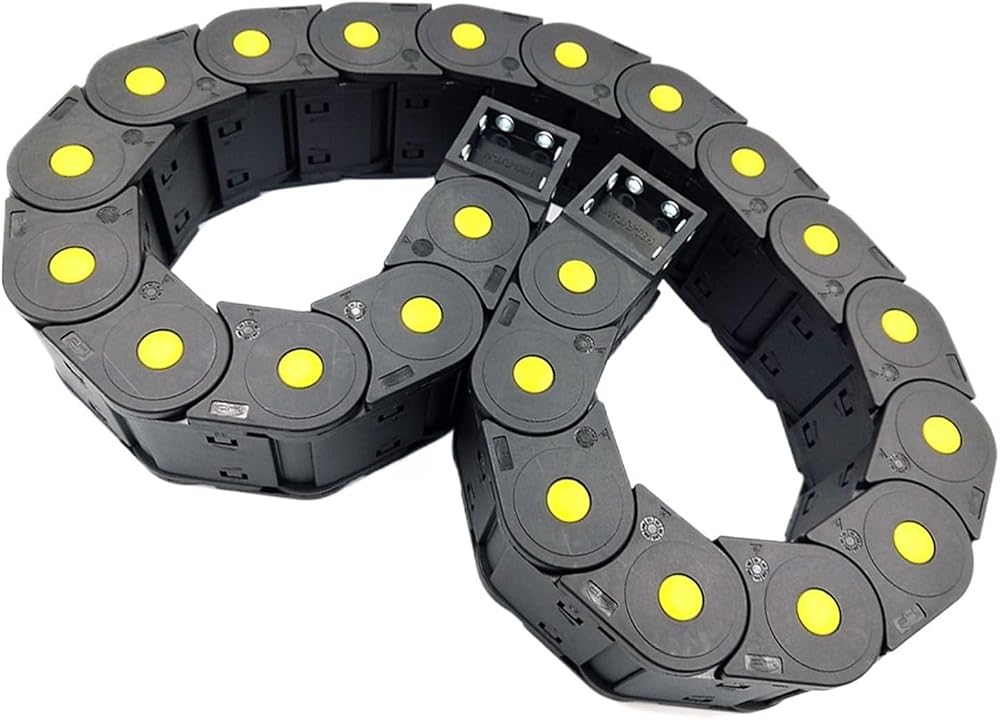

H35x125mm Enhanced Wire Carrier Cable Drag ChainClosed Type Open On Both SidesWith End Connectors TowlineFor CNC Router Machine ToolsEquipment Cable Protection
Package includes:
1 Meter X Drag Chain (Length includes both end Connectors)
Quick selection of specifications:
H35x50mm,H35x75mm,H35x100mm,H35x125mm..
Towline selection of main parameters:
Within high: Select built-in cable, tubing, pipe, pipe, etc. As one of the most coarse reference height,plus at least 10% of the height of the space within the towline as high. If the overlap byoverlapping the actual height as the reference height.
Wide: Choose thicker some cables, tubing, pipe, water pipes, with its outer diameter and as thetowline wide reference, and stay at least 10% of the width of the space.
Bending radii R: choose built-in cable, tubing, pipe, pipe, etc. The maximum bending radius as a reference value, and left more than 10 percent of the space.
Use towline length = R + 0.5R + stroke / 2
After bending towline total height = 2R + external high
Towline place principles:
Should leave 15% of the remaining space for built-in cable, tubing, etc., may move freely in theradial direction of the towline does not produce tension. Larger diameter difference between thewire should be laid separately, weight distribution, if necessary, be separated by the dividing sheet.
In the high-speed or high-frequency operation, to try to make the wires apart from each other on a level, do not make it mutually stacked more time in the cable, pipe, tubing, etc. is recommended to
use separators.
==========
Model Number : 35 Series Enhanced
Item Type : Mechanical Kit/Hardware Parts
Inner Size : 35X125mm
Outer Size : 55X147mm
Max outer diameter of cable : 30mm
Pitch : 71.4mm
Link Per meter : 14
Material : Plastic

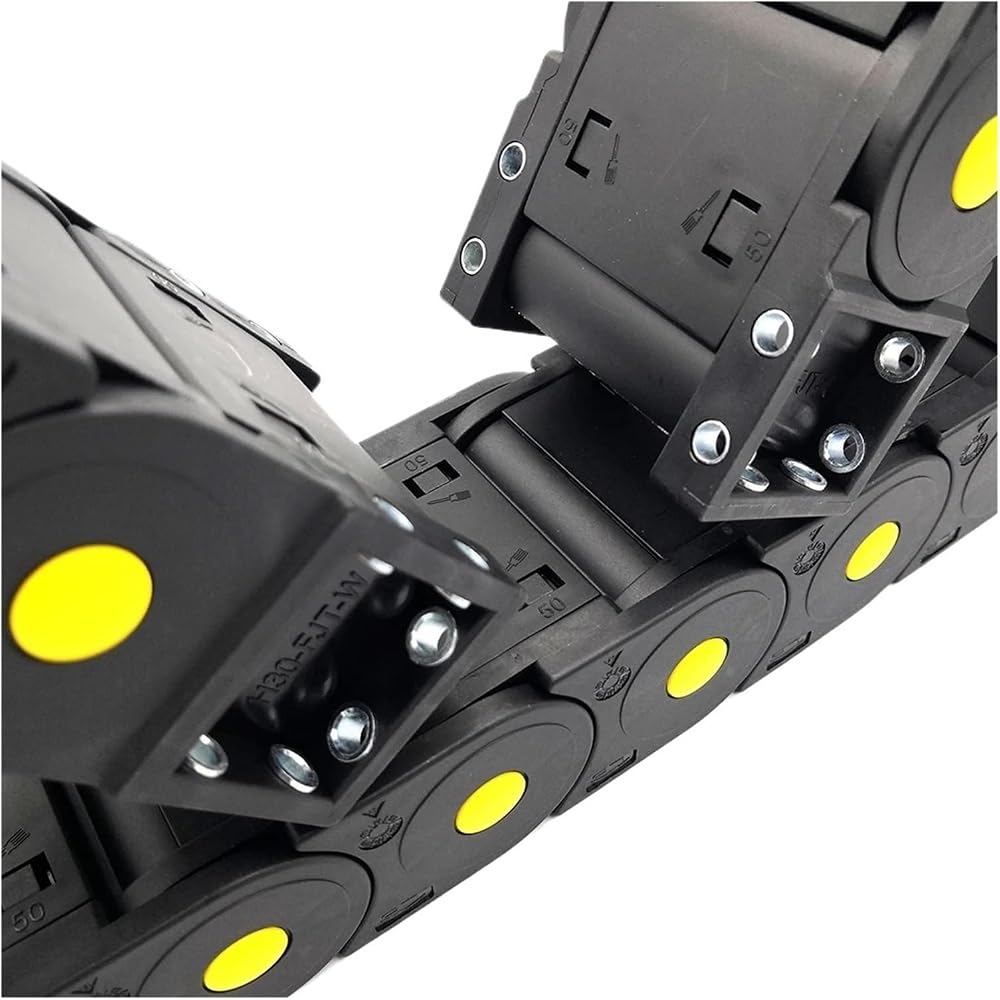

Structure : Closed type and both sides can be opened
With Connector : Yes
Small mechanical equipment : Trailer Car
Equipment Cable Protection : Leaf Chain
Transmission chain : Machinery and equipment trailer
Customized : Yes
