Bearings

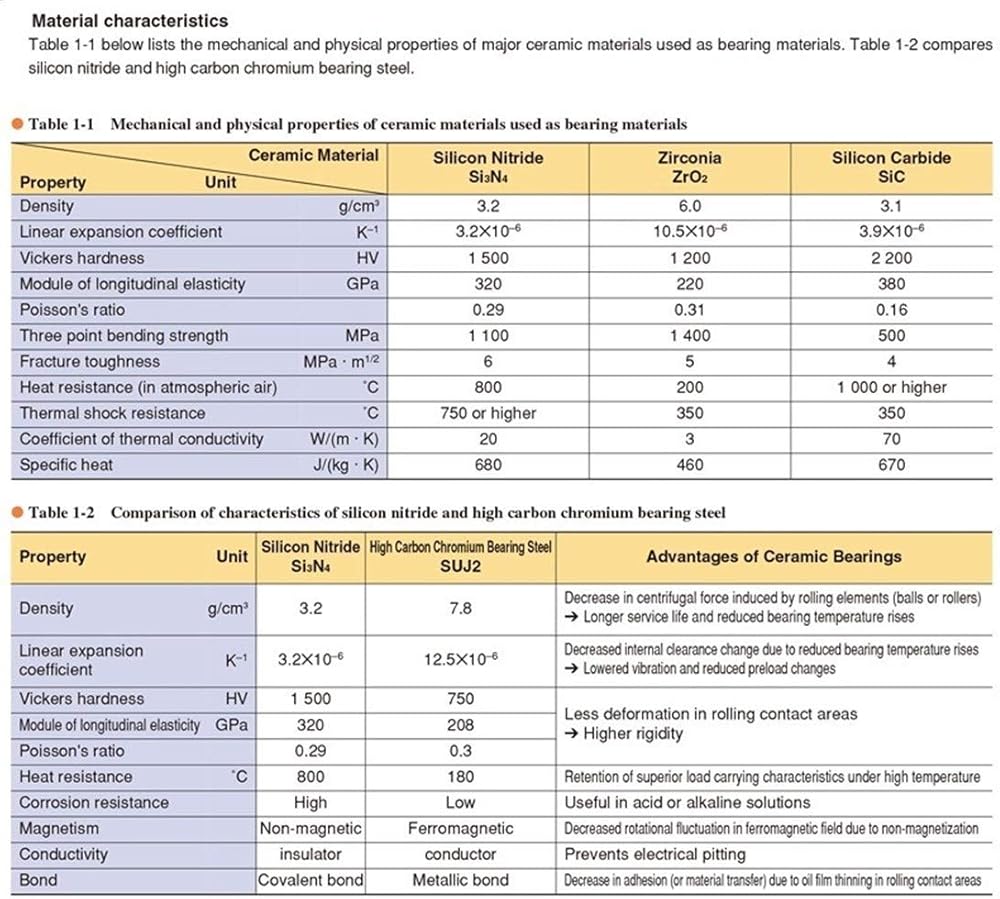

1 Properties of full ceramic materials
Ceramic Bearings including components made from ceramic have the special properties that steel bearings do not have such as being non-magnetic or insulating. They can be used in new applications where conventional bearings have not been practical.
Ceramic Bearings are highly heat resistant enabling a rolling bearing to be practical in a high temperature environment. The low density of ceramic decreases the centrifugal force induced by rolling elements (balls or rollers) contributing to an increased speed of the apparatus.
2 Structure of full ceramic Bearings
Full ceramic (All-ceramic) bearing of Si3N4 material
Full ceramic bearing made with Si3N4 have some better performance than ZrO2 the rings and balls made by full ceramic material:Si3N4 as a standard construction the cage made by PTFE Compares than the material of ZrO2 The SiN4 ceramics bearings could endure heavier load and could be used in higher temperature environment.

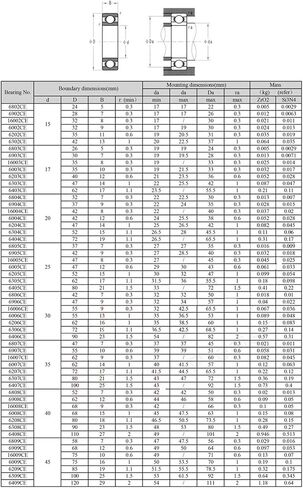

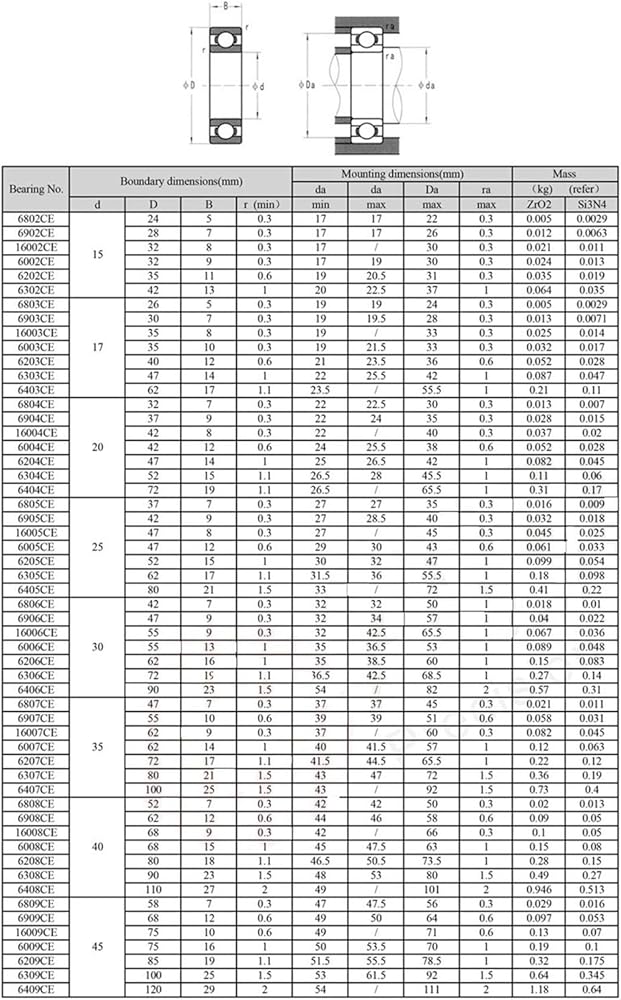

3 Dementions

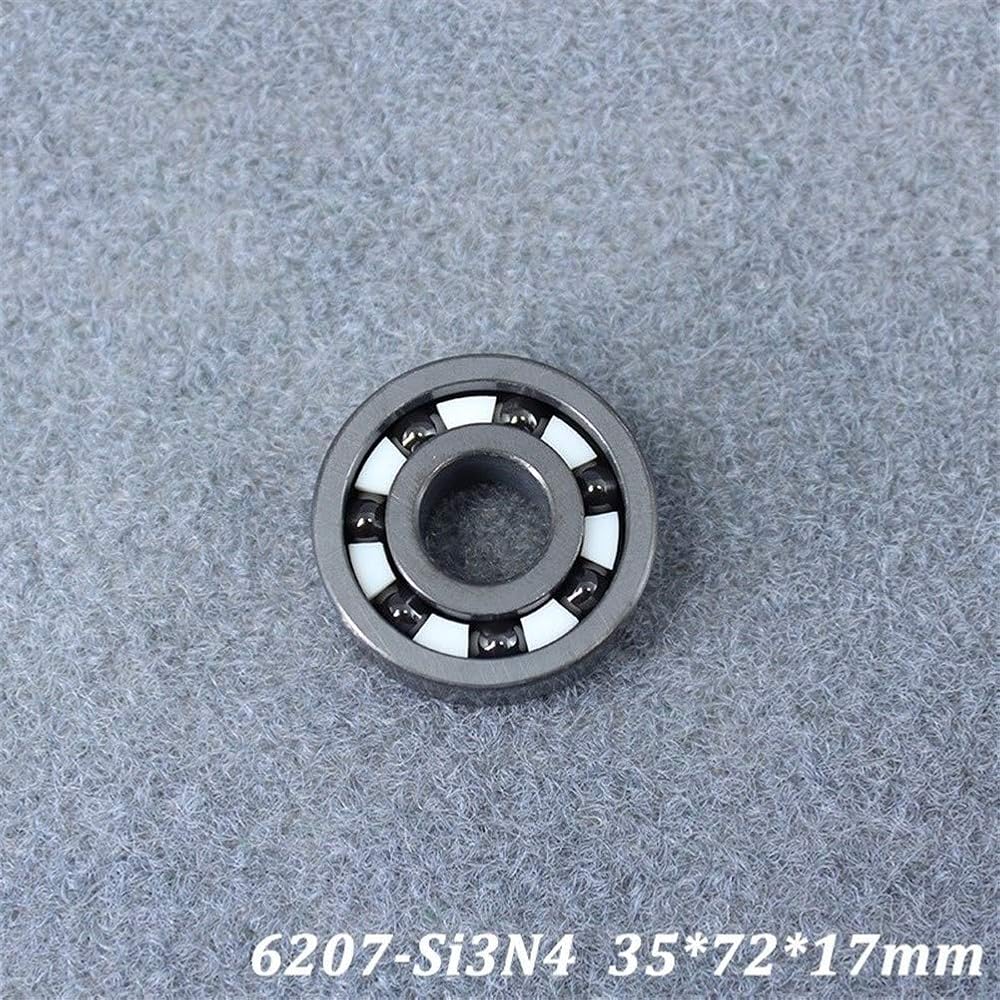

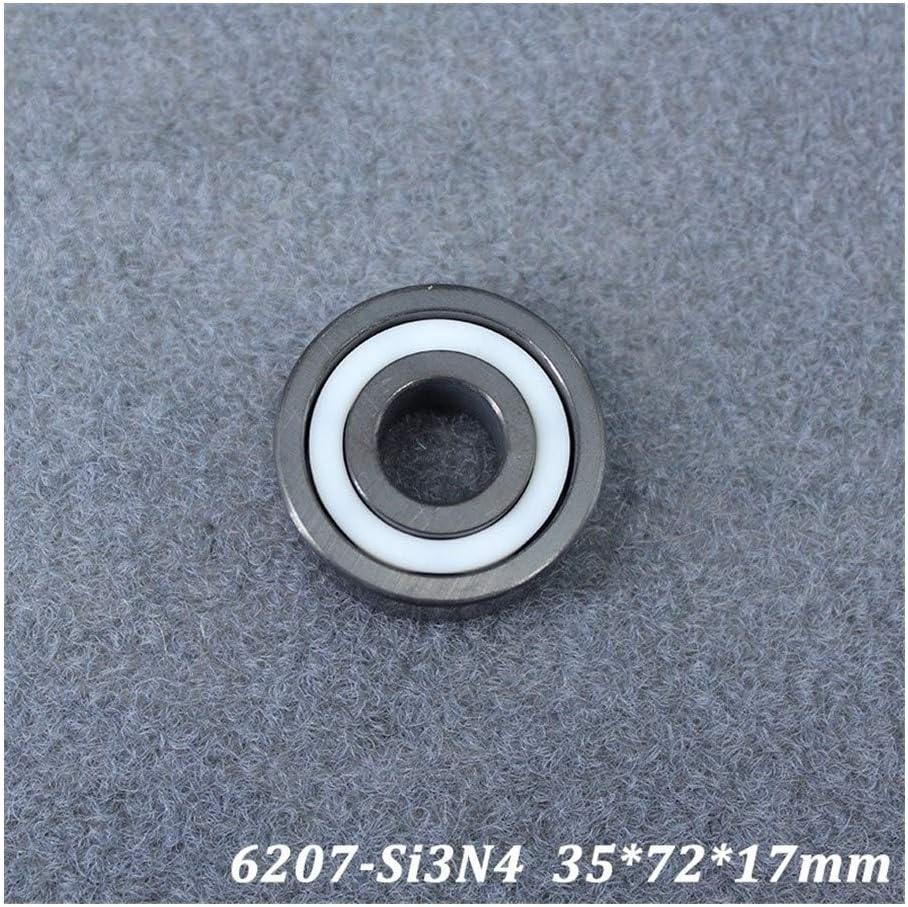

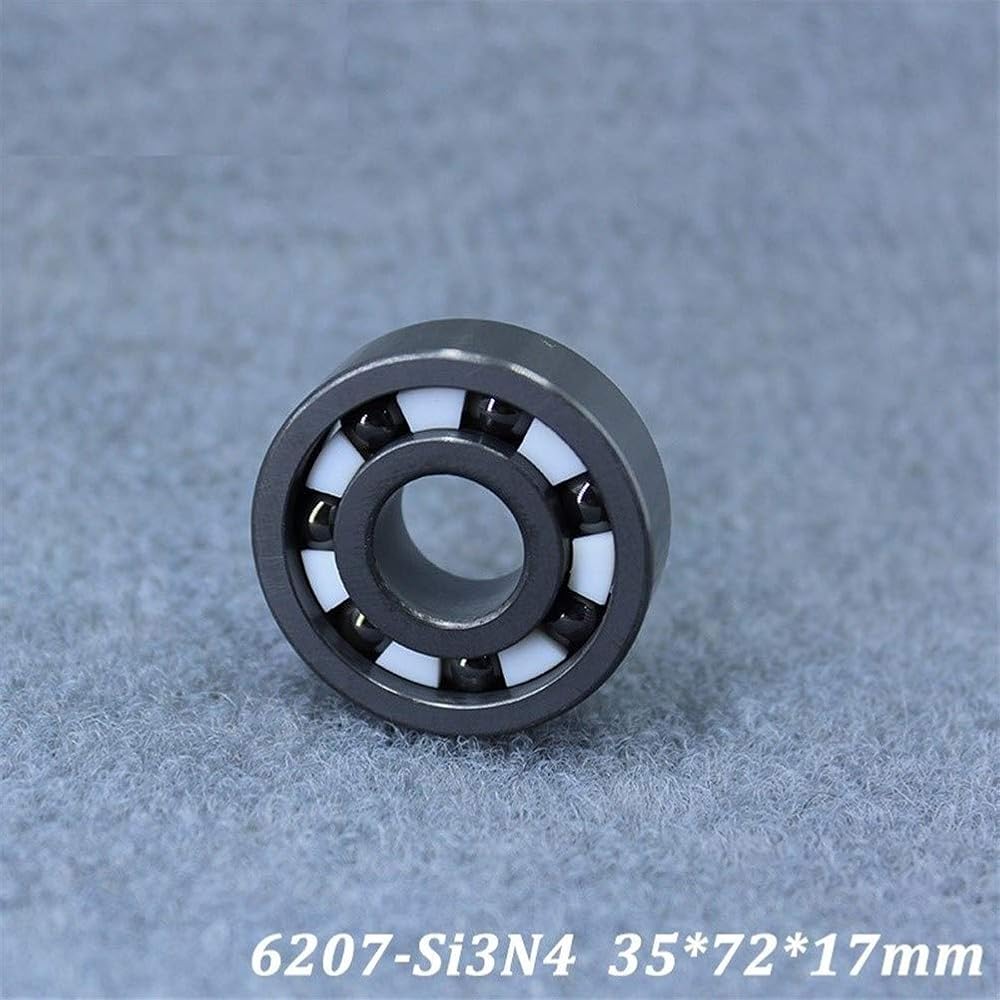

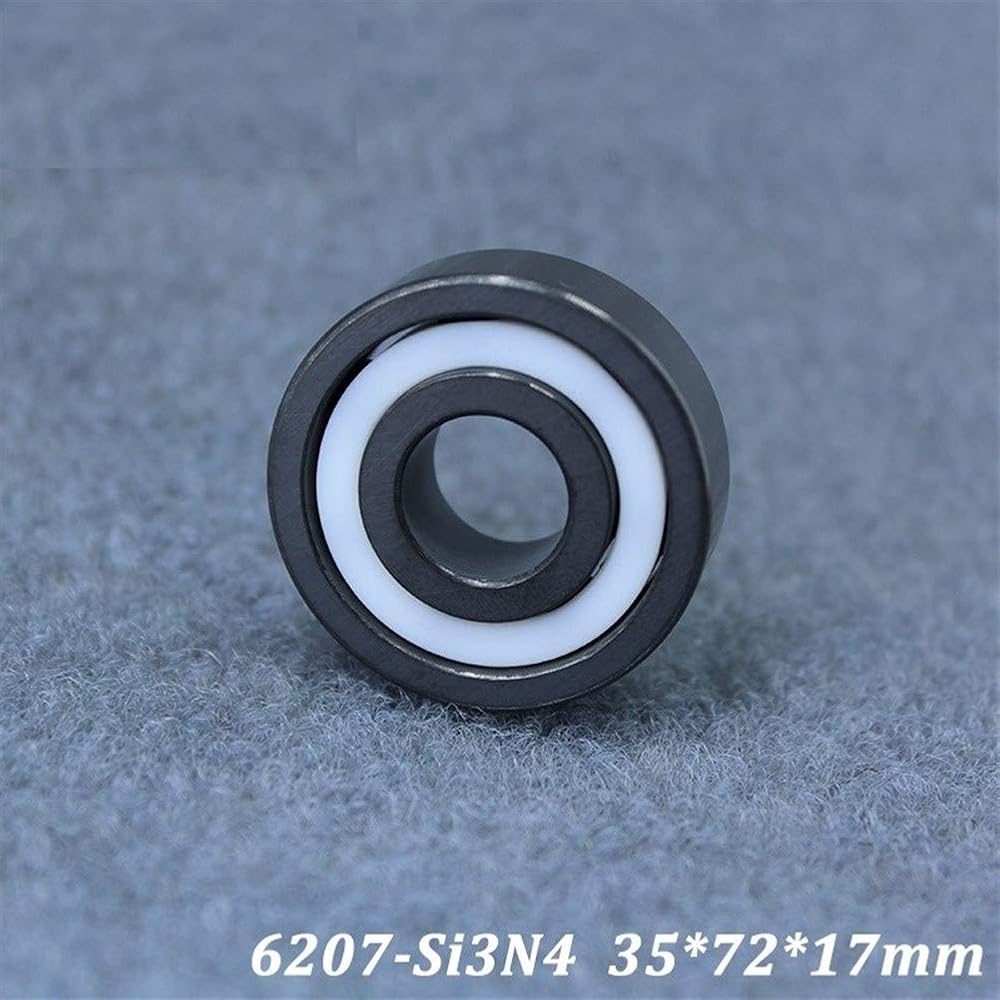

Item: 6207CE
Bore Dia (d): 35 mm
Outer Dia (D): 72 mm
Width (B): 17 mm
Cage Material: PEFT
Bearing Material: Silicon Nitride
Dynamic Load Rating (Cr) (N): 17990
Static Load Rating (Cor) (N): 17080
Max Speed (X1000 RPM): 16.5
Ball Qty: 9
Weight (g): 202
