Package included: All is included in the first picture.Material: Silver Copper.Rated currents (Amperes): 15 A.Rated Voltage (Volts): 600 V.
Suitable for 0.5mm2-1.3mm2 (20-16 AWG) cables. Medium Contact Resistance (micro ohm): <500. Test Voltage Resistant (AC / DC Volts): 2200V. Contact Retention Force (lbf) 25lbf.
No load (contact / disconnect cycles): At 10,000.Under load (Hot Plug 250 cycles @ 120V) .Minimum insertion force (pounds): 3-5lbf.Operating temperature ° C: -20 ° to 105 ° Flammability class of the housing material: UL 94-V0.
Flat wiping contact system, High current minimum contact resistance The wiping action cleans the contact surface during connection / disconnection. Colored modular housings, provides a visual identification of the compatible connector.
Molded Dovetail Ends, Secures Individual Connectors in "Keyed" Assemblies That Prevent Connection Errors With Similar Configurations.Design without sex, makes assembly quick and easy, and reduces the number of parts stored

The package included:

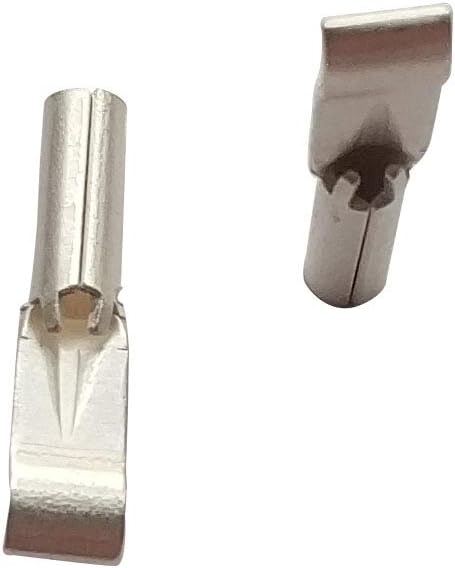

if you want to choose the quantity 10: there is 10Pcs red housing, 10Pcs black housing, 20pcs Silver plated copper contacts.10 pcs PVC cover.

if you want to choose the quantity 20: there is 20Pcs red housing, 20Pcs black housing, 40pcs Silver copper contacts .20pcs PVC cover.

if you want to choose the quantity 30: there is 30Pcs red housing, 30Pcs black housing, 60pcs Silver copper contacts, 30pcs PVC cover.

if you want to choose the quantity 50: there is 50Pcs red housing, 50Pcs black housing, 100 pcs Silver plated copper contacts, 50 pcs PVC cover.
