0.5kw محرك المغزل المبرد بالهواء ER16 Chuck 500W DC عالية السرعة 110VDC 12000 دورة في الدقيقة in Kuwait 0.5kw محرك المغزل المبرد بالهواء ER16 Chuck 500W DC عالية السرعة 110VDC 12000 دورة في الدقيقة in Kuwait

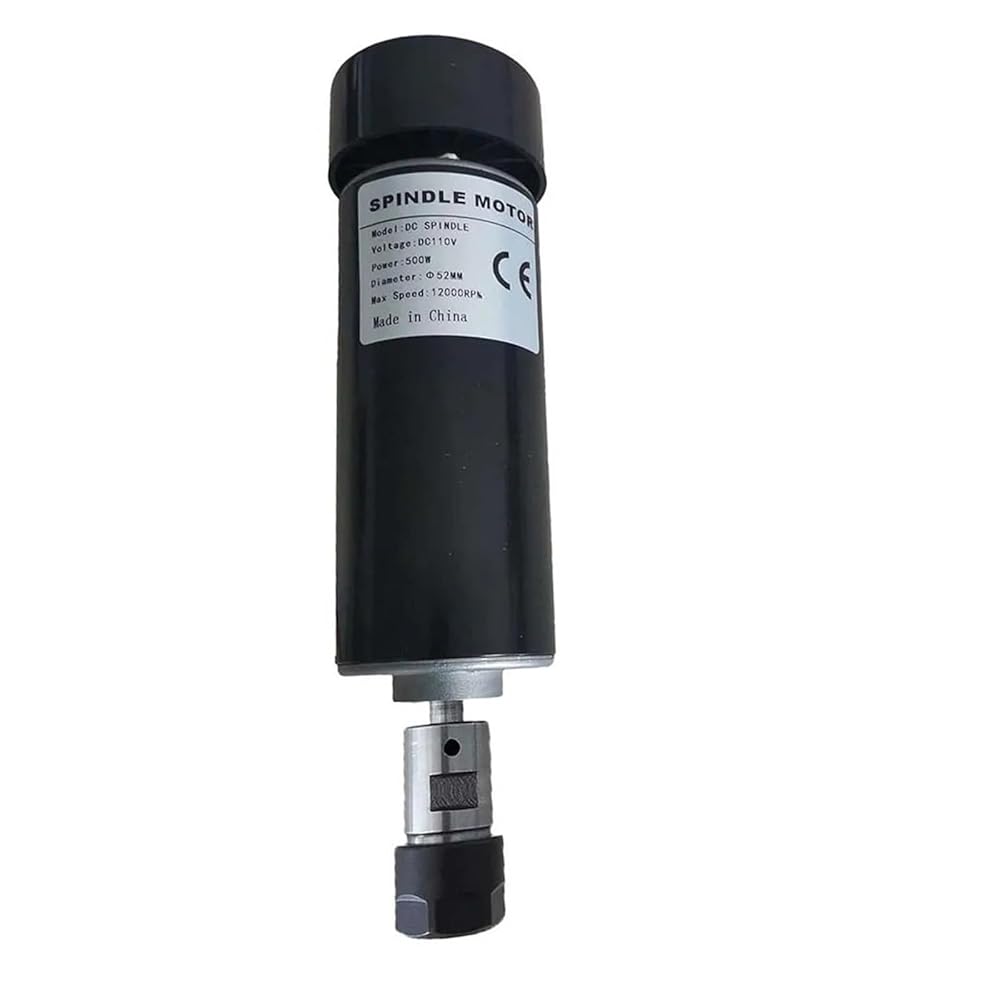

0.5kw محرك المغزل المبرد بالهواء ER16 Chuck 500W DC عالية السرعة 110VDC 12000 دورة في الدقيقة

KWD 81.500
ماركة
PHTJALIF
فئة
مهاوي
وزن
177 g
– 1 +

مميزات خاصة

  • Rotary Shafts
  • Durable Construction: Constructed with sturdy 52mm aluminum clamp and high-insulation motor
  • Precision Engineering: This spindle has a runout of 0.02-0.05 mm, ensuring consistent and reliable performance.
  • Inverted DC Motors | Standard Motor Product Manufacturing | High Speed ​​Performance: Maximum Speeds up to 12,000 RPM
  • Multiple power options: The spindle motor is available in 110V and 220V configurations

وصف

Rotary Shafts
Working voltage: 0-110VDC
Power: 500W
Speed: Unloaded 12,000 rpm maximum
Torque: 0.59NM
Insulation resistance: >2 megohms
Dielectric strength: 400V

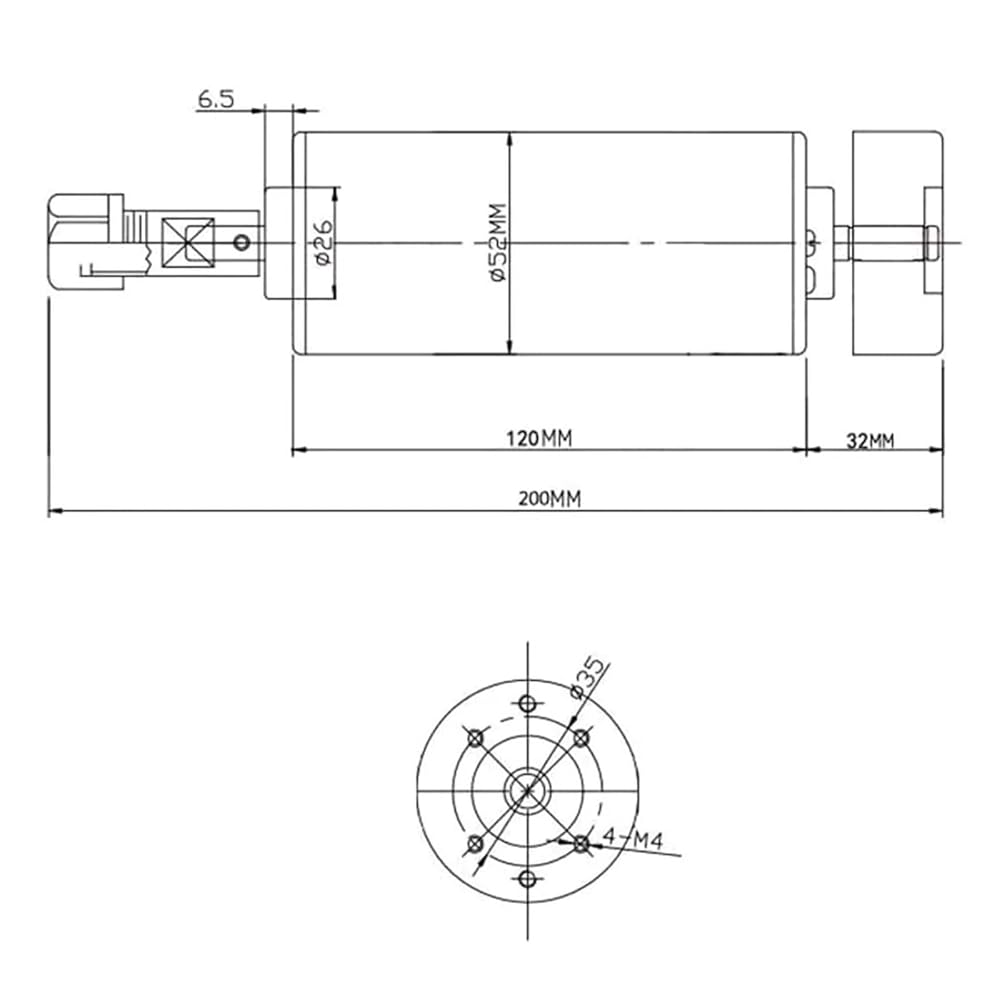

Diameter: 52 mm
Chuck length: 45MM
Chuck diameter: 16mm
Motor length: 200MM
High precision spindle runout 0.02-0.05
