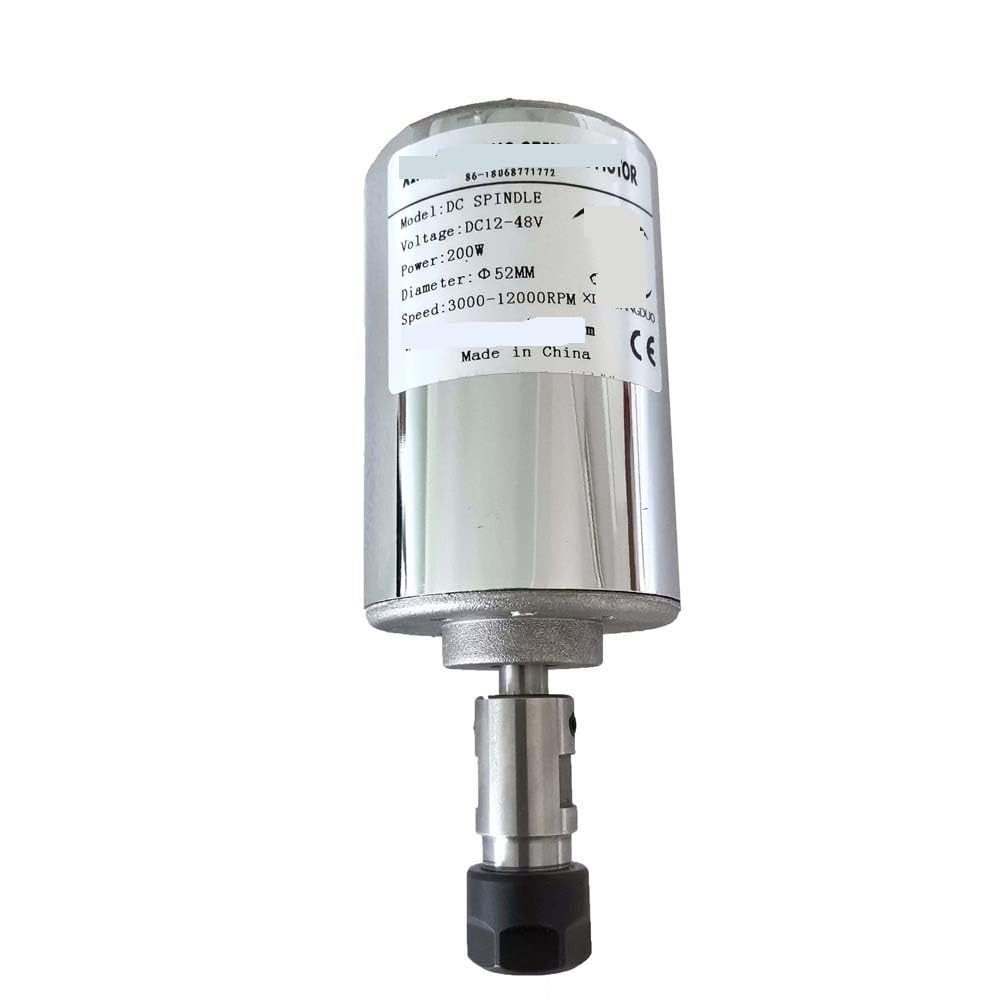

200W/300W/400W/500W مغزل محرك DC Motor ER11 أو ER16 (300W ER11 المغزل) in Kuwait

200W ER11 المغزل

KWD 81.500
ماركة
PHTJALIF
فئة
مهاوي
وزن
158 g
مقاس200W ER11 المغزل
– 1 +

مميزات خاصة

  • Rotary Shafts
  • Power range: The spindle motor power is 200w to 500w
  • Speed ​​range: spindle motor speed from 3000 to 12000r/min
  • Torque: The torque value of the spindle motor ranges from 280mN.m to 550mN.m
  • Insulation resistance: Reach >2 Mo insulation resistance, the spindle motor ensures safe operation.
  • Air-cooled design: Air-cooling function enables efficient operation without the need for additional cooling fans.

وصف

Rotary Shafts
Working voltage: 12-48VDC
Power: 200W
Speed: 3000-12000r/min (12V-3000 rpm, 24V-6000 rpm, 36V-9000 rpm, 48V-12000 rpm)
Torque: 280mN.m
Insulation resistance: >2 megohms
Insulation dielectric strength: 400V
Diameter: 52 mm
Chuck length: spindle including nut and interlayer 41MM
Diameter of the chuck: 16mm (the default size of the chuck is 3.175mm)
Total motor length: 141mm (including clamping area and motor)
The spindle radial runout is about 0.01-0.03.
This motor has no fan, please do not operate it continuously for a long time!
Net weight of a single motor: 620g
