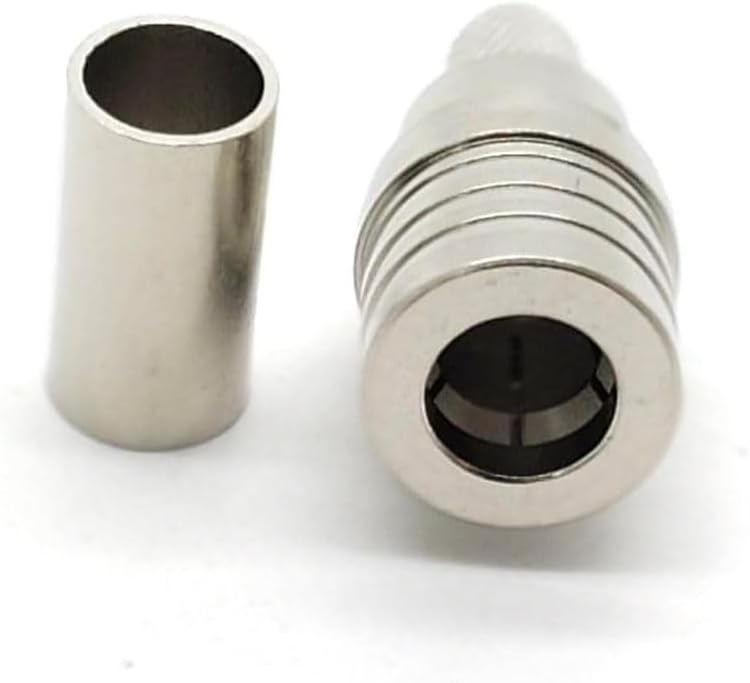

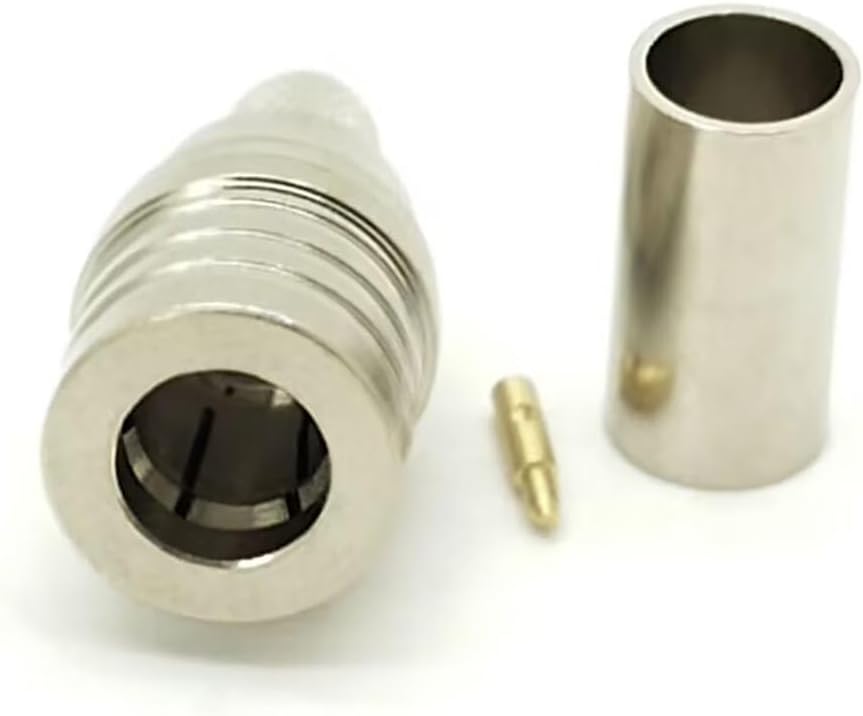

Experience superior connectivity with this QMA connector plug designed for RG58 cable applications.
Operating at 50 ohms nominal impedance with frequencies up to 6GHz, this straight male connector features an innovative snap-fastening mechanism that replaces traditional threaded connections, enabling quick and efficient mating.

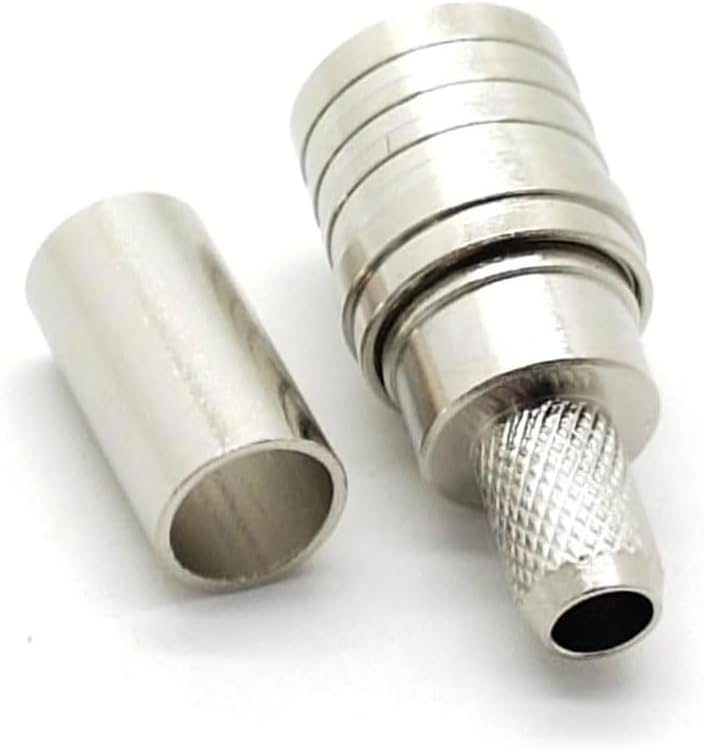

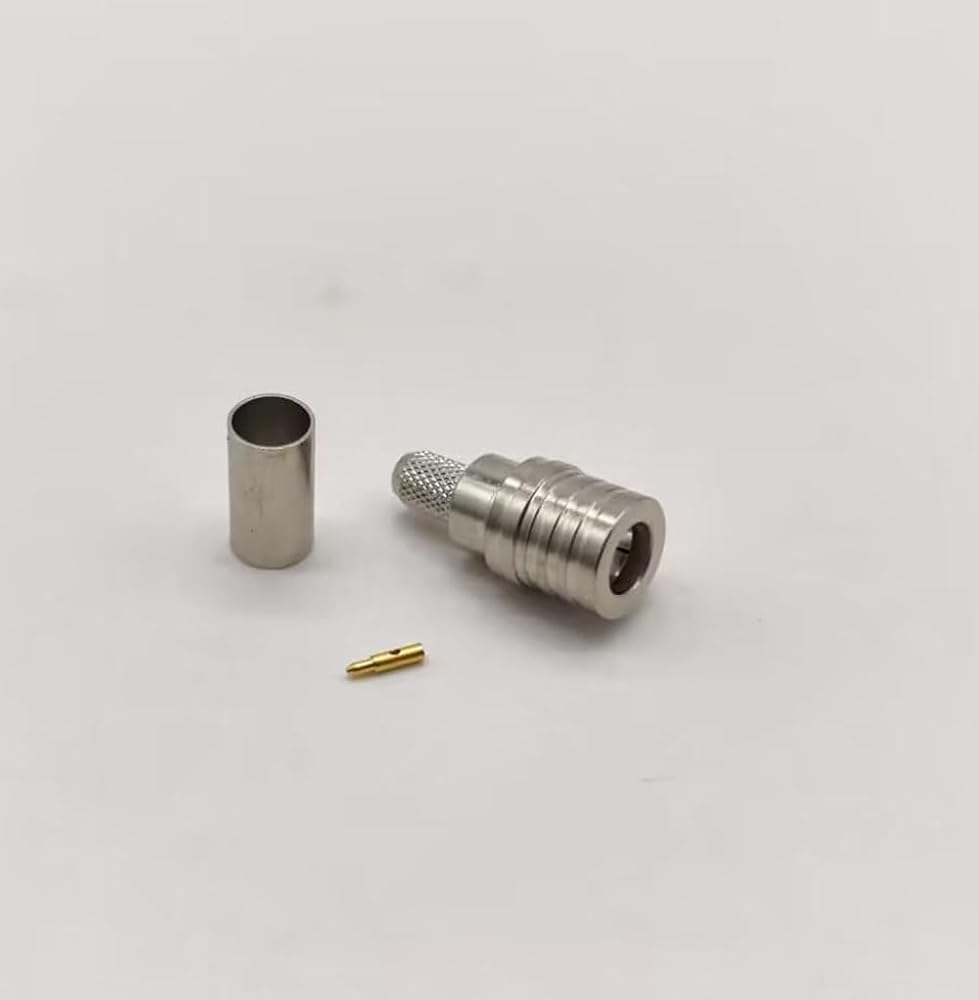

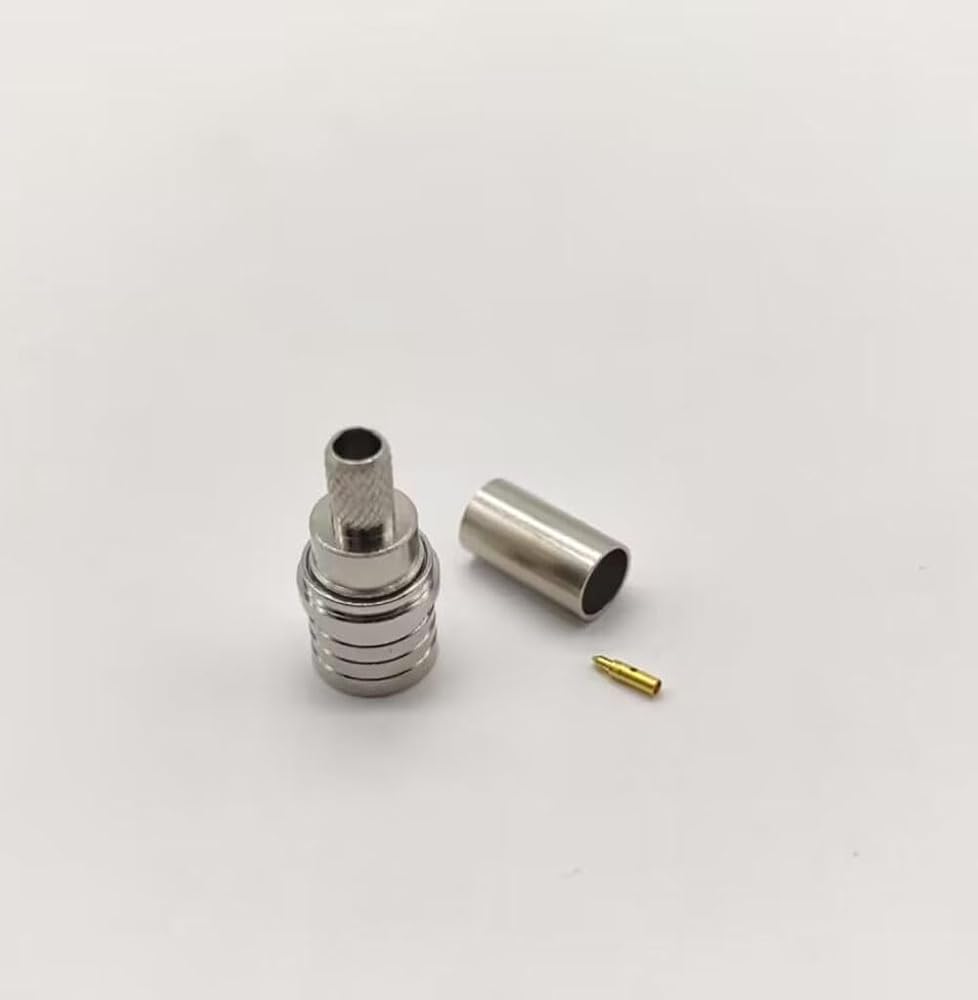

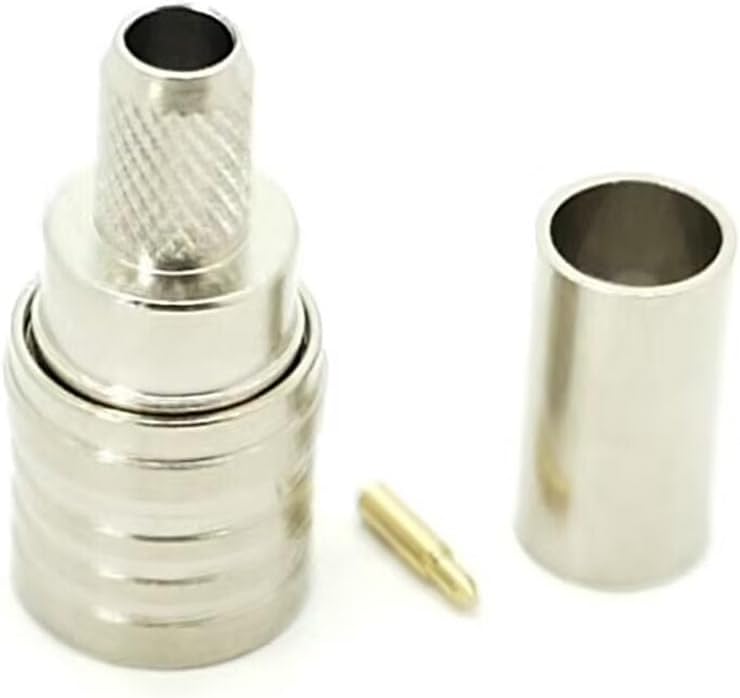

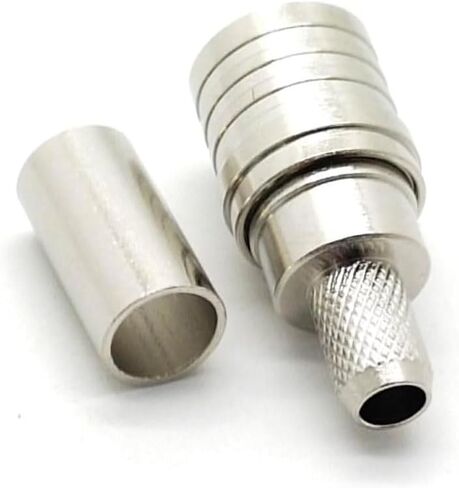

The crimp termination design allows for 360-degree cable rotation after installation, providing enhanced flexibility in your setup.
Perfect for demanding applications in telecommunications, cellular base stations, antenna systems, radar installations, and military-aerospace equipment.
The bronze construction ensures durability, while the cable mount design makes installation straightforward.

Techinial Datasheet
Electrical Characteristics
Impedance50 Ohm
Frequency Range DC- 6 GHz
VSWR：≤1.20@DC-3GHz
Dielectric Withstanding Voltage≥1000V RMS,50Hz
Dielectric Resistance ≥5000 MOhm
Working Voltage ≤480V
Contact Resistance Center Contact ≤2.5m Ohm
Outer Contact ≤3.0m Ohm

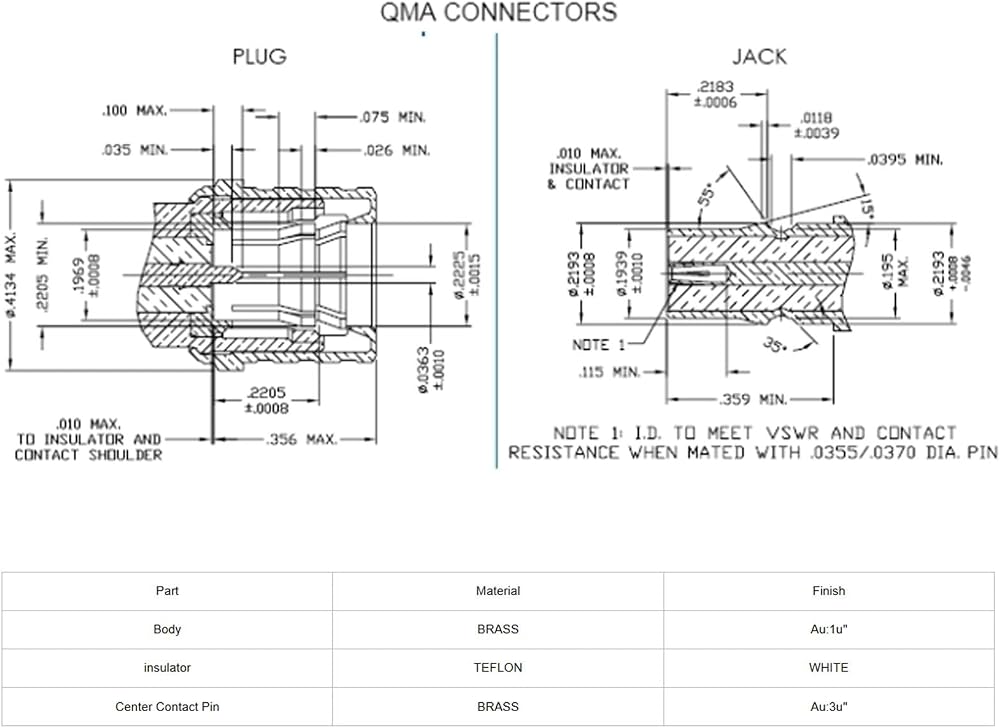

Mechanical Characteristics Inteace Retention Force ≥60N
Durability (Mating times) ≥200
These characteristics are typical and may not apply to all connectors.
Outer Contact ≤3.0m Ohm
Environmental Characteristics
Temperature Range：-65°C to +165°C
