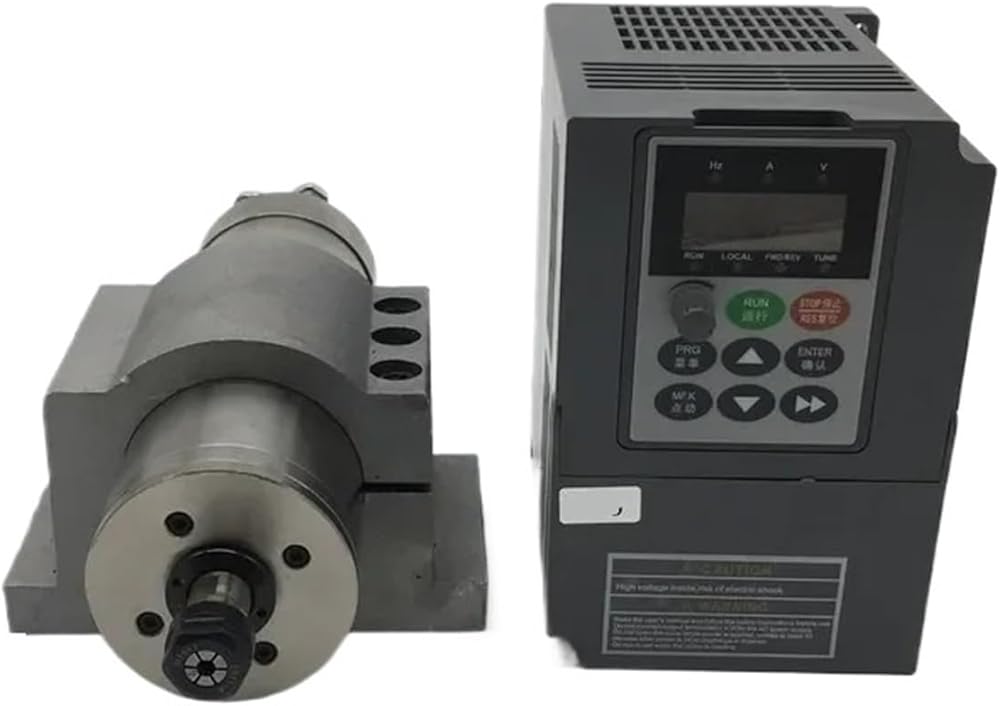

packing list:
1*1.5KW spindle motor
1*1.5kw inverter
1*spindle bracket

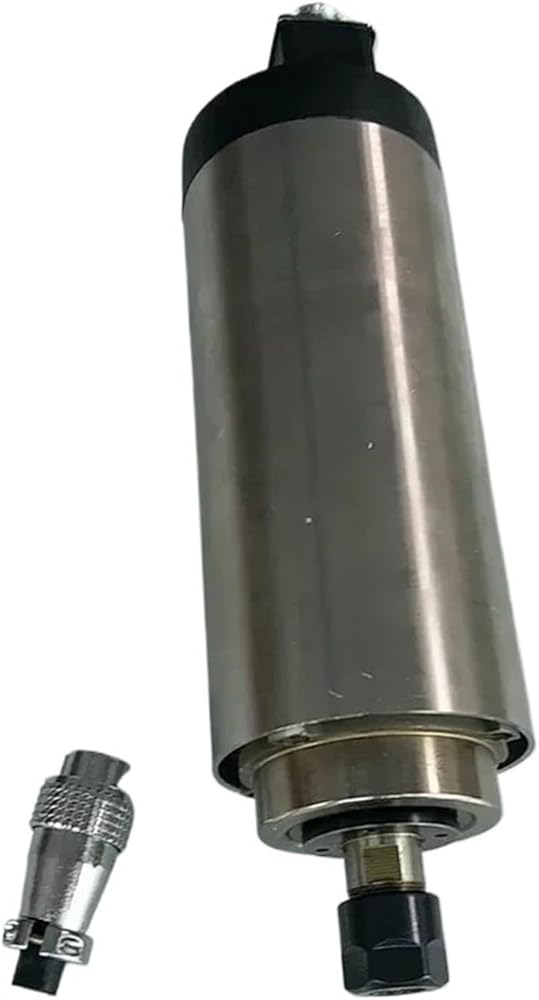

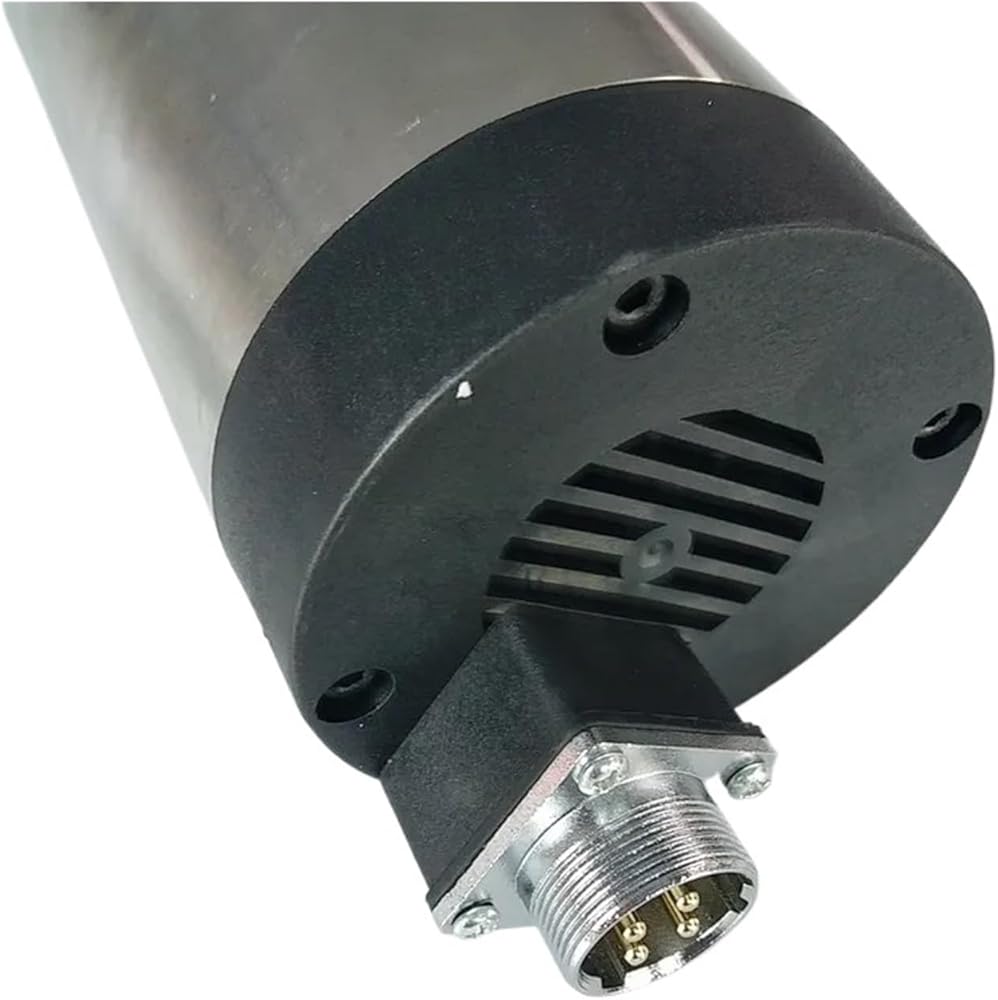

Spindle parameters:

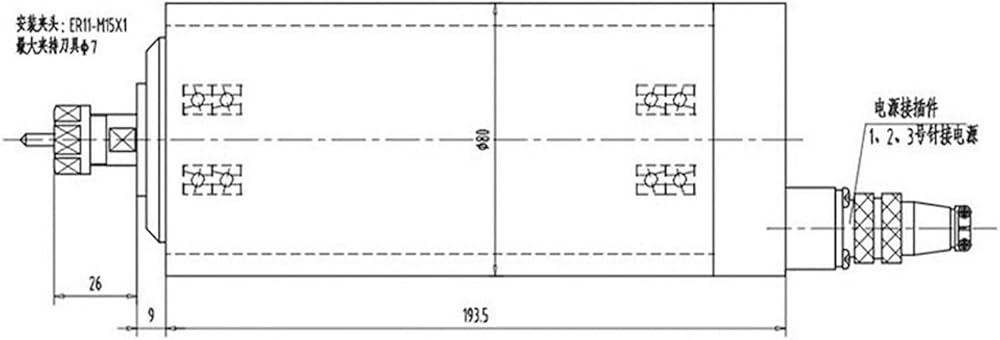

Diameter: 80 mm
Cooling method: air cooling
Power: 1.5kw
Voltage: 220VAC (must be used with VFD)
Current: 5A
Frequency: 0-400Hz
Speed: 0-24000rpm
Chuck: ER11
Clamping knife diameter: 1-7MM
Runout deviation: 0.01mm (high precision)
Bearing type: 2X7002C P4 DT and 2X7000C P4 DT

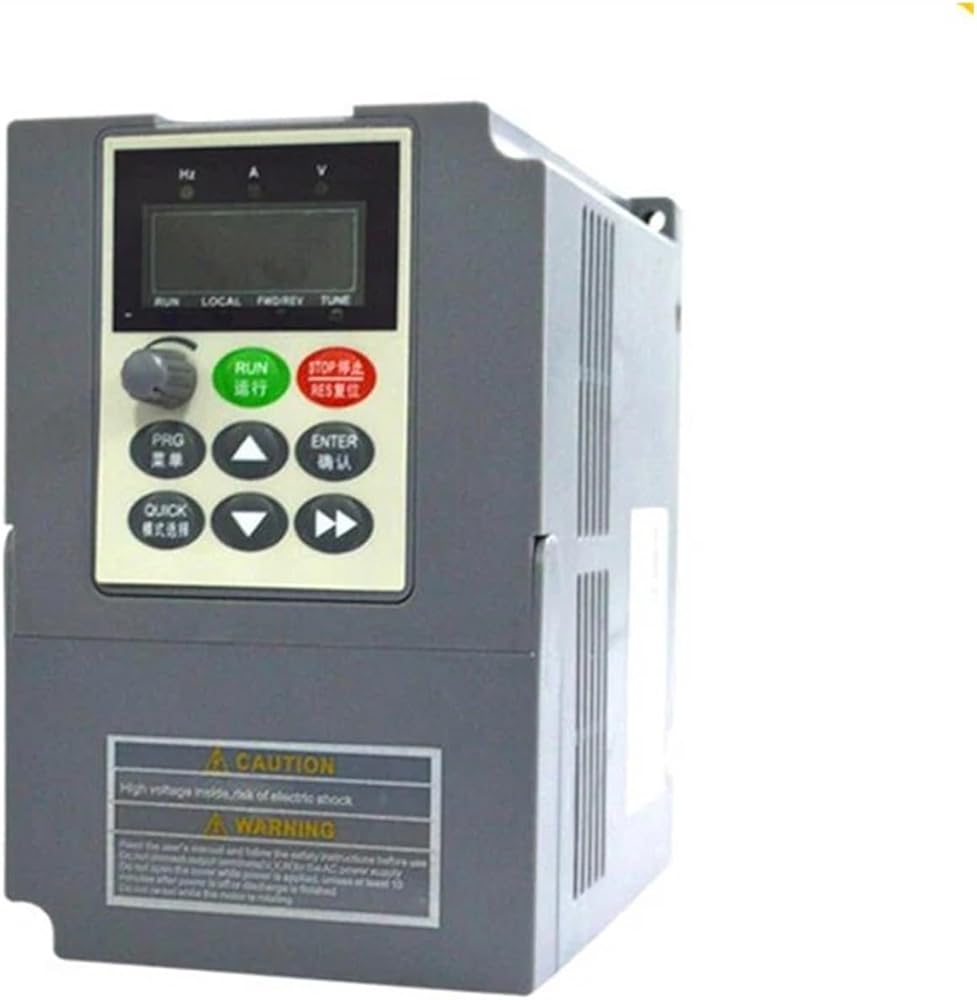

VFD Specifications:
Model: V8M2S1R5GB
Power: 1.5Kw
Input voltage: single phase 190~250V
Output voltage/current: 3-phase 0~220V/7A
Frequency input: 50/60Hz
Output: 0~400Hz
Working temperature: -10~40 degrees
Humidity: 0-95% relative humidity (no condensation)
Material: Industrial ABS plastic
Protection level: IP20
Cooling type: air cooling

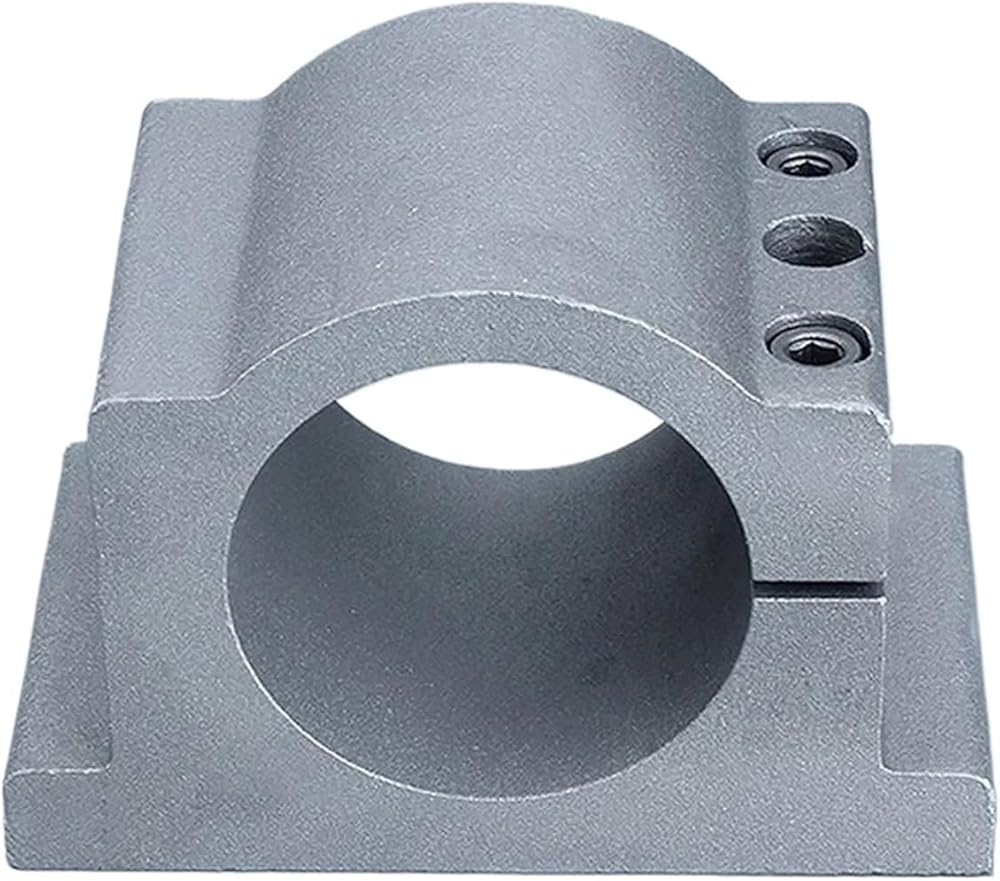

Aluminum bracket:
Diameter: 80 mm
Material: cast aluminum
Certification: CE
Origin: Mainland China
Drive mode: motor
Operating speed: 24000RPM
Model: GDZ80F-1.5-ER11-220+V8M2S1R5GB
