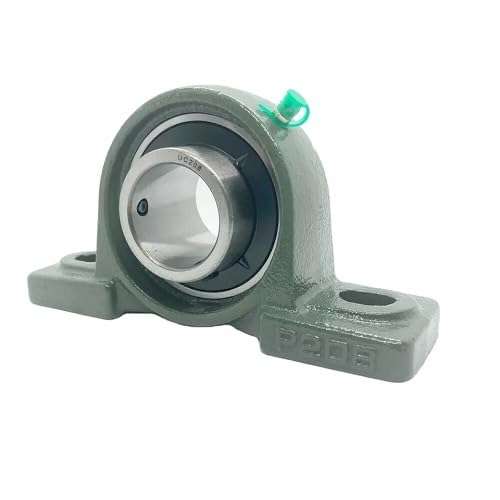

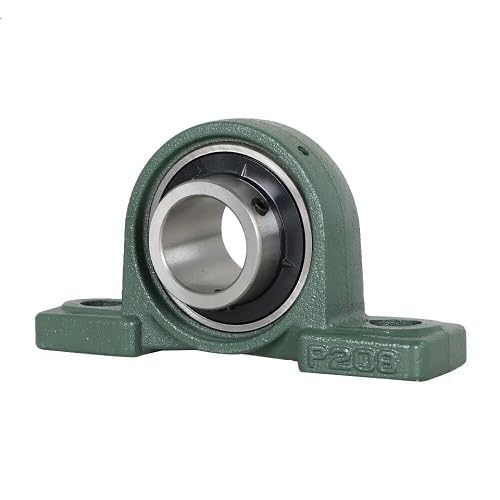

Manufacturer Part Number - UCP206-17
Bearing Insert Type - Radial Ball
Bearing Insert Material - Alloy Steel
Bearing Material Grade – 52100
Shaft Locking Type - Set Screws
Bore Diameter – 1 1/16 in
Bore Diameter Tolerance - +/- 0.0007 in
Mounting Surface to Shaft Center Height – 1-43/64 in
Mount Hole Center-to-Center Length - 4-3/4 in
Mount Hole Center-to-Center Width - 4-3/4 in
Base Height - 0.669 in
Base Width - 1.732 in
Mount Type - Bolt-Through
Number of Mount Holes – 2
Mounting Bolt Size - 1/2 in
Housing Material - Cast Iron
Housing Material Finish – Painted
Overall Length – 6.299 in
Overall Width – 1.5 in
Overall Height – 3.307 in
Static Radial Load Capacity - 2,540 lbf
Dynamic Radial Load Capacity - 4,383 lbf
Closure - Double Sealed
Seal Type – Contact
Seal Material - Synthetic Rubber

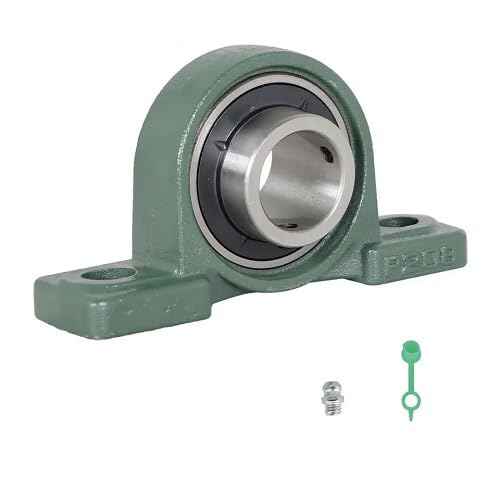

Lubrication Openings - Grease Fitting
Lubricant Material – Grease
Maximum Temperature - 250 °F
Minimum Temperature - -40 °F
Resistance Properties - Corrosion Resistant; Rust Resistant; Wear Resistant
Features - Anti-Rotation Device; Dual Heavy-Duty Slinger Type Contact Seals; Grease Fitting for Adding Lubricant; One-Piece Cast Iron Housing, Solid Base; Standard Duty Unit, Eccentric Locking Collar; Triple Lip Seals Available on Request; Wide Inner Ring Bearing
