LCD display Digital flow meter+ Plastic flow sensor Hall sensor meter

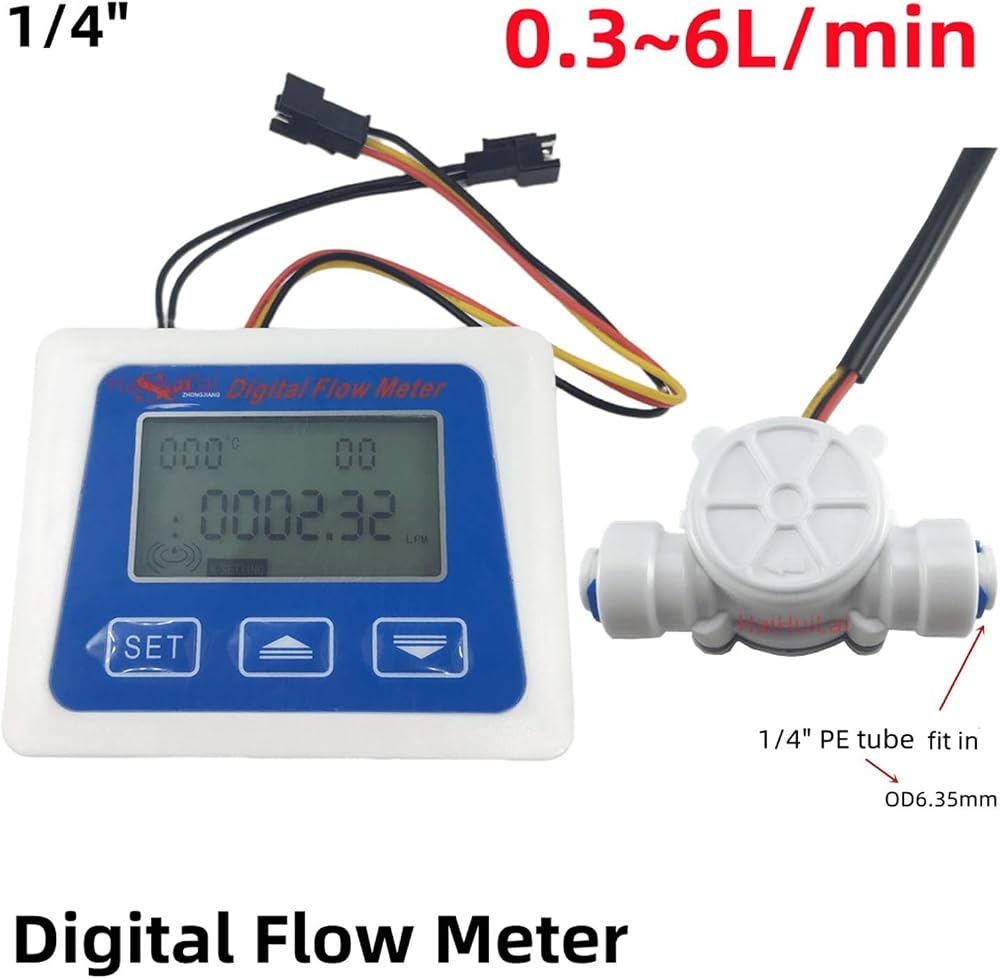

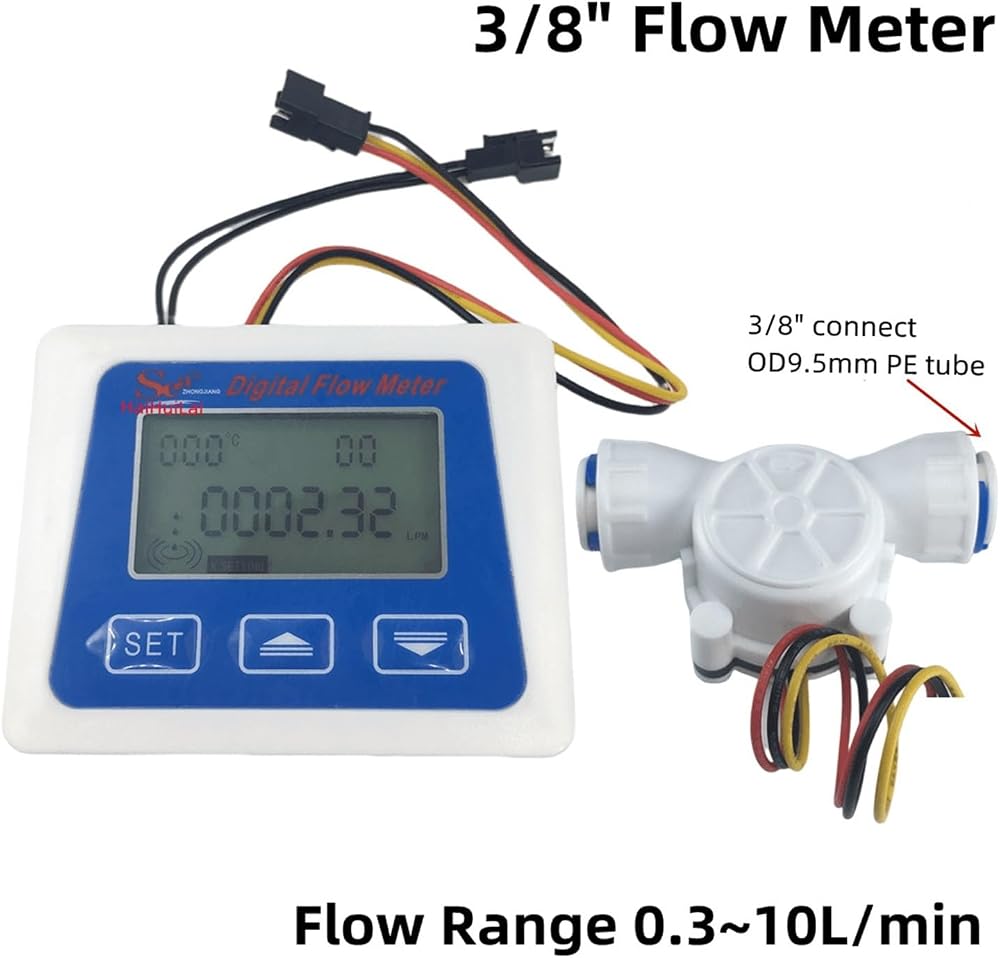

( Shipment : Digital Flow meter + 3/8" flow sensor or 1/4" flow sensor
3/8" Flow ran : 0.3~10L/min; 1/4" Flow ran: 0.3~6L/min

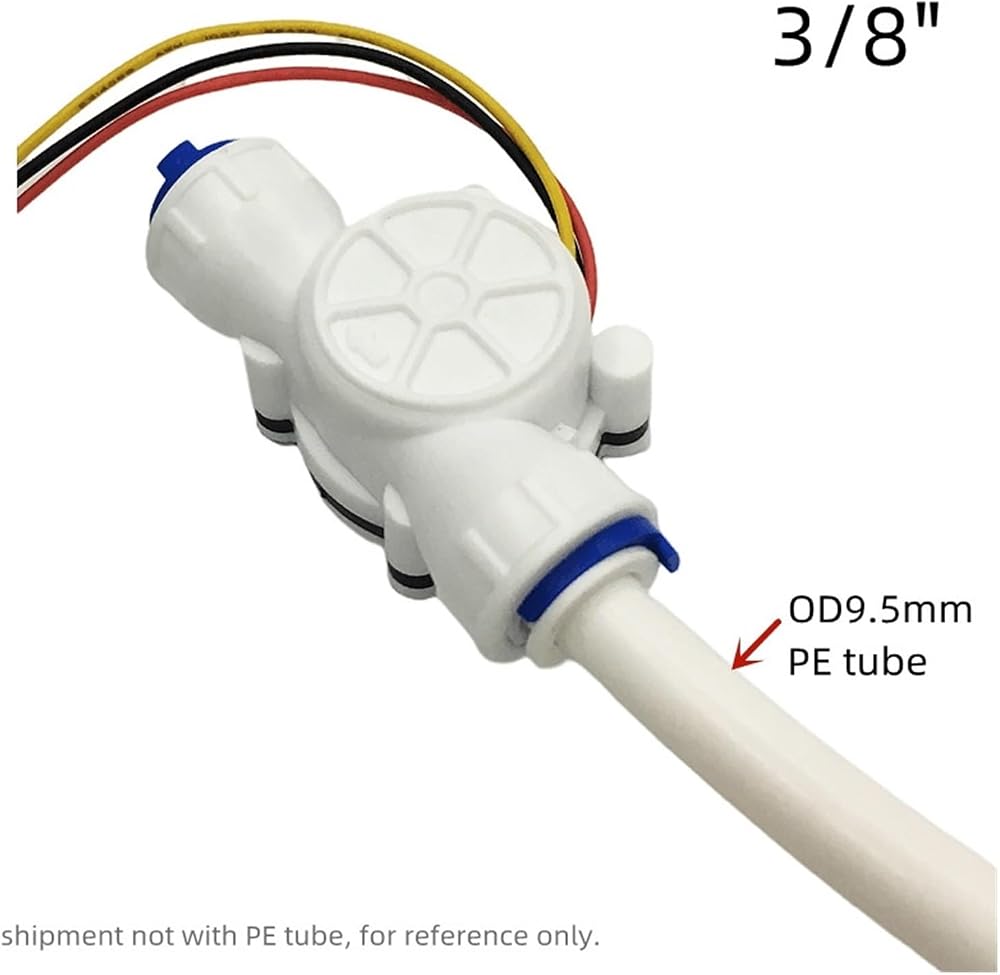

Flow Sensor :
Digital Flow Meter Manual Instruction
1. Keypad definition
Keypadfrom the left to the right, respectively, the keyset "SET", the keyplus "+", the key minus"-".
2.Display manual
1)Temperature:( Read 50K NTC only)
The temperature ran is -99 ° ~ 999 °, the unit C is the temperature, and F is the Fahrenheit temperature.
The temperature unit can be switched by pressing the "+" Up key.
2 ). Use time / flow rate display
flowmeter mode will automatically jump to the flow rate displayif there is water flowing.
Whenno water flowing, show the total timeDAY(only in water pressure mode show timeDAY).
The total time unit DAY is days, HRS ishours, time units can press the "+" key to switch.
The flow rate unit LPM means "liters / minute", GPM stands for "gallons per minute",
and can be switched by pressing the "-" key.
The current interface number is displayed under other interfaces: 00 indicates the K value setting interface (K SETING).
3) Power noted:
The power prompt will be displayed when the battery is low and flashing.
Reminder the user to replace the battery. In the case of adequate power it is not displayed.
4) Faucet animation (flowmeter only)
When detectedwater is flowing, the faucet animation will begin to show water droplets
5) Total water consumption, flow rate display
The total amount of water used in the unit L represents the rise, GAL means gallons, the unit can pass. When the total water consumption is less than 10000L (or GAL) will be accurate to the decimal point after the two, when the total water consumption is greater than 9999.99 L (or GAL) will hide the de
