HSTS023R إدخال ± 50a ± 100a ± 200A ± 300A ± 400A ± 500A ± 600A OUTPORT2.5 ± 0.625V 1 ٪ الجهد الإمداد+5V قاعة مستشعر CORE CARTER (اللون: 600A - 2.5V 0.625V) in Kuwait HSTS023R إدخال ± 50a ± 100a ± 200A ± 300A ± 400A ± 500A ± 600A OUTPORT2.5 ± 0.625V 1 ٪ الجهد الإمداد+5V قاعة مستشعر CORE CARTER (اللون: 600A - 2.5V 0.625V) in Kuwait HSTS023R إدخال ± 50a ± 100a ± 200A ± 300A ± 400A ± 500A ± 600A OUTPORT2.5 ± 0.625V 1 ٪ الجهد الإمداد+5V قاعة مستشعر CORE CARTER (اللون: 600A - 2.5V 0.625V) in Kuwait HSTS023R إدخال ± 50a ± 100a ± 200A ± 300A ± 400A ± 500A ± 600A OUTPORT2.5 ± 0.625V 1 ٪ الجهد الإمداد+5V قاعة مستشعر CORE CARTER (اللون: 600A - 2.5V 0.625V) in Kuwait HSTS023R إدخال ± 50a ± 100a ± 200A ± 300A ± 400A ± 500A ± 600A OUTPORT2.5 ± 0.625V 1 ٪ الجهد الإمداد+5V قاعة مستشعر CORE CARTER (اللون: 600A - 2.5V 0.625V) in Kuwait HSTS023R إدخال ± 50a ± 100a ± 200A ± 300A ± 400A ± 500A ± 600A OUTPORT2.5 ± 0.625V 1 ٪ الجهد الإمداد+5V قاعة مستشعر CORE CARTER (اللون: 600A - 2.5V 0.625V) in Kuwait

HSTS023R إدخال ± 50a ± 100a ± 200A ± 300A ± 400A ± 500A ± 600A OUTPORT2.5 ± 0.625V 1 ٪ Supply Voltage+5V Hall Split Currate Sensor (اللون: 100A - 2.5V 0.625V)

KWD 24
ماركة
KDNHVRQY
وزن
50 g
اللون100A - 2.5V 0.625V
– 1 +

مميزات خاصة

  • Current Sensors
  • HSTS023R Input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Output2.5±0.625V 1%Supply Voltage+5V Hall Split Core Current Sensor

وصف

Current Sensors

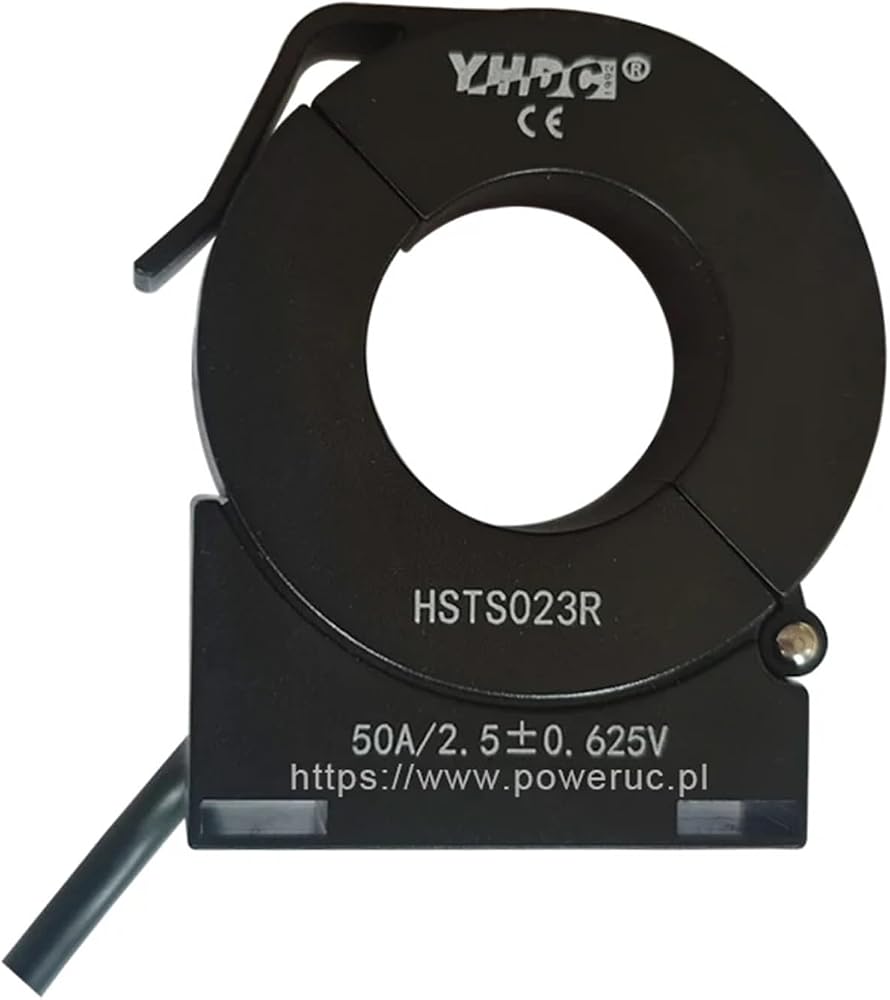

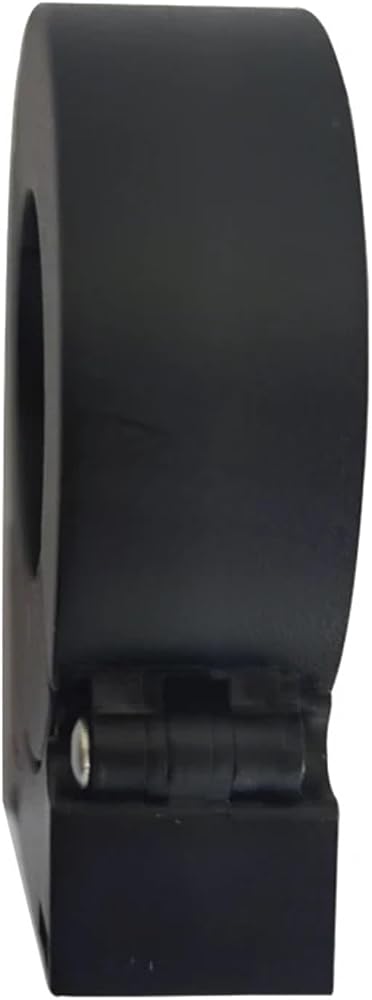

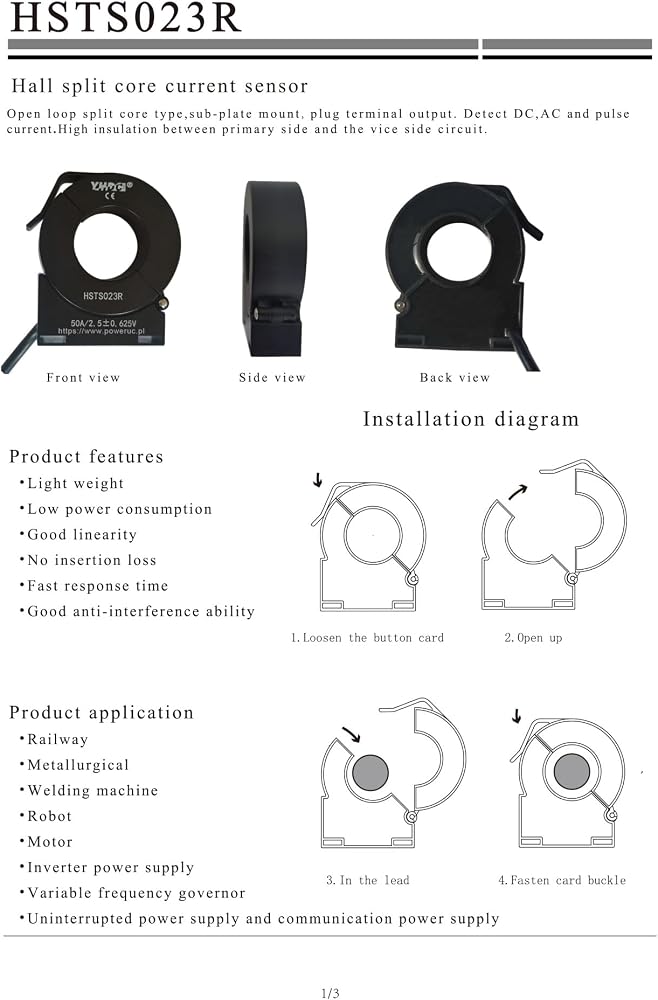

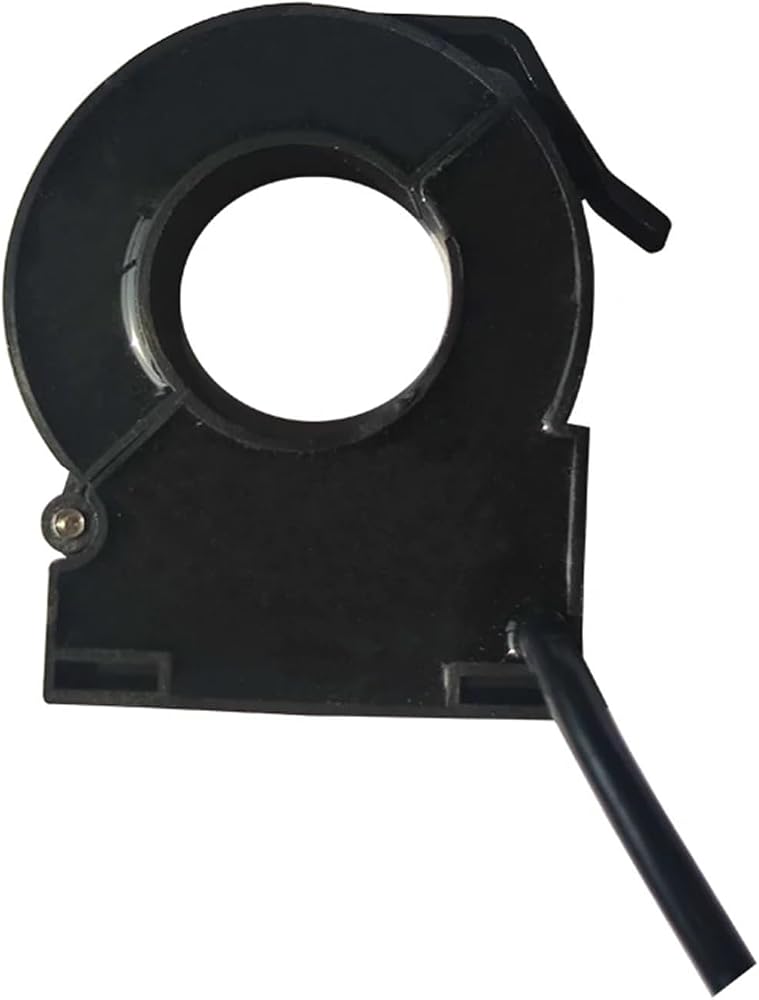

Hall Split core Current Sensor HSTS023R Input ±50A ±100A ±200A ±300A ±400A ±500A ±600A Output 2.5 ±0.625V Supply voltage +5V
MODEL:HSTS023R
Open loop split core type, hanging installation. Detect DC, AC and pulse current.

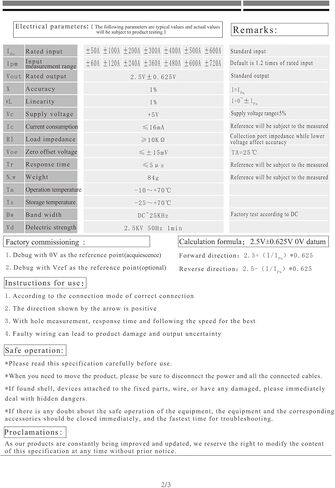

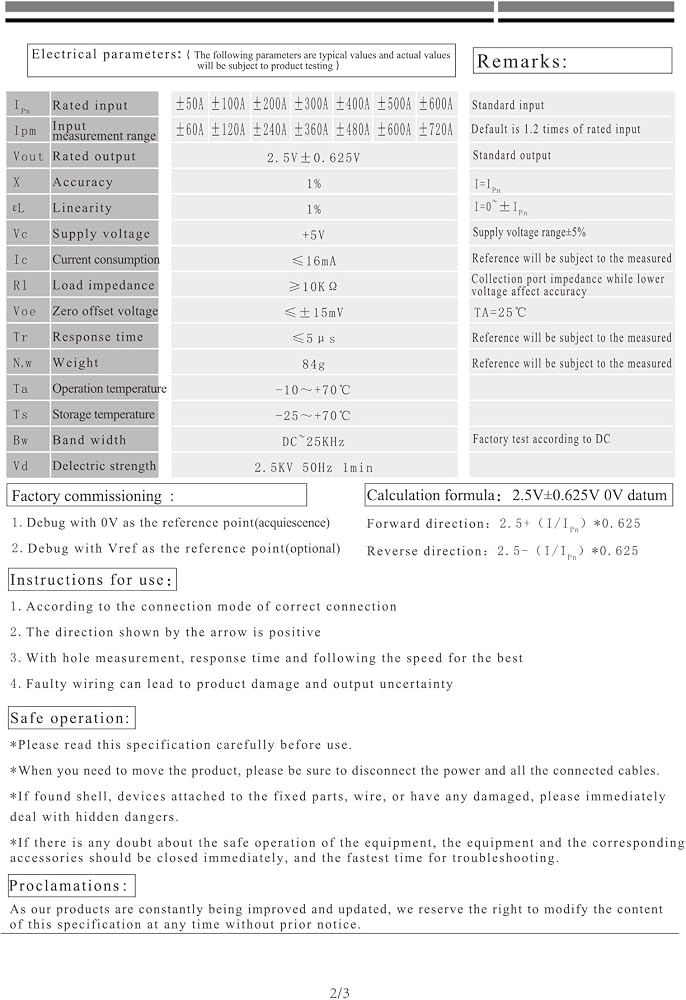

Technical parameters:
Please note the product parameters in order remarks, thank you.
Rated Input: 50A,100A,200A,300A,400A,500A,600A
Rated output: 2.5 ±0.625V
Work frequency: DC..25kHz
Accuracy: 1%
Supply voltage(± 5 %):+5V
Dielectric strength(50Hz 1min): 2.5KV
Measured impedance: 10K
Linearity: 1%
Response time: 5s
Power consumption: 16mA
Zero offset, TA=25°C: ±15mV
Operating temperature: -10..+70
Storage temperature: -25..+70
Mounting type: Plate-type
Fire resistance: UL94-V0
