مميزات خاصة

★Size: 0.96 inch; Resolution 128X64; Color: Blue; Support Wide Voltage: 3.3V-5V DC; Working Temperature: -30-80 degrees
★0.96 inch OLED Screen: resolution 128 x 64 lamp beads, display viewing angle greater than 160 degrees
★Low power consumption/self-illumination: Normal operating power consumption of 0.04W, the full screen light operating power consumption of 0.08W, the display can be self-illuminated without backlighting, clear imaging
★Easy to Use: 0.96-inch OLED screen supports users to create fonts through the font generation software, can also be used with micro-controller to directly display graphics and text
★Strong Compatibility: with I2C/IIC interface, only 2 I/O ports, IIC address can be changed, Compatible with MMDVM, Pi-Star, and it works with raspberry pi

وصف

Description
Size 0.96
Resolution 128X64
Color: White/Blue/Blue and Yellow
Viewing angle greater than 160 degrees
Supported platforms for Arduino Raspberry Pi ESP32
Low power consumption 0.04W during normal operation
Support wide voltage 3.3V-5V DC
Working temperature -30-80 degrees
Volume 27MM 27MM 4.1MM
Driver IC SSD1306
Communication IIC, only two I O ports
No font The software takes word modulo
Backlight OLED self light, no backlight

Interface
VCC 3.3-5V
GND Ground
SCL Serial Clock
SDA Serial Data

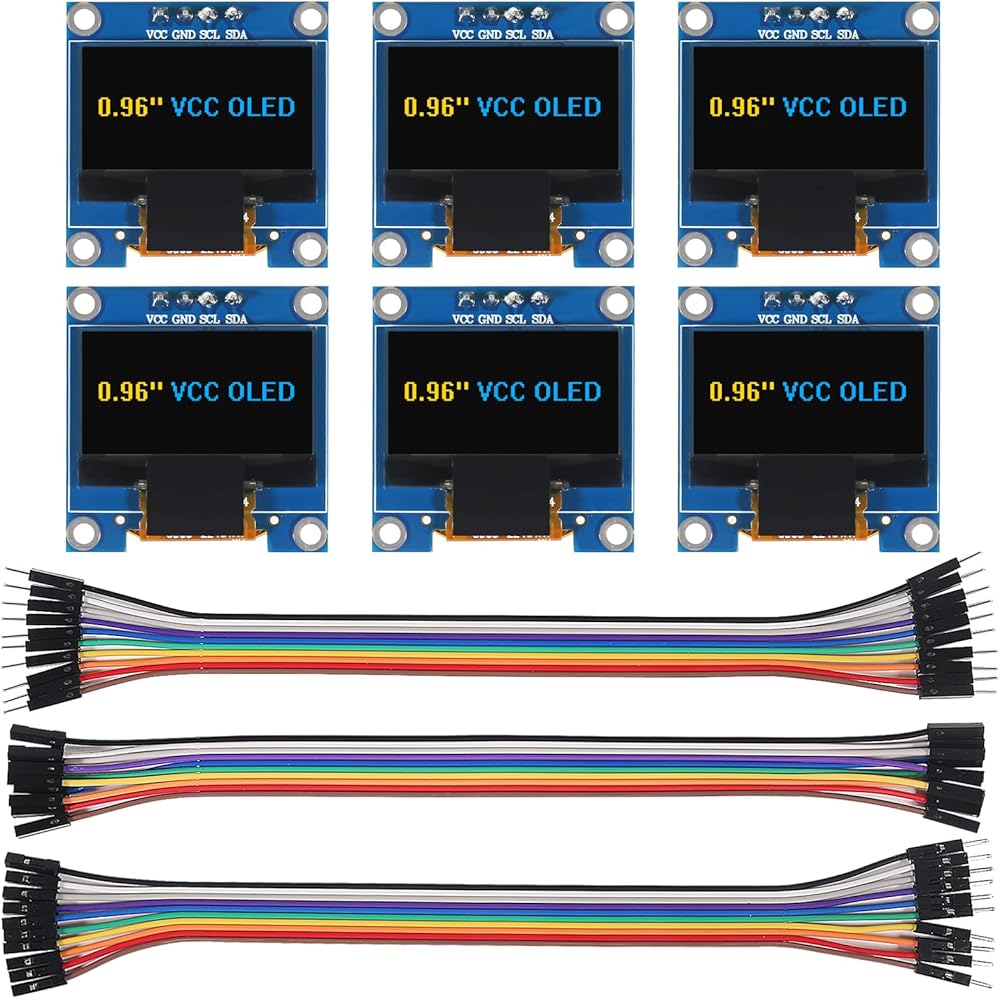

Package Included
6 x 0.96 inch OLED IIC I2C Display Modules
1 x 10pin Male-to-Male DuPont Cable
1 x 10pin Female to Female DuPont Cable
1 x 10pin Male to Female DuPont Cable
