Controls : Power - Gain A; Gain B- Mic/Line. LF Mode - (Ext Sub/Norm/ Ent Sub.).HF Mode - (Vocal/ Boost / Flat.) Front LEDs ( On/Off/Limit). Indicators : Power, Signal A / Signal B / Stand By / Limit / Mic / BT Cooling : On Demand 50mm Variable speed fan. Amplifier Protection :Thermal Limiting/ Output over current / Over temperature muting.
Transducer Protection : Thermal Limiting / Excursion Limiting. Power Output :1000 W continuous Class D (500 W LF, 500 W HF), 2000 W peak Frequency Response(+o/-0.3dB,1W/8Ω) : 48 Hz - 20 kHz Crossover Frequency : 1.7 Khz
THD : 20 Hz - 20 kHz for 1 W <0.1% Signal-to-Noise Ratio : >112 dBA Channel separation : (Crosstalk) at 1 kHz >70 dB
Input Connectors (per channel) : Balance Female XLR/1/4" Line/Mic.Stereo RCA Line Level Input Output Connector: Dual Balanced male XLR Full range line level out / Balanced Male XLR " Mix Out". Remote Gain Control, locking IECpower connector Class : TD Operating voltage : 110 V / 220 V nominal 190-240 V / 90-130 V selectable
وصف

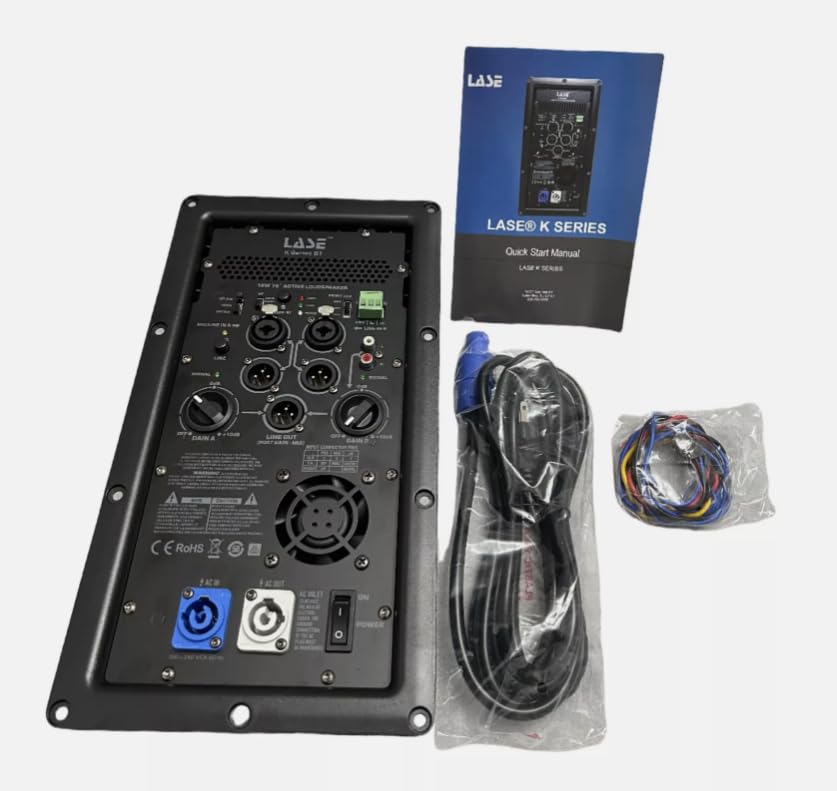

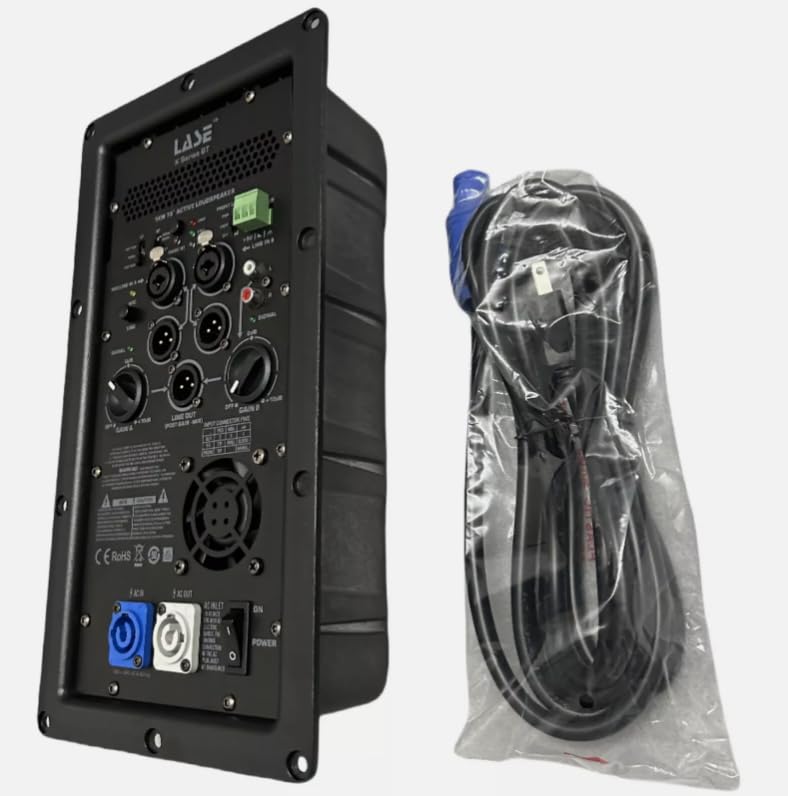

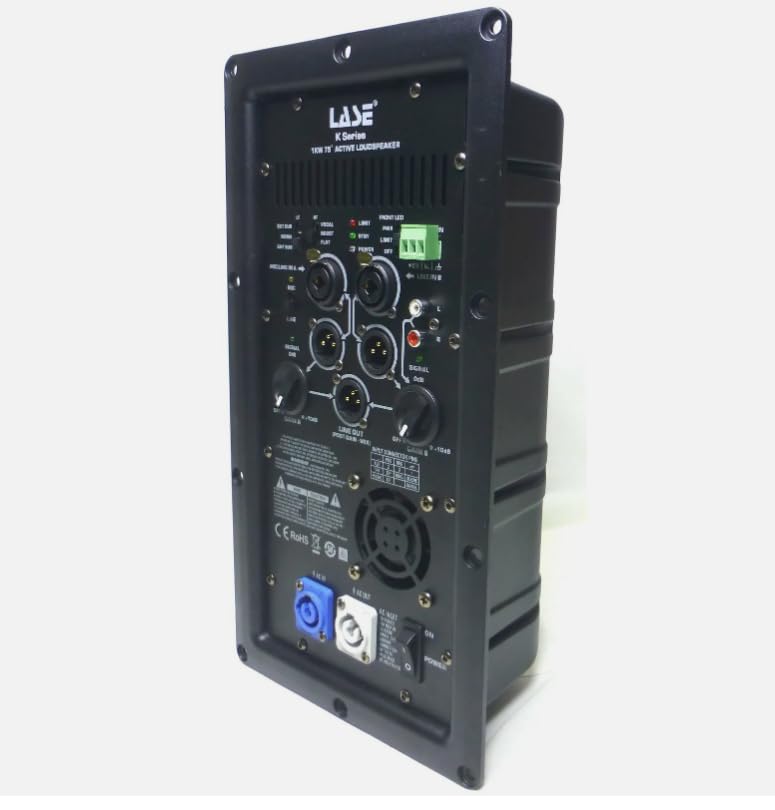

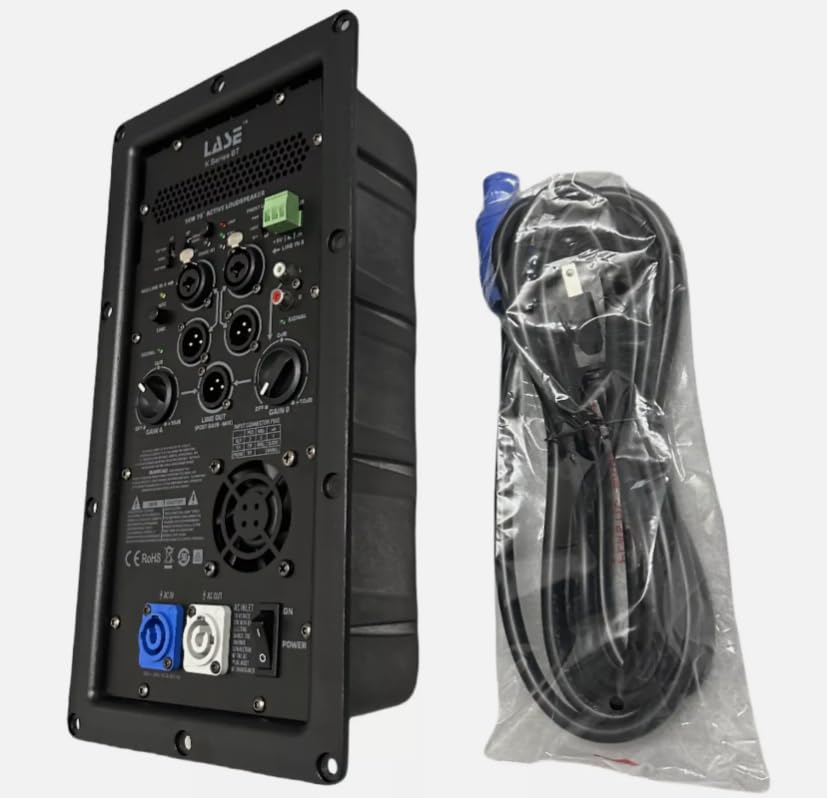

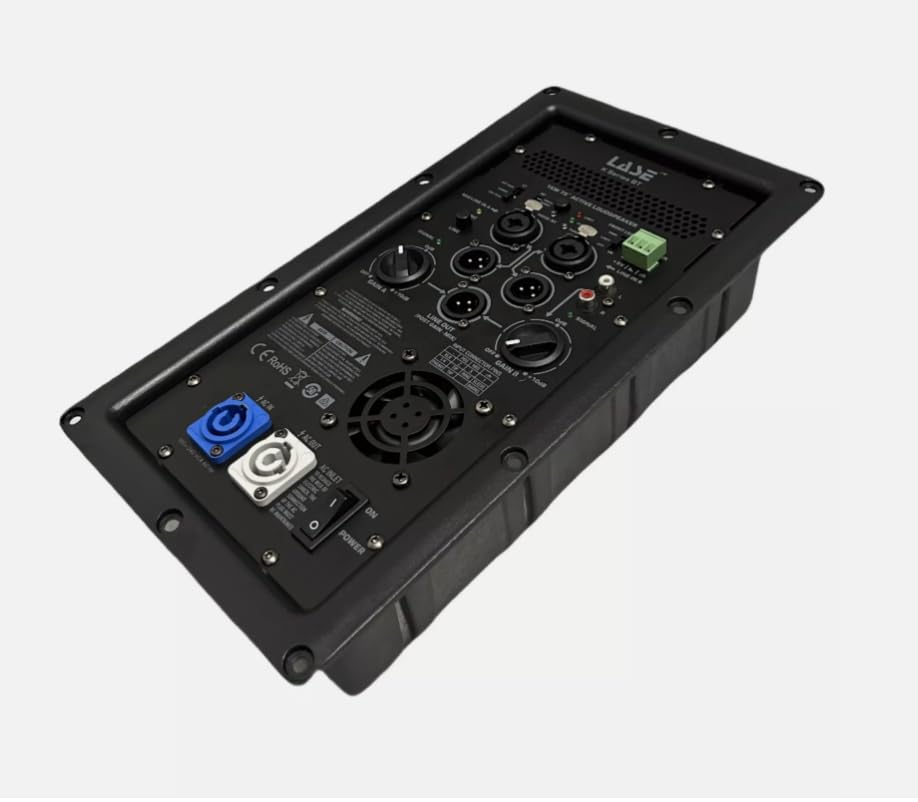

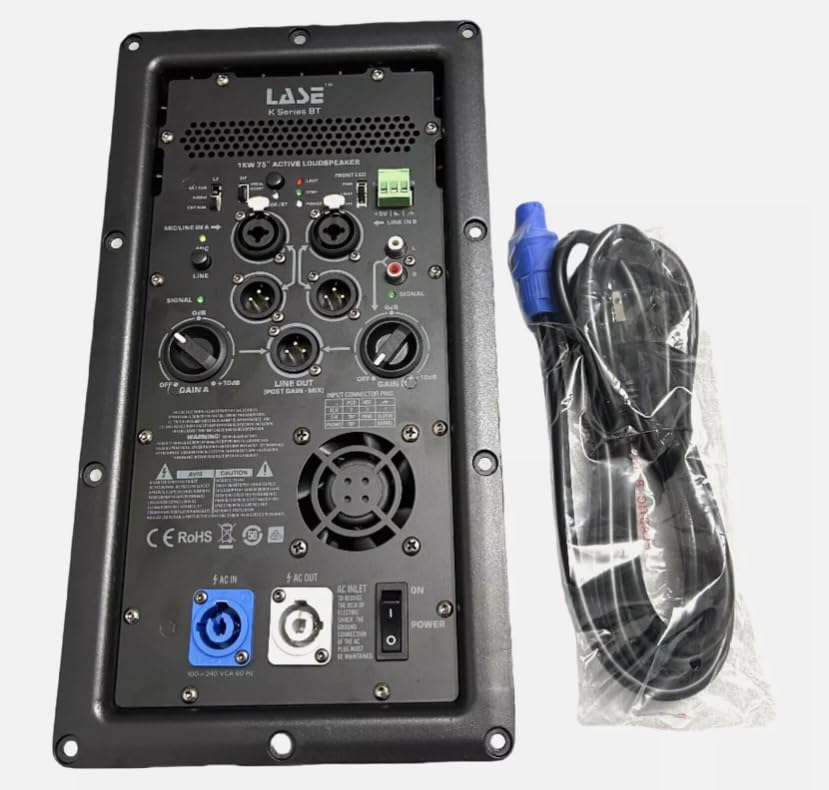

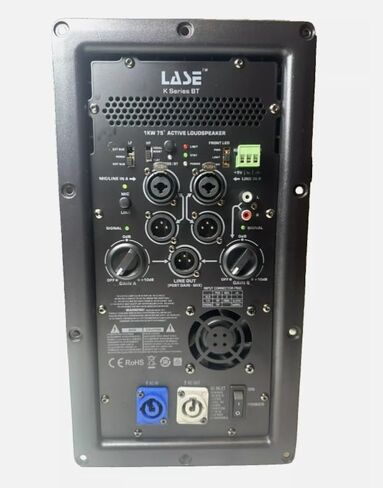

LASE Replacement Amplifier K Series Module w/ BlueTooth for QSC K12, K10, K8, KLA12, KW152, KW153 Powered Speaker.(Power Con Cable Included) Very Easy To Install. The New LASE K Series BT Professional Loudspeaker Bi-Amped Power-Amplifier Module, This Compatible Replacement for QSC K8, K10, K12, KLA12has same number of unique control features as the original plus locking IEC connection for a remote gain control. Please note that this item does not fit on the K.2 Series.
