مميزات خاصة

128 x 64 Pixel: Needn't backlight, these OLED module can self-luminous. It has super high contrast, bright and crisp dots, viewing angle is greater than 160°, even tiny fonts quite readable
No Embedded Fonts: There are no embedded fonts inside these Arduino display module, you can create the fonts through font generation software

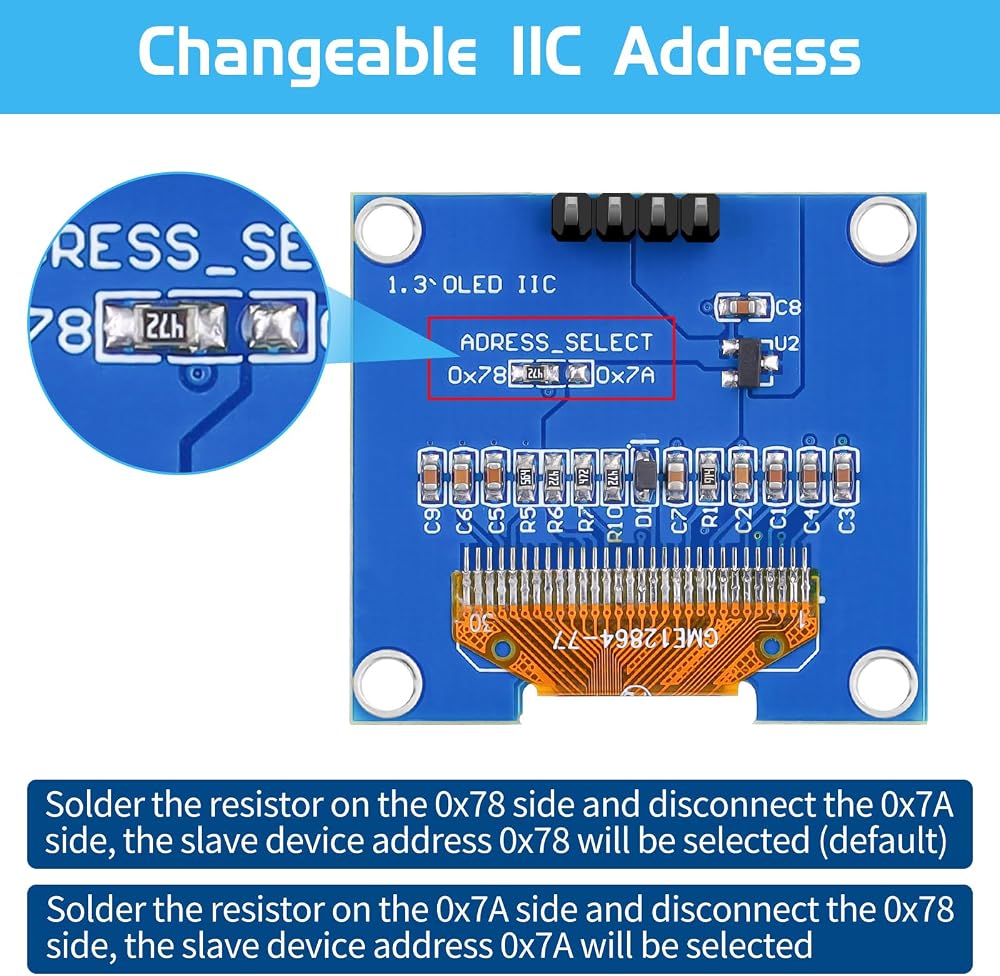

Changeable IIC Address: Solder the resistor to the 0x78 side on the back and disconnect the 0x7A side, then the 0x78 slave device address will be selected (default); Solder the resistor on the 0x7A side and disconnect the 0x78 side, then the 0x7A slave device address will be selected; when switches the IIC slave address of the hardware, the software should be modified accordingly

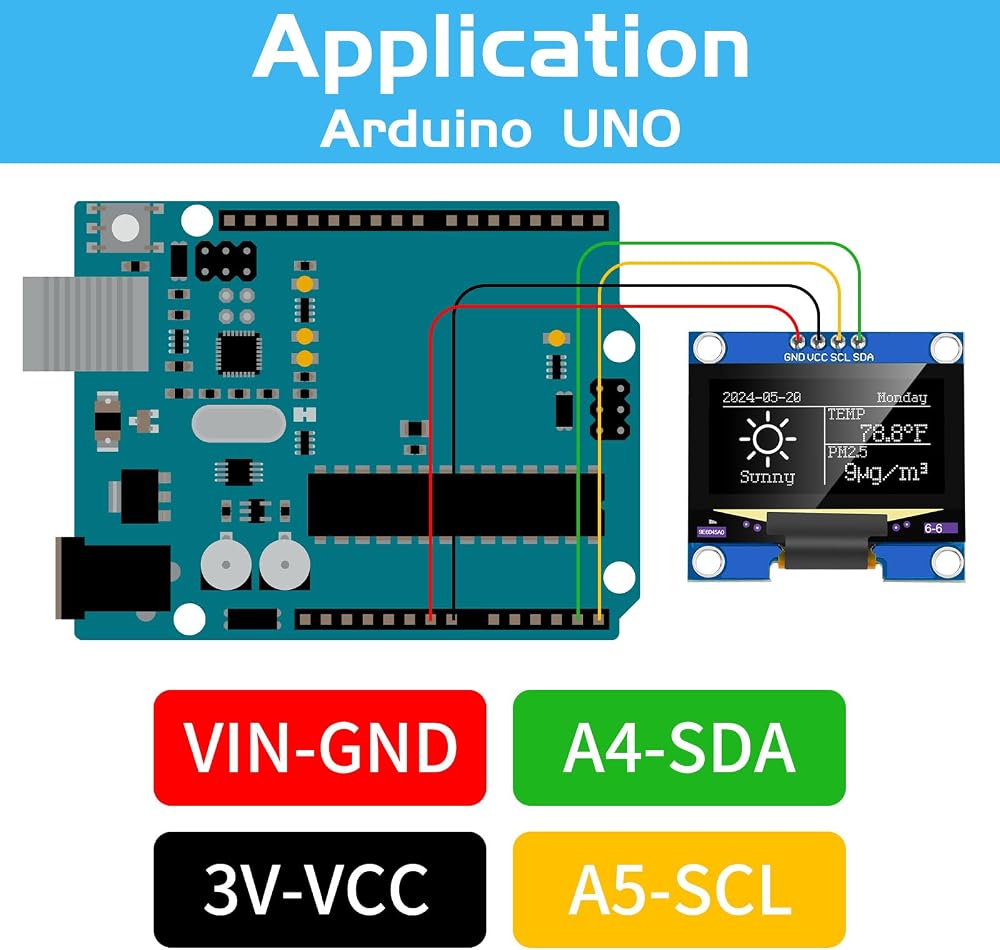

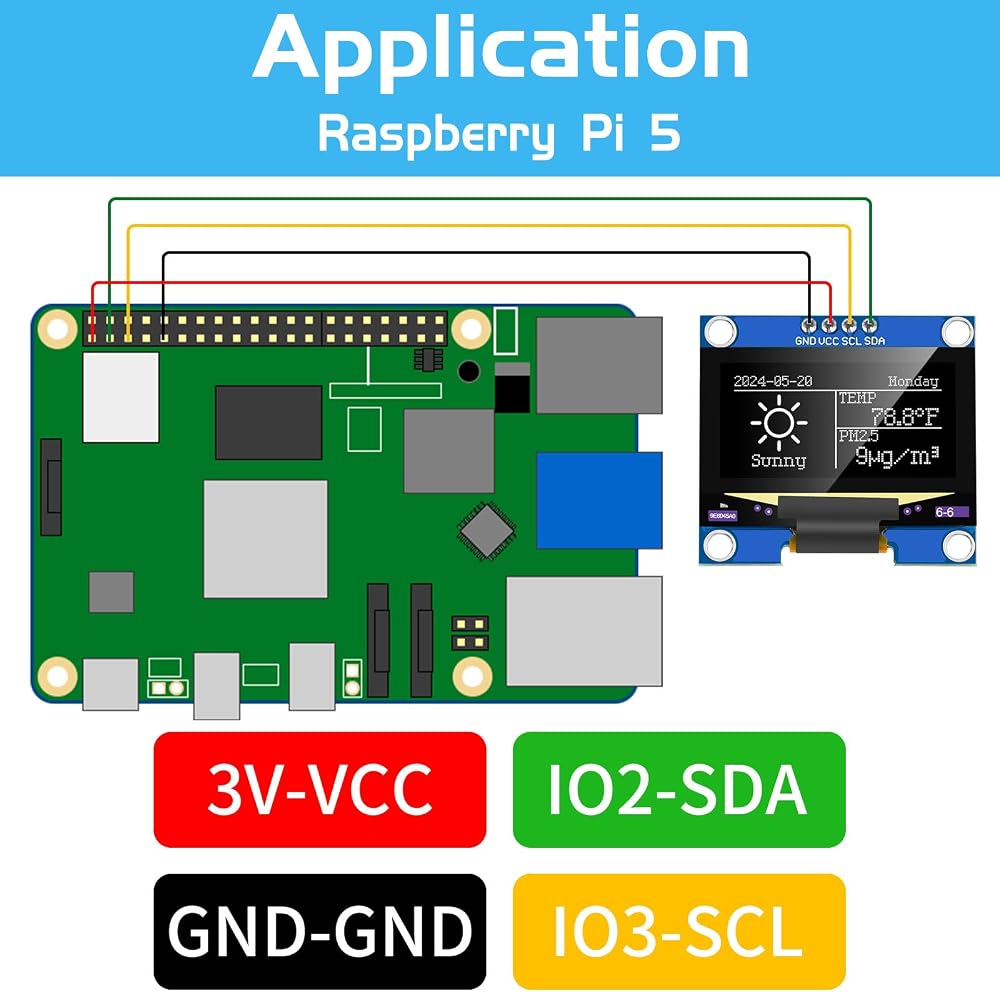

Application: These OLED display can be used for Arduino, Raspberry Pi 5/4B/3B+/3B/2B/Zero, STM32, C51, MSP430, ESP32 development board and so on. Showing graphical & textual information directly of your machines
Parameters: Screen Size: 1.3-inch; Driver Chip:SH1106; Resolution: 128*64; Color: White; Viewing Angle: >160°; Power Consumption: 0.06W; Voltage: 3.3V or 5V DC; Working Temperature: -20℃-60℃

وصف

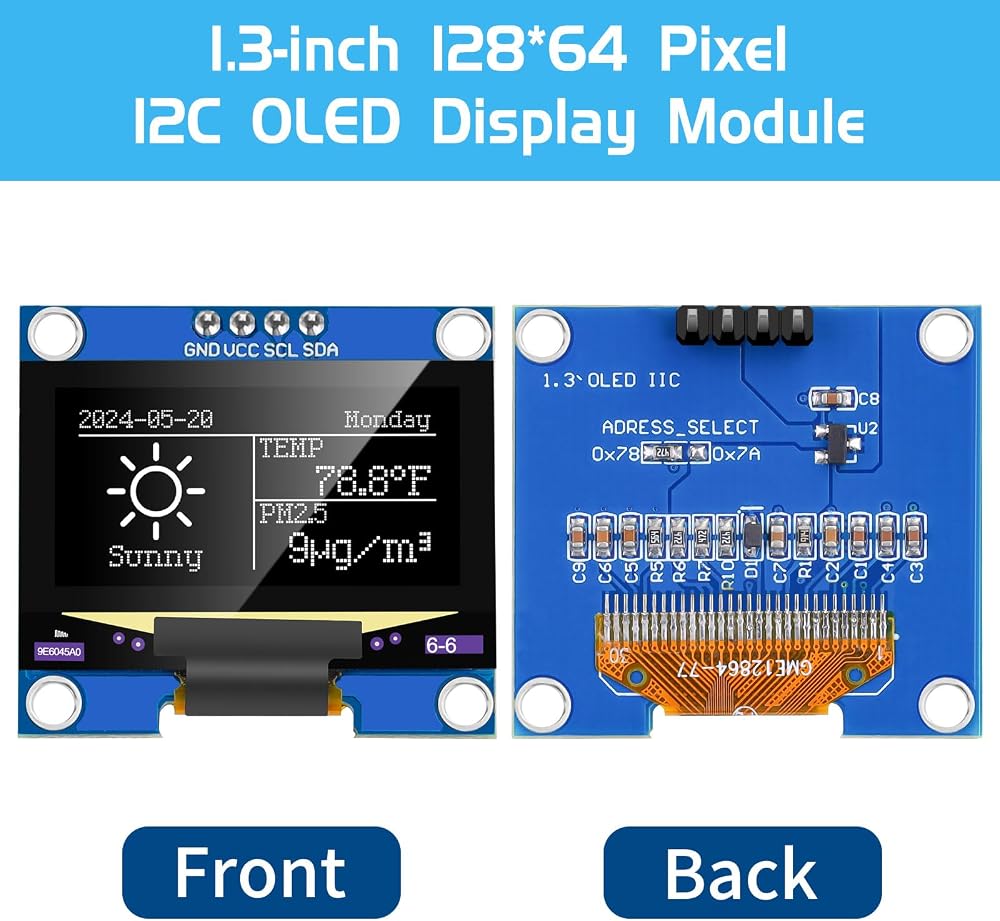

1.3-inch I2C IIC OLED display module is a mini display screen with 128 x 64 resolution and SHH1106 chipset

Standard IIC communication interface pinout and these modules can be controlled by I2C, compatible with most platform such as Arduino, Raspberry Pi, ESP, etc

Features:
Easy to setup
Super low power consumption
Support I2C IIC communication Protocol
Good compatibility: for Arduino, ESP32, C51, MSP430 series, STM32, Raspberry Pi 5/4B/3B+/3B/2B/Zero and so on

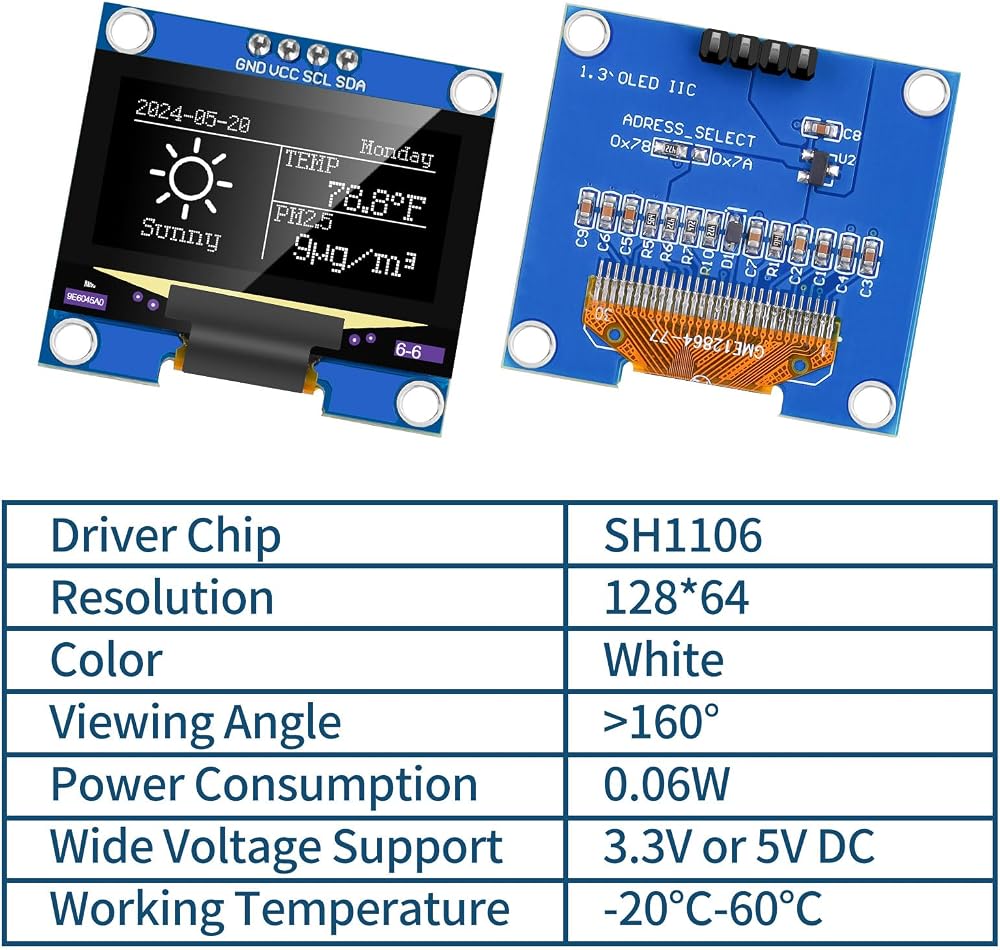

Parameters:
Driver Chip:SH1106
Resolution: 128*64
Colour: White
Viewing Angle: >160°
Power Consumption: 0.06W
Wide Voltage Support: 3.3V or 5V DC
Working Temperature: -20℃-60℃
Communication Mode: IIC, only 2 I/O interfaces are required
OLED self-luminous, no backlight required
Use mould taking software to take characters

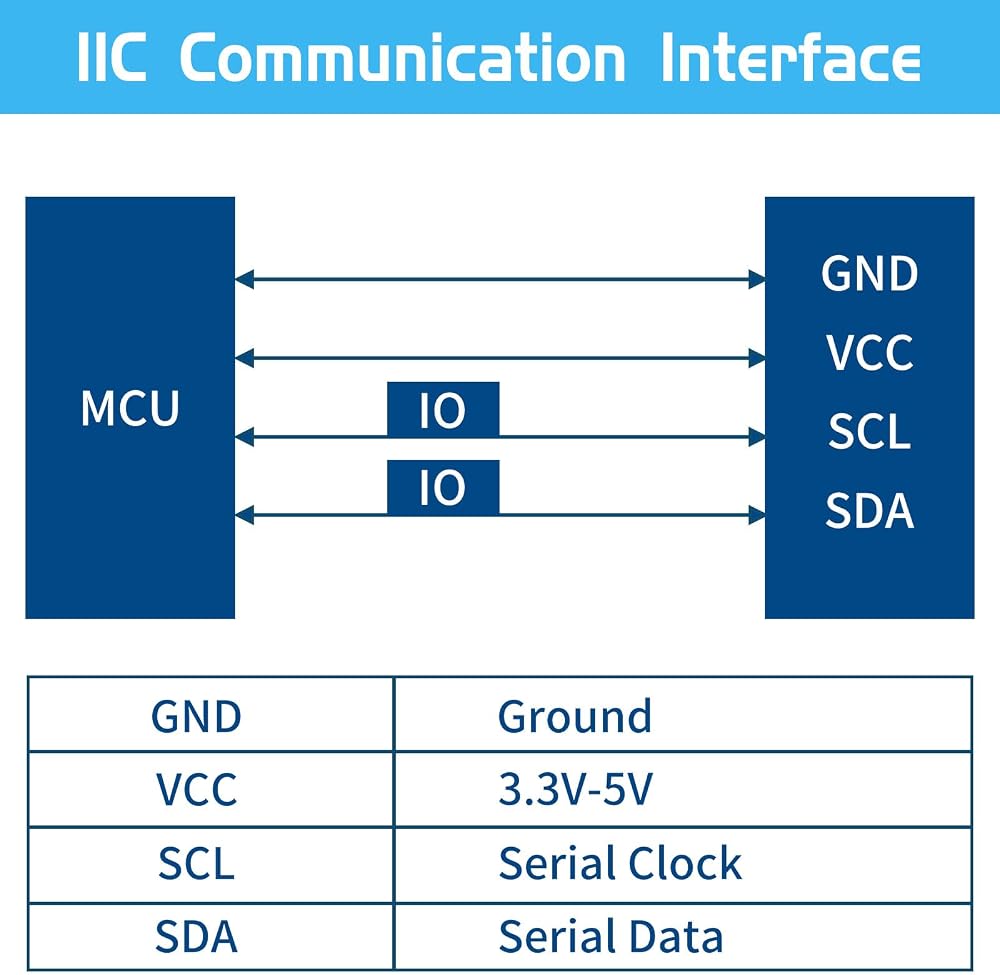

Pin Definition:
GND: Ground
VCC: 3.3V-5V
SCL: Serial Clock
SDA: Serial Data

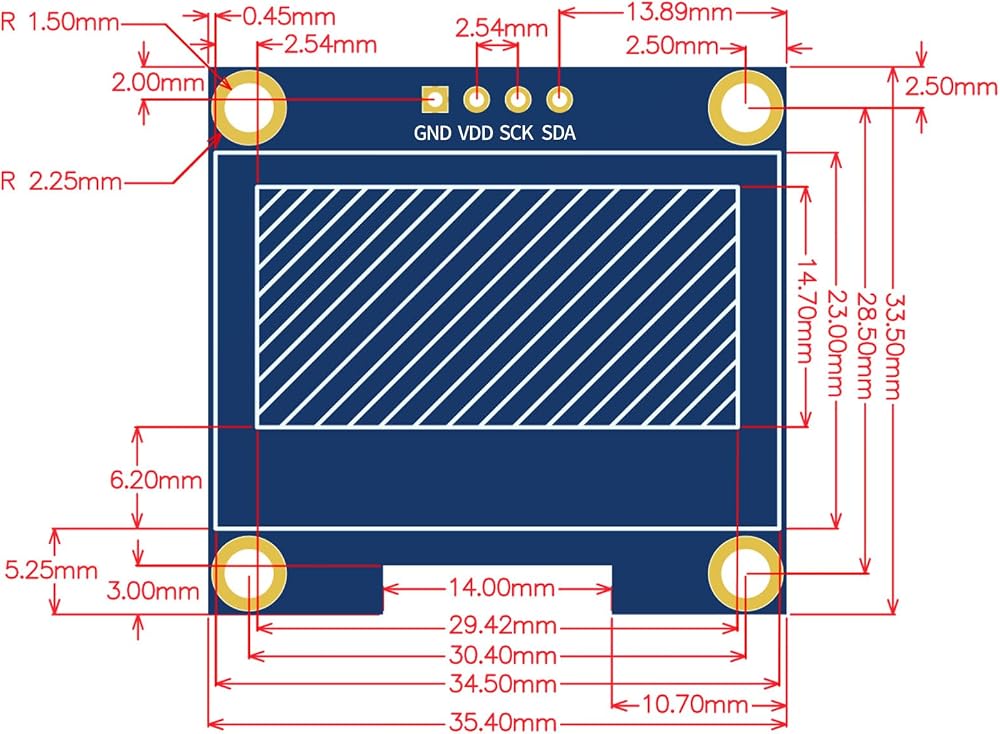

Size:
Screen Size: 1.3 inch
Effective Display Area (AA area): 29.42x14.7mm
PCB Backplane Size: 33.50x35.40mm

Package Content:

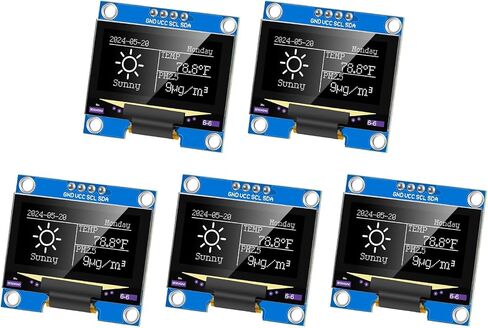

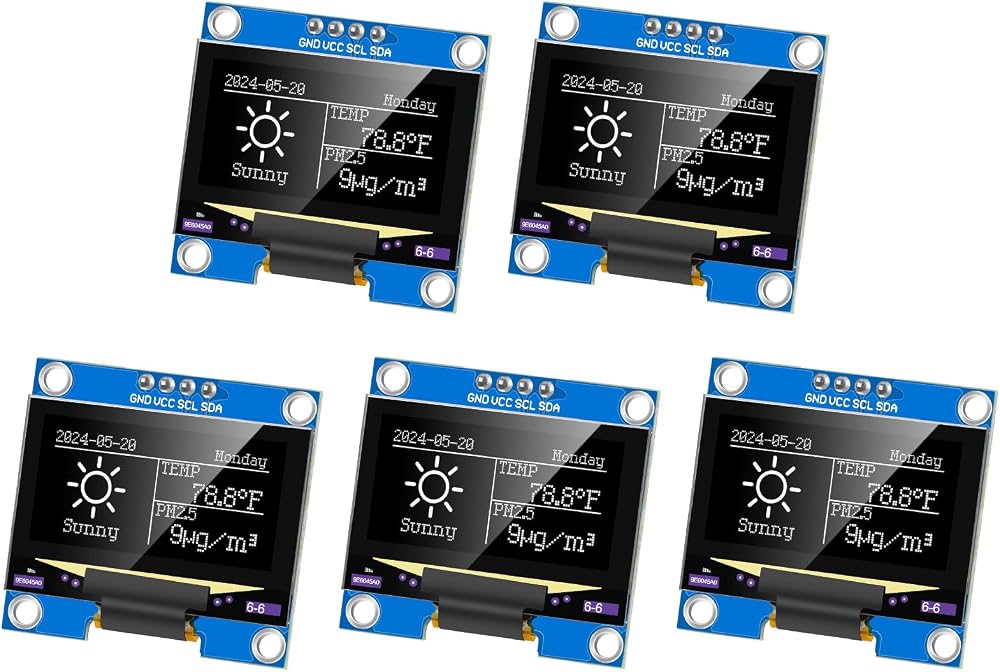

5 * 1.3-inch IIC I2C OLED Display Module
