Selling Summary: Easy to use tool Selling description The hinge hole drilling positioner a user friendly design easy to operate and does not require skills and complicated steps making carpentry operations simple.
MAIN FUNCTION: This hole drill locator is used for common 35mm straight arm and mid bend hinges greatly improves the mounting efficiency.

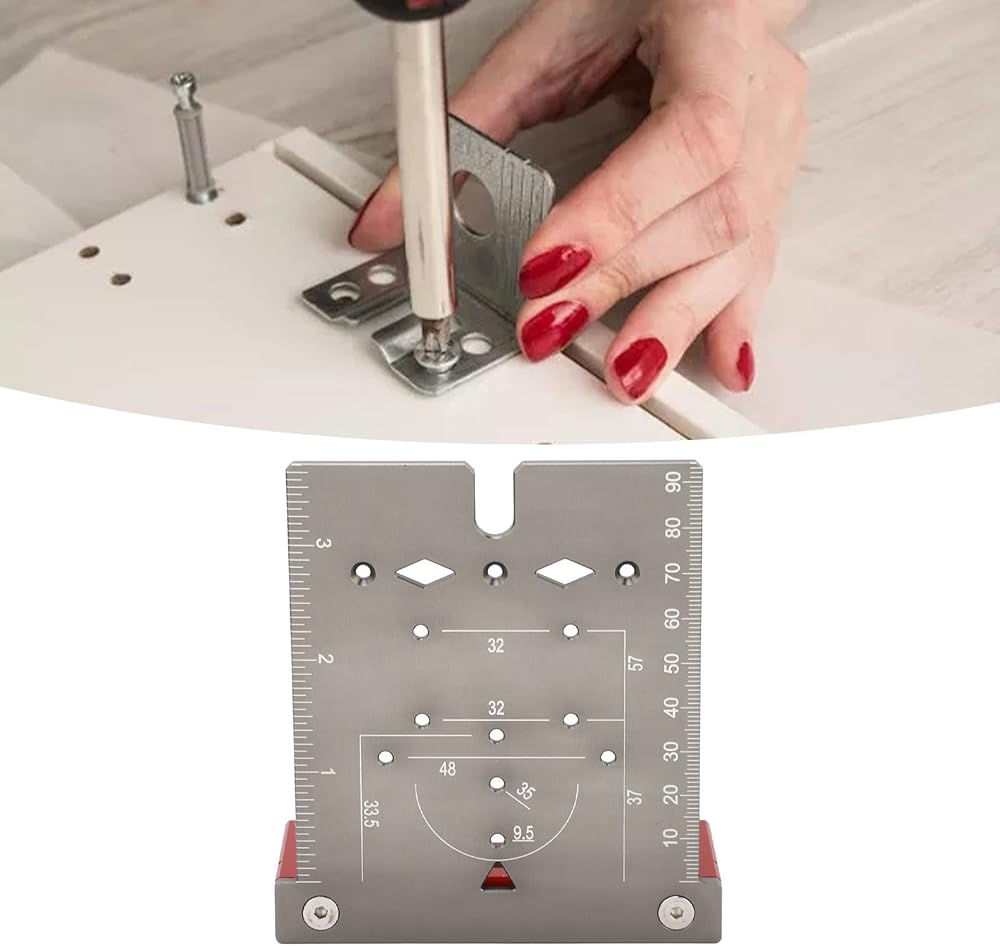

EASY TO USE: Align the locator with the marking line and place on the cabinet door the red baffle on the use the marking tool to the hole center and the two screw holes.
MATERIAL: The main body is made of aluminum alloy the is sandblasted the drill bushing is made of stainless steel which is hard wearing and greatly extends the drilling life.
ECCENTRIC WHEEL DESIGN: The hinge hole locater is designed for common 40mm connecting rod with eccentric wheel hole position design is moved up 1.5mm the splicing is closer.
وصف
1. MAIN FUNCTION: This hole drill locator is used for common 35mm straight arm and mid bend hinges greatly improves the mounting efficiency.
2. MATERIAL: The main body is made of aluminum alloy the is sandblasted the drill bushing is made of stainless steel which is hard wearing and greatly extends the drilling life.
3. ECCENTRIC WHEEL DESIGN: The hinge hole locater is designed for common 40mm connecting rod with eccentric wheel hole position design is moved up 1.5mm the splicing is closer.
4. EASY TO USE: Align the locator with the marking line and place on the cabinet door the red baffle on the use the marking tool to the hole center and the two screw holes.

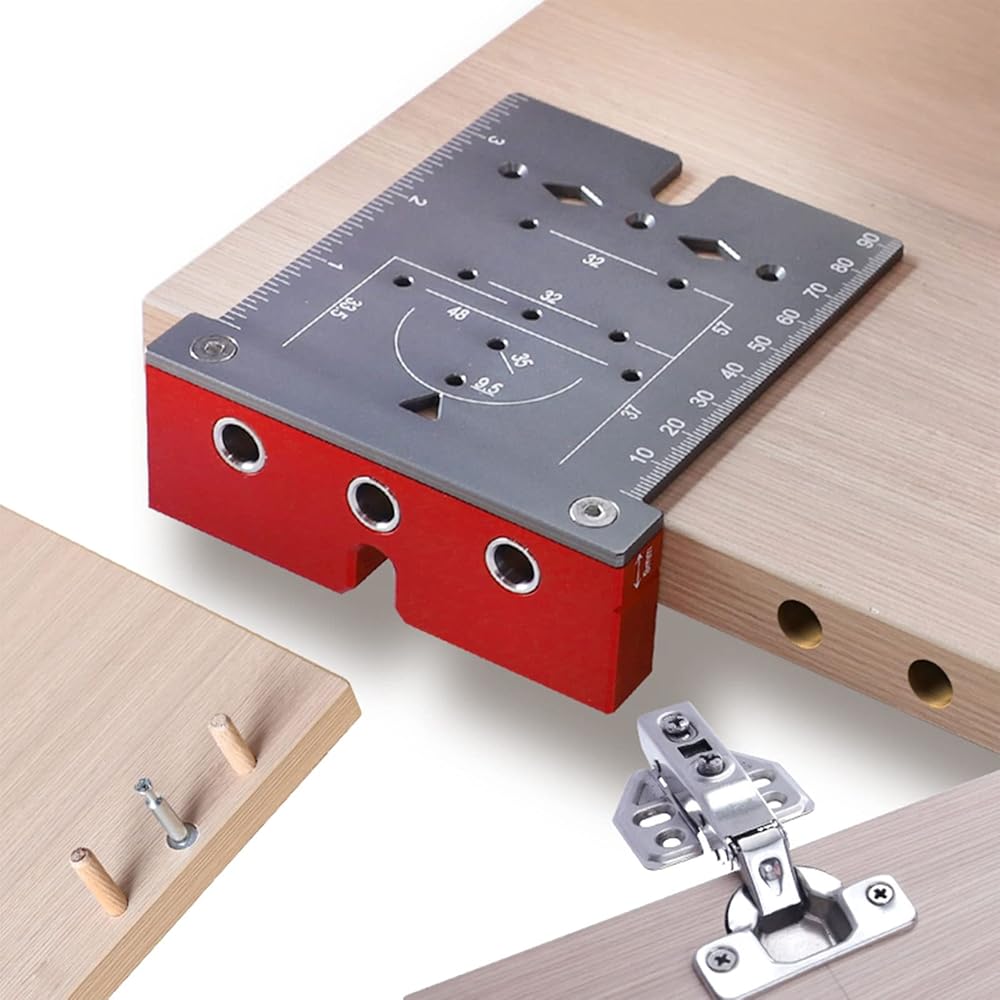

5. WIDE USAGE: The hole drill is widely used for hinge installation of cabinet door window folding table and other furniture very practical.
Specification:

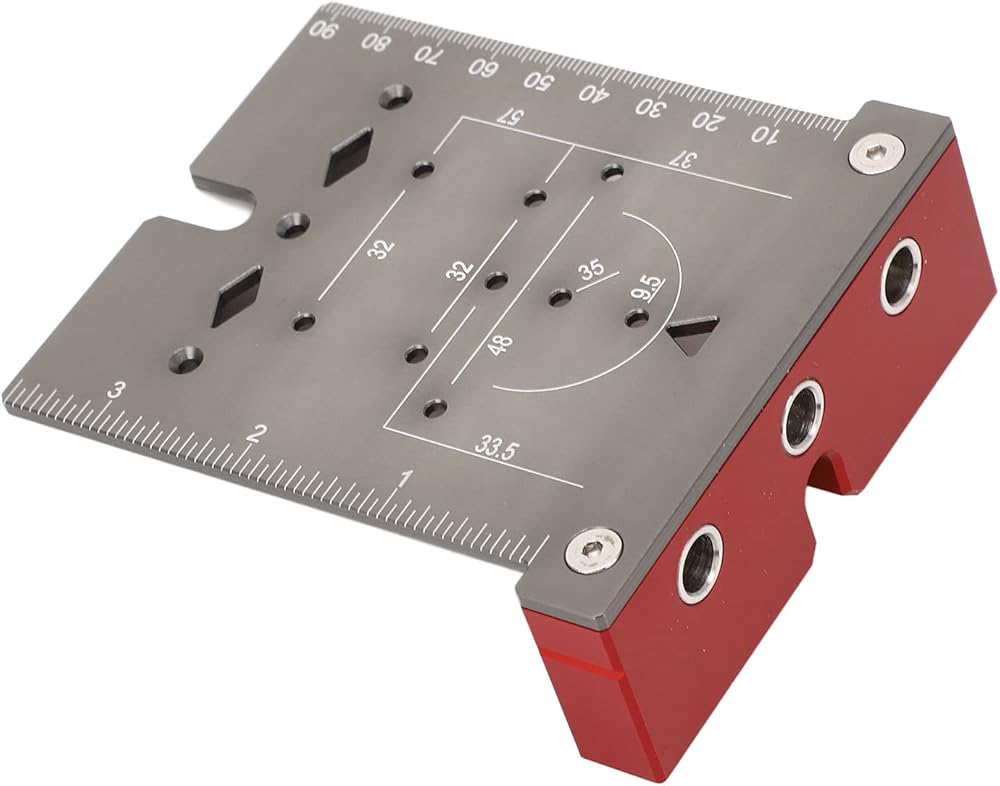

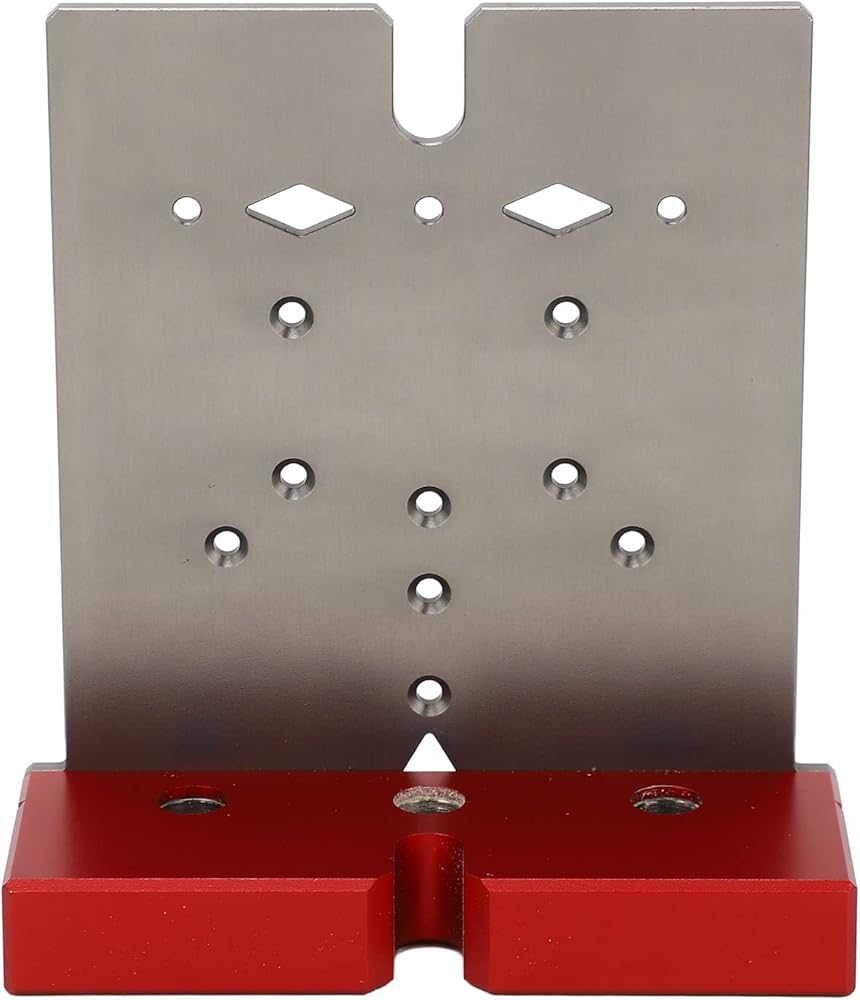

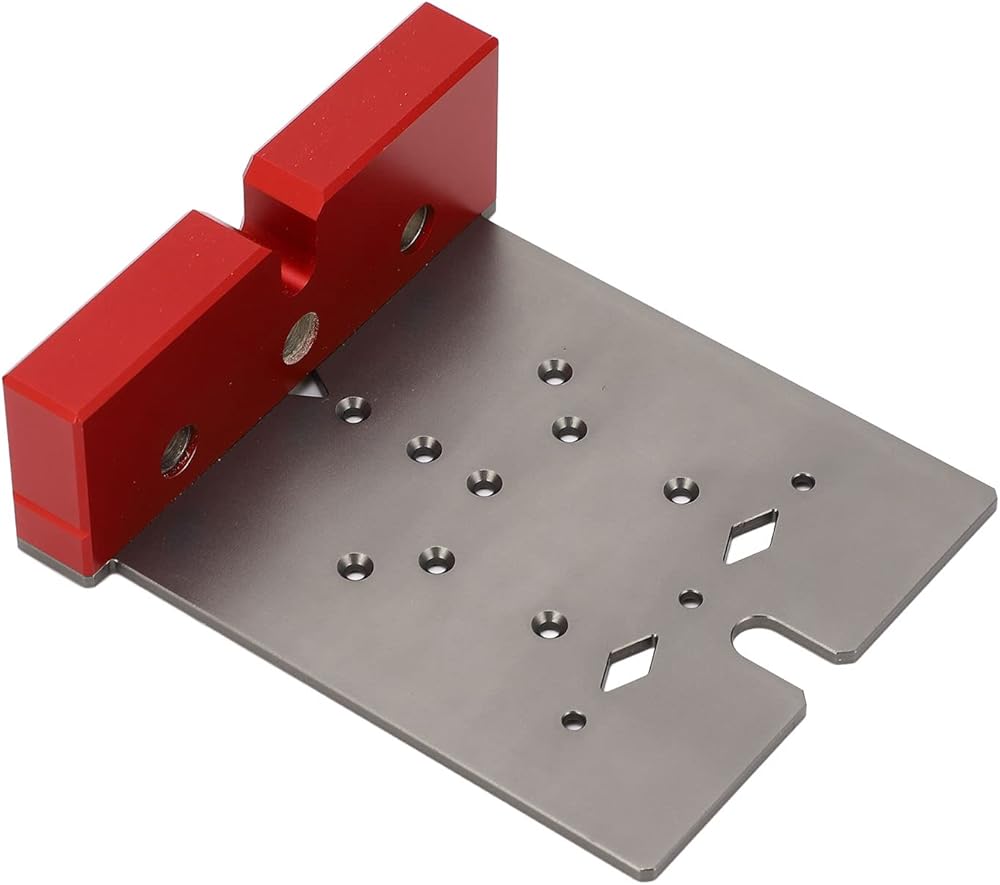

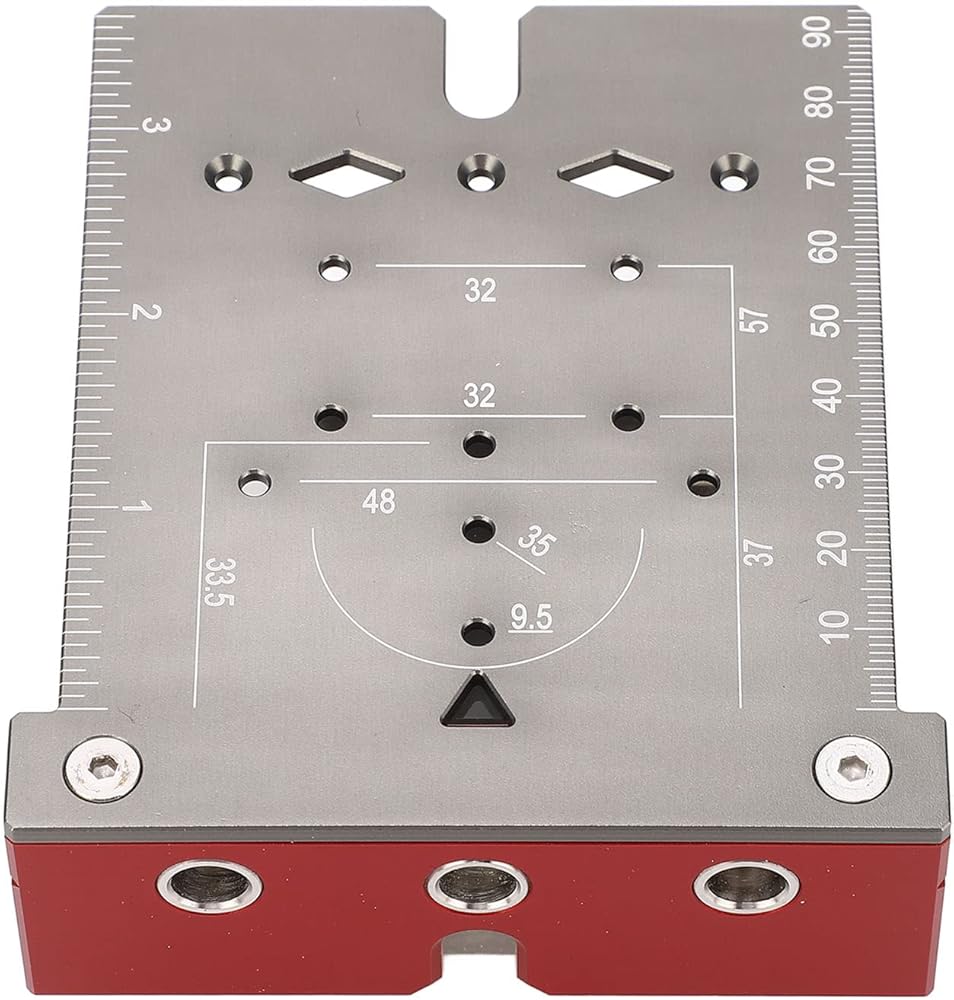

Item Type: Hinge Hole Drilling Locator
Material: Aluminum Alloy
Positioning Function:
35mm Straight Arm or Middle Bending Hinge Hole Positioning
32mm Connector Hole Positioning
Hinge Cup Distance: 3 4 5 6mm Four Gear Adjustable

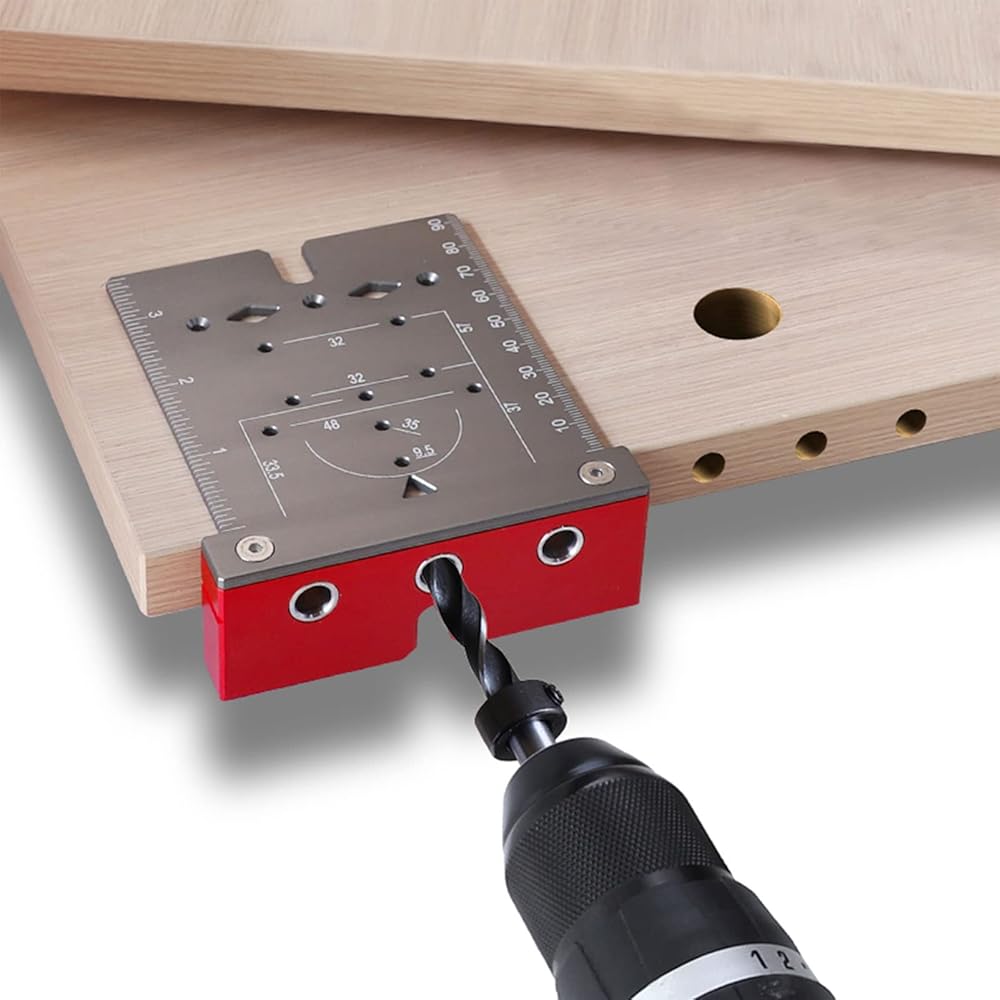

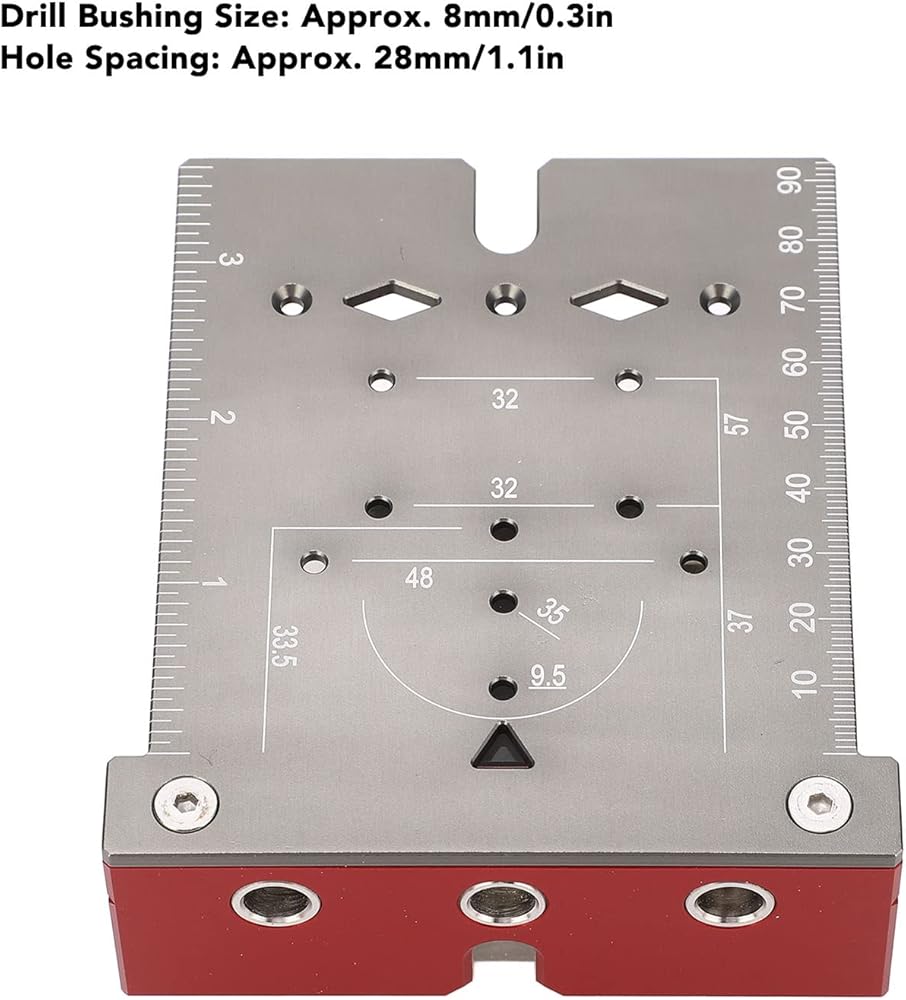

Drill Bushing Size: Approx. 8mm/0.3in
Hole Spacing: Approx. 28mm/1.1in

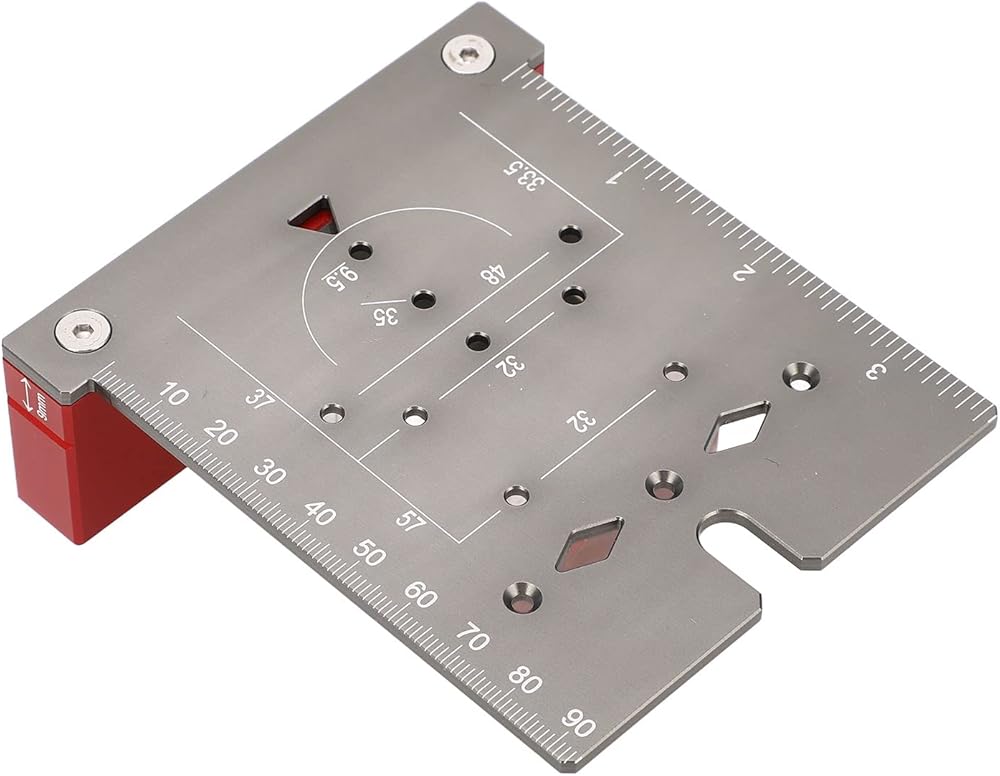

Scale Parameters:
English Range: 3-11/16in Minimum Scale: 1/16in
Metric Range: 94mm Minimum Scale: 1mm
packing list:
1 x Hinge Hole Drilling Locator
