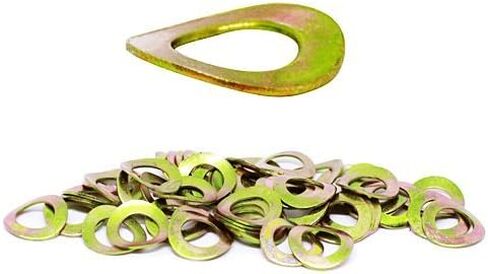

M10, 10mm
Metric Wavy Curved Spring Washer
This load bearing curved metal washer has an irregular shape that acts as a spring and compresses when tightened. Wave washers are commonly used to absorb shock, eliminate rattle and to help maintain tension within an assembly.

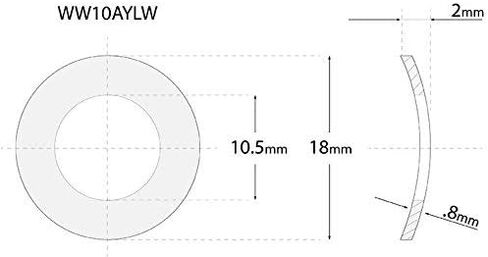

For Bolt Diameter: 10mm
Inner Diameter: 10.5mm
Outer Diameter: 18mm
Height without Compression: 2.0mm
Material Thickness: 0.8mm
Standard: DIN 137A, DIN 137-A, 137 Type A
Material: Spring Steel 420-490HV
Finish: Yellow Zinc Plated
Thread Direction: Works with Right or Left Handed Screws and Bolts
This curved wave spring washer is plated in yellow zinc for a high quality finish. Sometimes referred to as "gold" colored finish, yellow zinc chromate plating has largely replaced original yellow cadmium plating previously common to the restoration fastener industry. Yellow Zinc plating slows the rate of corrosion under typical exposure conditions.
50 Pieces Per Package
