Measuring Range: -180 to 180 Pascals | Accuracy: ±0.5% of Full Scale | Output: 4-20 mA Isolated | Display: LCD | Maximum Over Pressure: 4 Times the rated pressure | Sensors: Integrated High Speed Differential Pressure Sensor.
Power: 24V DC Typical; Alarms: Built In High & Low Buzzer Alarm for Process Set Parameter Violation with Acknowledgement Key; Construction: M.S. Powder Coated Body(Back)with Stainless Steel Front Flush Plate for Modular Wall Fitment in Clean Rooms.
Communication: Isolated RS485 communication Modbus Protocols; Connection: 2 Nos. Hose Nipples of 4mm. Stainless Steel at the Back; Medium: Air or Gases ( Non Corrosive )
Dimensions: Instrument Enclosure is in 100×90×30 mm. (W×H×D); Unit Selection: Factory Fixed Selection for mm.W.C/Pascals.

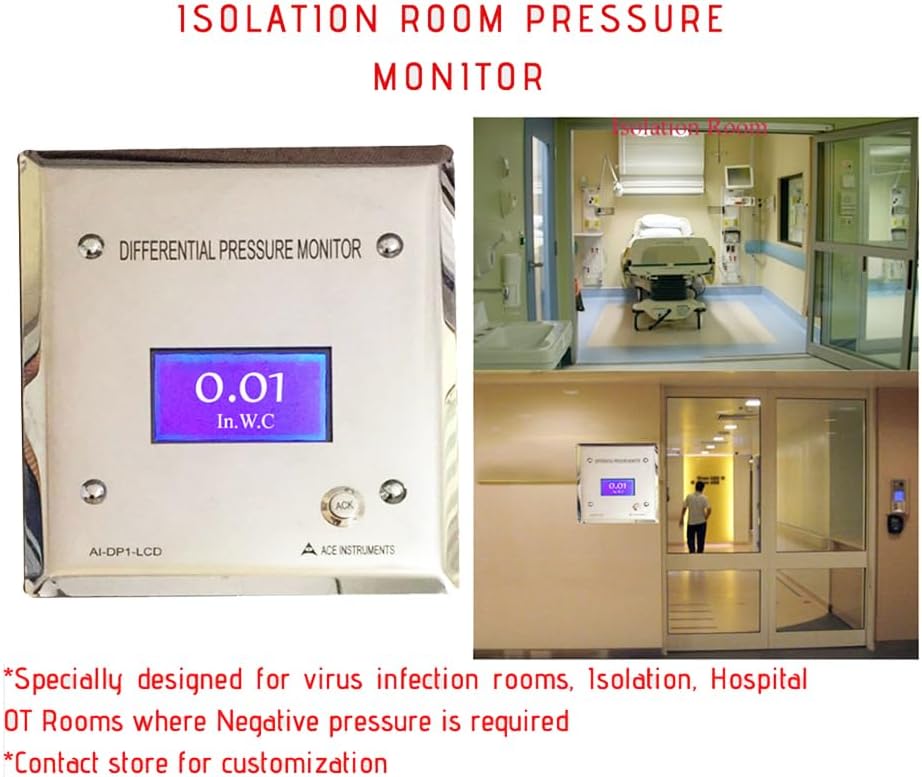

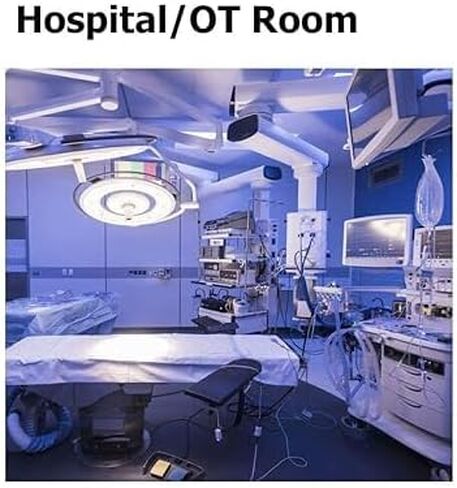

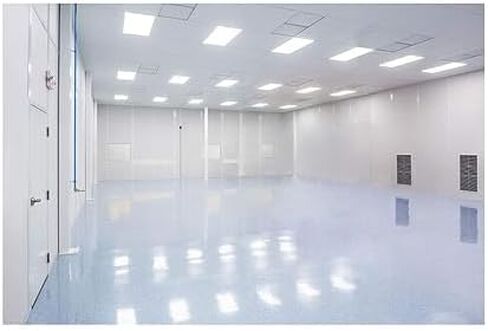

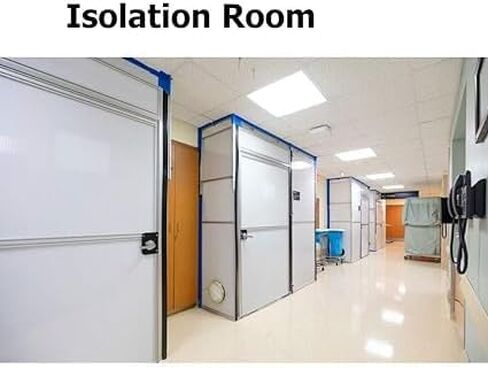

Supply Scope: 1 Unit of DP1-LCD Differential Pressure Indicator, Power Adaptor, Instruction Manual and Factory Calibration Certificate with NABL Standardsl | Applications: Infection Rooms, Hospital Operation Theatre (OT) rooms, Isolation Rooms, Laminar Air Flow Cabinets, Pharmaceutical Clean Rooms, HVAC, Bio Safety Cabinets, AHUs and numerous others.
وصف

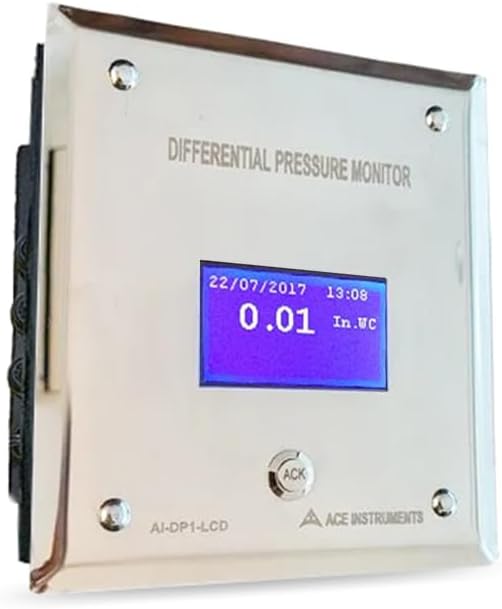

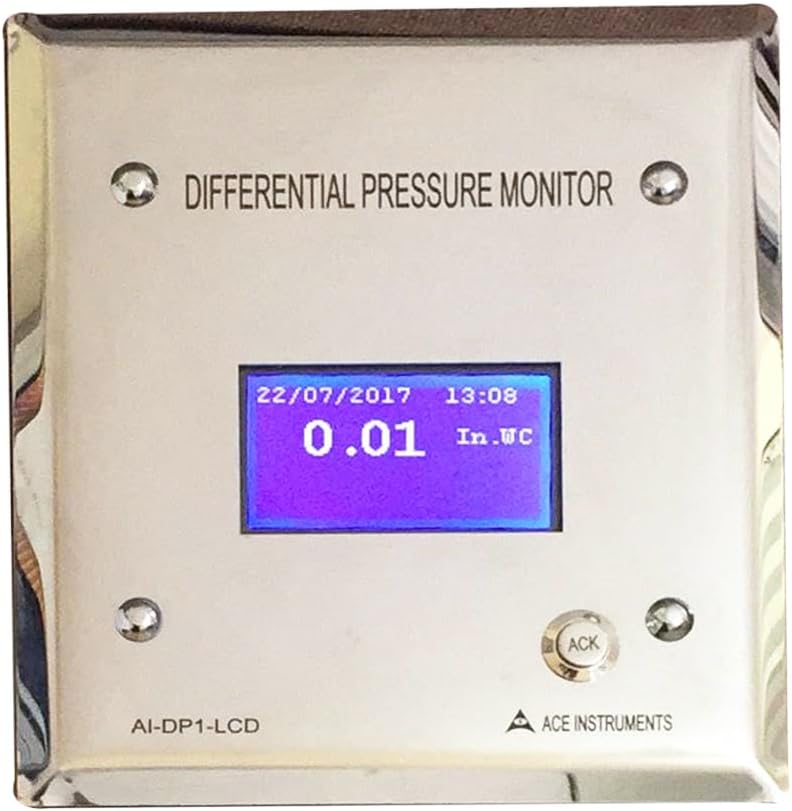

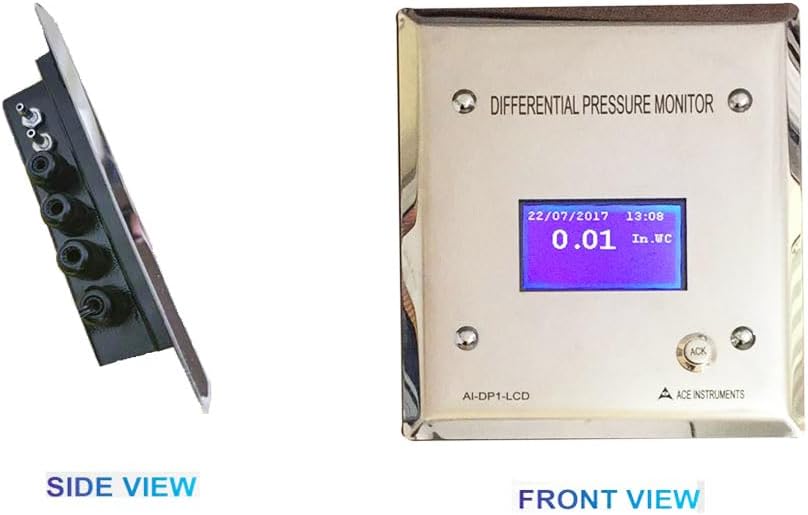

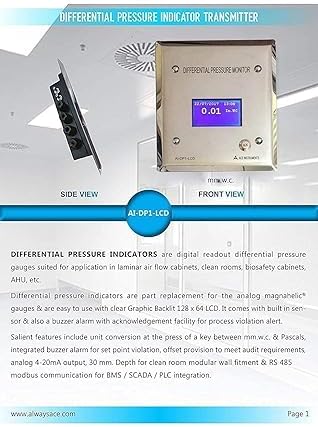

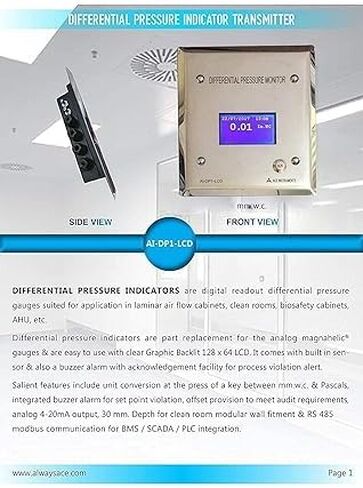

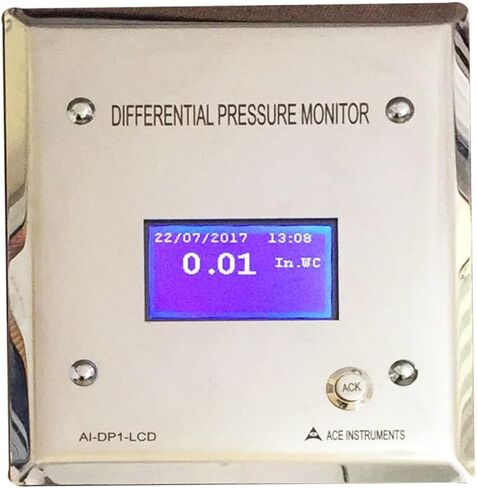

DIFFERENTIAL PRESSURE INDICATORS are digital readout differential pressure gauges suited for application in laminar airflow cabinets, clean rooms, biosafety cabinets, AHU, etc. Differential pressure indicators are part replacement for the analog Magnehelic gauges & are easy to use with clear Graphic Backlit 128 x 64 LCD. It comes with a built-in sensor & also a buzzer alarm with an acknowledgment facility for process violation alert. Salient features include unit conversion at the press of a key between mm.w.c. & Pascals, integrated buzzer alarm for set point violation, offset provision to meet audit requirements, analog, 30 mm. Depth for cleanroom modular wall fitment & RS 485 communication Modbus communication for BMS / SCADA / PLC integration.
