Flowmeter
1.NOTE

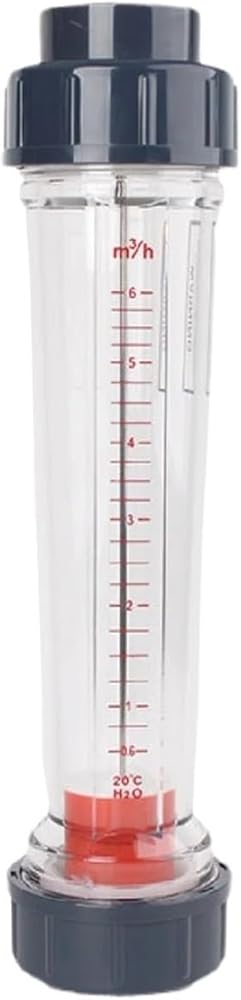

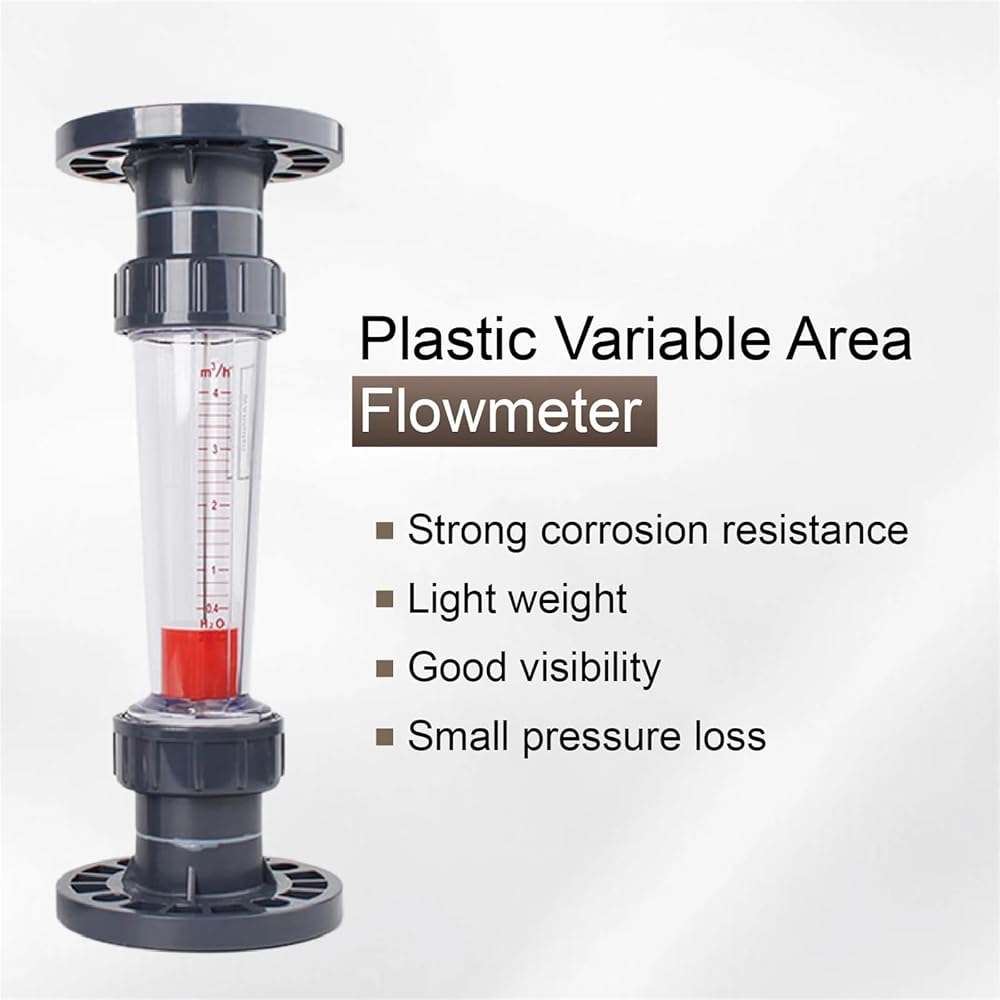

Our Plastic Tube Rotor Flowmeteris specifically designed for weak acid and alkali solutions (30%), offering reliable performance across various applications.
Default Configuration Includes:
.Model Range:LZS-50
Flow Range:
0.4-4m³/H
0.6-6m³/H
1-10m³/H
1.6-16m³/H
Connection: Tube fitting connection or internal thread connection(opt).
.Tube Material:AS Plastic
.Rod Material:304 Stainless Steel
.Parts Material:ABS
.Temperature Range:060°C
.Pressure Range:0.6MPa
Optional configurations include:.Tube Type:Short / Long Tube Style
.Diameter:Dn 15-50
.Connection Type:Plug-in, Thread ( (Customizable: Flange Connection)
Order Information:
.Specify the flow range.
.Select connection type(Plug-in, Thread, or Flange).
.Confirm material requirements(AS, 304SS, ABS).
2.Parameter
Item
Description
Type
Long tube/short tube insertion connection
Accuracy
±4%
Temperature
0-60°C
Pressure
0.6 MPa
Material
Tube body AS, guide rod 304, others are ABS
Connection
Below DN65, flowmeter can be connected with flange or threaded connection
3,APPLICATION
Suitable for measuring water and general fluids with resistance to weak acids and alkalis (below 30% concentration).
Ideal for industrial uses, including chemical processing, water treatment, and fluid system engineering.
4. FEATURES
High Precision Measurement:Ensures accuracy within ±4%, providing reliable and consistent performance.
Robust and Materials:Made from AS plastic, 304 stainless steel, and ABS, ensuring excellent resistance to corrosion and wear.

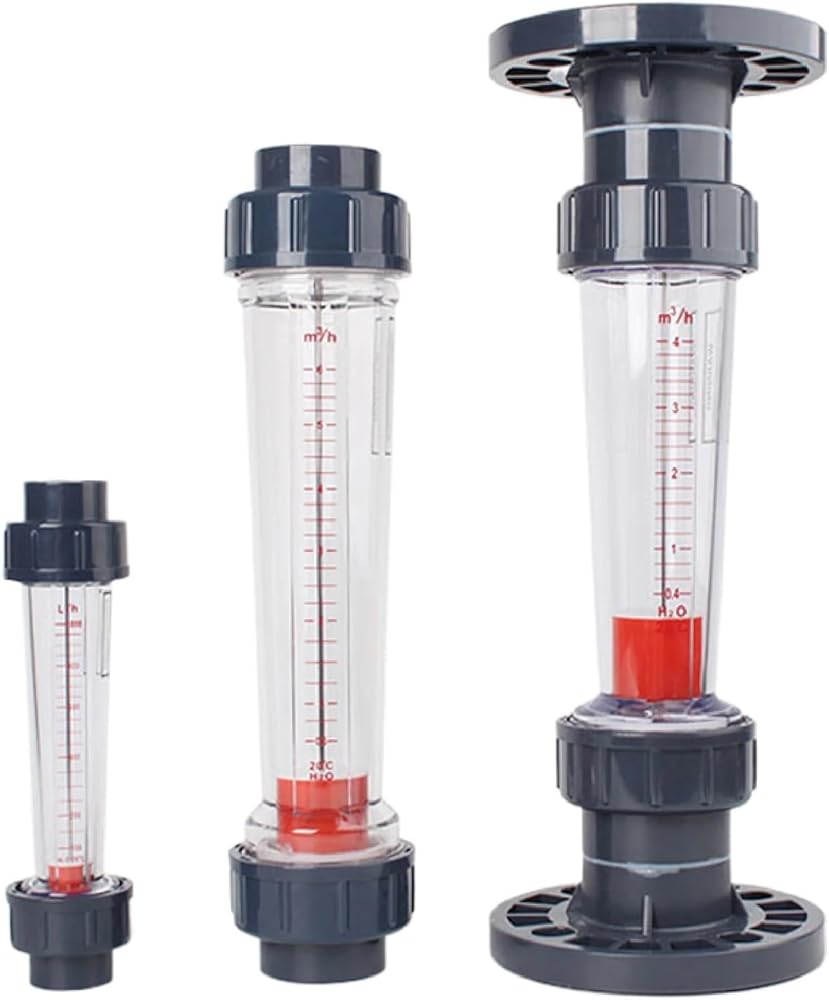

Flexible Model Options:Available in both long tube and short tube designs, catering to diverse precision and installation needs.
Wide Compatibility:Supports multiple connection types, includingpipe, flange, and threaded connections, for seamless integration into different systems.
Temperature and
