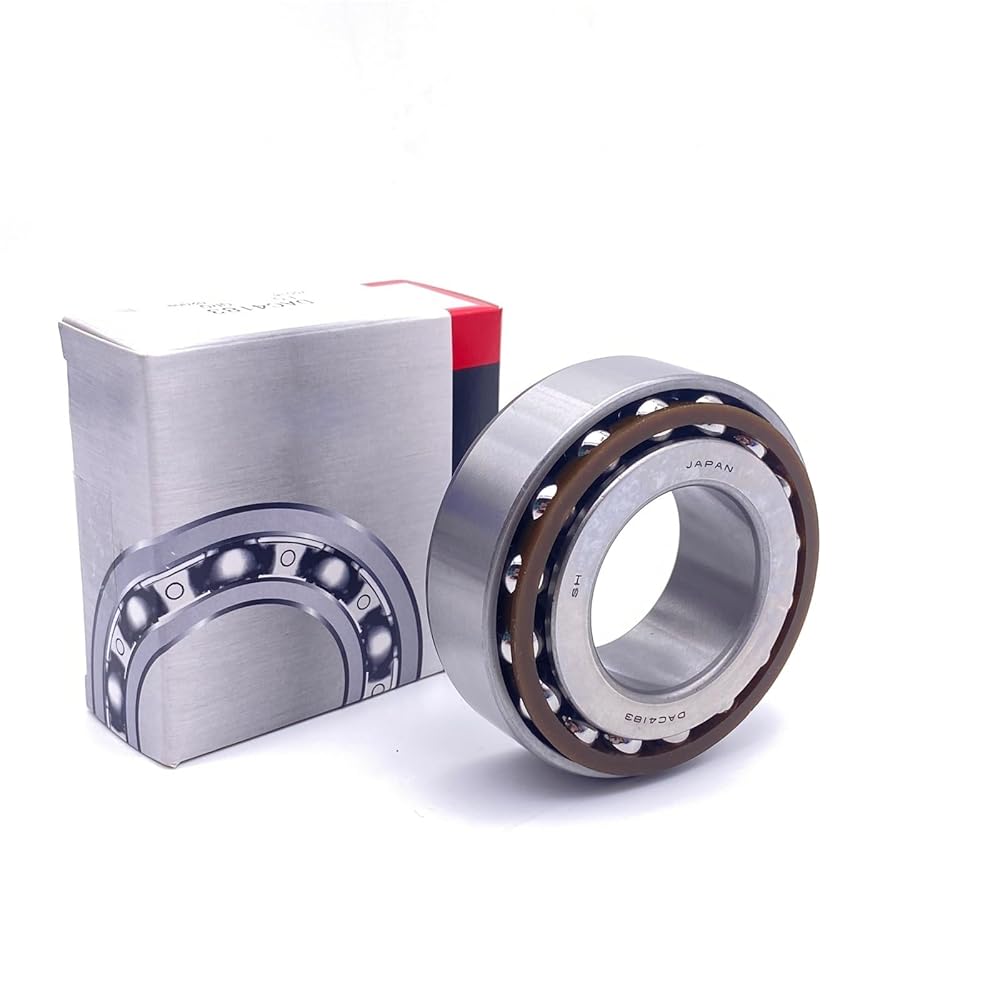

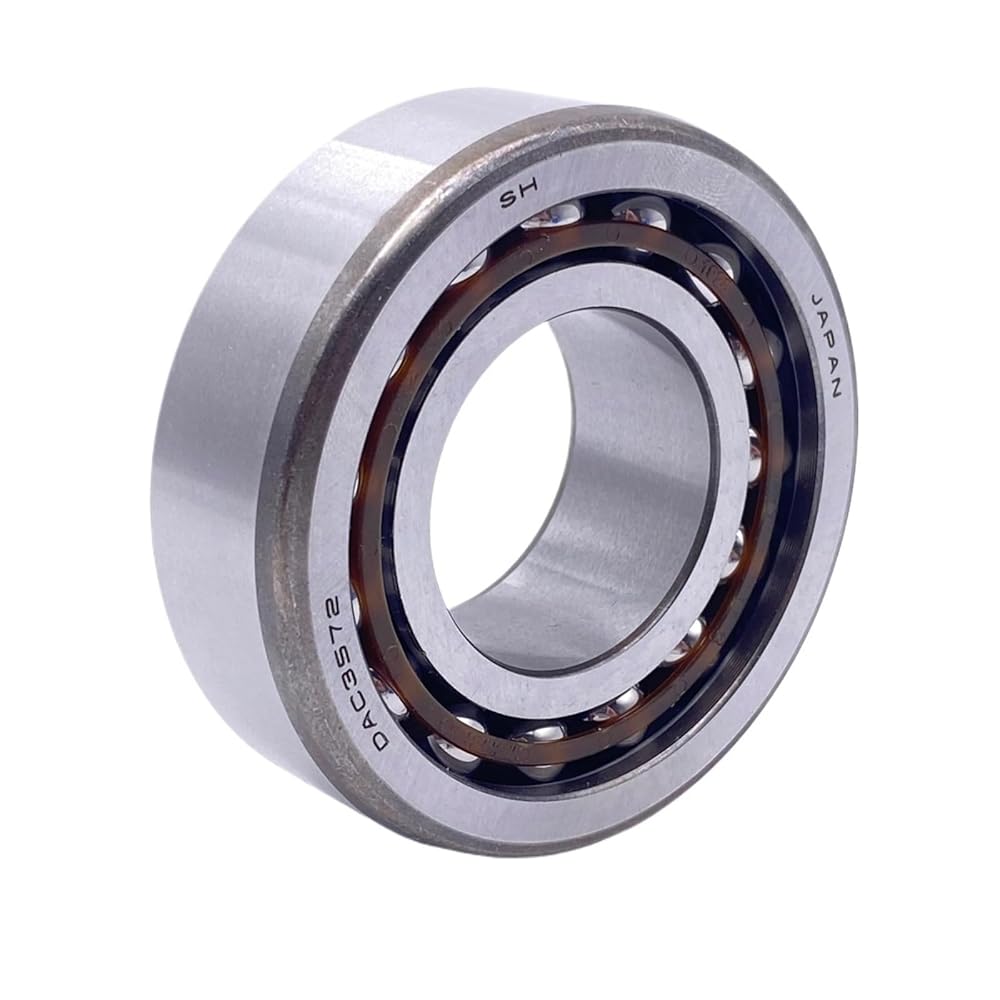

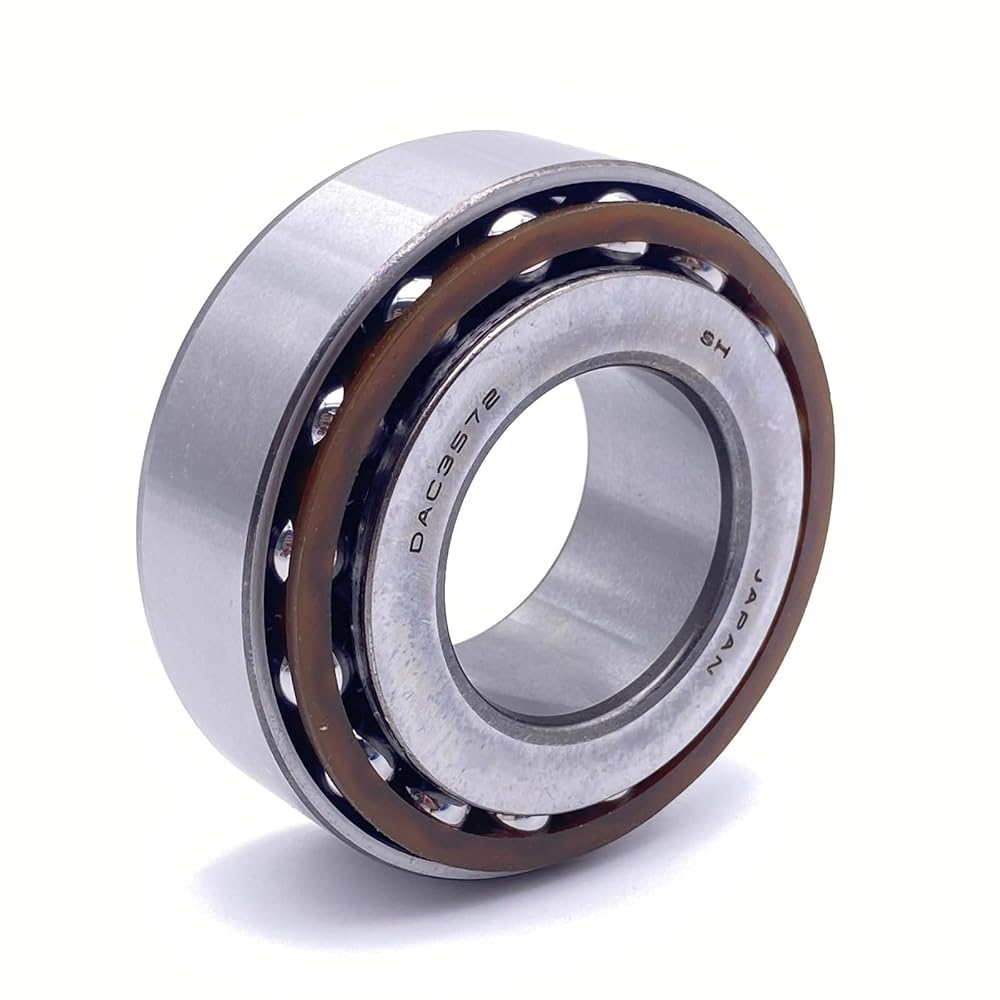

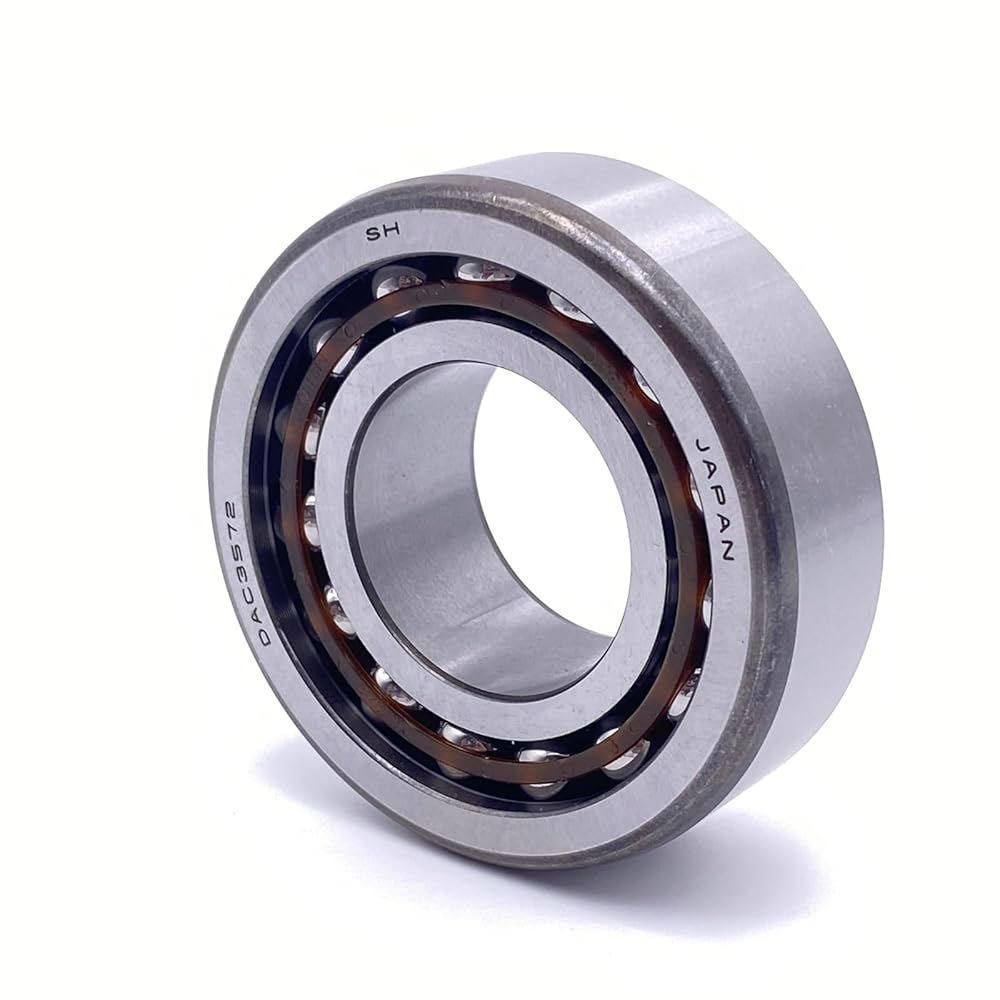

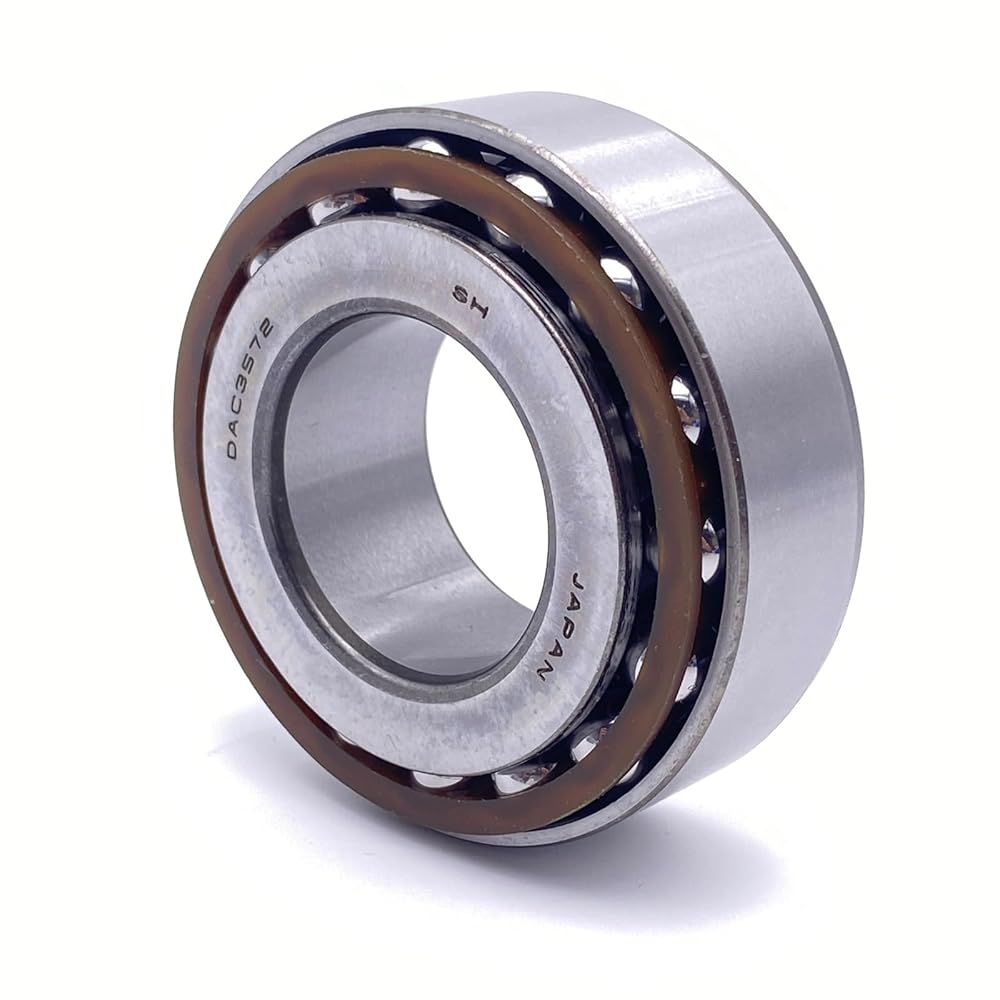

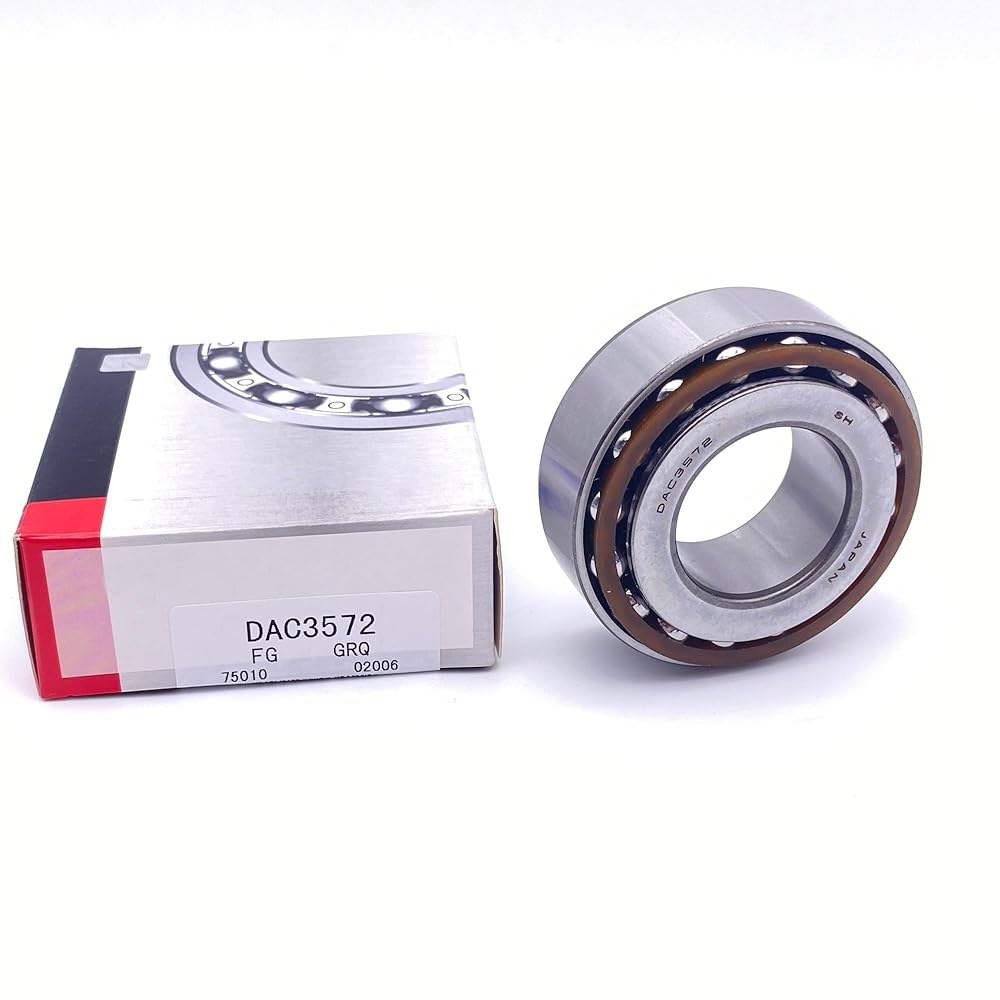

1Pcs Gearbox Bearings Bearing Angular Contact Ball Bearing DAC3572DAC3572
The angular touching ball bears can undertake both the radial load and axial load in the mean-time. Such bearings can work at a high rotational speed. The bigger the touching angle is, the greater the bearing's load capacity is.
Main applications of contact ball bearing:
papermaking machinery, reducer, railway vehicle axle, rolling mill gearbox bearing , rolling mill roller, crusher,vibrating screen, printing machinery, woodworking machinery, all kinds of industrial reducer, vertical self-aligning bearing with .
Model
d mm
D mm
H mm
W kg
7200AC
10
30
9 0.031
7201AC
12
32
10
0.035
7202AC
15
35
11
0.043
7203AC
17
40
12
0.064
7204AC
20
47
14
0.102
7205AC
25
52
15
0.14
7206AC
30
62
16
0.21
7207AC
35
72
17
0.31
7208AC
40
80
18
0.4
7209AC
45
85
19
0.45
7210AC
50
90
20
0.49
7211AC
55
100
21
0.65
7212AC
60
110
22
0.86
7213AC
65
120
23
1.08
7214AC
70
125
24
1.19
7215AC
75
130
25
1.29
7216AC
80
140
26
1.58
7217AC
85
150
28
1.96
7218AC
90
160
30
2.44
7219AC
95
170
32
2.93
7220AC
100
180
34
3.51
==========
Hign-concerned Chemical : None
Surface Roughness : Ra 1.6
Structure : Angular Contact
Model Number : DAC3572
Coatings : Black Oxide
Material : Chrome steel
Precision Rating : P5 , P6 , P4
Seals Type : Open
Model : DAC3572
Feature : Long Life High Speed
Weight : 0.45KG
Size : 35x72x27mm
