Actuator
N05, N10 SERIES
NON-SPRING DIRECT-COUPLED DAMPER ACTUATORS FOR
FLOATING AND TWO-POSITION CONTROL
SPECIFICATIONS
Supply voltage:24 Vac/dc -15%/+20%, 50/60 Hz
Nominal voltage:24 Vac/dc, 50/60 Hz
All values stated hereinafter apply to operation under nominal voltage conditions.
Power consumption:22 VA / 2W, 50 Hz
Ambient limits:
Ambient operating limits -5...+140 °F (-20...+60 °C)
Ambient storage limits -22...+176 °F (-30...+80 °C)
Relative humidity 5...95%, non-condensing
Safety:
Protection standard IP54
Protection class II as per EN 60730-1
Overvoltage category II
Lifetime:
Full strokes 60000
Repositions 1.5 million
Mounting:
Round damper shaft 3/8 in5/8 in.
Square damper shaft 1/4 in1/2 in.; 45° steps
Shaft length min. 1-5/8 in.
End switches (when included):
Rating Class II
Triggering points: 5° / 85°
rating: 44 lb-in. (5Nm) / 88 lb-in. (10 Nm)
Runtime for 90°: 90 sec (dc / 60 Hz ac)
Rotation stroke :95° + 3°
Dimensions: see "Dimensions" on page 6
Weight (without cables) :1 lbs.
Noise rating :35 dB(A) max. at 1 m
GENERAL
This non-spring direct-coupled damper actuator provides floating and two-position control for:
air dampers,
VAV units,
air handlers,
ventilation flaps,
louvers, and
reliable control for air damper applications with up to 10 sq.ft. / 44 lb-in. (5 Nm) and 20 sq.ft. / 88 lb-in. (10 Nm)
(seal- less damper blades; air friction-dependent).
dimensions
============
NC or NO : Normally Closed
Actuator Mode : With Manual And Instruction
Structure : Regulating
Material : Plastic
Temperature of Media : Normal Temperature
Power : electric
Standard or Nonstandard : Standard
Pressure : Medium Pressure

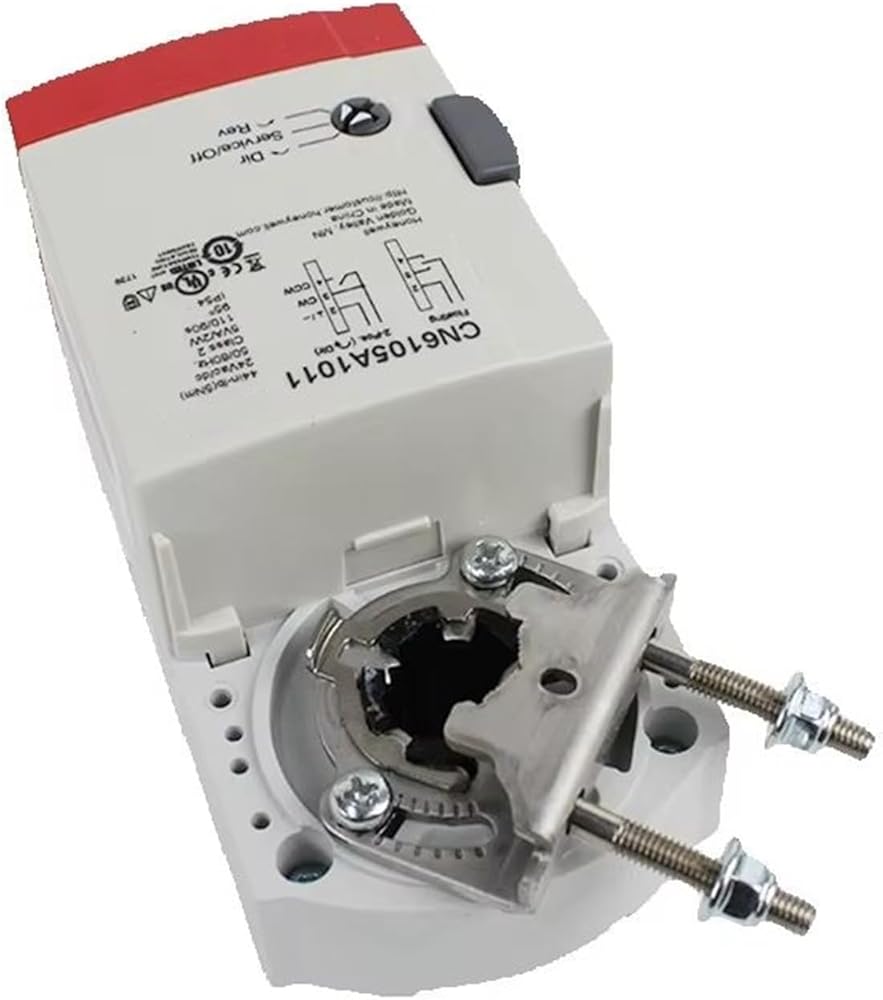

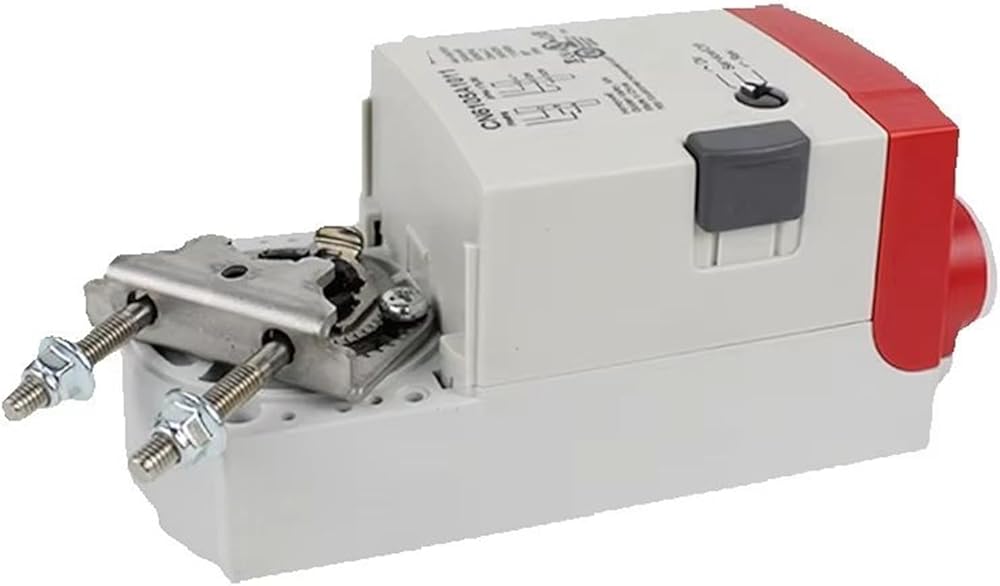

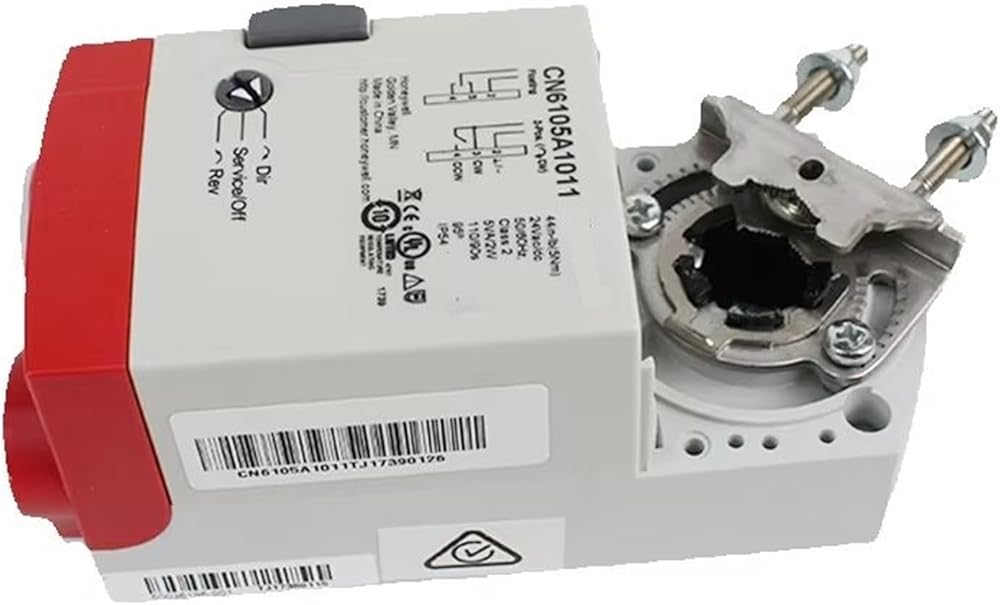

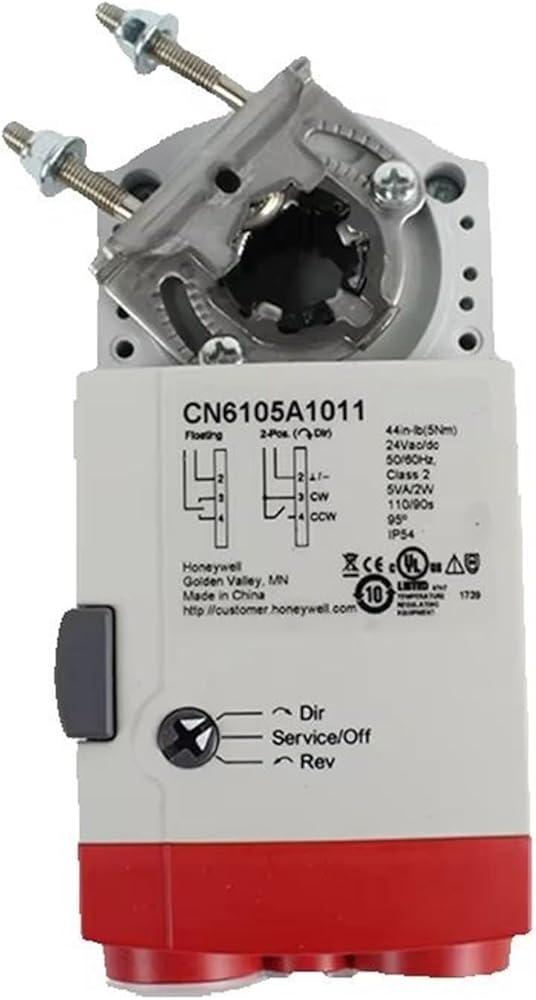

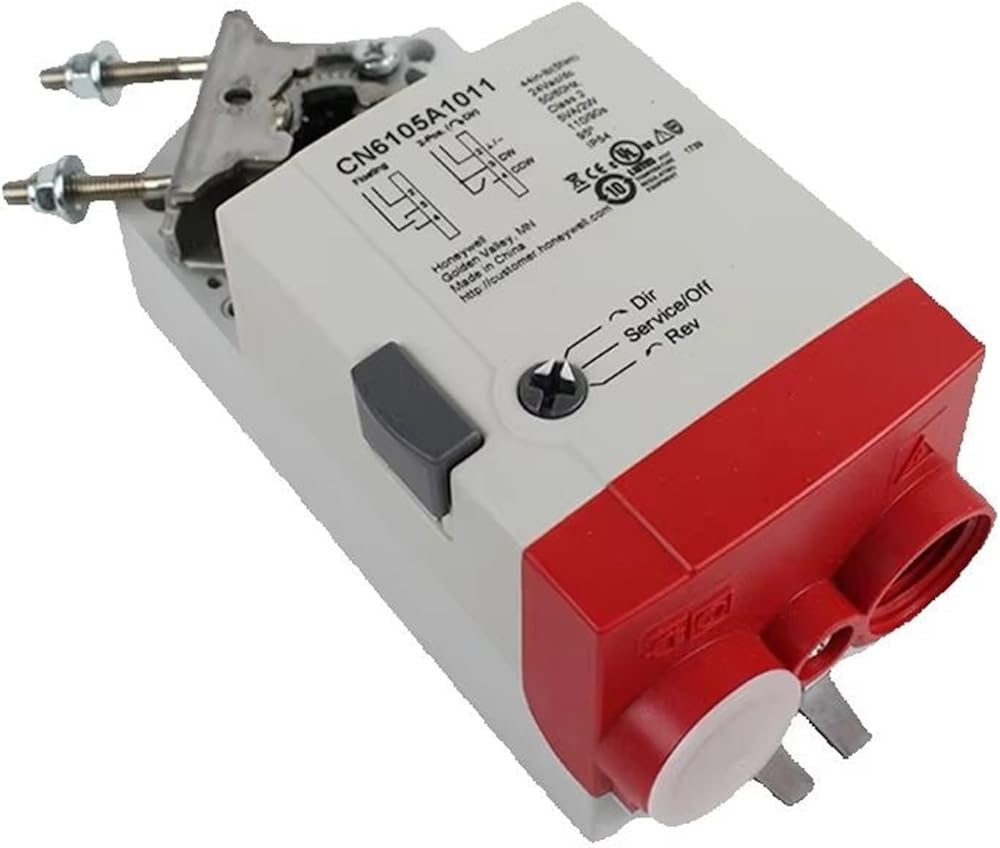

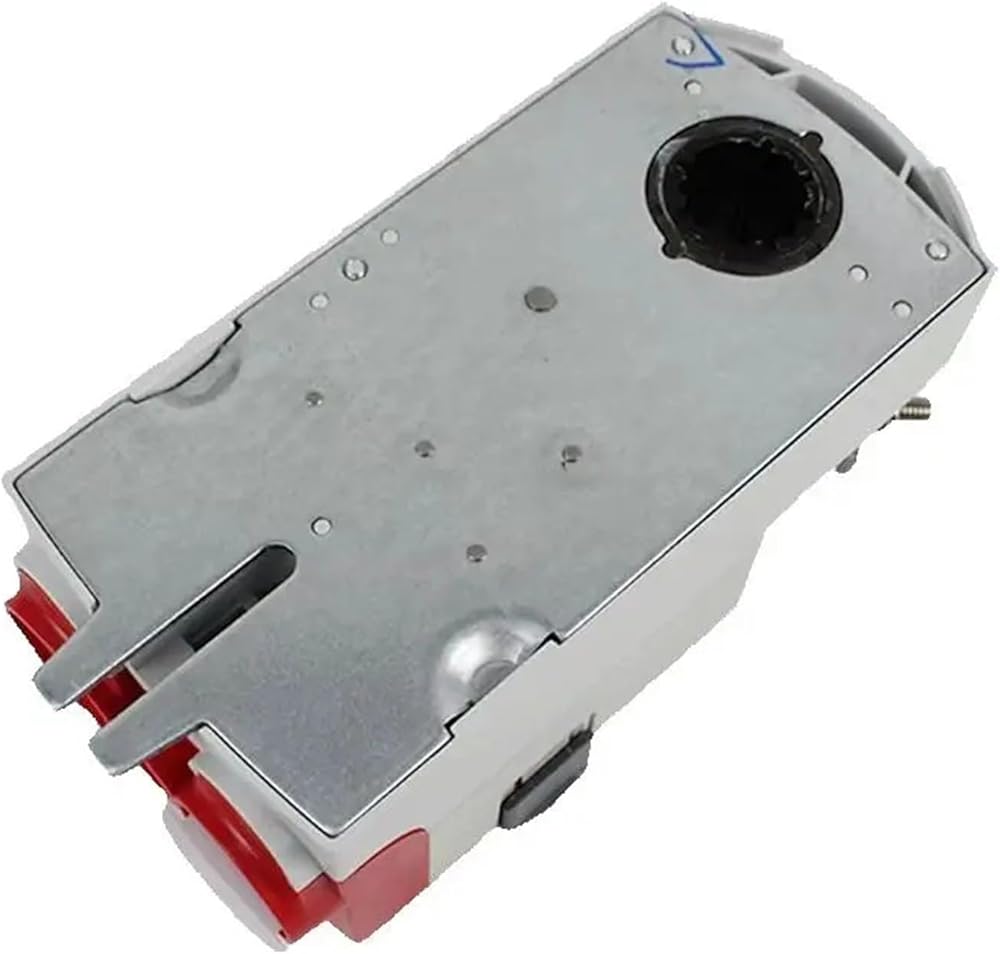

Model Number : CN6105A1011
Power : AC
