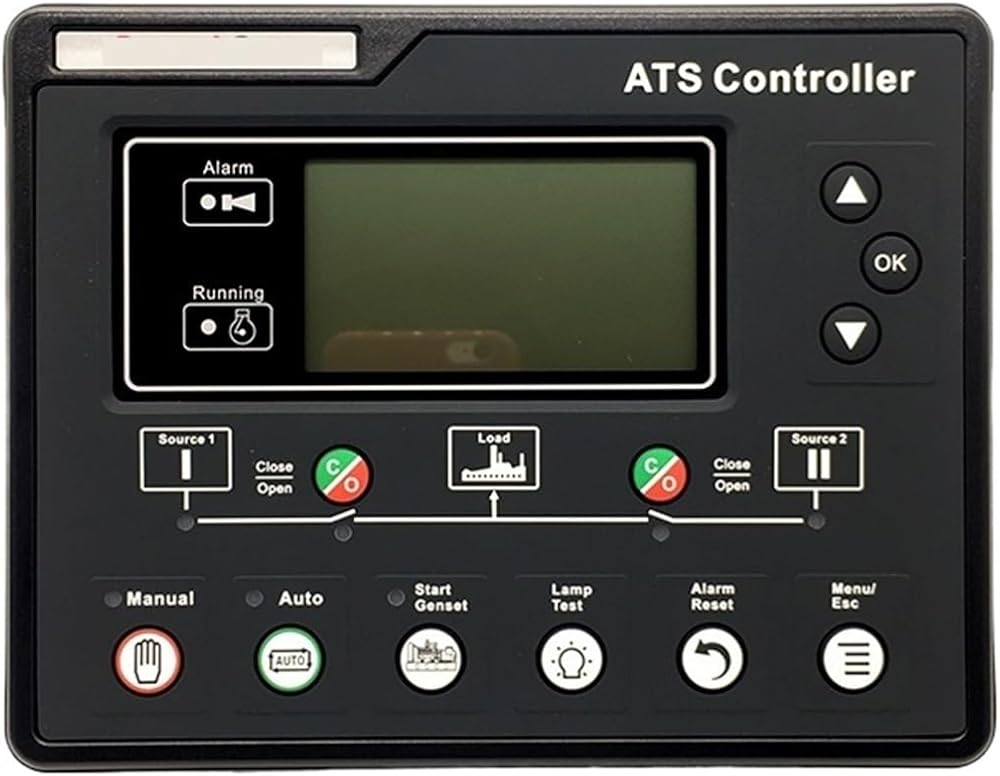

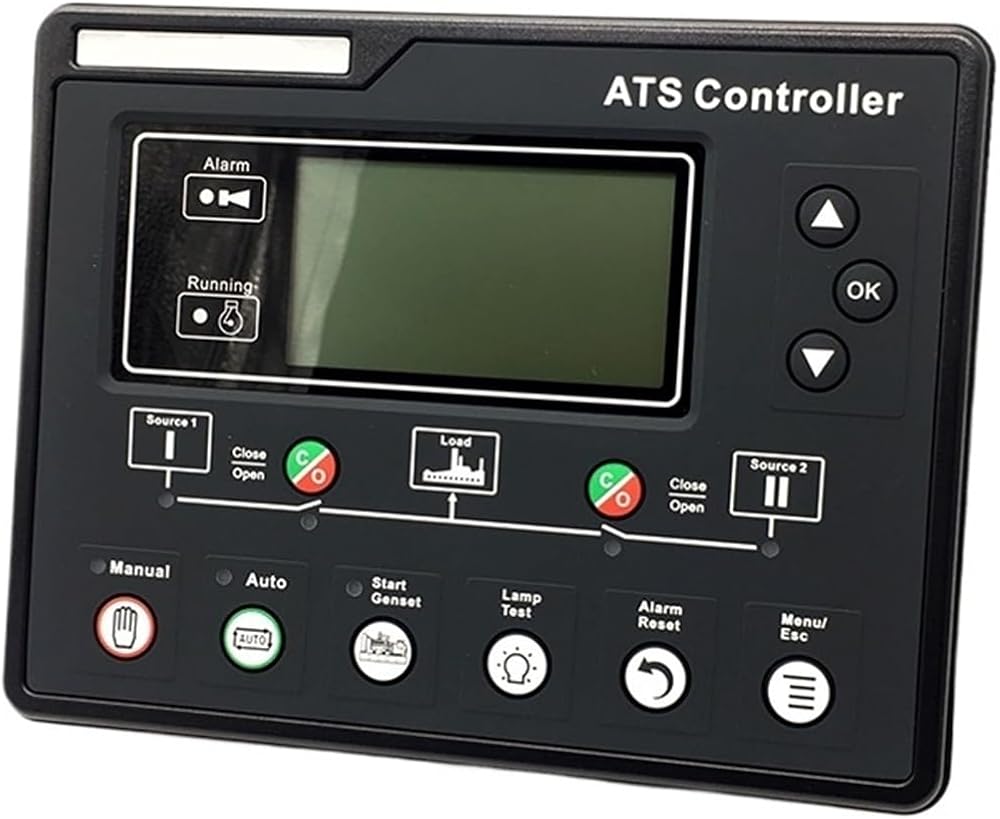

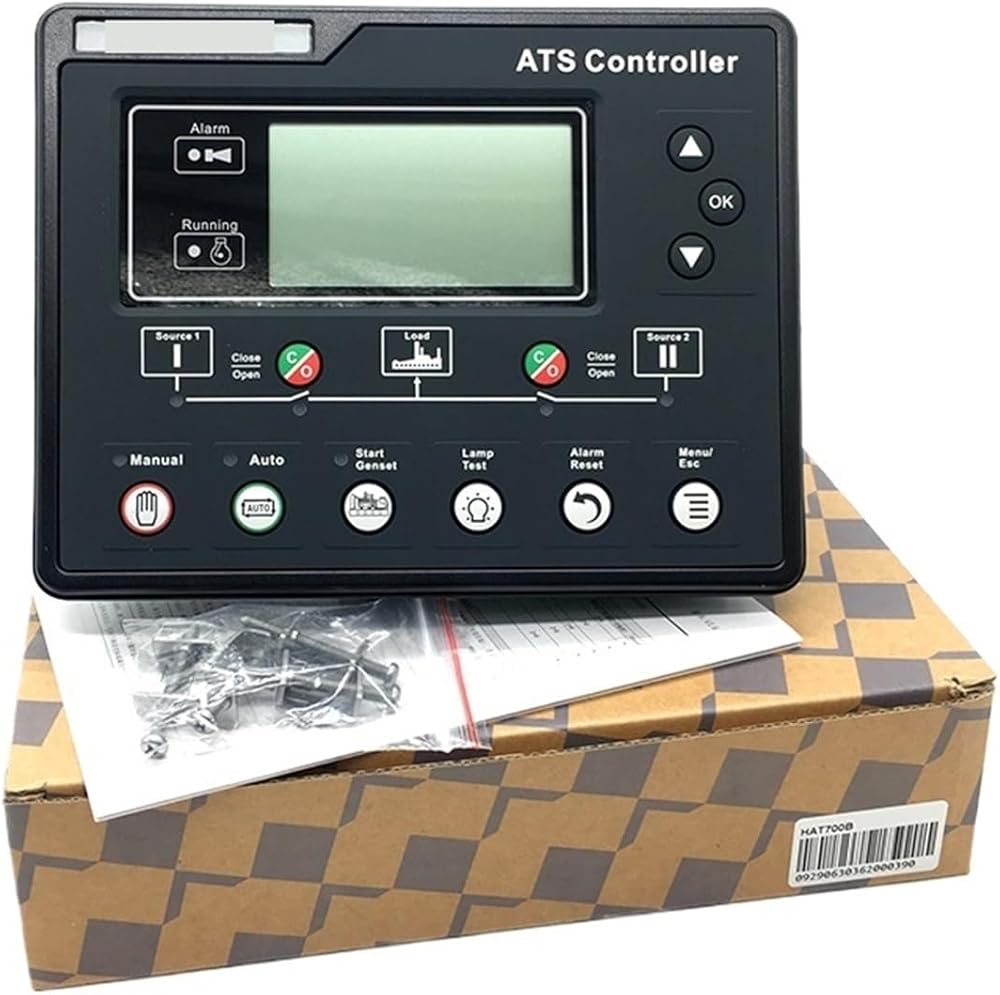

ATS Controller HAT700B Intelligent Dual Power supply Module Generator Controller
Product Description
HAT700 series ATS controller is intelligent dual-supply module with configurable function, automatic measurement, display, and digital communication. It combines digital, intelligence and networking. Automatic measurement and control can reduce incorrect operation. It is an ideal option for ATS.
The powerful Microprocessor contained within the unit allows for precision voltage (2-way-3-phase) measuring and make accurate judgment; in addition, the corresponding digital output port will active when there is over/under voltage, over/under frequency, loss of phase and other abnormal condition occurs. This controller has full consideration in various application of ATS (automatic transfer system) and can be directly used for PC ATS, CB ATS, CC ATS etc. It has compact structure, advanced circuits, simple wiring and high reliability, and can be widely used in electrical devices, automatic control and testing system of electric power, telecommunications, petroleum, coal, metallurgy, railways, municipal administration, intelligent building, etc.
PERFORMANCE AND CHARACTERISTICS
1. System type can set as: S1 (Mains) & S2 Mains S1 Mains S2 Generator S1 Generator S2 Mains S1 Generator S2 Generator
2 132x64 with backlight multilingual interface including English Chinese or other languages push-button operation.
3. Collect and display 2-way 3-phase Voltage, Frequency and Phase.
4. Collect and display Active Power, Reactive Power, Apparent Power, Power Factor and Current.
5. S1/S2 separated over current warning/ trip alarm.
6. NEL (Non-essential Load) trip function.
7. Display S1/S2 Total kW Energy, Total kvar Energy, Total Close Times.
8. Display continuous power supply time and S1/S2 total power supply time.
9. Sync Transfer function; in addition, Voltage Difference, Frequency Difference and Pha
