Electronic Engine Control

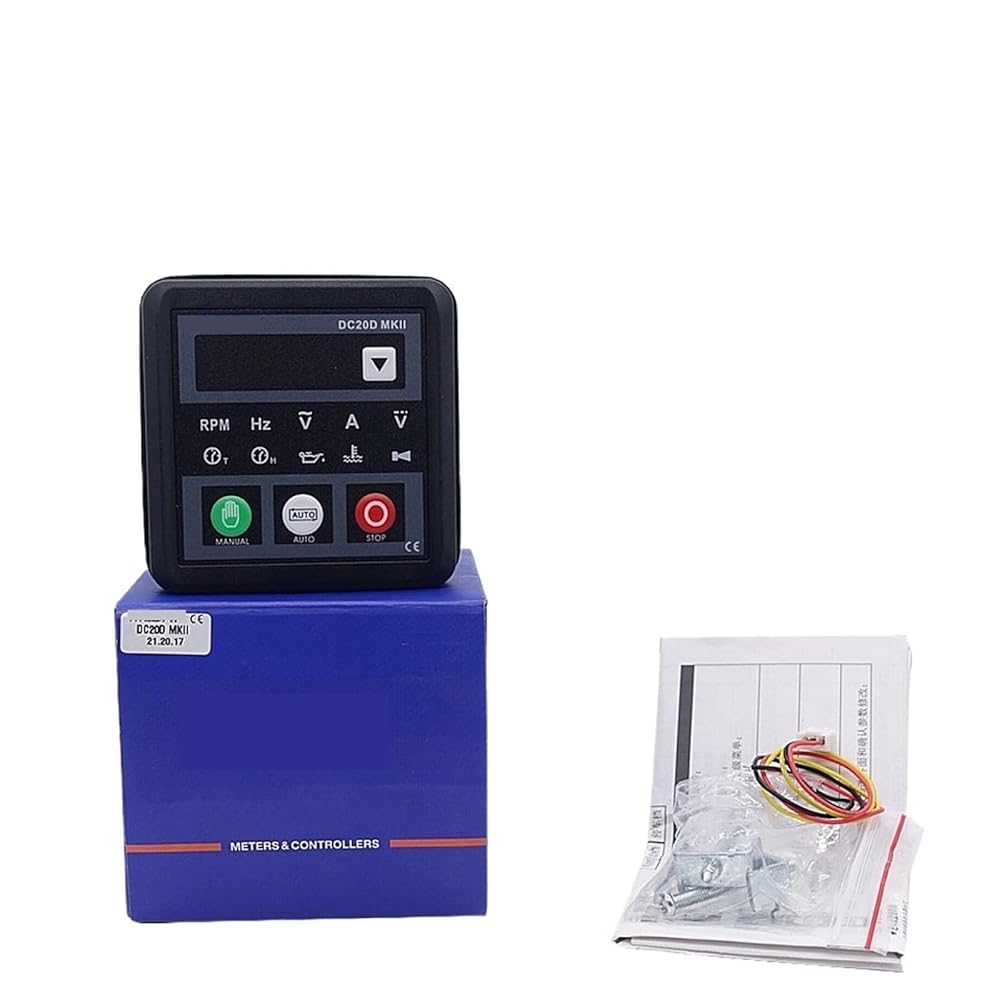

Controller DC20D MKII Generator Automatic Control Module Digital Parameter Display Control Panel
Product Description

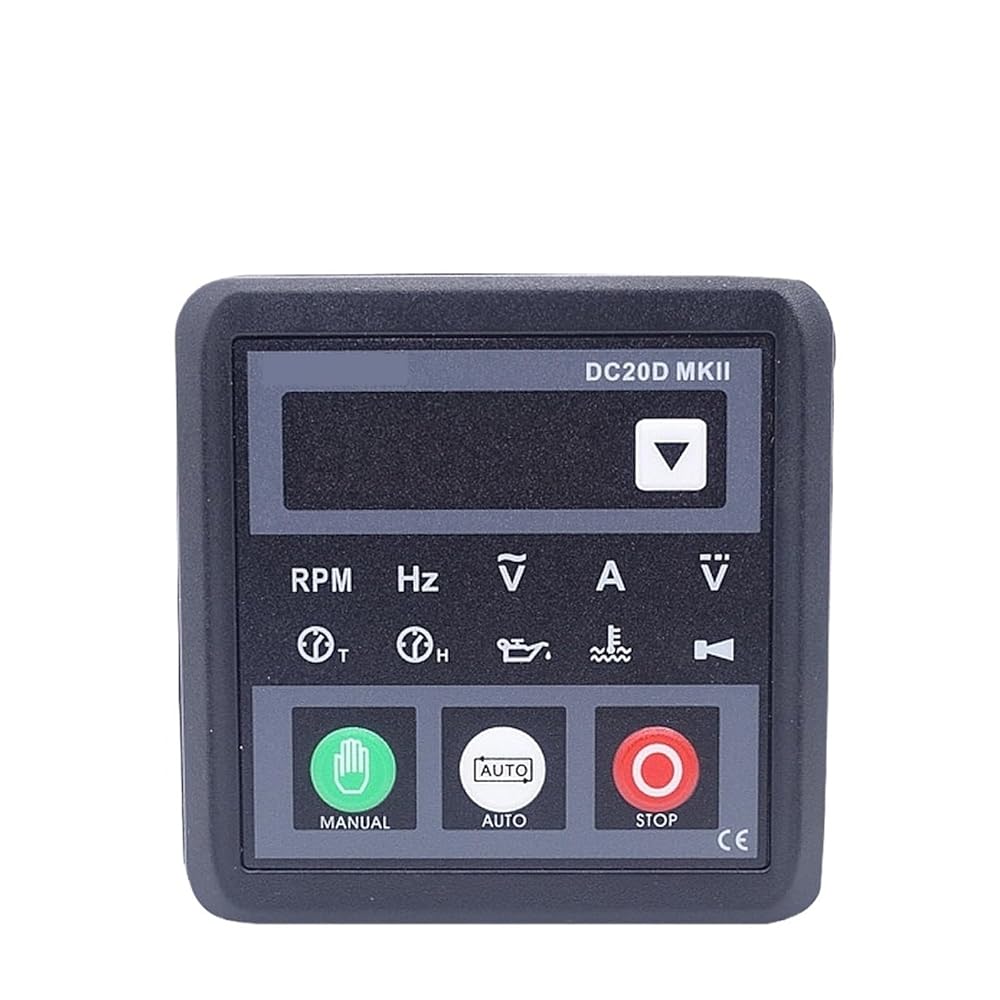

DC20D MKII is one module used for Diesel/gasoline Engine or Generator, It's an upgraded product of DC20D.It is with the functions of Auto Star/Stop, Protection and Alarm indication. DC Power and Running situation is indicated on the front panel.
The status of the engine and generator can be checked conveniently because these parameters of over speed, under speed, Over Frequency, Low Frequency, Over Voltage, Under Voltage, Low Oil Pressure, High Temperature, Low Water Level, Low Oil Level, Charge Failure, Over-time Stop, Emergency Stop Alarm System as well as Low Battery Voltage can be indicated in time.
The output connector is connected with traditional relay which can burden more output current. The parameters can also be set by the front face buttons so that it can be used in different kinds of situations.
==========
Hign-concerned Chemical : None
Model Number : DC20D MKII
Keyword : Start Controller
Usage : Genset Controller
DC Supply : DC 8~36 V
Power Consumption : MAX 3W
Measuring Frequency : 10~70 Hz
