High Torque: 45KG Brushless motor, double ball bearin. Metal Gear with less noise for added strength and durability. Light Weight more stable torque Maximum Torque Can Up to 49kg.cm(680oz-in),Speed sec/60°:0.1@8.4v

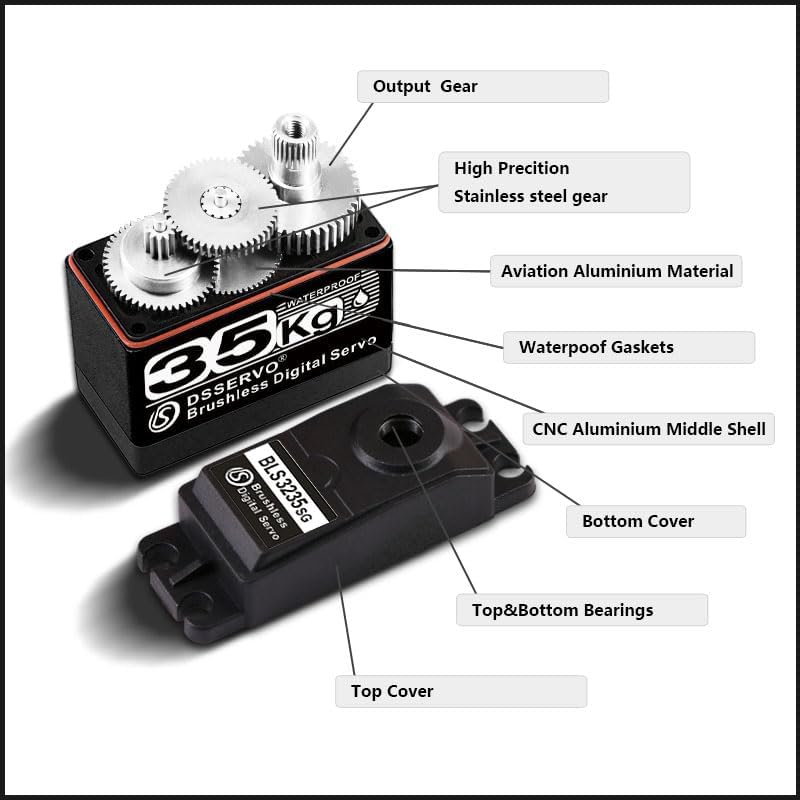

Good performance: Equipped with High-precision Steel Gear and Potentiometers , High-resolution Digital Chip, Waterproof Rubber Seals Screws, Made of First-grade Material and CNC Aluminum Middle Shell Ensure Stable Performance and Long Working Life.
Control System: change of pulse width. Pulse range 500usec ~ 2500usec for 0° ~ 270° (90°--1166usec, 180°--1833usec),Excellent linearity, precision control
Waterproof performance: IP67 Durable, Responsive, Strong Anti-interference Ability, Low Noise, Fast Heat Dissipation.
Wide Applications:The servo (Control Angle 180°/270°) Compatible with 1/8 1/10 1/12 Scale Clawer Truck,RC Car / Robot / Boat DIY Helicopter Other servo Conroller

Storage Temperature Range：-30℃～80℃

Operating Temperature Rang: -15℃～70℃

Operating Voltage Range: 4.8-8.4V

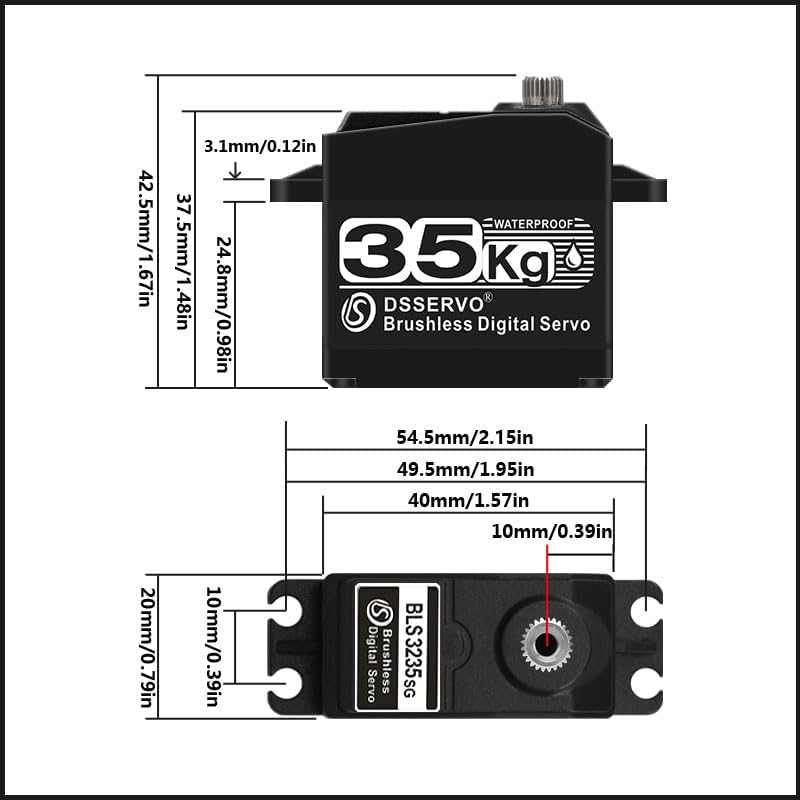

Size: 40*20*38.5mm

Weight: 85

Gear ratio: 361

Bearing: Double bearing

Connector wire(Cable):300±5mm

Motor: Brushless motor

Waterproof performance:IP67

Operating Voltage 4.8V/7.4V/8.4V

Idle current(at stopped) 5mA

Operating speed (at no load) 4.8V/5mA/0.15 sec/60°; 7.4V/5mA/0.11 sec/60°; 8.4V/5mA./0.1sec/60°

Stall torque (at locked):4.8V/3.2A:31 kg-cm 7.4V/5.2: 43 kg-cm 8.4V/6.2A:49 kg-cm

Stall current (at locked) 4.8V:3.2A 7.4V:5.2A 8.4V:6.2A

Control System:PWM(Pulse width modification)

Pulse width range: 500～2500μsec

Neutral position:1500μsec

Running degree: 180° -270°(when 500～2500 μ sec)

Dead band width: 2 μsec

Operating frequency: 50-330Hz

Rotating direction: Counterclockwise (when 500～2500 μsec)
