PDI-6221MG-120 Angle SPECIFICATIONS:
Dead band: 2μs
Working frequence: 1520μs / 330hz
Operating Speed (4.8V): 0.18 sec/60°
Operating Speed (6V): 0.16 sec/60°
Stall Torque (4.8V): 17.25 kg/cm
Stall Torque (6V): 20.32 kg/cm

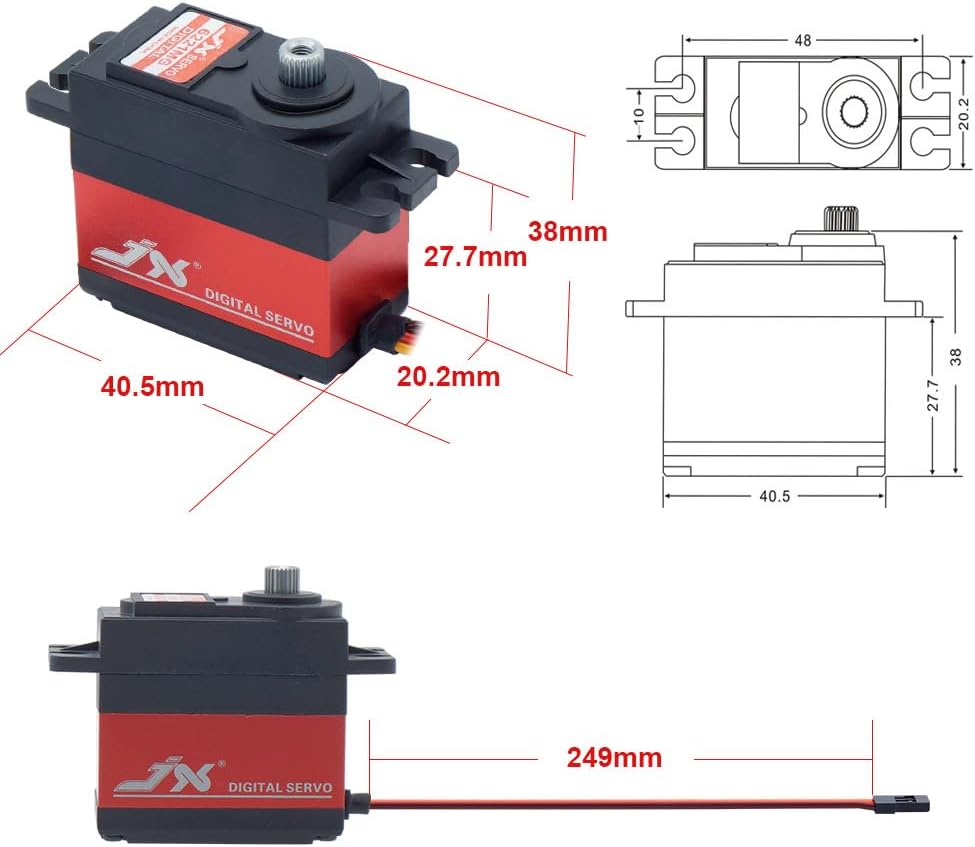

Dimensions: 40.5X20.2X40mm
Weight: 62 g
Connector Wire Length: JR 260 mm
Bearing: 2BB
-- 180 Angle 20kg digital servo
PDI-6221MG-180 SPECIFICATIONS:
Max Angle:180°
Pulse width:500-2500μs=180°
Dead band: 4μs 1520μs / 330hz
Operating Speed (4.8V): 0.18 sec/60°
Operating Speed (6V): 0.16 sec/60°
Stall Torque (4.8V): 17.25 kg.cm (239.55oz/in)
Stall Torque (6V): 20.32 kg.cm (281.89 oz/in)
Dimensions: 40.5X20.2X40mm /1.59 X0.80X1.57 in
Weight: 62 g (2.18oz)
Connector Wire Length: JR 260 mm (10.24in)
Bearing: 2BB
-- 360° Continuous rotation 20kg digital servo
-- For Robot, industrial machinary and equipment, etc.
PDI-6221MG-360 SPECIFICATIONS:
Angle: 360°Continuous rotation
Pulse width: 500-2500μs
Dead band: 4μs 1520μs / 330hz
Operating Speed (4.8V): 53T/M
Operating Speed (6V): 65T/M
Stall Torque (4.8V): 17.25 kg.cm
Stall Torque (6V): 20.32 kg.cm
Dimensions: 40.5X20.2X38mm
Weight: 62 g
Connector Wire Length: JR 260 mm
Bearing: 2BB
