مميزات خاصة

RED COPPER MATERIAL: Our DC motoris made of red copper, which has excellent strength, hardness, wear resistant, electrical conductivity, thermal conductivity, and is not prone to chemical reactions; the design of the metal gear ensures stable performance under high loads, is impact-resistant, and has low noise
DECELERATION CAPABILITY: The mini motor has good deceleration capabilities, support clockwise/counterclockwise rotation, can achieve precise control and slower, more controllable movement, and meet different needs
EXCELLENT PERFORMANCE: The dc gear motor reduction is 3 layers of high-density molecular coatings, effectively dust-proof and high-temperature resistant, and the micro metal gear motors use copper coils, which are highly conductive and have low heat generation, making the motor output stable
6 TYPES TO CHOOSE FROM: Our miniature motors for assembling offer 6 different types of RPM to choose from; optional types: 16RPM, 27RPM, 53RPM, 68RPM, 136RPM, 381RPM; you can choose according to your needs
APPLICATION: Our micro gear motor provide high output, suitable for smart toys, simulation robot electronic locks, etc.; its compact size masks its ability to easily handle demanding applications

وصف

Specification：
Condition: 100 percent Brand New

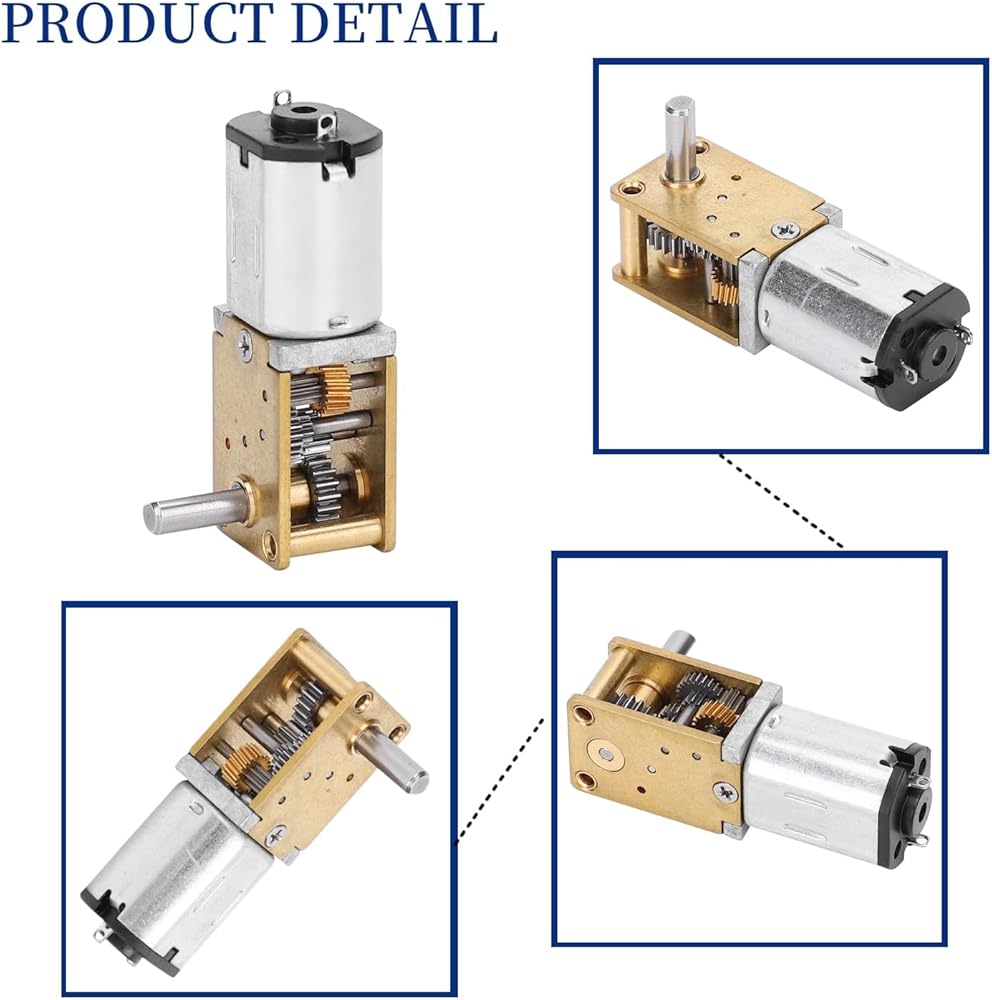

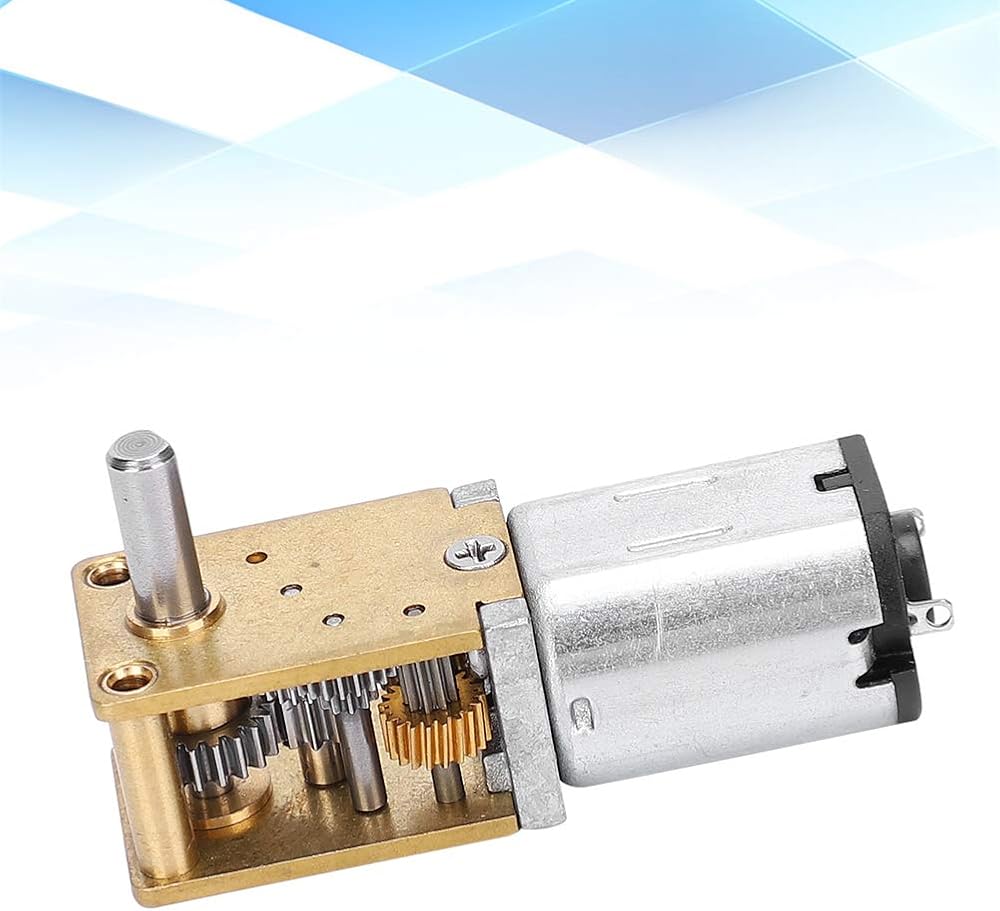

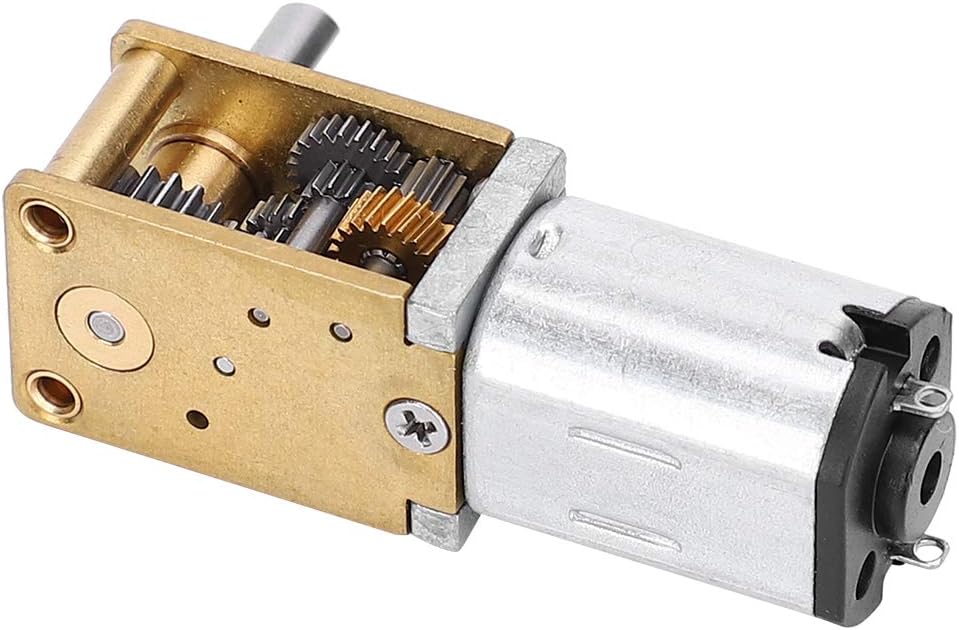

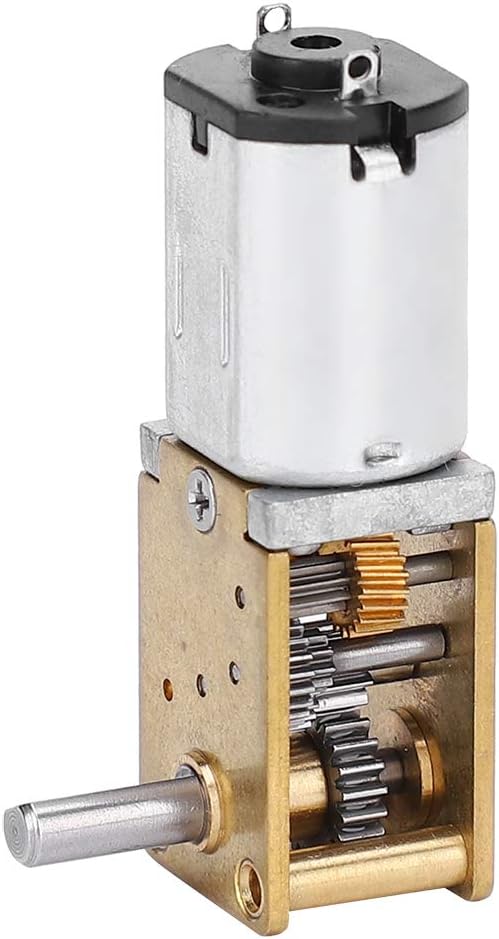

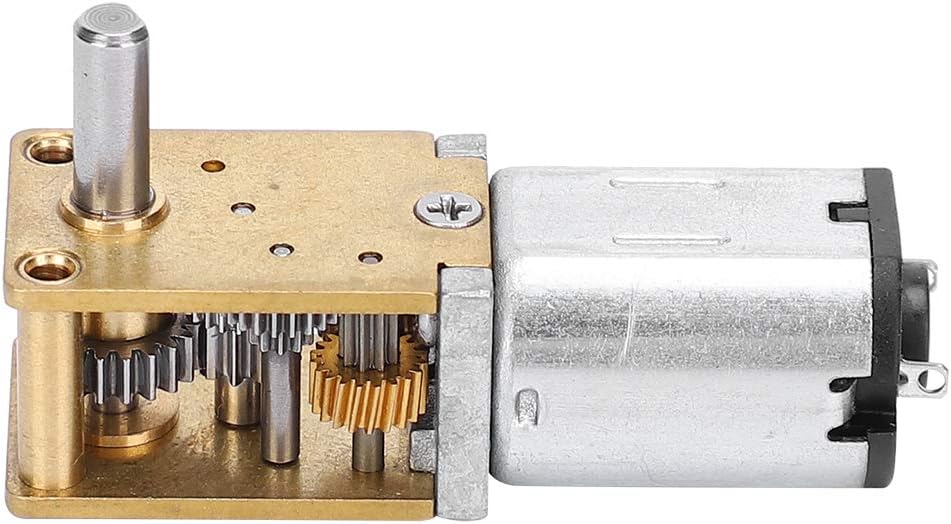

Item Type: Metal Gear Motor
Material: Red Copper
Optional Type: 16RPM, 27RPM, 53RPM, 68RPM, 136RPM, 381RPM

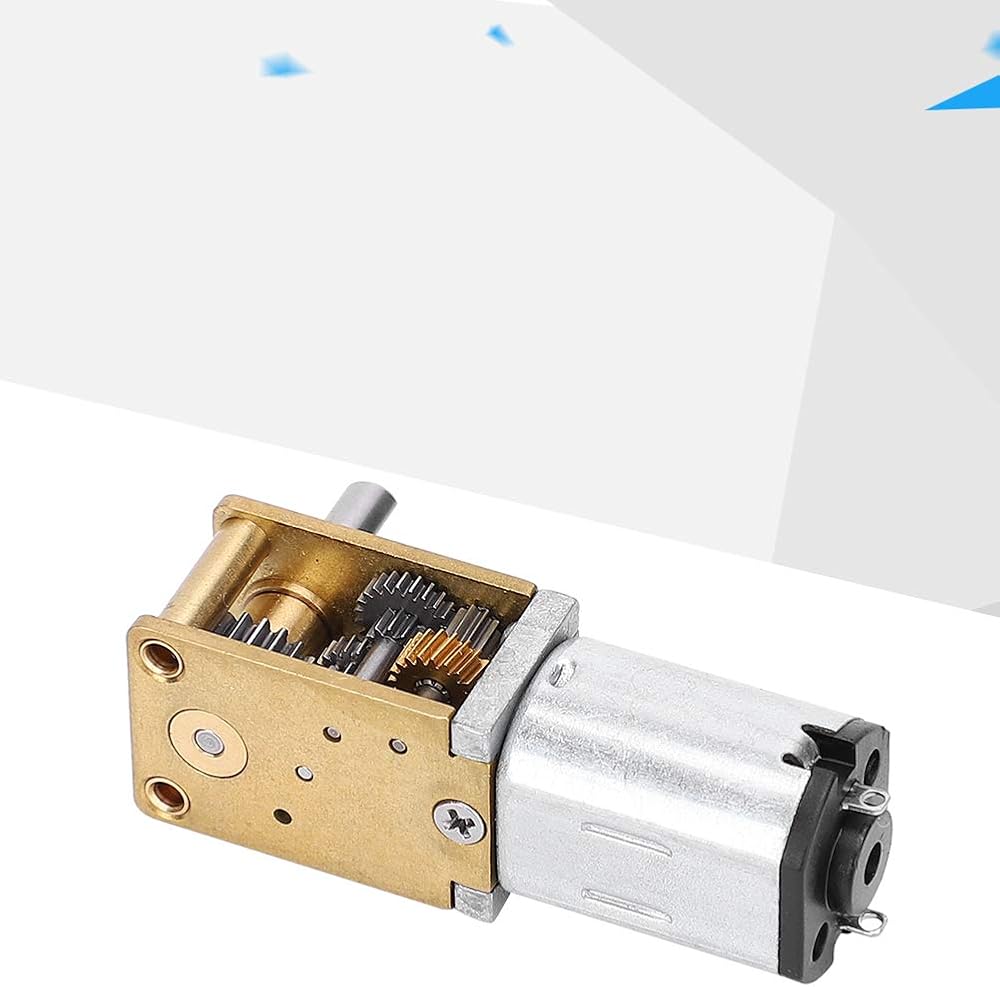

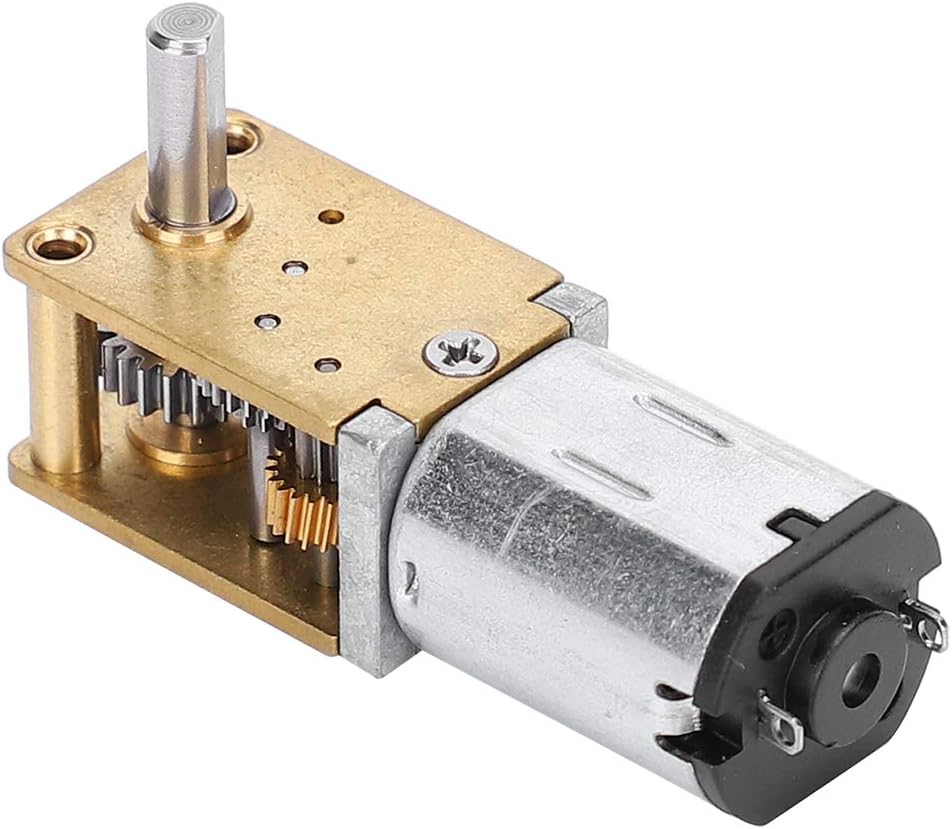

Model: JGY - N20
Motor Type: Brush DC motors

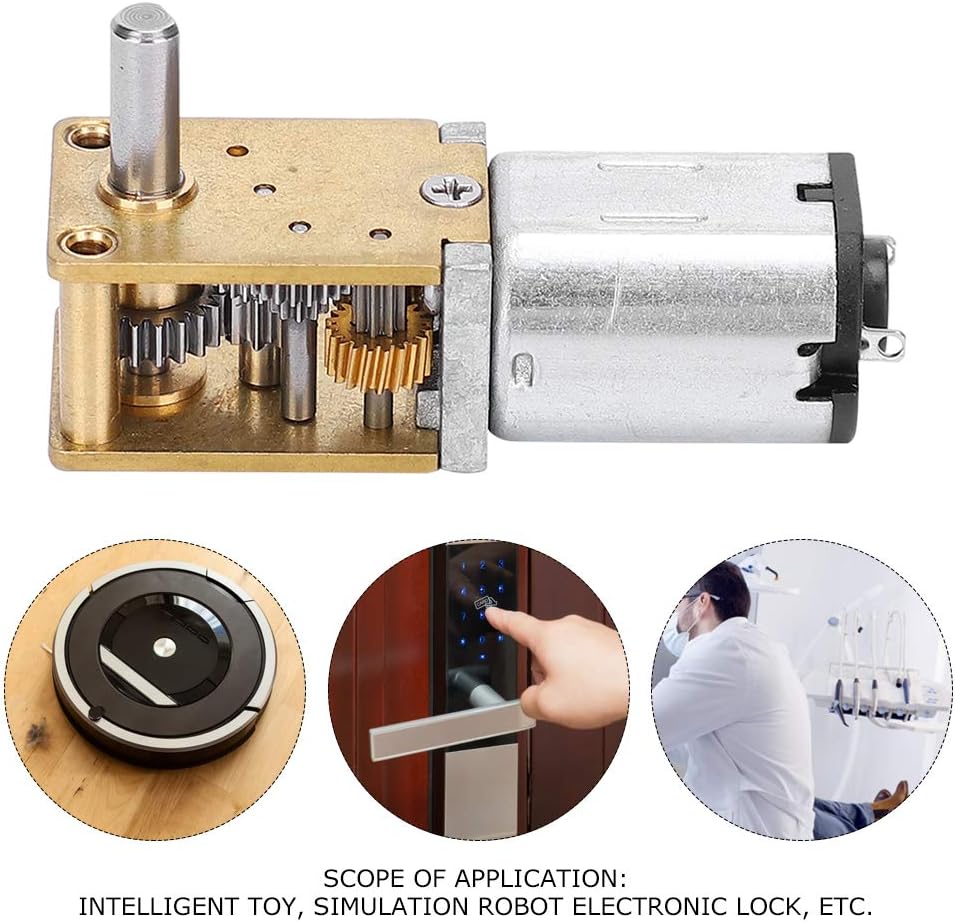

Scope of Application: Intelligent toy, simulation robot electronic lock, etc.

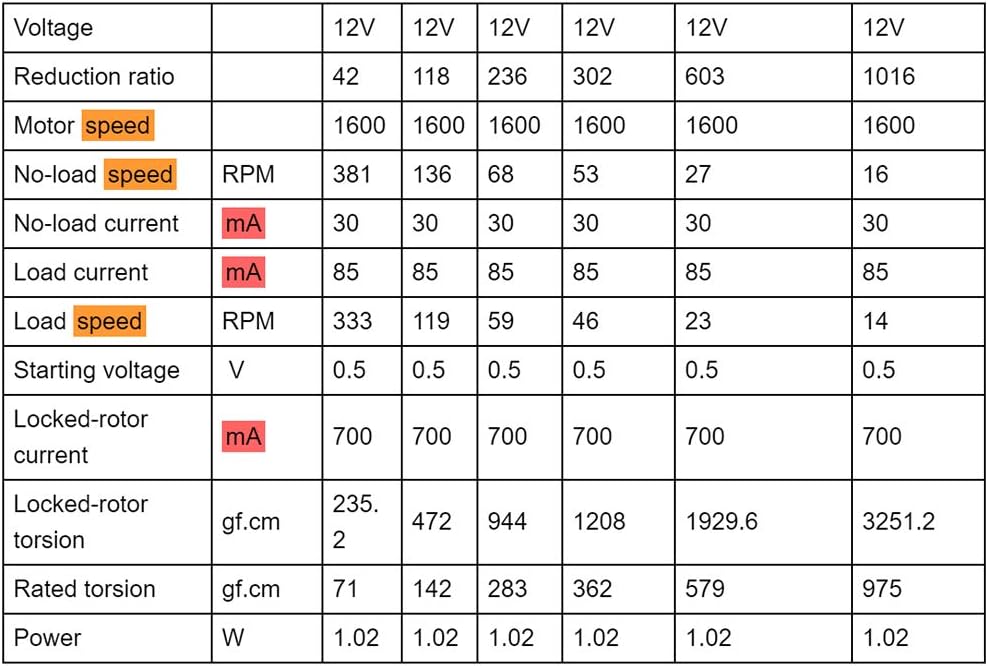

Voltage (V): 12V 12V 12V 12V 12V 12V
Reduction ratio: 42 118 236 302 603 1016
Motor speed (RPM):: 1600 1600 1600 1600 1600 1600
No-load speed (RPM): 381 136 68 53 27 16
No-load current (mA): 30 30 30 30 30 30
Load current (mA): 85 85 85 85 85 85
Load speed (RPM): 333 119 59 46 23 14
Starting voltage (V): 0.5 0.5 0.5 0.5 0.5 0.5
Locked-rotor current (mA): 700 700 700 700 700 700
Locked-rotor torsion (gf.cm): 235.2 472 944 1208 1929.6 3251.2
Rated torsion (gf.cm): 71 142 283 362 579 975
Power (W): 1.02 1.02 1.02 1.02 1.02 1.02

Package List：
1 x Speed Reduction Motor

مرحبًا،

بحث

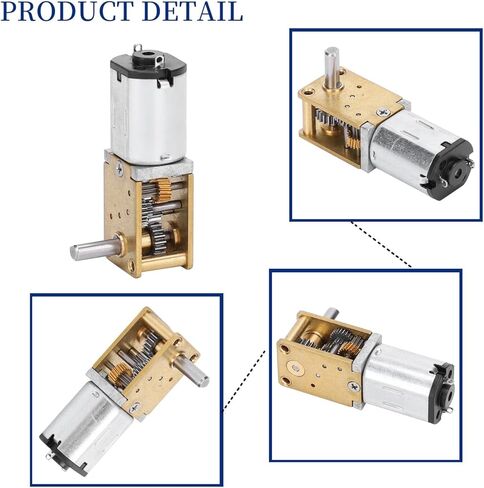

MINI Micro Metal Gear Motor ، N20 DC12V CW CCW تقليل السرعة للفرشاة المحرك بديل لمحرك المحاكاة الذكية لمحاكاة الألعاب الإلكترونية (DC12V 27RPM)
