Available with built-in ExpressLRS or 4-in-1/CC2500 MPM RF modules
Featuring a powerful STM32VGT6 processor with 1MB RAM
Compact design with excellent ergonomics; New low-profile latching SE switch and momentary SF switch

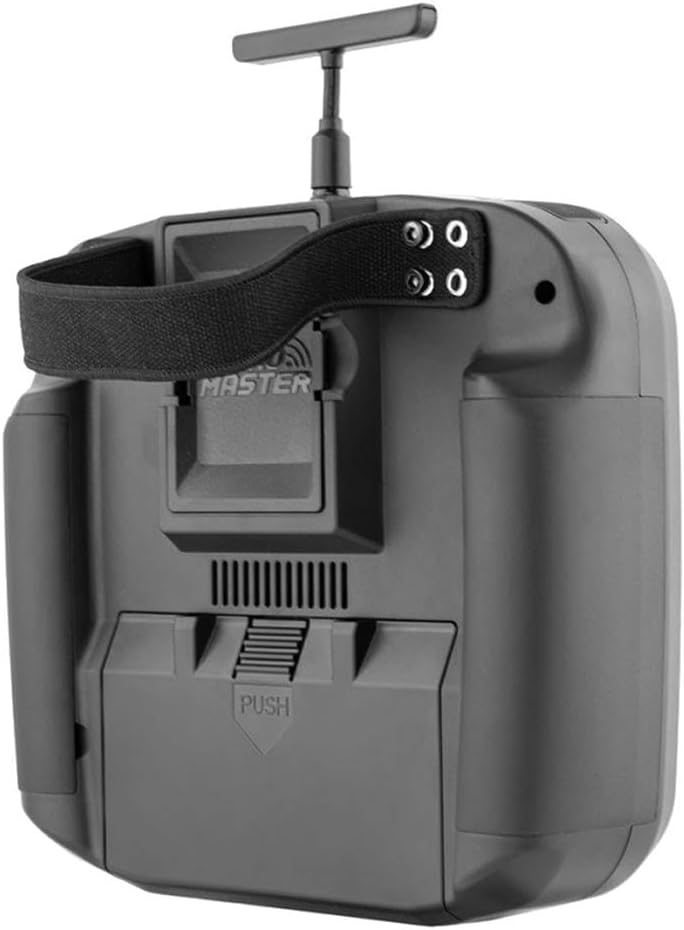

Oversized battery compartment- Space for a 2S 6200mAh pack, up to 20-hour duration (Batteries not included); Full sized V4.0 Hall effect gimbals as standard, upgradable to AG01 CNC Hall effect gimbals
Standard JR module compartment; RadioMaster standardized button layout
Industry first fabric handle for improved portability; Changeable, ergonomic grips
In the box: BOXER Radio with Antenna, Carry Case, Gimbal Protector, USB-C Cable, Battery Tray (Battery Cells Sold Separately), Accessories, User Instruction

وصف

Specifications:

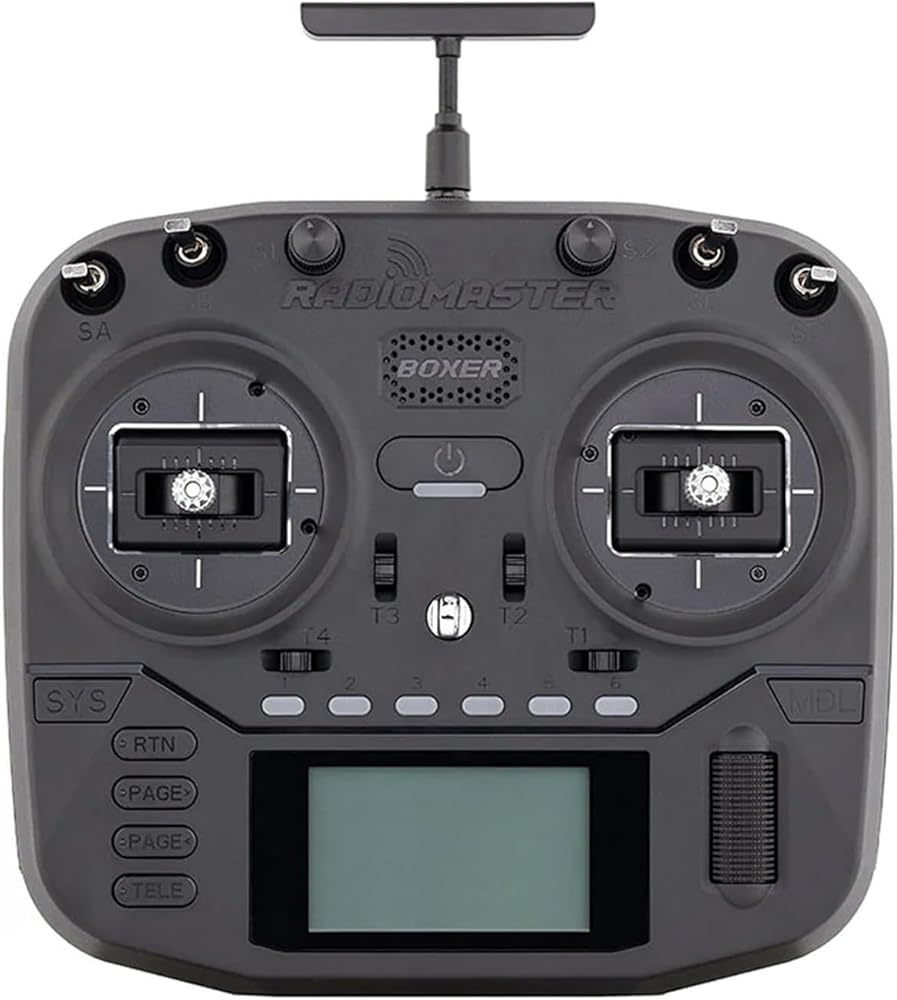

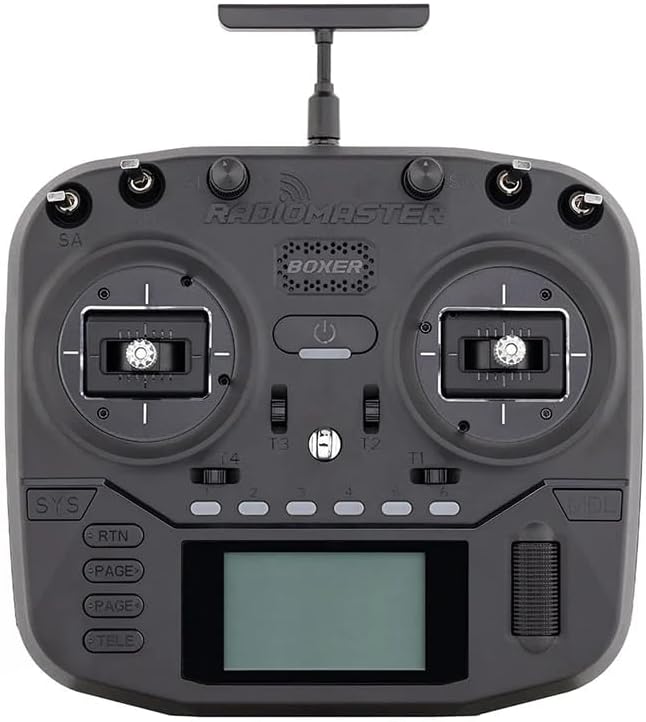

Item: BOXER Radio

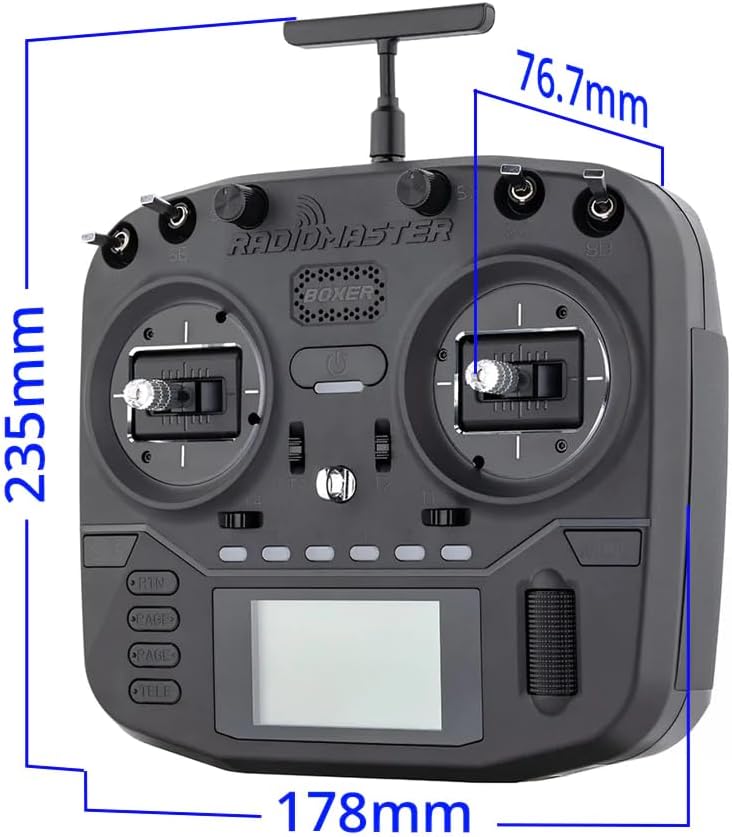

Size: 235*178*77mm

Weight: 532.5g

Frequency: 2.400GHz-2.480GHz

Internal RF Options: CC2500 multi-protocol(CC2500 Version)/4-in-1 multi-protocol (4in1 version) / ELRS 2.4GHz (elrs verion)

Supported protocols: Module dependent

Transmitting Power 4IN1 or CC2500 : Max 20dBm

Transmitting Power ExpressLRS: Max 30dBm (international) / Max 20dBm (EU LBT)

Cooling fan: Built in (ELRS version)

Voltage Range: 6.6-8.4V DC

Radio Firmware: EdgeTX (Transmitter) / Multi-Module (RF module) for 4in1 version and CC2500 Version; EdgeTX (Transmitter) / ExpressLRS (RF module) for ELRS Version

Channels: Max 16 channels (Receiver dependent)

Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells (batteries not included)

Display: 128*64 Monochrome LCD display

Gimbal: High precision 4.0 Hall gimbals as standard (AG01 Optional)

External module: JR / FrSKY / Crossfire compatible

Upgrade Method: USB / SD card & EdgeTX Companion PC software

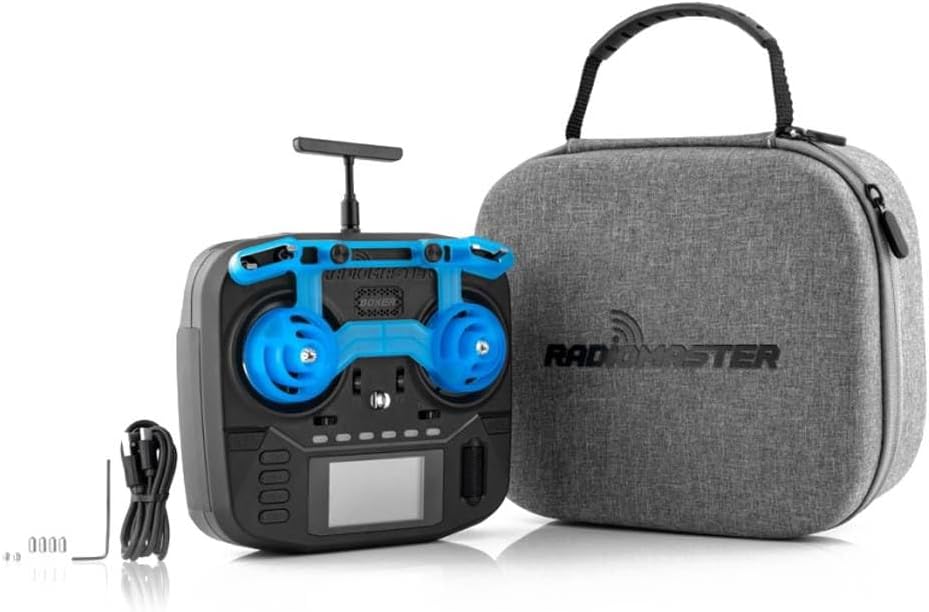

Package

1 * BOXER Radio

1 * Signature Carry Case

1 * T Antenna

1 * USB-C Cable

1 * Gimbal Protector

1 * 1.5mm Allen Key

2 * M4*4 Screws

4 * Low Tension Springs

1 * Stickers

1 * Manual

1 * Battery tray (Batteries not included)

Notes:

★ CC2500 (standard) Version supports all CC2500 protocols

★ 4in1 (standard) Version supports all MPM protocols

★ ELRS (standard) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependnant)
