مميزات خاصة

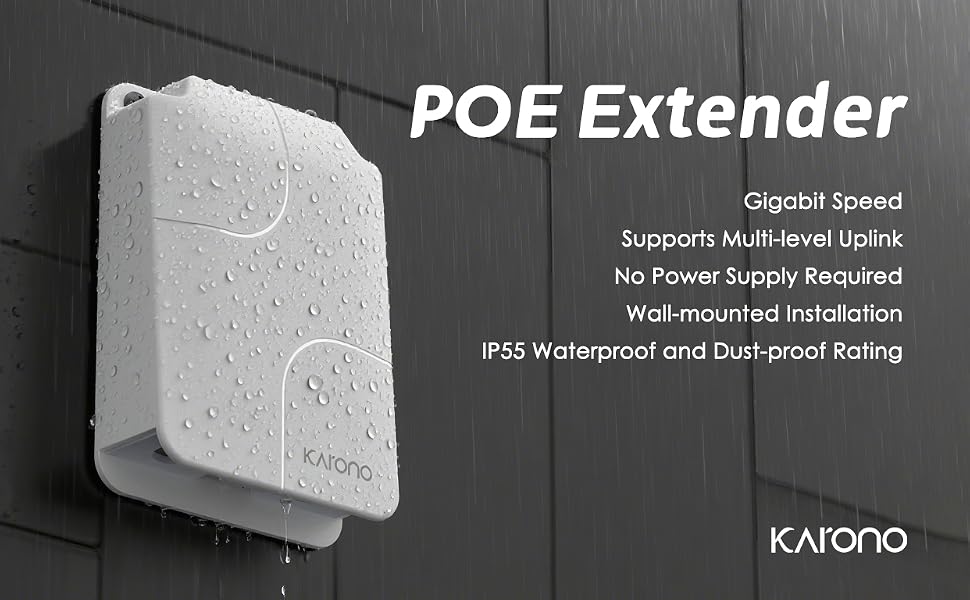

【Outdoor Waterproof PoE Extender】Include 1x gigabit (PoE/90w) power input port, 1 gigabit (PoE/60w) output port and 3 gigabit (PoE/30w) power output ports. The total maximum power of the extender is 90W. Powered by PoE network, no AC power supply required;
【IEEE 802.3 af/at/bt】All ports support this standard PoE, Input Max 90W IEEE802.3bt, Port 1-3 Output Max 30W IEEE802.3af/at, Port 4 Output Max 60W IEEE802.3bt. PoE Voltage 44-57 Vdc. PoE pin: Input, 1/2 (+), 3/6 (-), 4/5(+), 7/8(-); Port 1-3 Output: 1/2 (+), 3/6 (-). Port 4 Output: 1/2 (+), 3/6 (-), 4/5(+), 7/8(-);
【Plug and Play】 Truly plug-and-play setup—no software or complex settings required. Simply connect to any PoE active switch and daisy-chain devices. Extends the range of poe and ethernet an additional 100 meters;
【Dual Mode Option】When the switch is set to OFF, the device operates in default mode, supporting a transmission rate of 1 Gbps with a 100-meter transmission distance. When the switch is set to ON, the device enters VLAN mode, extending the transmission distance to 150 meters, but the transmission rate reduces to 100 Mbps.

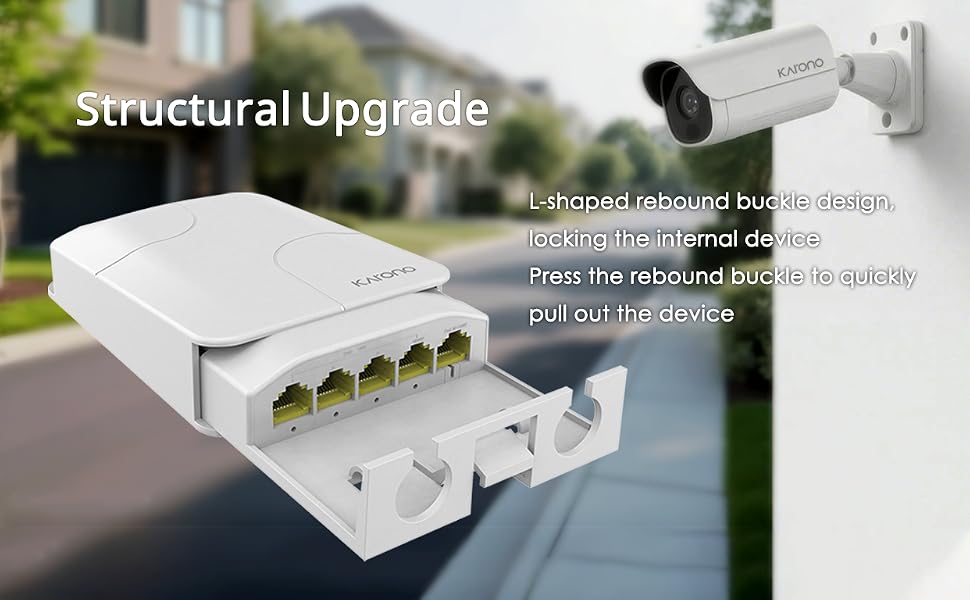

【Easy Install】 Engineered with dual DIN-rail/wall-mount slots and space-saving compact size, this extender effortlessly adapts to control cabinets, ceiling voids, or narrow conduits;
【Widely Used】 Support 3-level cascading, can connect poe AP, camera, phone and other POE devices, extender POE coverage at low cost. Ideal for lofts, warehouses, hotels, smart communities, and more;

وصف

Feature:
Compatible with IEEE 802.3 af/at/bt;
Extends the range of PoE and 10/100/1000Mbps Ethernet an additional;
100 meters extended distance. No additional power supply is required;
Automatically detects and protects PoE equipments from being damaged by incorrect installation;
10/100/1000Mbps Full-rate network throughout the whole extended;
Compact size, hoop-type installation and fixed design;

Application
Use with AP, IP camera, IP phone and other network equipment, Installed in hotels, schools, buildings, villages, etc.
