Description
Parameter Information:
No load Speed: 22000 rpm /25000 rpm
Collet Size: 3mm(1/8inch)/6mm(1/4inch)
Air inlet Size: 1/4 Inch
Working Pressure: 70 - 100 Psi
Air Consumption: 4 cfm
Material: Metal + Stainless Steel
Type: Straight shank pneumatic grinding machine
Features:
- Small size, high speed, smooth running and durable.
- 3mm / 6mm high precision replaceable chucks with high concentricity and adaptability for long time use.
- Speed can be adjusted by speed switch, by controlling the feeding volume, and then you can control the speed of the mill, very convenient.
- Contact pressure pneumatic switch, metal pressure plate switch, safe operation.
- Equipped with two special disassembly wrenches, you can replace the chuck by yourself, very safe.
- Air inlet filter design, can effectively filter the impurities in the air, does not affect the use.
- Wide range of application, can be used for metal processing, surface grinding, deburring, shaping, polishing and modification, etc.
Note:
- 1. Please give oil 3-5 times a day, the method of oil is injected from the inlet 0.5CC oil, let the tool idling 3-5 seconds.
- 2. Oil types: Please use # 15 pneumatic tools for oil.
- 3. Impact Wrench In addition to the above oil, the combat department about once in five months, the strike department removed parts, the old butter wipe clean, cast a amount of butter to be appropriate (about 10-15CC) If you add too much butter, will to torque worse.
Package include:

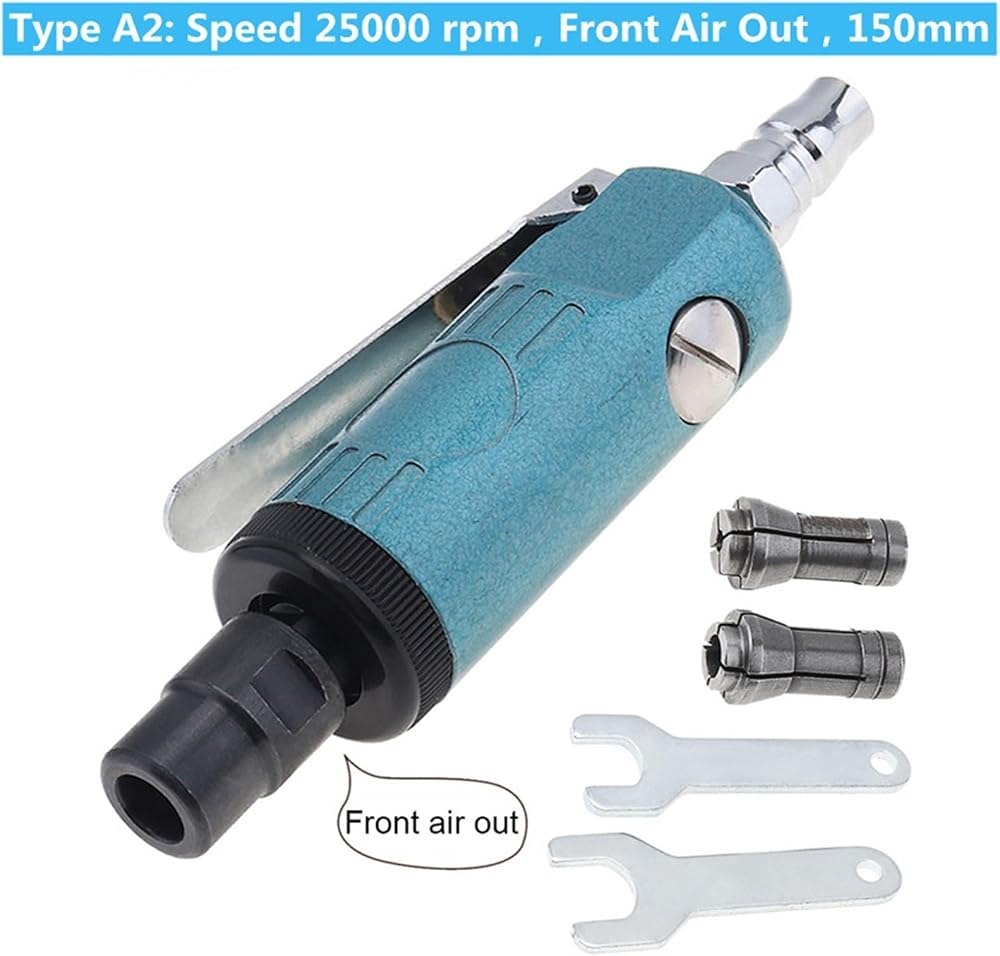

Type A:
1 x Pneumatic Engraving Polished Machine
2 x Small Wrench
1 x 3mm Chuck
1 x 6mm Chuck
1 x User Manual

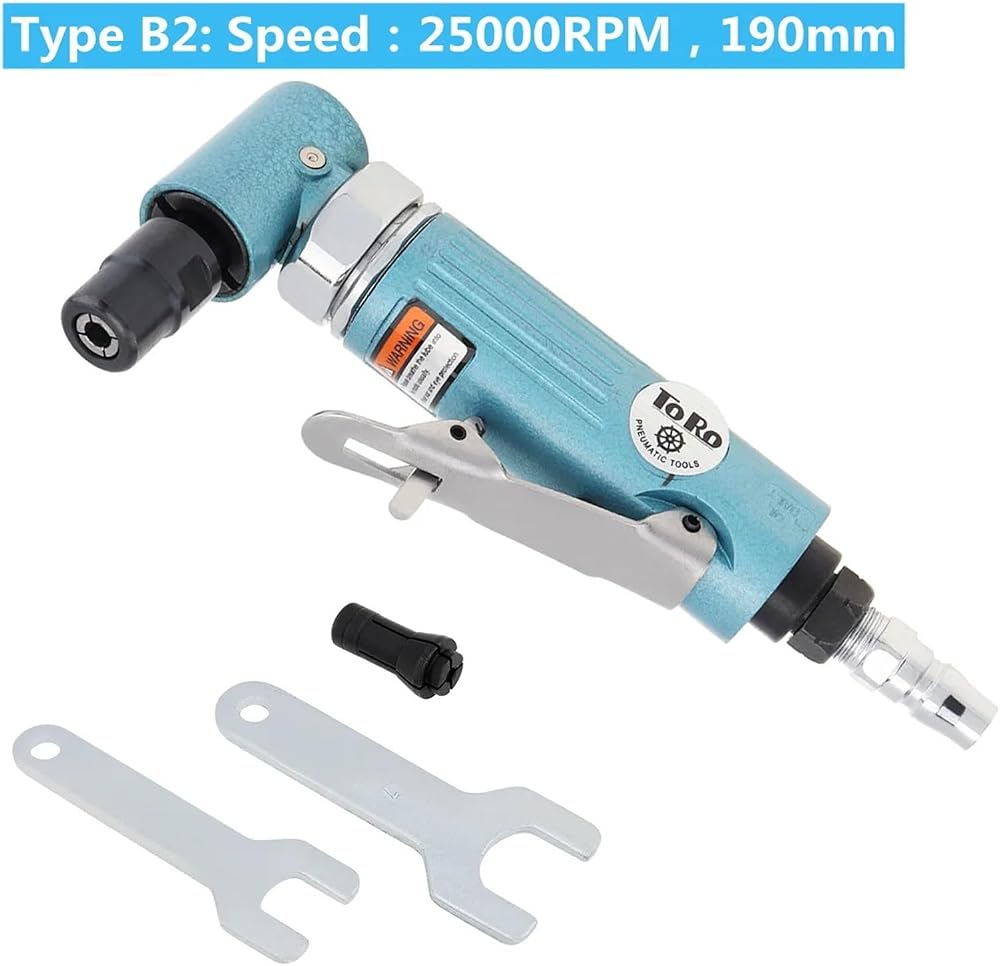

Type B:
1 x Pneumatic Grinder Machine
2 x Small Wrench
1 x 3mm Chuck
1 x 6mm Chuck
1 x User Manual

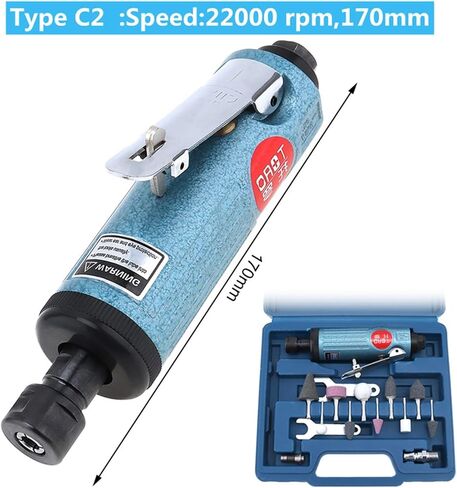

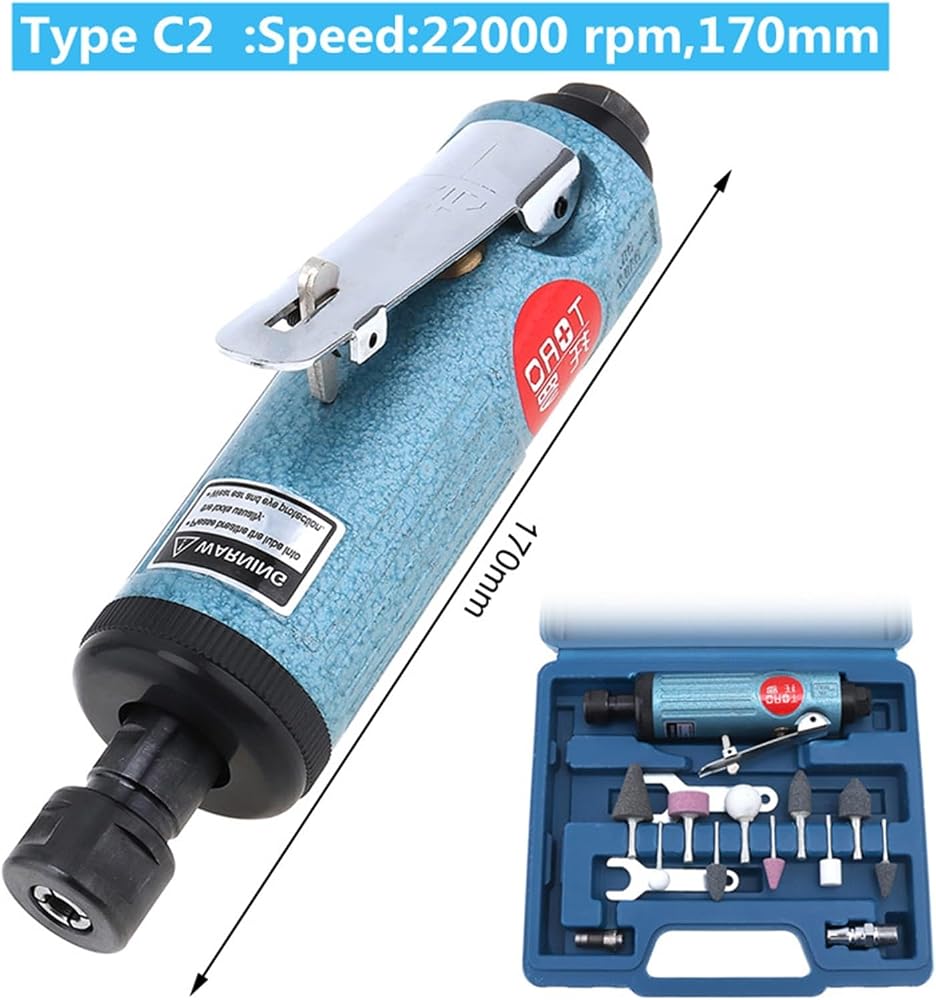

Type C:

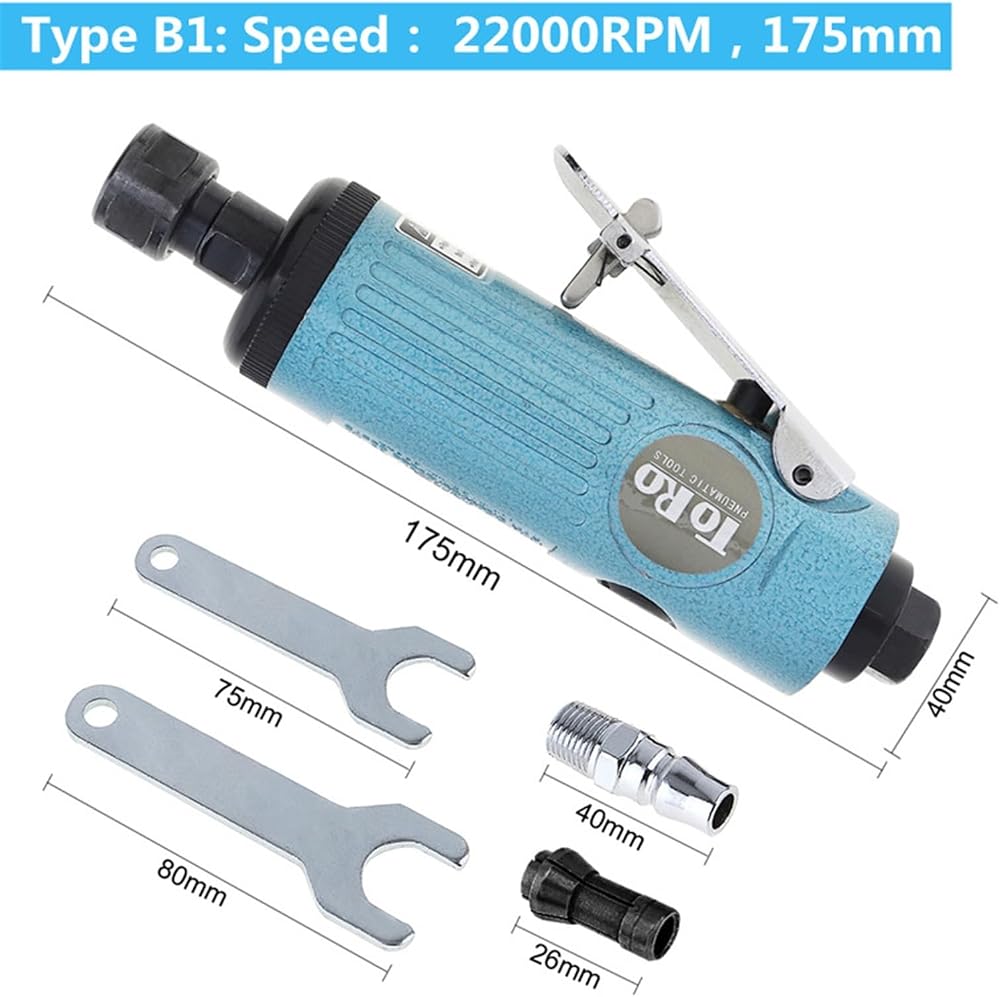

1 x Air Die Grinder
2 x Wrench
1 x 3mm Chuck
1 x 6mm Chuck
5 x 3mm Shank G
