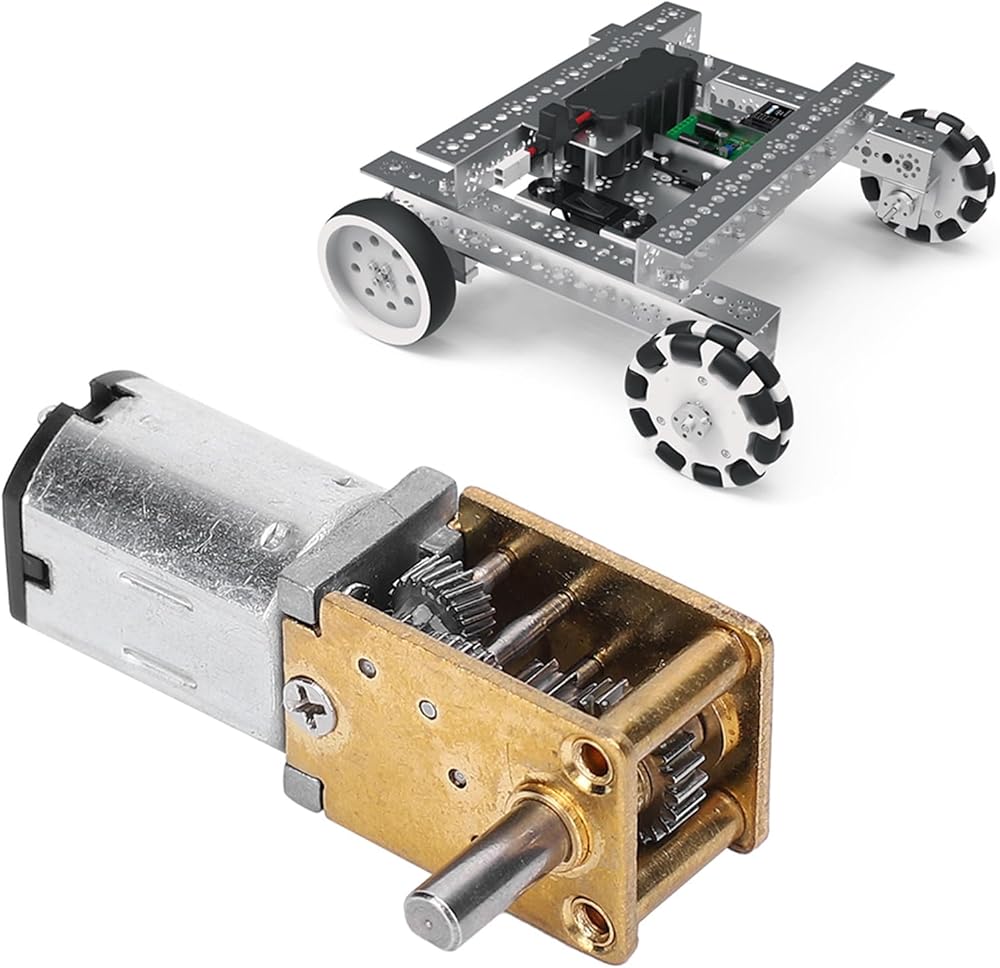

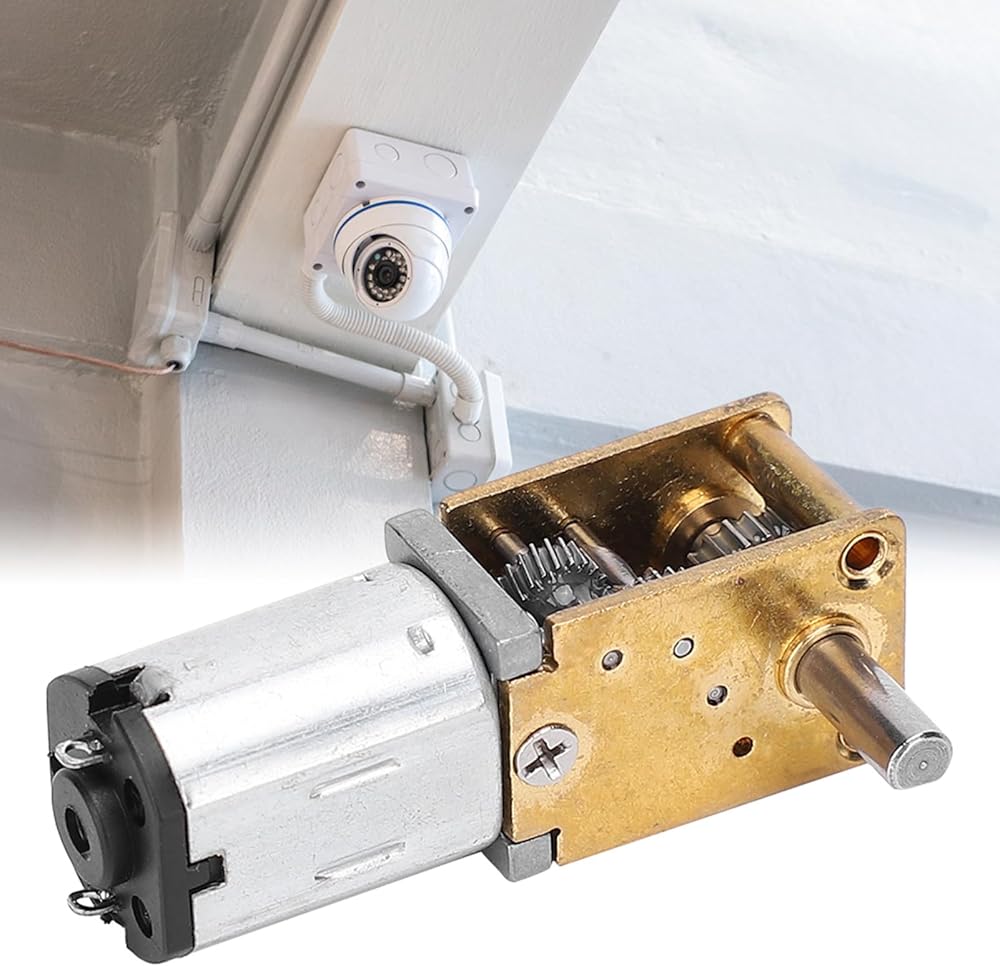

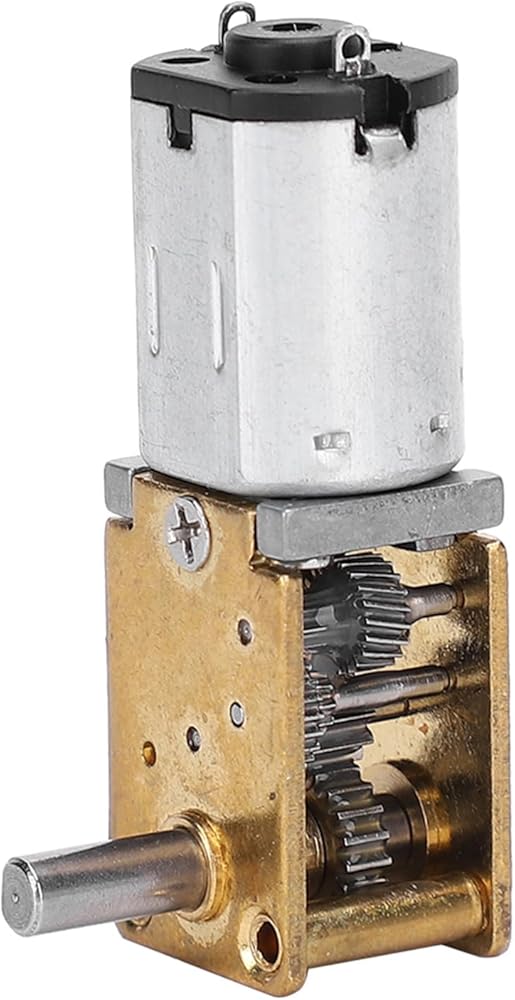

DC Brush 6V Mini Gear Motor ، Mini Micro N20 Gear Motor ، Turbo Worm Motor 1218gn N20 for DIY Toy

KWD 4
– 1 +

مميزات خاصة

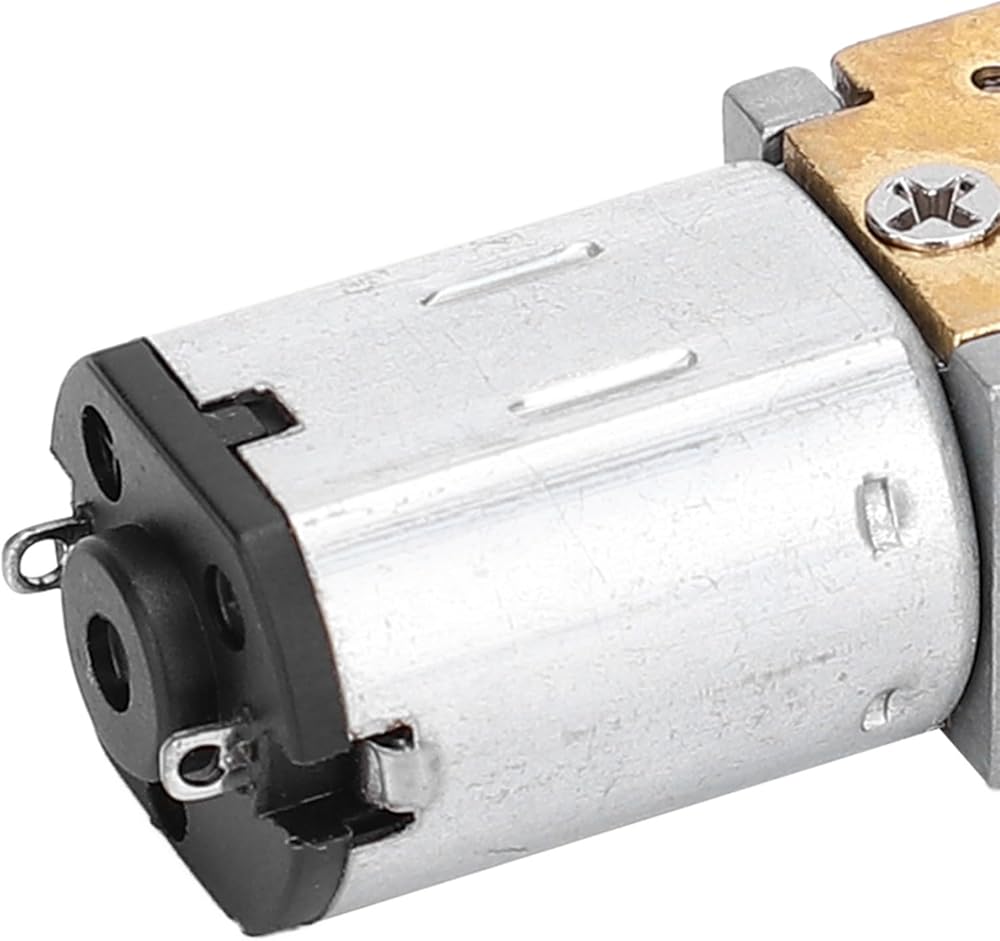

  • STRONG CONDUCTIVITY: The copper coil of the DC brush 6v mini gear motor has strong conductivity and low heat generation, which makes the motor output stable
  • HIGH PERFORMANCE: The mini micro N20 gear motor with encoder has strong motor power output, which is powerful and practical, large, low noise, stable performance, high efficiency, and easy to use

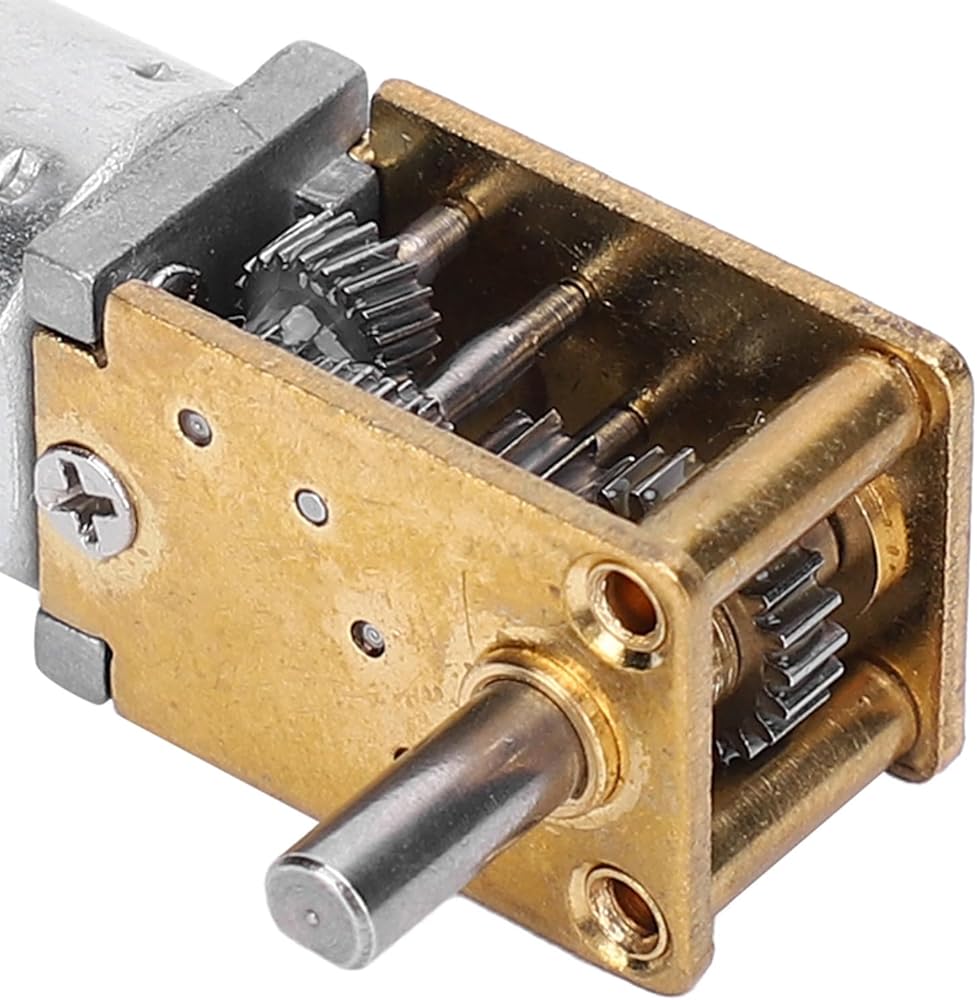

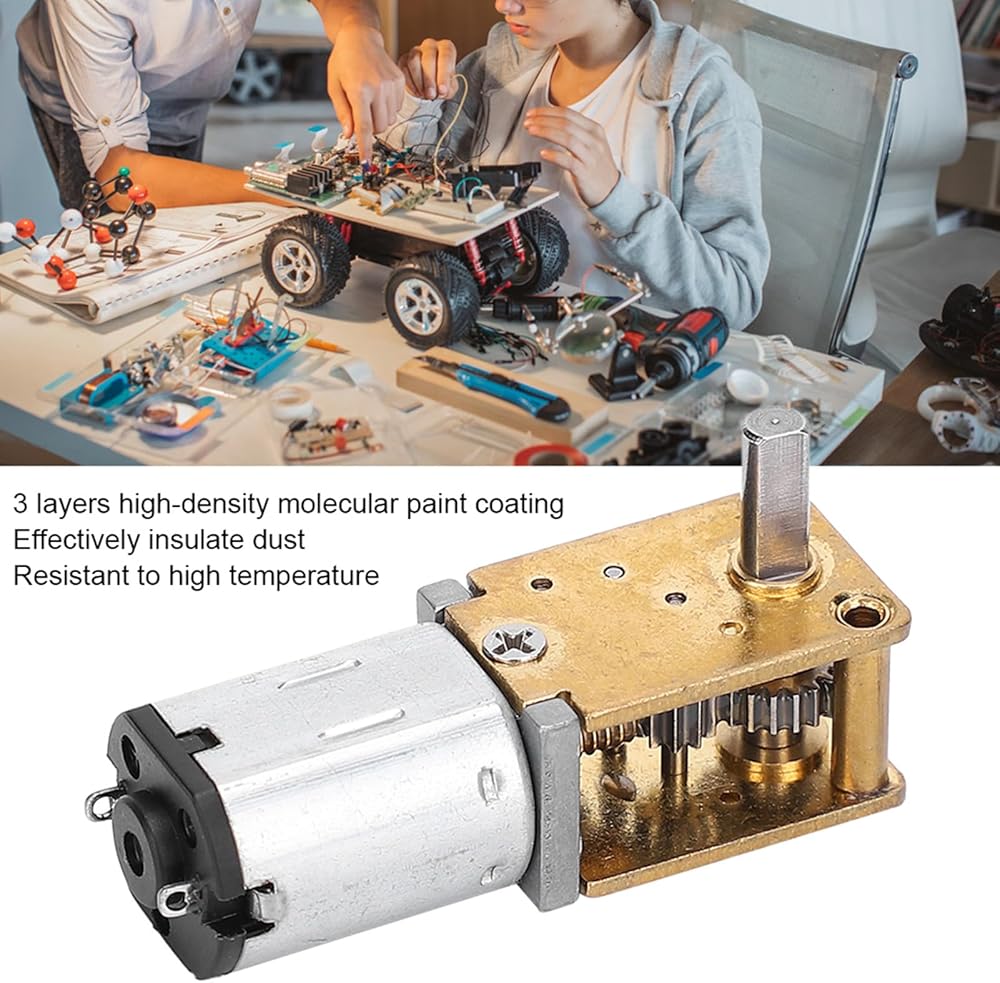

  • HIGH-TEMPERATURE : Mini metal gearwheel gear motor with 3 layers of high‑density molecular paint coating can effectively insulate dust and resist high temperatures. Gear transmission is stable, wear‑resistant, and possesses large transmission torsion
  • NO-LOAD SPEED DIFFERENCE: Miniature Motor: 3V 16RPM load speed is 13RPM, 120g.cm, 2.6KG.CM; 3V 30RPM load speed is 25RPM, 160g.cm, 2.2KG.CM; 6V 35RPM load speed is 28RPM, 220g.cm, 1.5 KG.CM; 6V 70RPM load speed is 61RPM, 320g.cm, 2.2KG.CM
  • WIDE APPLICATION: DC gear motor is widely used in smart cars, robots, grills, ovens, washing machines, etc

وصف

Specification:
Item Type: Mini Gear Motor
Material: Copper, brass, zinc alloy
Model: 1218GE-N20
Motor Type: Brush DC motor
Mainly used in electronic locks, smart car, robots, cameras, etc.

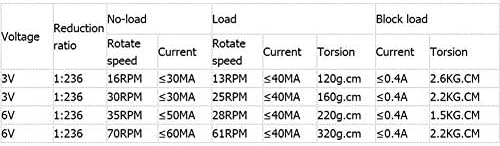

Parameter:

Voltage Reduction ratio No-load Load Block load
Rotate speed Current Rotate speed Current Torsion Current Torsion
3V 1:236 16RPM 30MA 13RPM 40MA 120g.cm 0.4A 2.6KG.CM
3V 1:236 30RPM 30MA 25RPM 40MA 160g.cm 0.4A 2.2KG.CM
6V 1:236 35RPM 50MA 28RPM 40MA 220g.cm 0.4A 1.5KG.CM

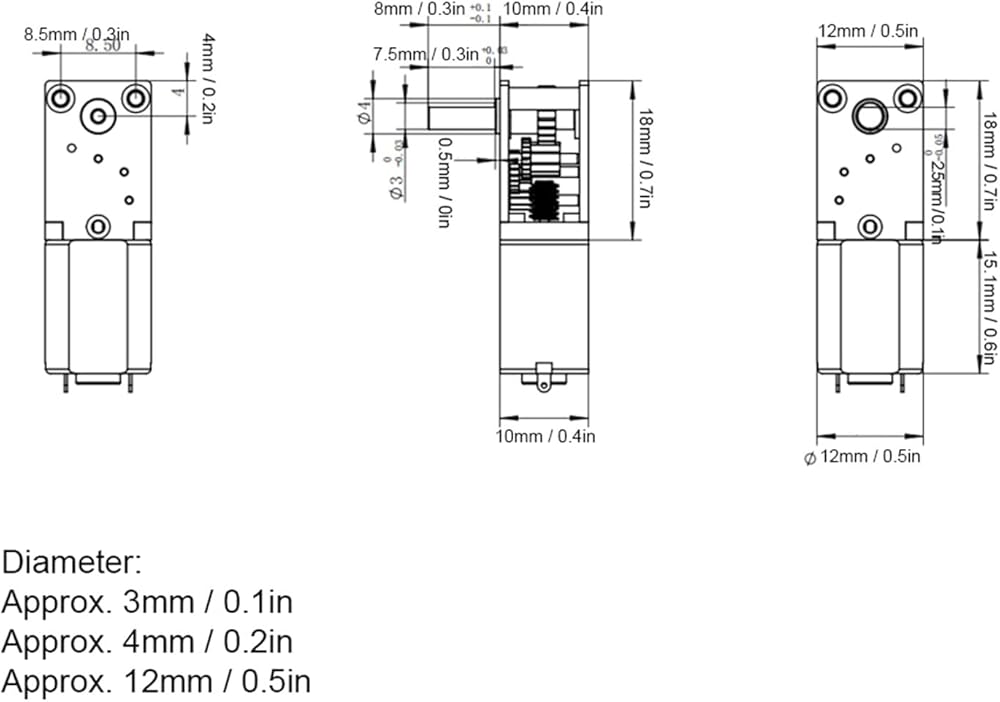

6V 1:236 70RPM 60MA 61RPM 40MA 320g.cm 0.4A 2.2KG.CM Size:
Approx. 8.5mm / 0.3in
Approx. 4mm / 0.2in
Approx. 8mm / 0.3in
Approx. 10mm / 0.4in
Approx. 7.5mm / 0.3in
Approx. 0.5mm / 0in
Approx. 18mm / 0.7in
Approx. 10mm / 0.4in
Approx. 12mm / 0.5in
Approx. 2.5mm / 0.1in
Approx. 18mm / 0.7in
Approx. 15.1mm / 0.6in
Diameter:
Approx. 3mm / 0.1in
Approx. 4mm / 0.2in
Approx. 12mm / 0.5in

Package List：
1 x Mini Gear Motor
Note:
Please allow 0.1mm error due to manual measurement. Thanks for your understanding.
