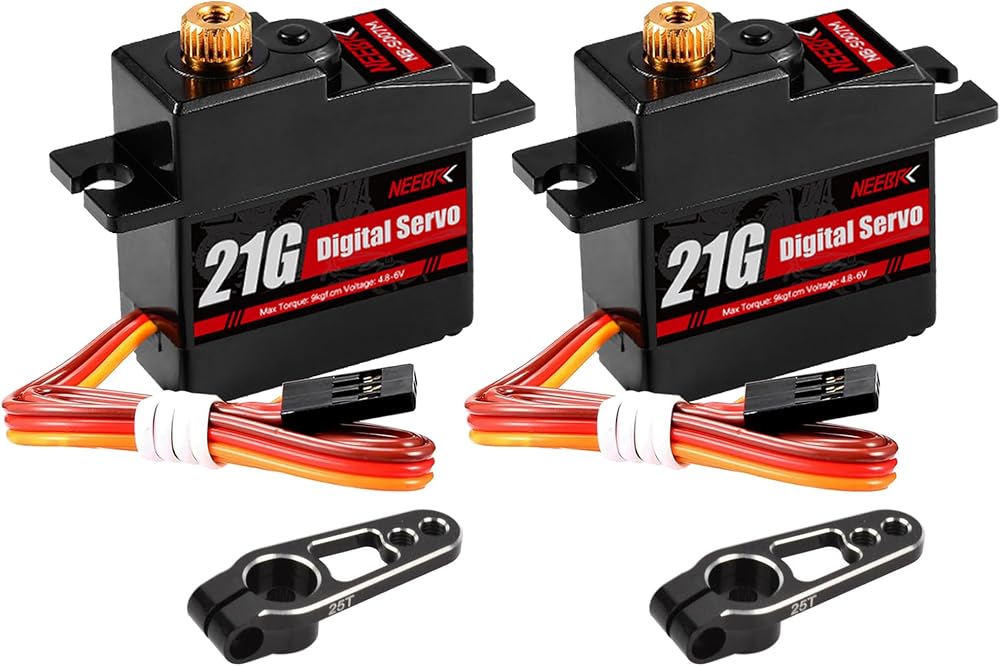

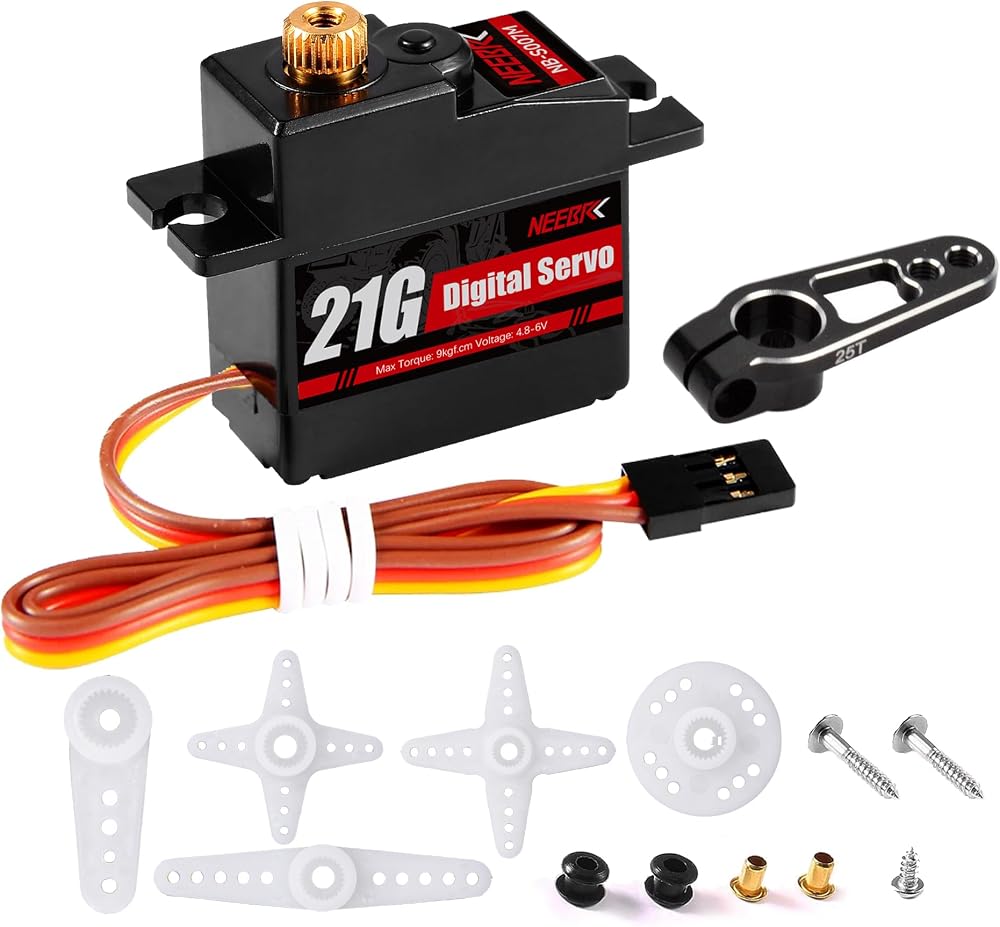

Name: 21G Micro Servo Motor ، عزم الدوران الرقمي المصغرة المصغرة مع ذراع 25T لـ 1/14 1/16 RC Crawler Car Car Model Parts Model Robot (2pcs مع ARM)
Brand: NEEBRC
Availability: InStock

مميزات خاصة

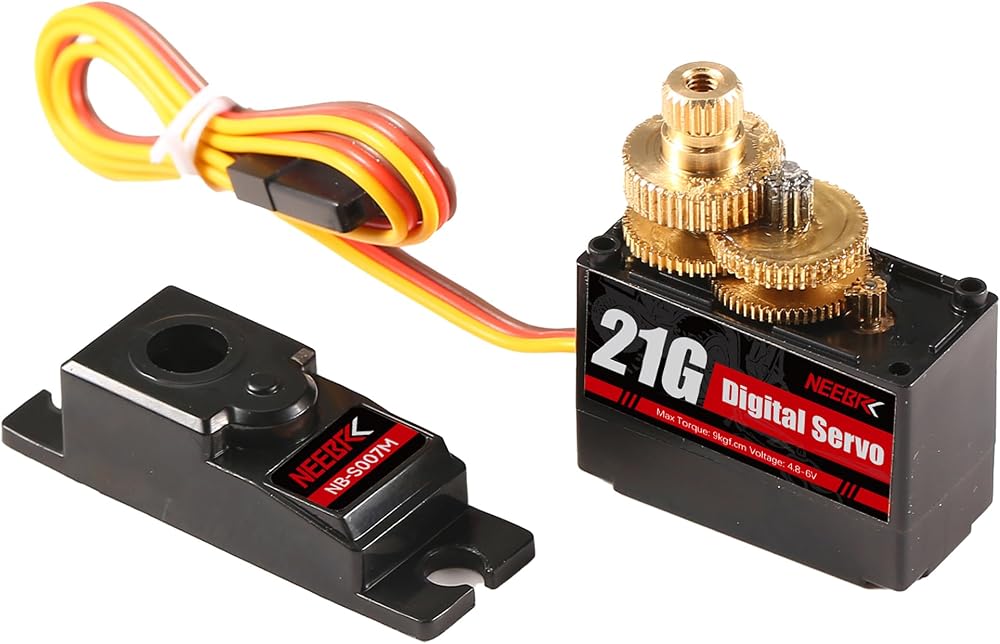

【Excellent Quality Workmanship】:The 21G Micro Digital Servo made with excellent Plastic Shell material (lightweight and fast heat dissipation) and high-precision Full Metal Gear (more durable and prevent tooth sweeping) with Hard Anodizing, combined with Dual Ball Bearings, has a longer service life.
【High Performance Digital Standard】:The 21G Mini Digital Servo with Extra Large Torque can achieve Low Noise, Good Stability, Small Vibration, Smooth Operation, Excellent Linearity, Precision Control, Fast Response.
【Electronic Protection】:The NB-S007M 21G Servo will undergo current reduction and power outage treatment when the locked rotor time and current exceed the preset values, preventing blockage and burning. A solid hardware foundation combined with more advanced software allows the servo to provide high torque output while significantly reducing the probability of damage to the servo under high loads.
【Widely Use 】:The Mini Digital Servo is suitable for remote control vehicles such as Crawlers, Buggy, RC Car, Boat,RC Aircraft,RC Helicopters, On-Road,Off-Road,RC Drones,Toys,etc.Especially this servo is most suitable for micro control fields such as aircraft models, drones, toys, intelligent switches, etc.
【Note】:In the frequency range of 500~2500us, the maximum controllable angle of the servo can be accurately achieved at 180 degrees, and the servo can achieve a control angle of 90 degrees under the control of a transmitter.

وصف

Features:
High performance digital standard
Low noise and long service life
Small volume and large torque
Suit for RC car boat helicopter model
Specifications:
Item name: NEEBRC S007M
Quantity: 1pcs
Operating Voltage : 4.8~6.0V DC
Max. Torque : 4.8V≥3.80kgf·cm ； 6.0V≥4.20kgf·cm
No Load Speed : 4.8V≤0.10sec/60°; 6.0V≤0.12sec/60°
Stall Current：4.8V≦1500mA；6.0V≦1800mA
Consumption Current* (No Load)：4.8V ≦200mA ；6.0V≦210mA
Max. Operating Travel Angle：180°±1°(500~2500μs）
Dead Band Width: ≤ 1us
Mechanical Limit Angle: 360°
Communication Interface: PWM
Motor Type: Core motor
Case Material: ABS
Gear Set Material : Metal gear

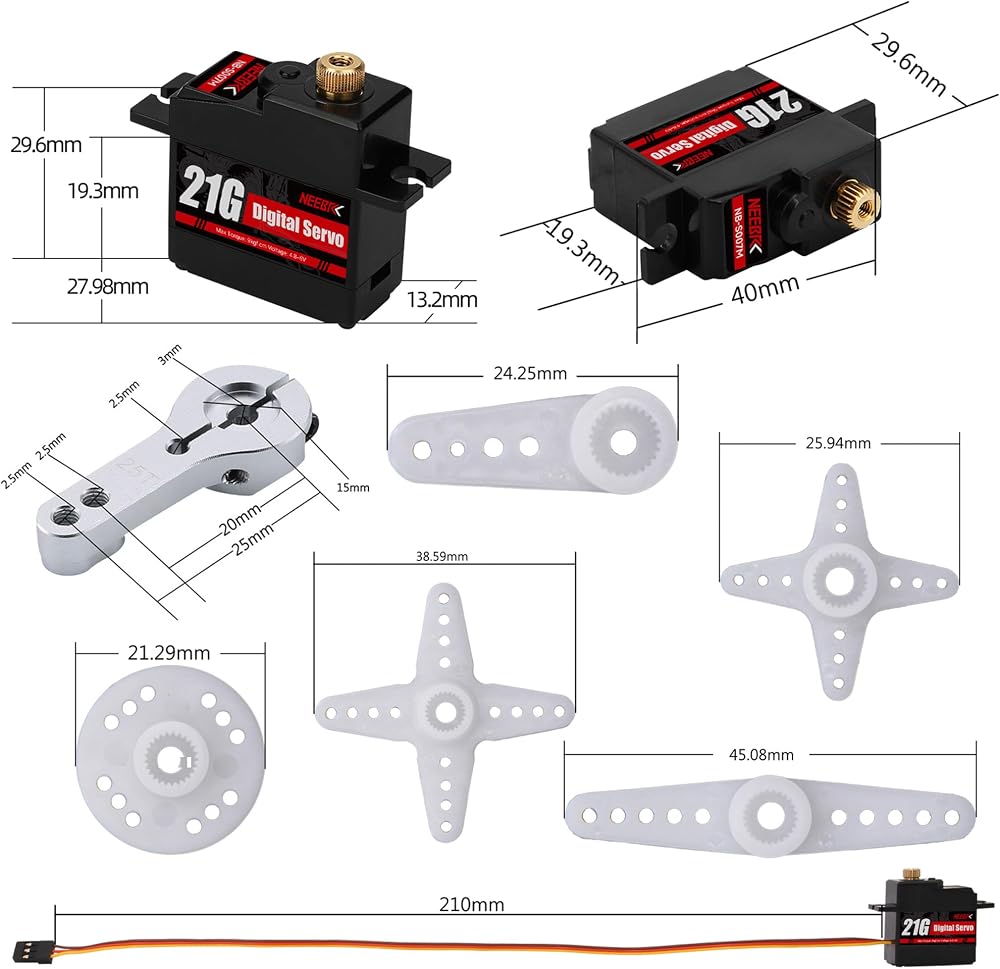

Size: 29.6 × 13.2 × 40mm
Length of Connector cable: JR 210±5mm (exposed without plug)
