مميزات خاصة

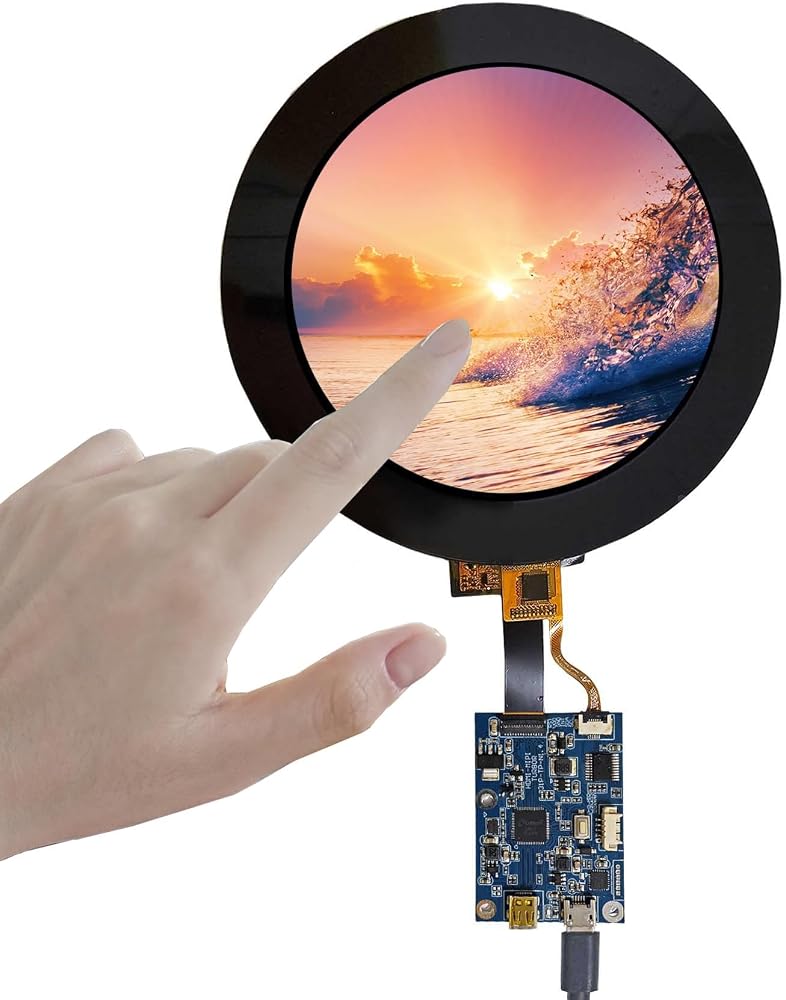

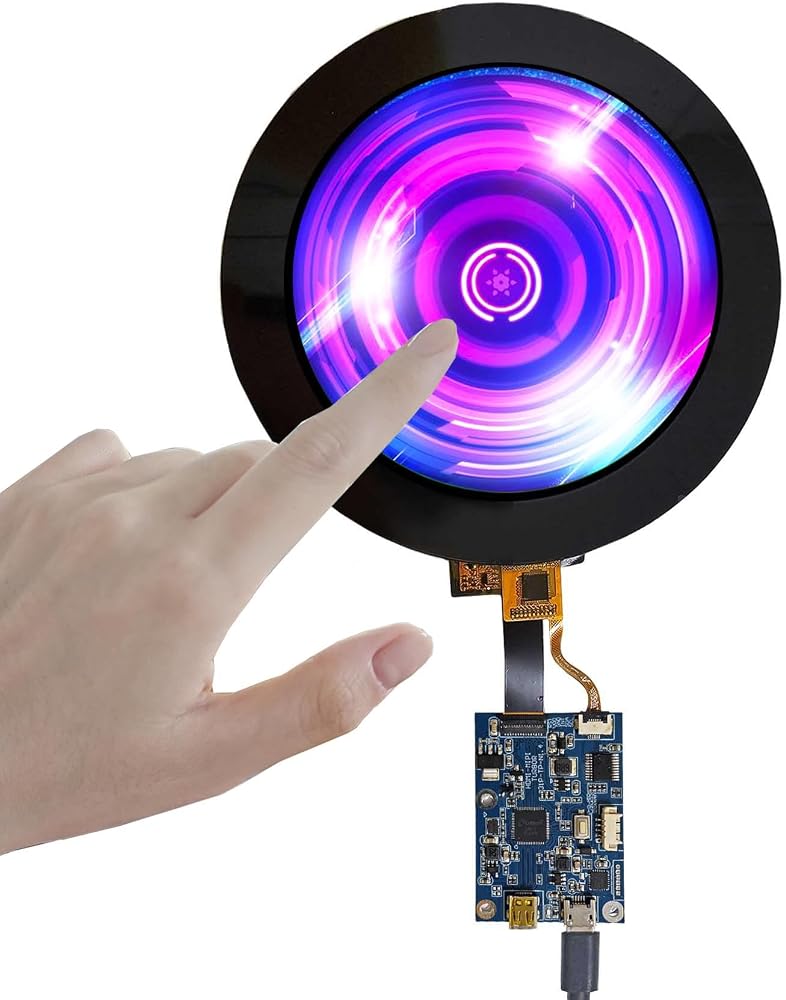

【Round MIPI screen】4" IPS full viewing angle,Great resolution 720x720,outline size:105.6x109.87x2.13(W×H×D)mm,display area:101.52x 101.52(W×H)mm,300nit high brightness ,WLED backlight ,input voltage: 2.8V .
【Controller board】Video input :port ,board size: 50mm x 35mm x 5mm,pls use it in insulated environment.

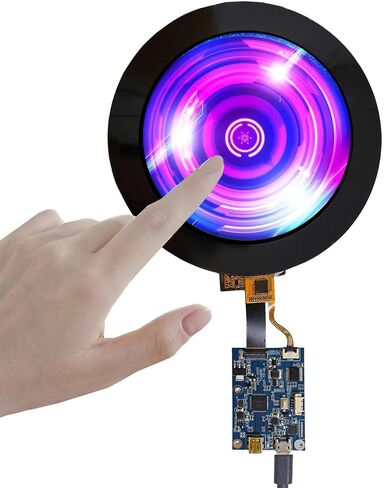

【Capacitive Touch sensor panel】The design of touch panel makes the operation more convenient, No button damage issue for after long time use.
【Input Power】5Vdc More than 1A,Pls prepare it seperately .

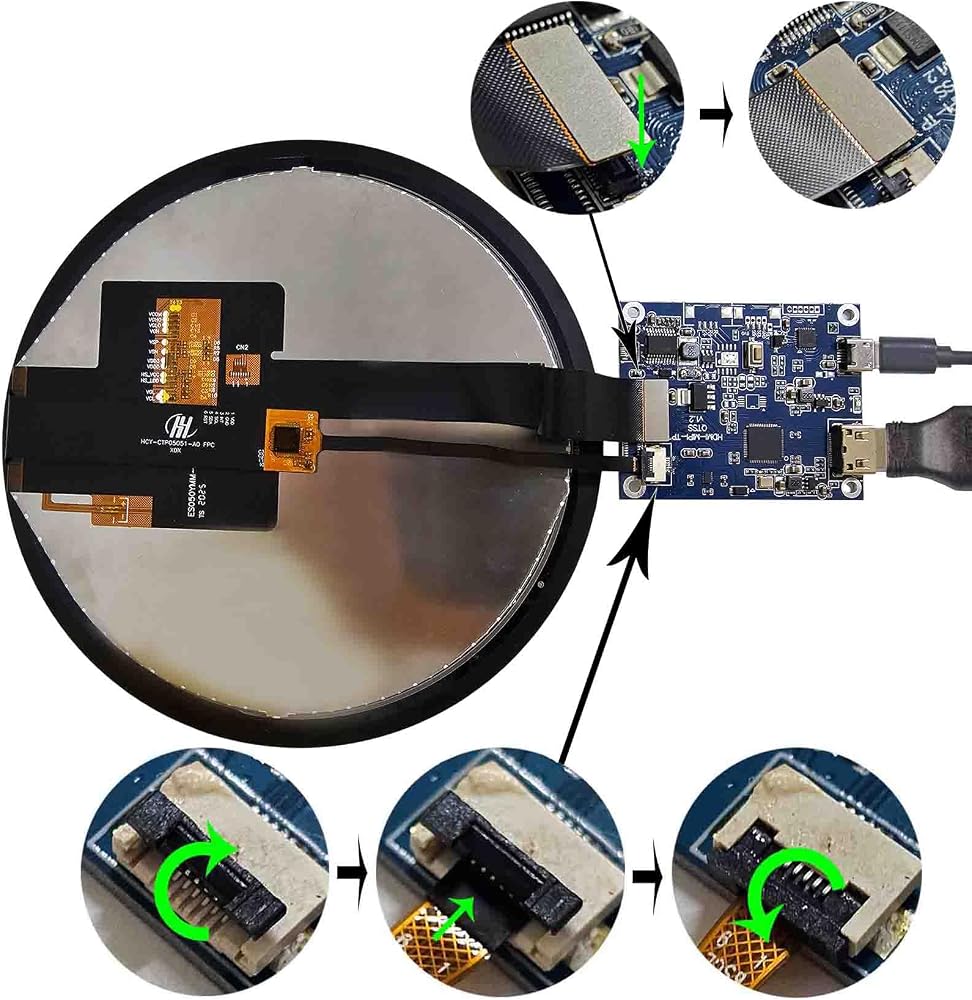

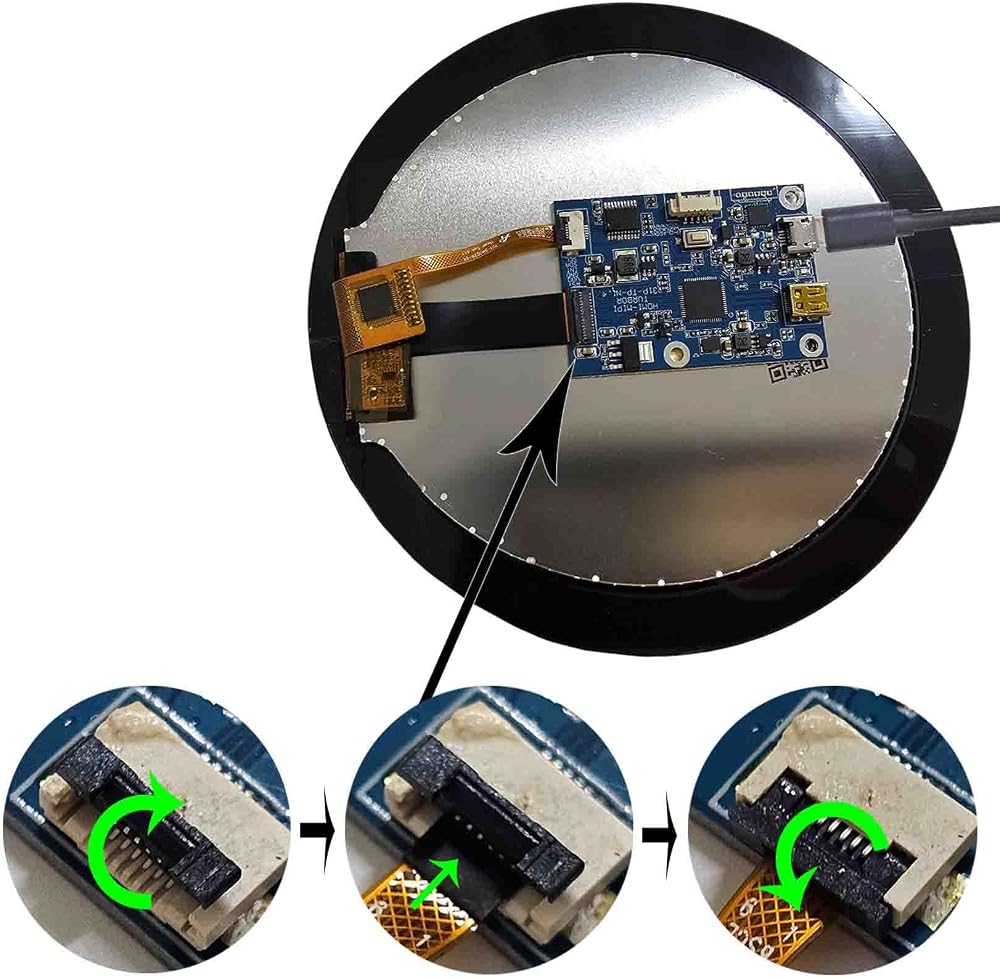

【Plug and play】Connecting cables and ports according to link picture details ,Power on and enter signal cable ,the touch screen can work well after powering.

وصف

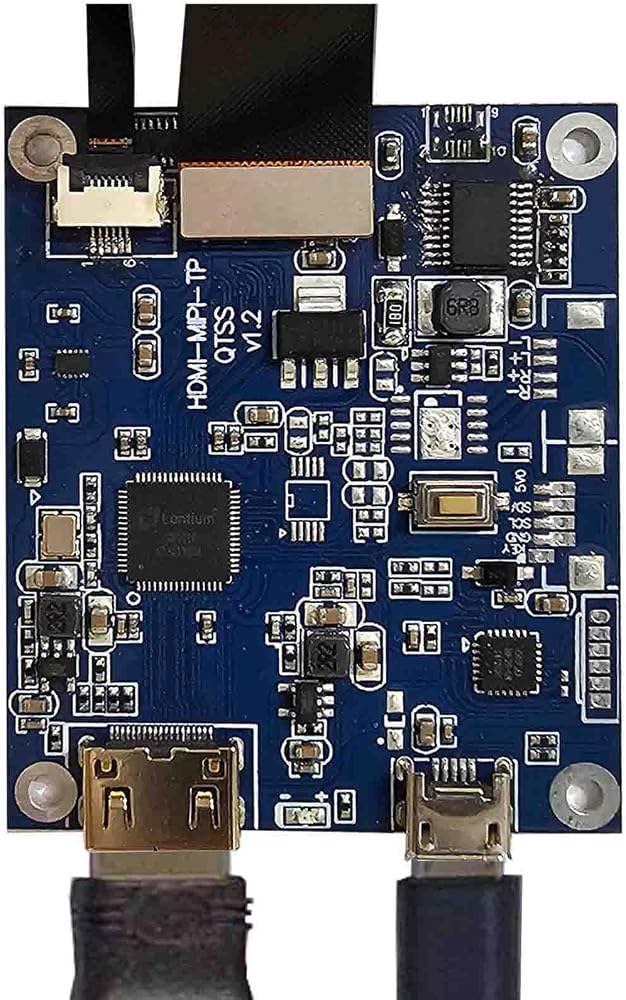

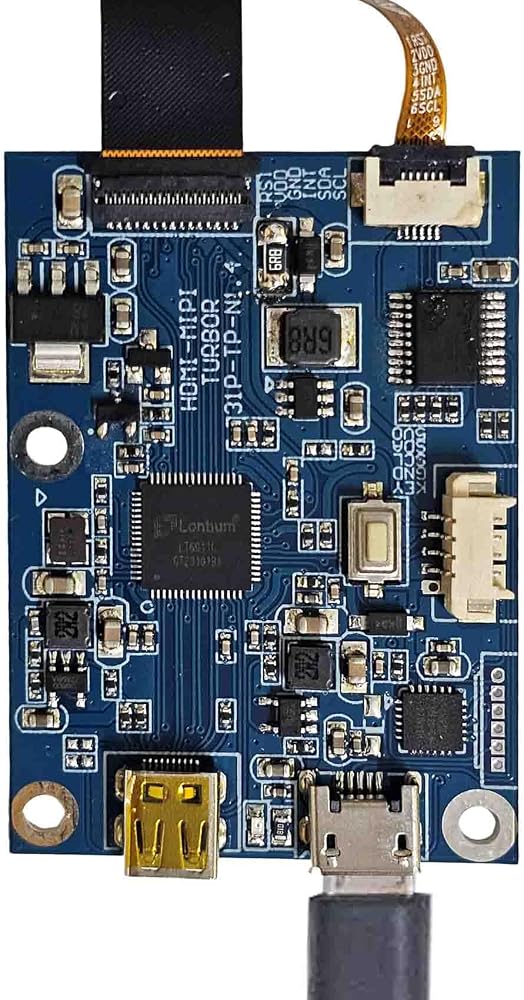

LCD Controller Board:
Input Power Adapter: USB 5V More than 1A.
Come In Standby Model When Not Input Signal

Board Size: 50mm x 35mm x 5mm

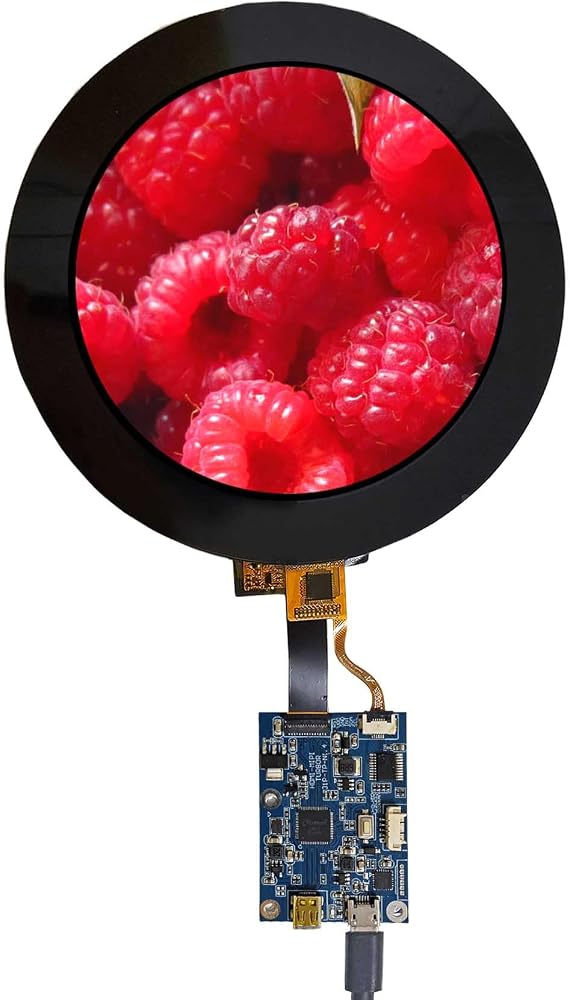

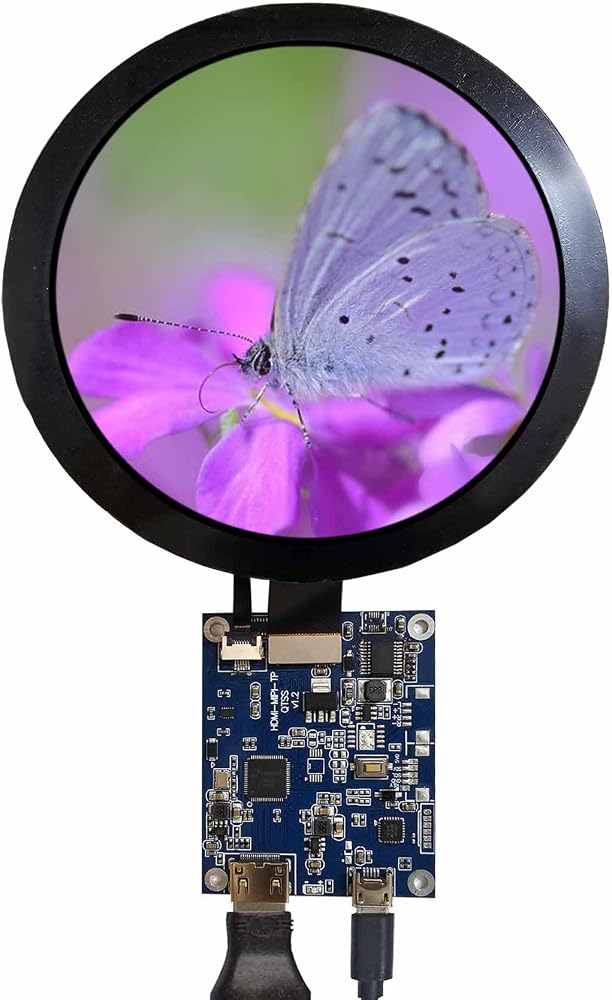

4" VS40016C31 720X720 Capacitive Touch LCD Screen:
Display Mode IPS, Normally White, Transmissive
Resolution 720(RGB)x720
Outline Size 132.6x132.6x4(W×H×D)mm
Display Area 101.52x 101.52(W×H)mm
Brightness 300 cd/m² (Typ.)
Contrast Ratio 300:1 (Typ.) (TM)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) [Left / Right / Up / Down]
Signal Interface Mipi (1ch, 8-bit) , 31 pins
Backlight WLED
Input Voltage 2.8V (Typ.)

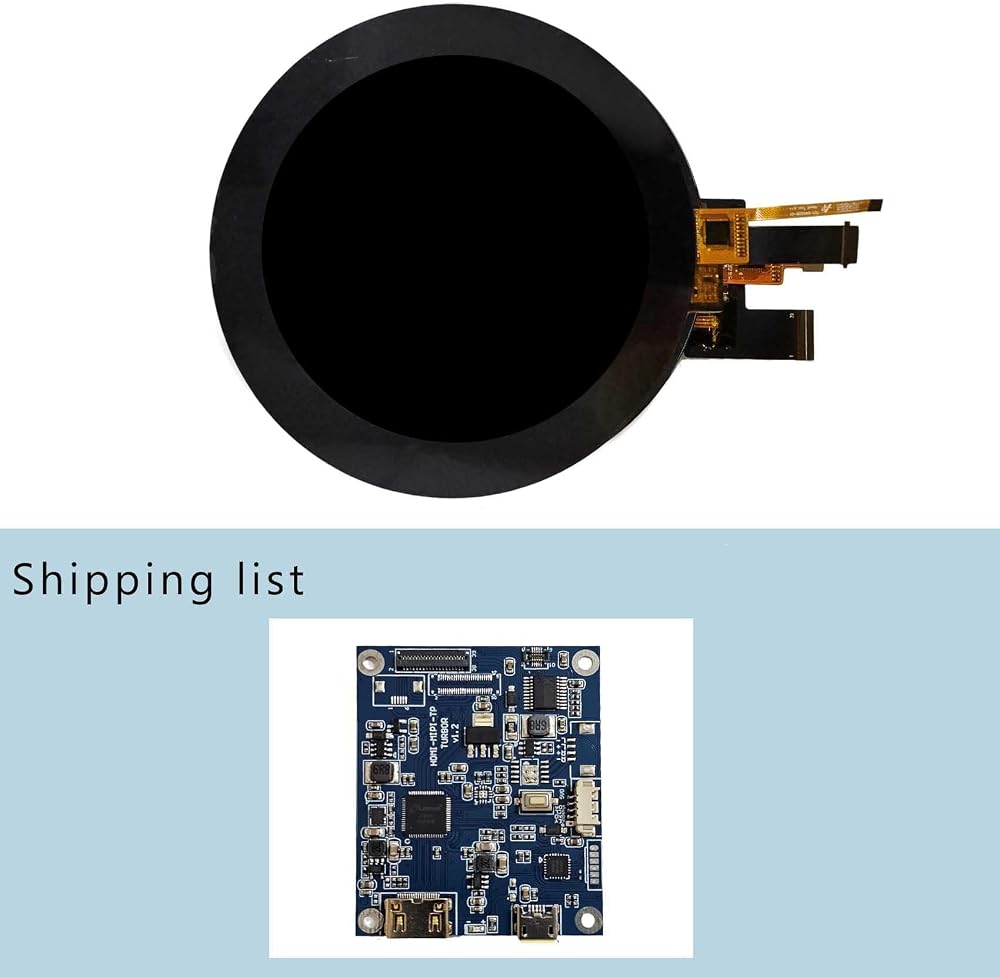

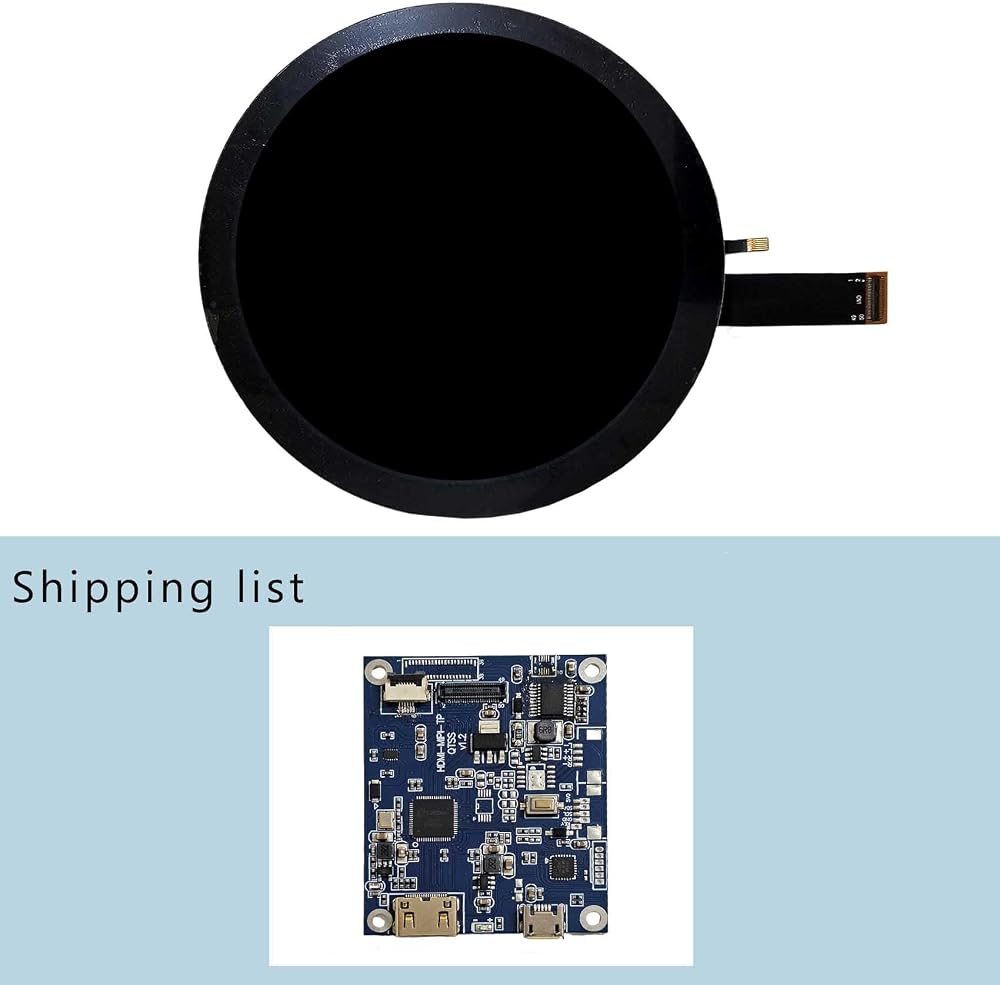

Packing list:
1× LCD Board
1×4inch VS40016C31 720x720 Capacitive Touch LCD Screen
