1. 4 PORTS SERIAL DESIGN: With 4 RS232 or RS485 RS422 composite ports (using adapters), you can connects 4 different serial devices at the same time and set the communicate parameters of each port individually.
2. SUPPORT 10/100MBPS: Industrial grade serial server supports IEEE 802.3 standard and 10/100Mbps Ethernet rate to ensure high speed and stable network communicate.
3. 110BPS TO 230400BPS: RS485 serial to ethernet adapter supports baud rate range from 110bps to 230400bps, which is compatible with different rate requirements of various serial devices.
4. MULTIPLE WORKING MODES: Support VCOM, TCP Server, TCP Client and UDP, etc. Equipped with 32bit ARM processor, it makes the data more stable.
5. POWERFUL INDICATORS: Serial to ethernet converter is equipped with power, system status, Link/act and TX/RX indicators, which intuitively shows the working status of the device and facilitates real time monitoring and management.

Specification:

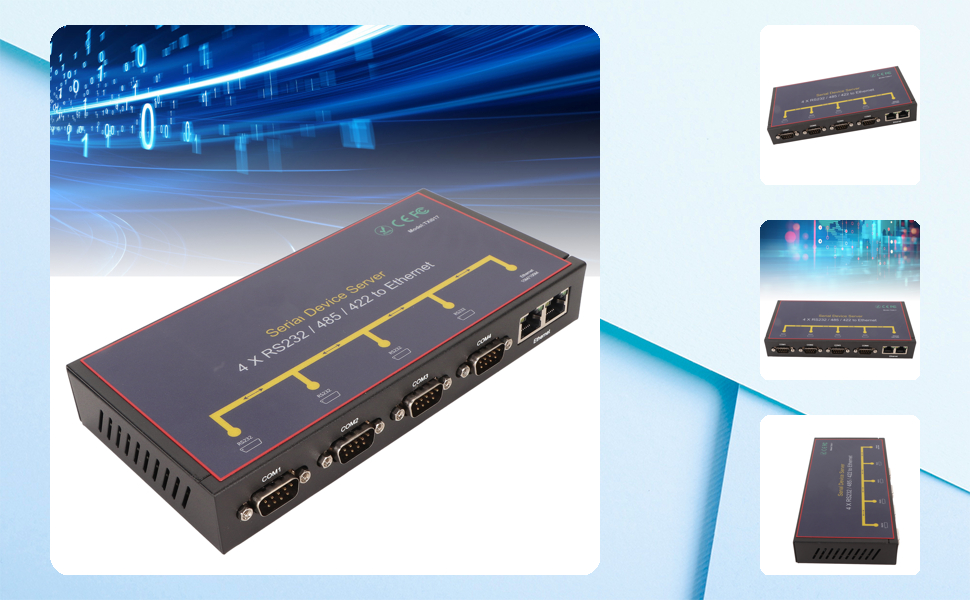

Item Type: RS232 RS485 to Ethernet Converter
Material: Iron
Network Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Network Rate: 10/100Mbps (Full Duplex/Half Duplex)
Network Interface: 2 x 10/100M Adaptive RJ45 Ports
Baud Rate: 110bps to 230400bps
UART Interface: 4 RS232 or 4 RS485 RS422 Composite Ports (Using Adapters)
UART Working Mode: VCOM, TCP Server, TCP Client, UDP
Indicator Lights: Power,System Status,Link/act,TX/RX
Voltage: 100-240V

How to Use:
plug and play

PackageList:
1 x Serial Server
1 x Data Cable
1 x Network Cable
1 x Adapter
1 x Adapter Terminal
1 x User Manual
1 x Power Adapter
