[SIZE] - Model: LMK8-UU, 8x15x24mm Metric Double Seal Chromium Steel Linear Bearing, 48mm Round Flange Base

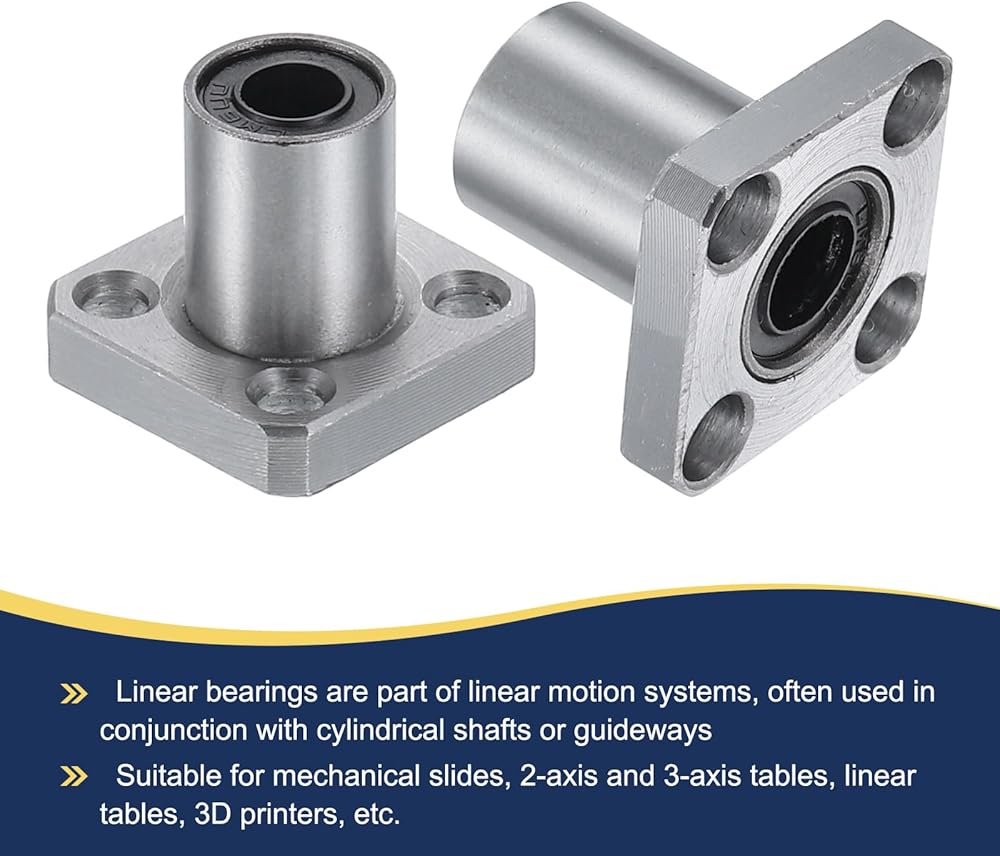

[USAGE] - Linear bearings are part of linear motion systems, often used in conjunction with cylindrical shafts or guideways
[FEATURES] - Nickel plating enhances corrosion resistance and durability. These linear bearings with Nickel-Plated surface treatment can operate under corrosive or high-temperature conditions
[CAPABILITY] - Static Load Capacity (Cor): 1177N, Dynamic Load Capacity (Cr): 775N (Recommended load is 80% of rated load, not to exceed rated load.)
[APPLICATIONS] - Mechanical slides, 2-axis and 3-axis tables, linear tables, 3D printers, etc.

وصف

Descriptions:
Linear bearings are widely used in electronic equipment, tensile testing machines and digital three-dimensional coordinate measuring equipment and other precision equipment, as well as multi-axis machine tools, punch presses, tool grinding machines, automatic gas cutter, printers and other industrial machinery sliding.
Linear bearings are linear motion systems for use with cylindrical shafts. Since the carrier ball is in point contact with the shaft, low loads are applied. The steel balls rotate with very little frictional resistance, which results in a smooth motion with high accuracy.

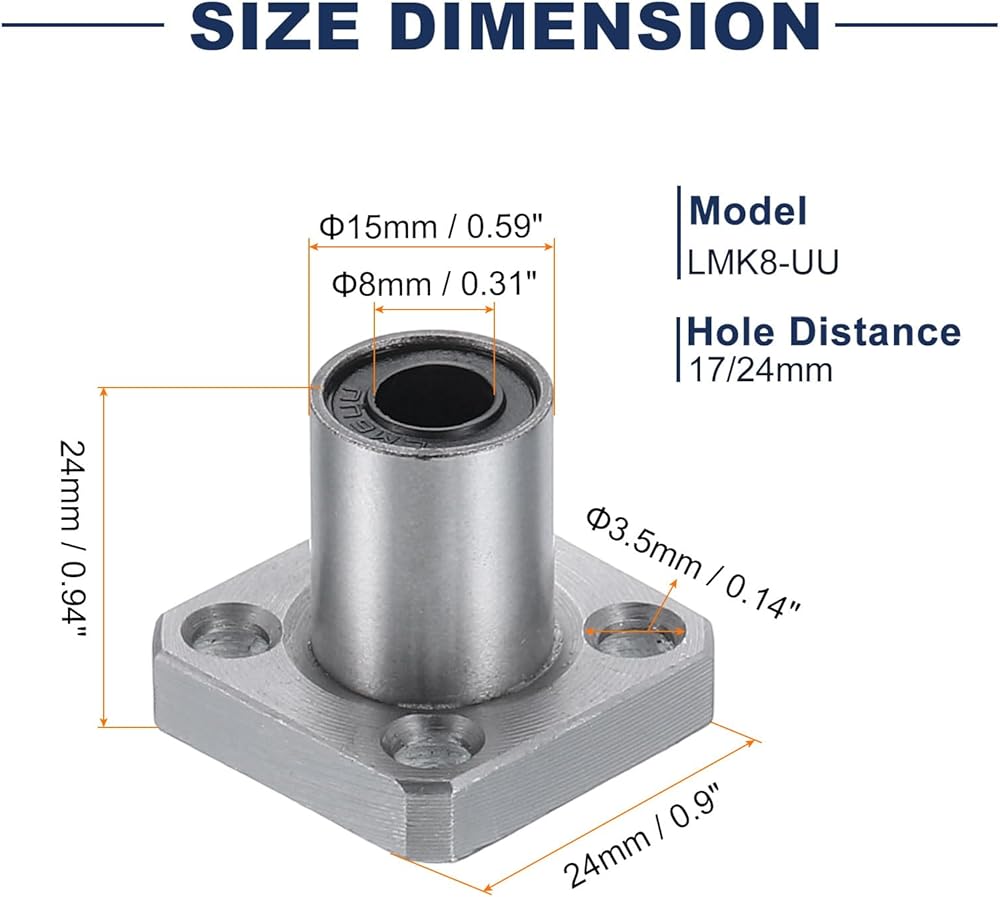

Specifications:
Model: LMK8-UU
Inner Diameter: 8mm/0.31"
Outer Diameter: 15mm/0.59"
Total Length: 24mm/0.94"
Hole Diameter: 3.5mm/0.14"
Hole Distance: 17/24
Flange Size: 24 x 24mm/0.9 x 0.9inch (L*W)

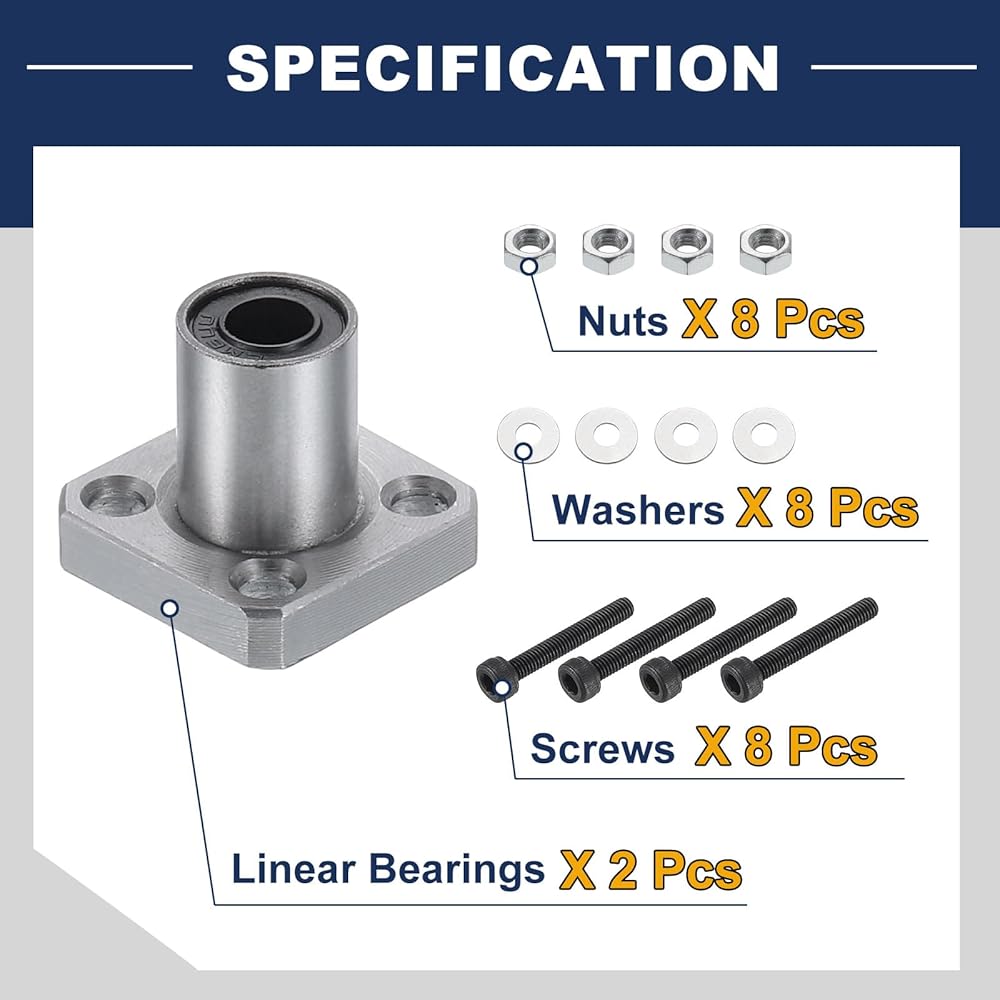

Package Contents:
2 x Linear Bearings
