SazkJere 8 قطعة 4x4 لوحة المفاتيح 16 مفتاح مصفوفة غشاء التبديل 8pin لوحة المفاتيح لاردوينو متحكم in Kuwait SazkJere 8 قطعة 4x4 لوحة المفاتيح 16 مفتاح مصفوفة غشاء التبديل 8pin لوحة المفاتيح لاردوينو متحكم in Kuwait SazkJere 8 قطعة 4x4 لوحة المفاتيح 16 مفتاح مصفوفة غشاء التبديل 8pin لوحة المفاتيح لاردوينو متحكم in Kuwait SazkJere 8 قطعة 4x4 لوحة المفاتيح 16 مفتاح مصفوفة غشاء التبديل 8pin لوحة المفاتيح لاردوينو متحكم in Kuwait

SazkJere 8 قطعة 4x4 لوحة المفاتيح 16 مفتاح مصفوفة غشاء التبديل 8pin لوحة المفاتيح لاردوينو متحكم

KWD 4.500
ماركة
SazkJere
وزن
50 g
– 1 +

مميزات خاصة

  • 8 pins connector, pitch 2.54mm membrane switch keypad, Life span : average tactile time 1,000,000 ,Operation Temperature : 0-60°C
  • 4x4 keypad is a great way to let users interact with your project. You can use them to navigate menus, enter passwords, and control games and robots.
  • The 4x4 matrix keypad usually is used as input in a project. It has 16 keys totally, which means the same input values. It's ultra-thin, easy to interface with any microcontroller and has an adhesive backing for easy mounting.

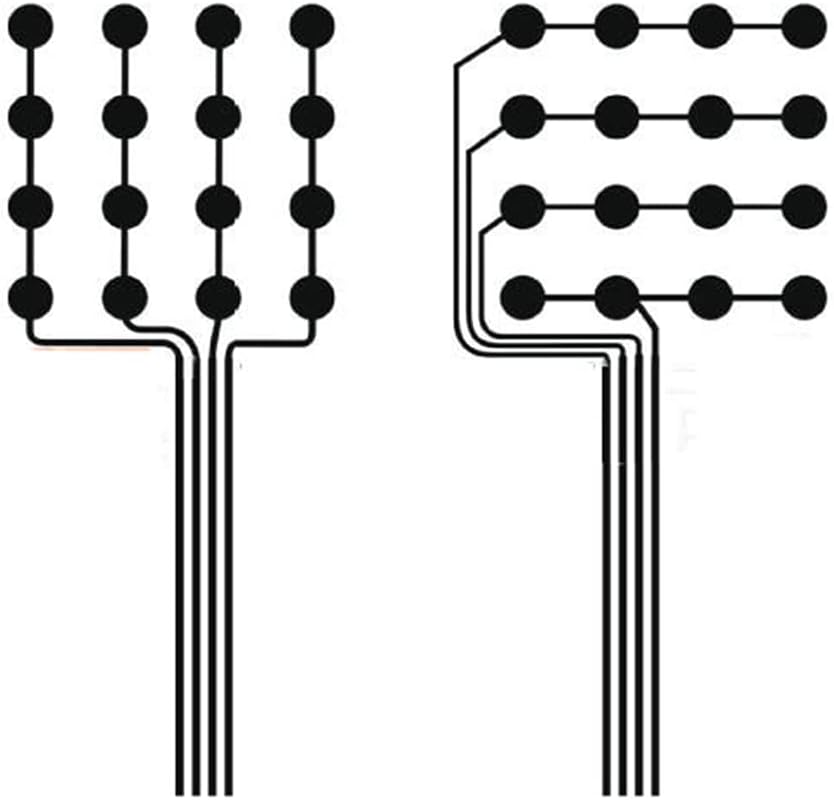

  • The working principle is very simple. Pressing a button shorts one of row lines to one of column lines, allowing current to flow between them.

وصف

Product Description:
Circuit Rating: 35V (DC), 100mA, 1W
Contact resistance: 10 ~ 500
(Varies according to the lead lengths and different from those of the material used)
Insulation resistance: 100M 100V
Dielectric Strength: 250VRms (50 ~ 60Hz 1min)
Electric shock jitter: Life span: tactile type: one million times.

The mechanical properties:
Operating pressure: Touch feeling: 170 ~ 397g (6 ~ 14oz)
Switch travel: touch-type: 0.6 ~ 1.5mm

The environment parameters
Operating temperature: -40 to +80
Storage temperature: -40 to +80
Temperature: from 40,90% to 95%, 240 hours
Vibration: 20G, max. (10 200Hz, the Mil-SLD-202 M204.Condition B)
Product Description:
Circuit Rating: 35V (DC), 100mA, 1W
Contact resistance: 10 ~ 500
(Varies according to the lead lengths and different from those of the material used)
Insulation resistance: 100M 100V
Dielectric Strength: 250VRms (50 ~ 60Hz 1min)
Electric shock jitter: Life span: tactile type: one million times.

The mechanical properties:
Operating pressure: Touch feeling: 170 ~ 397g (6 ~ 14oz)
Switch travel: touch-type: 0.6 ~ 1.5mm

The environment parameters
Operating temperature: -40 to +80
Storage temperature: -40 to +80
Temperature: from 40,90% to 95%, 240 hours
Vibration: 20G, max. (10 200Hz, the Mil-SLD-202 M204.Condition B)

Package Included:

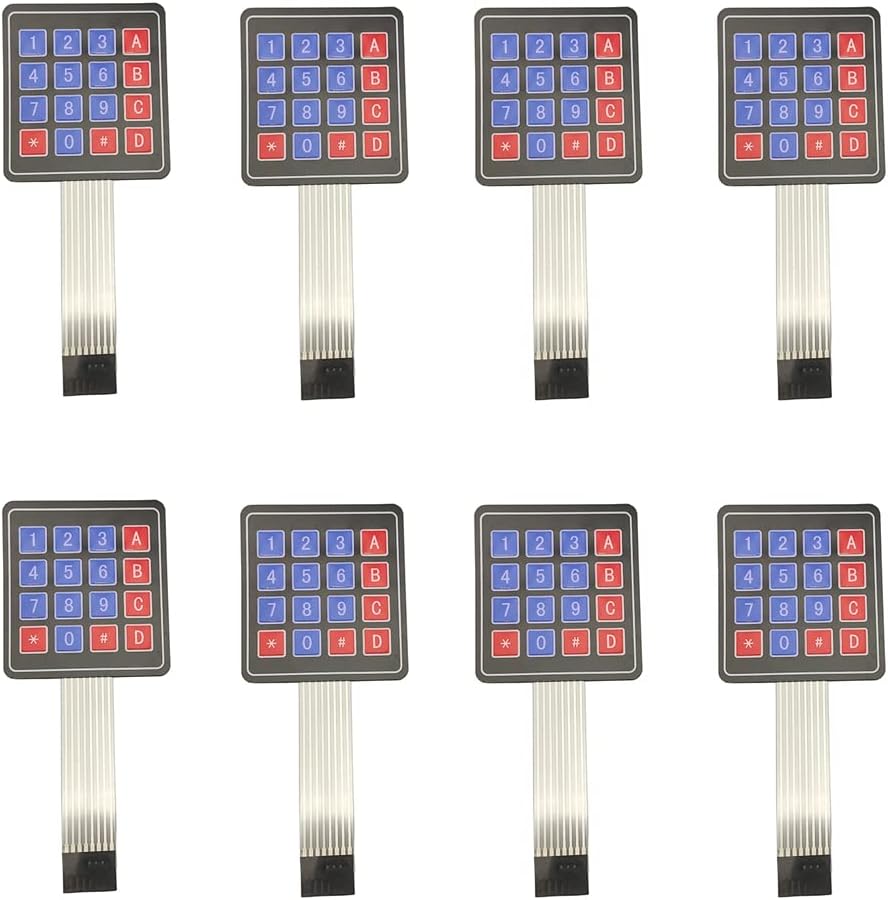

8 X 16keys 4X4 Membrane switch keypad
