Description

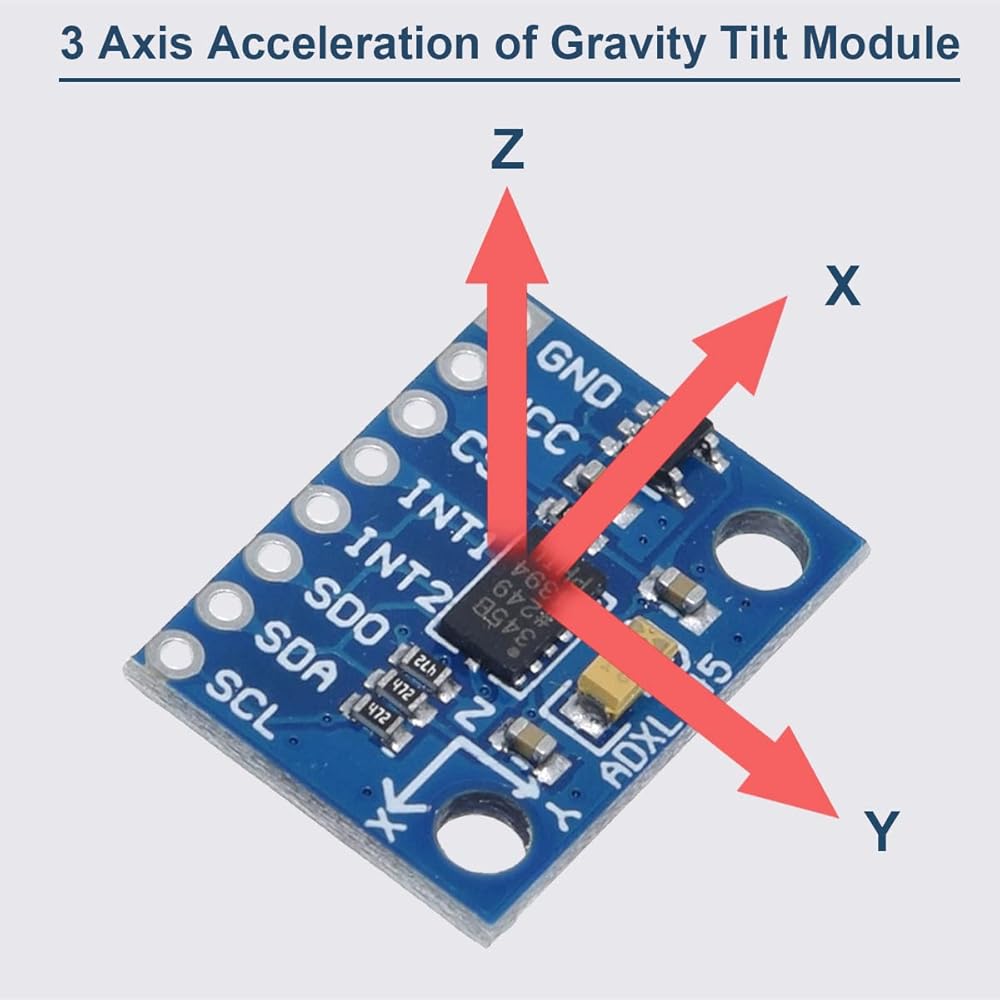

ADXL345 is well suited for mobile device applications. It can tilt sensing applications
Measuring the static acceleration of gravity, it can also measure the dynamic add motion or shock caused
speed. Its high resolution (4 mg / LSB), capable of measuring about 0.25 degree of inclination
Angle change. Use ADXL345 digital output acceleration timing, etc., without the need for

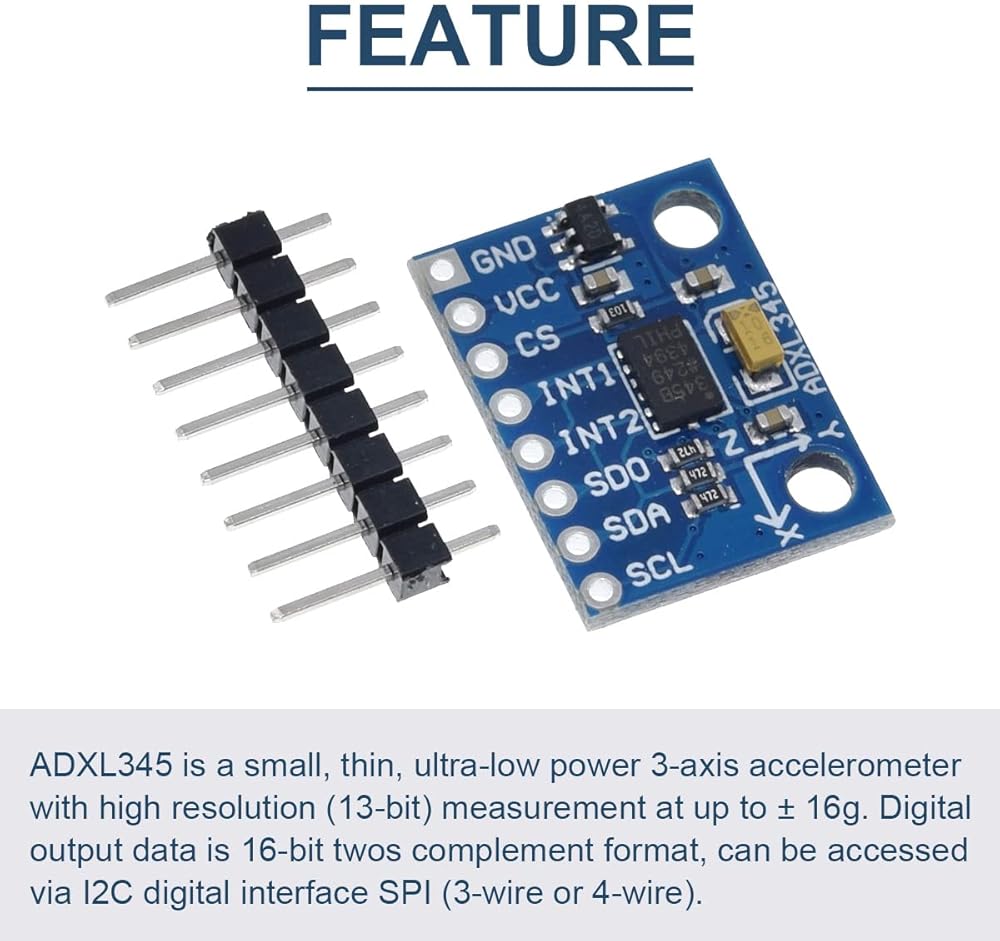

Analog to digital conversion, reducing system cost and board space. In addition, ADXL345 is a small, thin, ultra to low power 3 to axis accelerometer with high resolution (13 to bit) measurement at up to plus or minus 16g. Digital output data is 16 to bit twos complement format, can be accessed via I2C digital interface SPI (3 to wire or 4 to wire).
Tilt angle change.
The device offers a variety of special detection. Activity and inactivity sensing through
Comparing any axis acceleration threshold set by the user to detect the presence or absence of transport
Movable occurs. Tap any direction sensing detects single and dual vibration vibration
Make. Free to fall detection can detect whether the device is falling. These ones
Functions can be mapped to two interrupt output pins a. Shen is
Please patented integrated memory management system uses a 32 FIFO
(FIFO) buffer can be used to store data, which will host processor load
Minimize, and lower overall system power consumption.
Low power modes enable intelligent motion to based power management to a very low
Power consumption threshold sensing and active acceleration measurement.

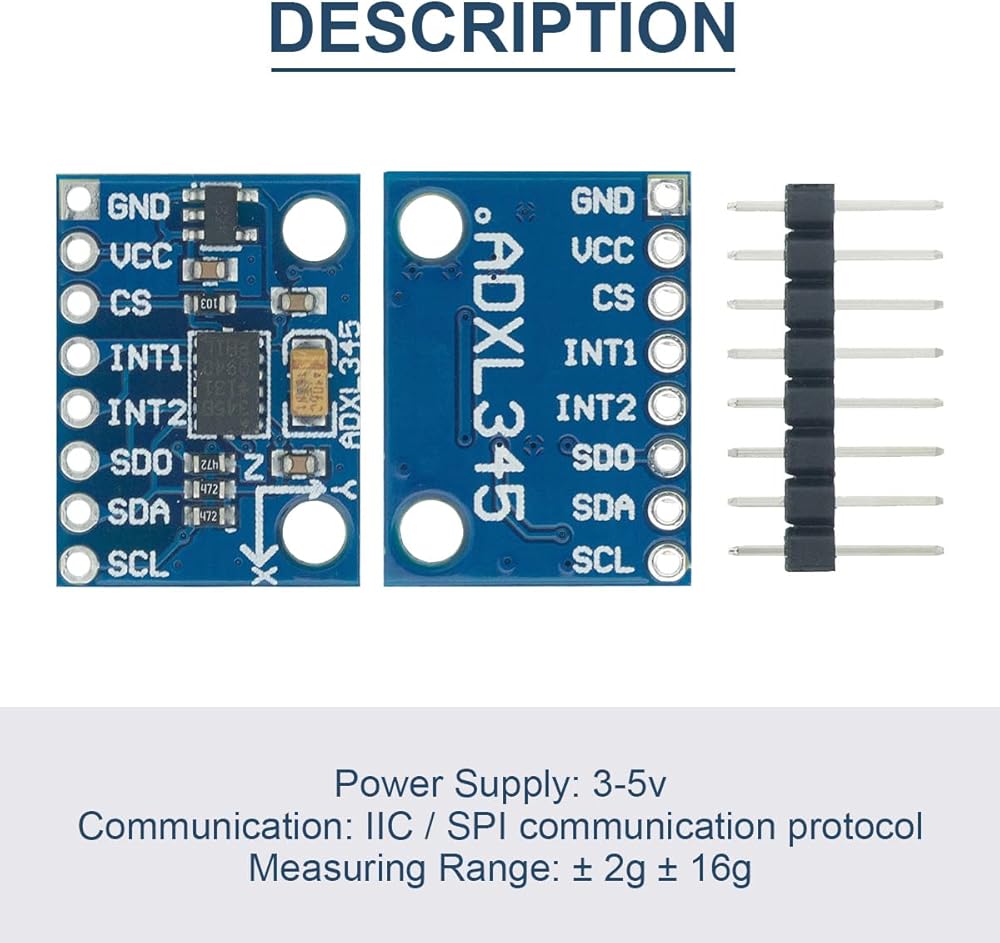

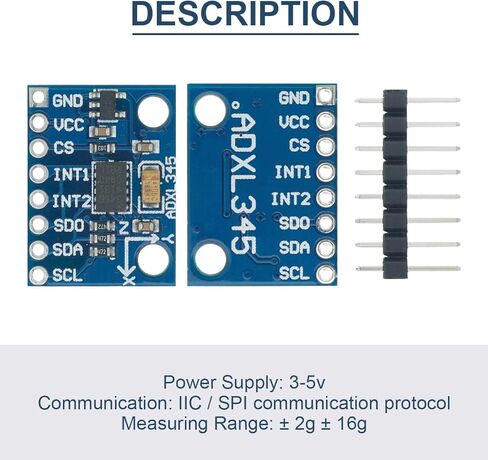

Feature Power supply: 3 to 5v

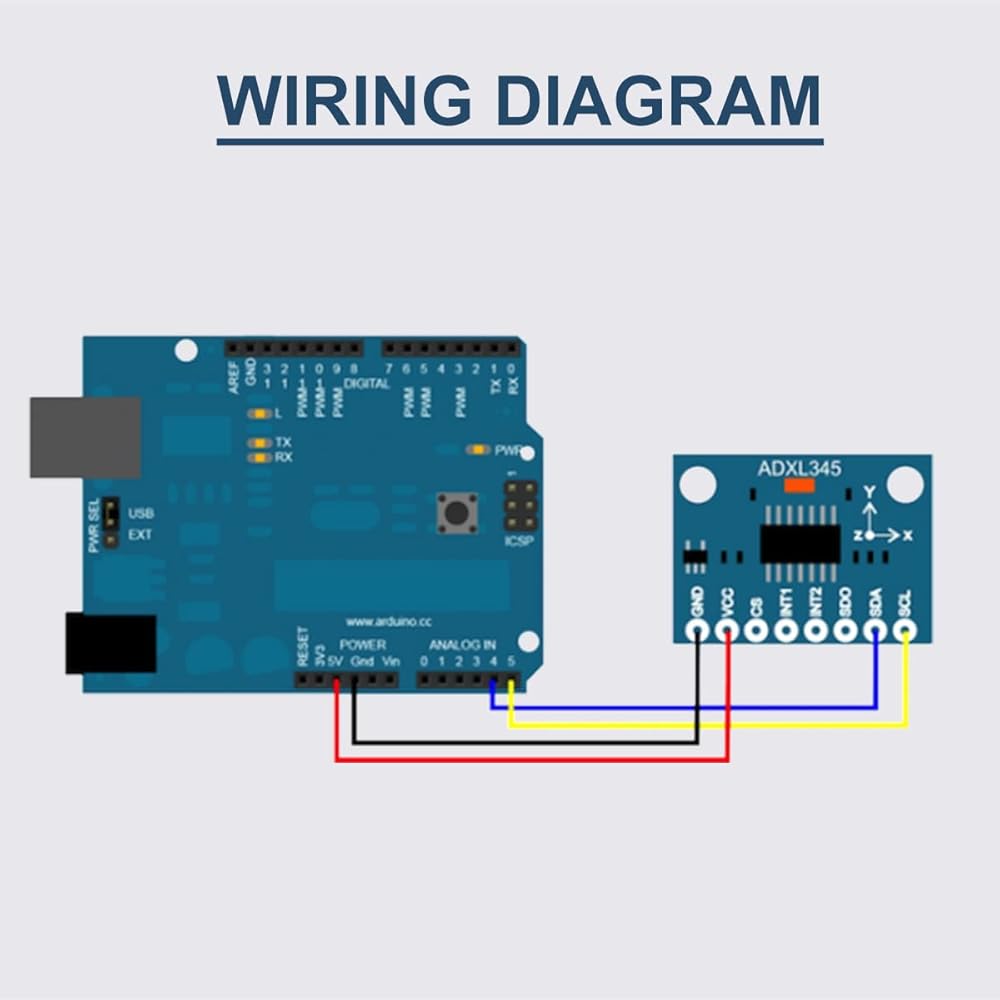

Communication: IIC / SPI communication protocol
Measuring range: plus or minus 2g plus or minus 16g

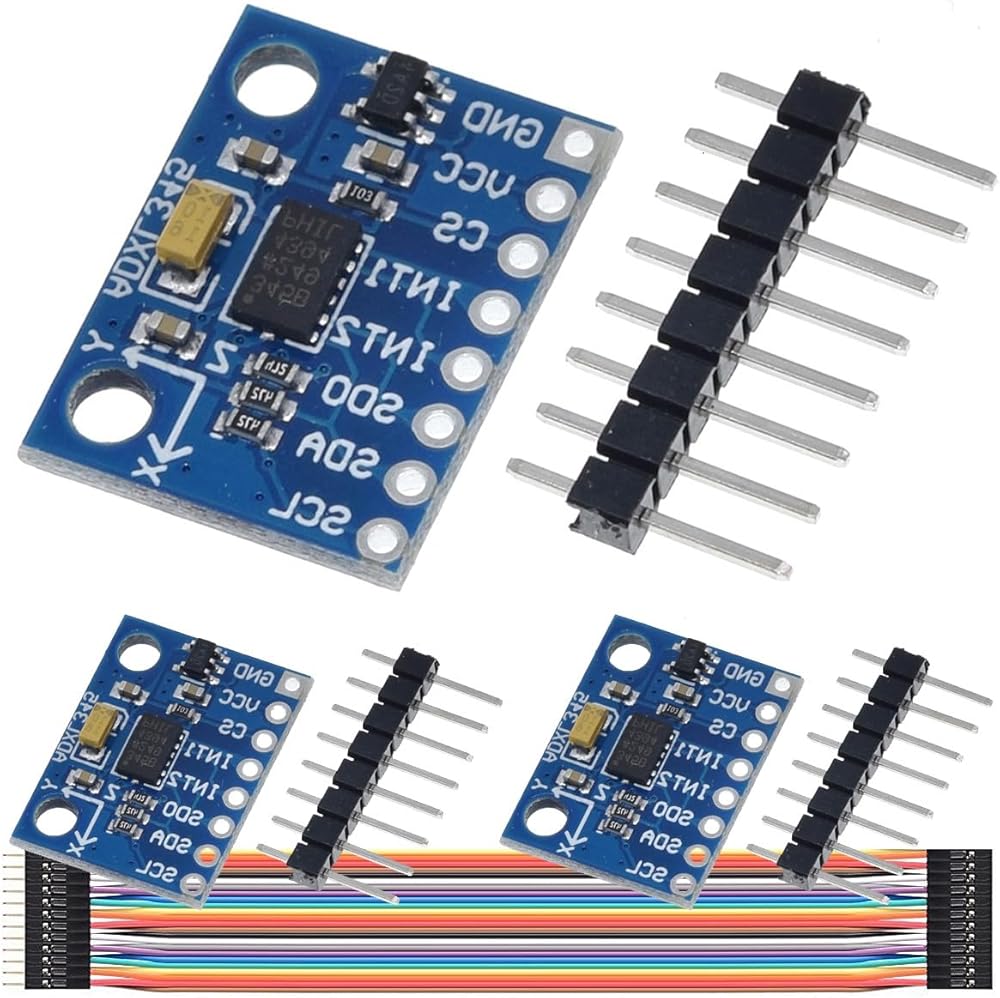

Package Included:
3 x ADXL345 3 Axis Acceleration Module

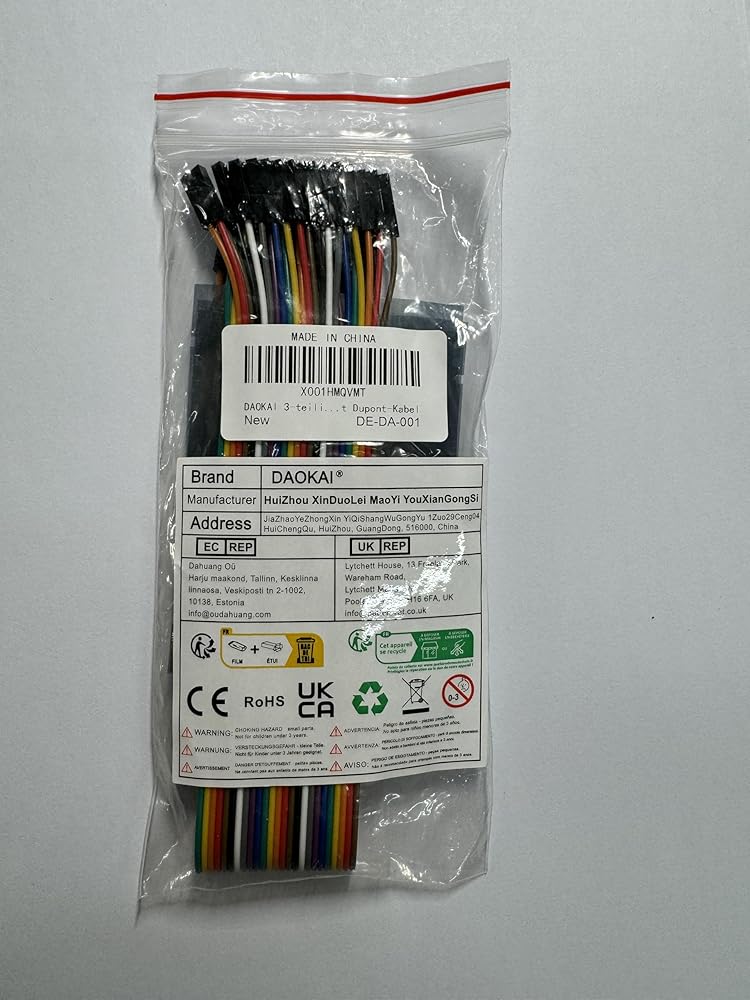

1 x Dupont Cable Male to Male 25 Pin
