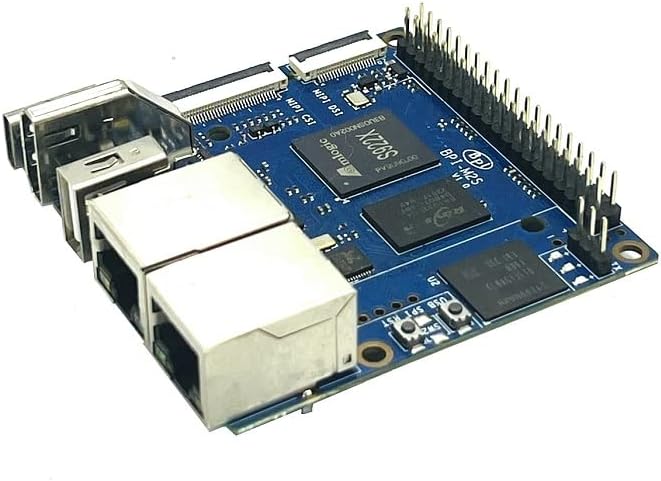

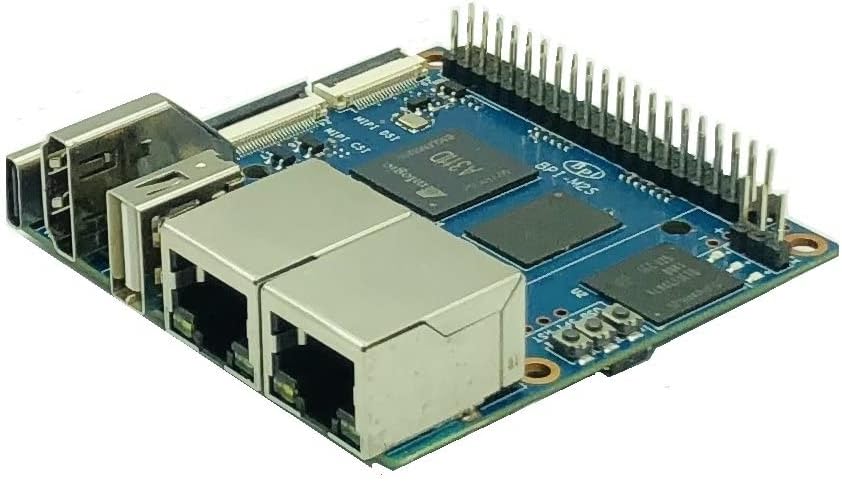

Banana Pi BPI-M2S Router Gateway with 2x 2.5GbE

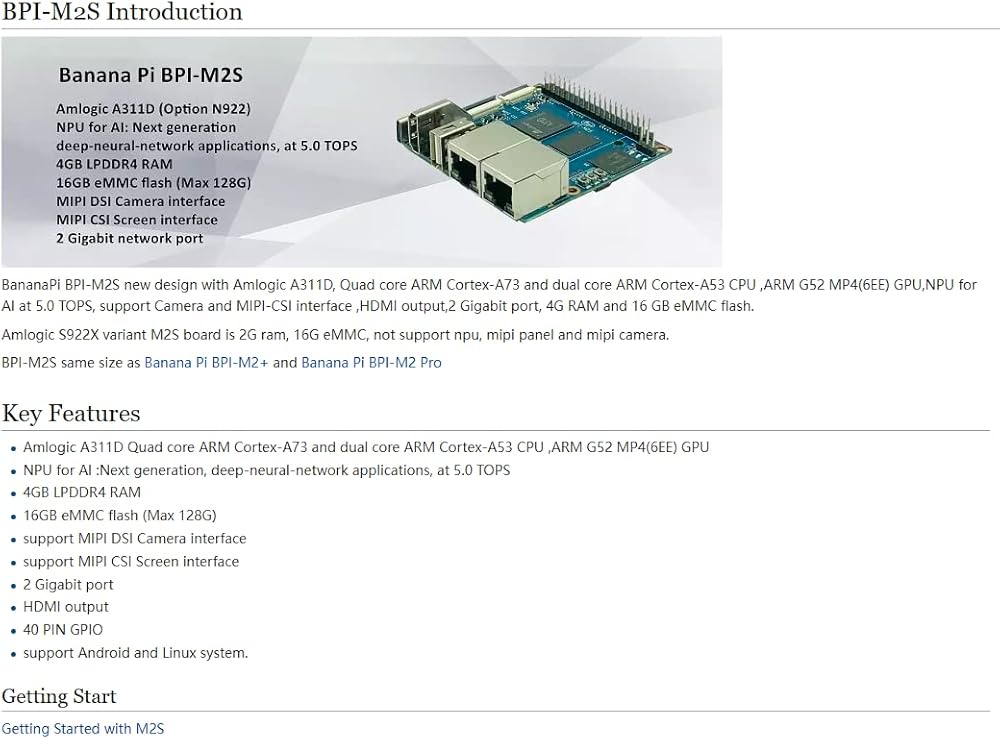

BananaPi BPI-M2S new design with Amlogic A311D Quad-core ARM Cortex-A73 and dual-core ARM Cortex-A53 CPU, ARM G52 MP4(6EE) GPU, NPU for AI at 5.0 TOPS, support Camera and MIPI-CSI interface, HDMI output,2 Gigabit port. 4G RAM and 16 GB eMMC flash. Amlogic S922X variant M2S board is not supported NPU, MIPI panel, and MIPI camera.BPI-M2S same size as Banana Pi BPI-M2+ and Banana Pi BPI-M2 Pro
Key Features
Amlogic A311D Quad-core ARM Cortex-A73 and dual-core ARM Cortex-A53 CPU, ARM G52 MP4(6EE) GPU
NPU for AI: Next generation, deep-neural-network applications, at 5.0 TOPS
4GB LPDDR4 RAM
16GB eMMC flash (Max 128G)
support MIPI DSI Camera interface
support MIPI CSI Screen interface
2 Gigabit port
HDMI output
40 PIN GPIO
Support Android and Linux systems.

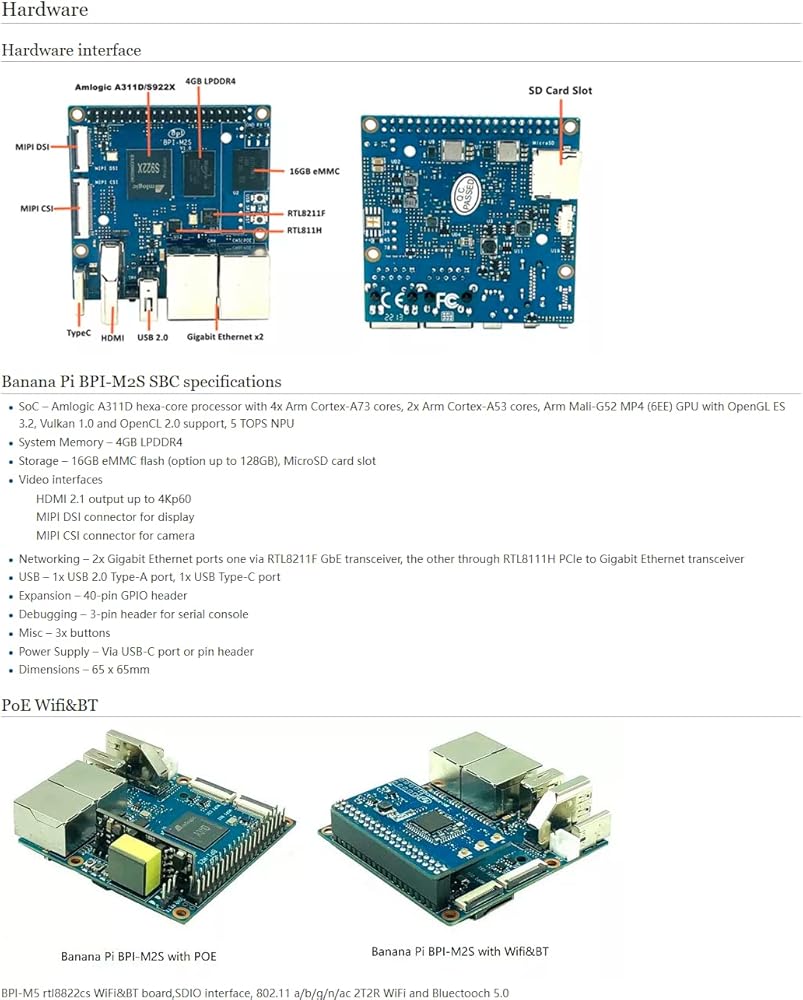

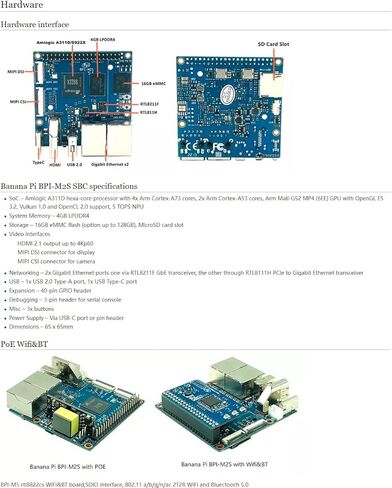

Banana Pi BPI-M2S SBC specifications
SoC – Amlogic A311D Hexa-core processor with 4x Arm Cortex-A73 cores, 2x Arm Cortex-A53 cores, Arm Mali-G52 MP4 (6EE) GPU with OpenGL ES 3.2, Vulkan 1.0, and OpenCL 2.0 support, 5 TOPS NPU
System Memory – 4GB LPDDR4
Storage – 16GB eMMC flash (option up to 128GB), MicroSD card slot
Video interfaces
HDMI 2.1 output up to 4Kp60
MIPI DSI connector for display
MIPI CSI connector for camera
Networking – 2x Gigabit Ethernet ports one via RTL8211F GbE transceiver, the other through RTL8111H PCIe to Gigabit Ethernet transceiver
USB – 1x USB 2.0 Type-A port, 1x USB Type-C port
Expansion – 40-pin GPIO header
Debugging – 3-pin header for serial console
Misc – 3x buttons
Power Supply – Via USB-C port or pin header
Dimensions – 65 x 65mm

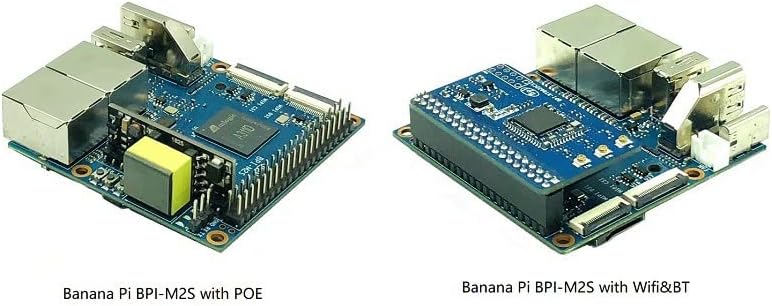

BPI-M5 rtl8822cs WiFi&BT board,SDIO interface, 802.11 a/b/g/n/ac 2T2R WiFi and Bluectooch 5.0
shipping llist: M2S A311D x1
