ذاكرة الوصول العشوائي CM5 16 جيجابايت مع 32 جيجابايت EMMC LPDDR4 Rockchip RK3588S AI Accelerator 6TOPS، وحدة الحوسبة 5 WiFi Bluetooth BLE (دعم أرضية الكمبيوتر اللوحي CM5) كمبيوتر لوحي واحد in Kuwait ذاكرة الوصول العشوائي CM5 16 جيجابايت مع 32 جيجابايت EMMC LPDDR4 Rockchip RK3588S AI Accelerator 6TOPS، وحدة الحوسبة 5 WiFi Bluetooth BLE (دعم أرضية الكمبيوتر اللوحي CM5) كمبيوتر لوحي واحد in Kuwait ذاكرة الوصول العشوائي CM5 16 جيجابايت مع 32 جيجابايت EMMC LPDDR4 Rockchip RK3588S AI Accelerator 6TOPS، وحدة الحوسبة 5 WiFi Bluetooth BLE (دعم أرضية الكمبيوتر اللوحي CM5) كمبيوتر لوحي واحد in Kuwait

CM5 4G32G

KWD 38.500
اللونCM5 4G32G
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

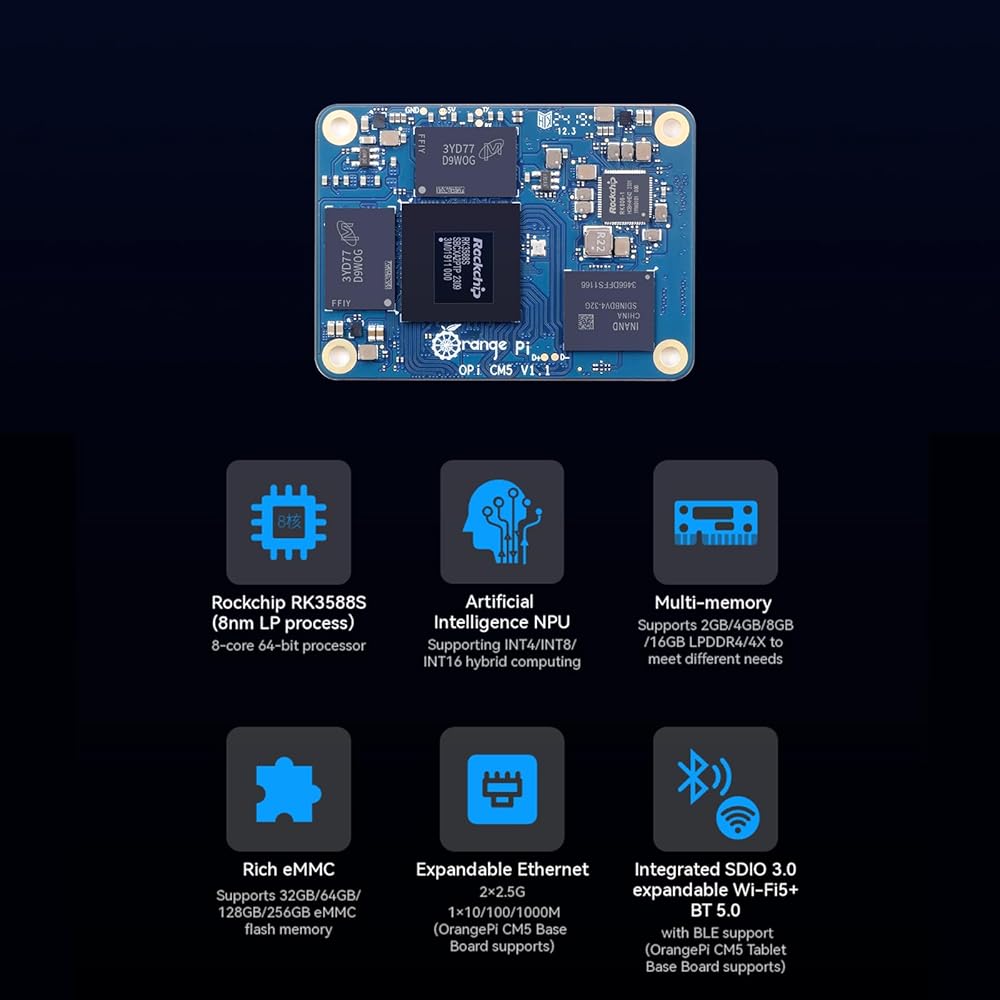

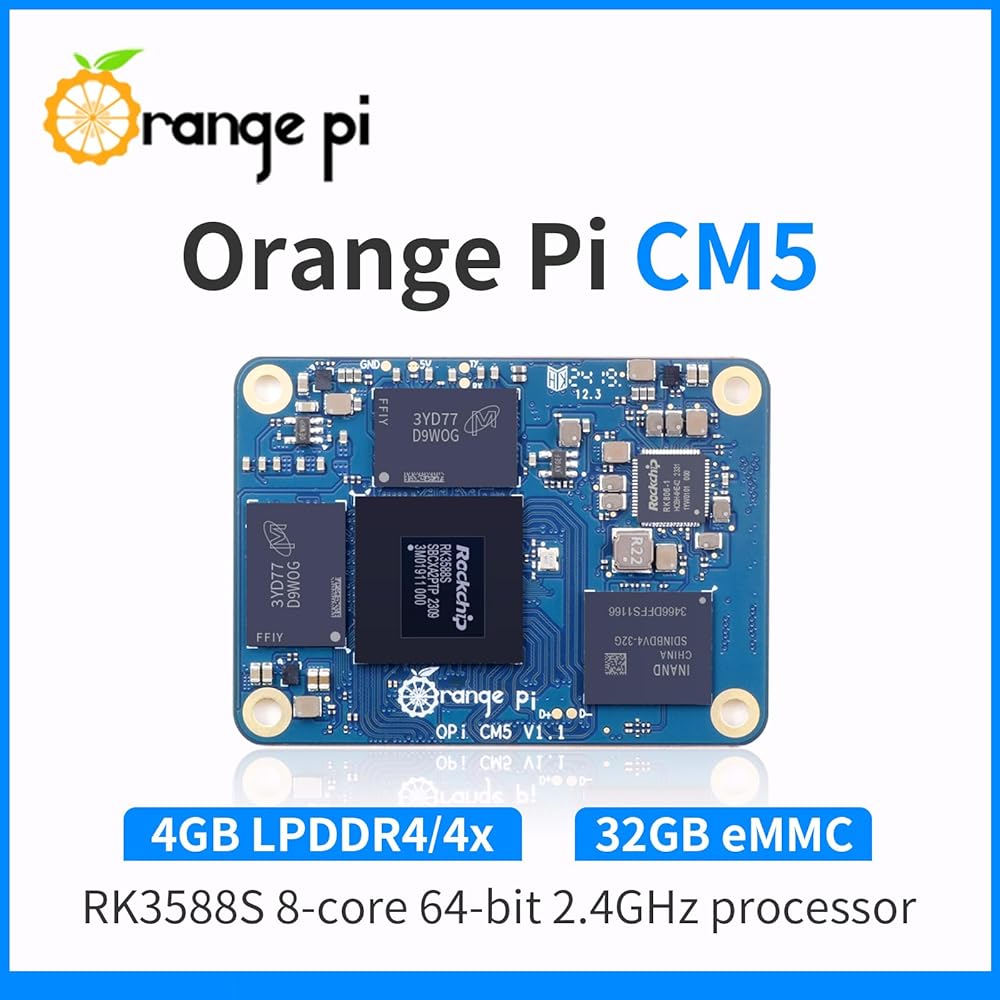

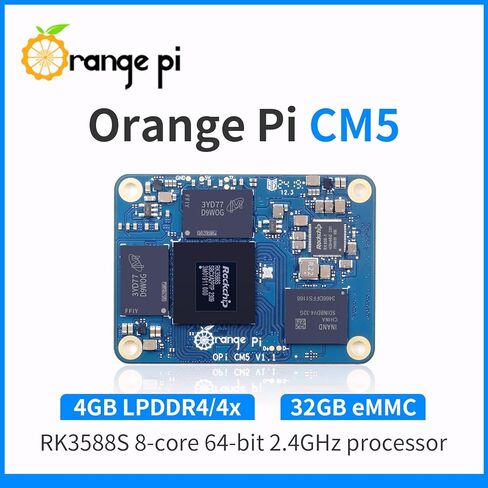

  • High Performance LPDDR4 - Orange Pi CM5 16GB is powered by Rockchip RK3588S 8-core 64-bit processor, 4-core Cortex-A76 (2.4GHz) and 4-core Cortex-A55 (1.8GHz), 8nm advanced process.
  • AI Accelerator - Orange Pi CM5 16G built-in AI accelerator NPU with up to 6TOPS of computing power, supporting INT4/INT8/INT16 hybrid computing, which can meet the edge computing needs of most end devices.
  • WiFi5+ BT5.0 with BLE Support(CM5 Tablet Floor Support) - Orange Pi Compute Module 5 16G32G Integrated SDIO 3.0, expandable Wi-Fi5+BT 5.0 with BLE support. Enjoy the wonderful network anytime, anywhere.
  • Rich Ports - providing rich interfaces and supporting different capacities of eMMC flash memory, which can be widely used in the field of industrial IoT. Expandable Ethernet: 2*2.5G + 1*10/100/1000M (OrangePi CM5 Base Board supports)
  • Wide Range of Application Scenarios - Orange Pi CM 5 is compact, measuring only 55mmX40mmX1.6mm, and powerful enough to be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
  • Orange Pi CM5 Base Board - OrangePi CM5 base board is an official Orange Pi base board that can be used with Orange Pi CM5 core board. It has two 2.5G high-speed ports, Gigabit ports, and standard CM5 connectors, and can be used as a CM5 development system as well as embedded boards to be integrated into end-products.(Not included)
  • Support Open Source - Orange Pi Single Board Computers can builed a computer, a wireless server, Games, music and sounds, HD video, a speaker, Android, Scratch. Pretty much anything else, because Orange Pi is open source.

وصف

Hardware Parameters
SoC: Rockchip RK3588S (8nm LP process)

CPU:
8-core 64-bit processor
4-core Cortex-A76 (2.4GHz)and 4-core Cortex-A55 (1.8GHz) typical small and large core architectures

GPU:
Integrated ARM Mali-G610
Built-in 3D GPU
Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2

NPU: Built-in AI accelerator NPU with up to 6TOPS computing power, supporting INT4/INT8/INT16 hybrid computing.
PMU: RK806-1
RAM: LPDDR4/4x, supports 4GB, 8GB, 16GB
eMMC: supports 32GB

Interface: 3*100pin (Model: DF40C-100DP-0.4V(51)), including the following interfaces:
1*Type C or DP1.4
3*USB2.0
1*HDMI 2.1 or eDP1.3
1*SDMMC
1*4-lane MIPI DPHY TX
1*2-lane MIPI DPHY TX
2*2-lane MIPI DPHY RX
1*4-lane MIPI CSI RX
1*SATA III or PCIe2.0
1*SATA III or PCIe2.0 or USB3.0
USB3.0*1+USB2.0*3
POWER_ON、RESET、MASKROM、RECOVERY etc.
SDIO 3.0 or RGMII
I2C, I2S, UART, SPI, CAN, PWM, SPDIF, PDM, GPIO etc.

Power supply:
Input - DC 5V Max1800mA
Output - DC3.3V Max600mA and DC1.8V Max600mA

PCB Length: 55mm, width: 40mm, thickness: 1.6mm
Weight: 12g
