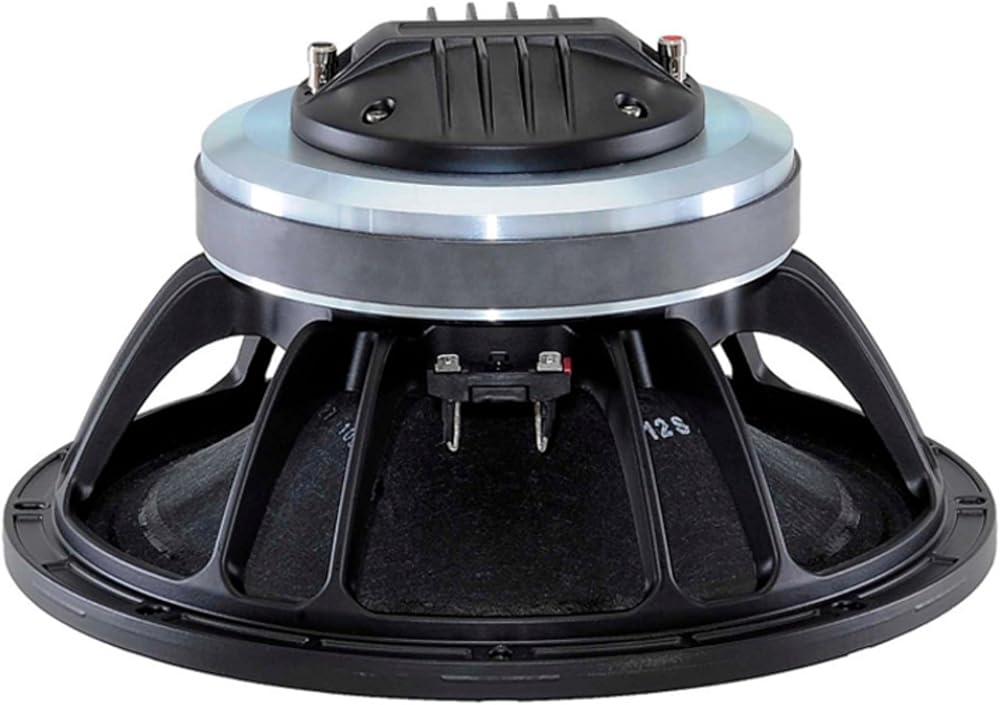

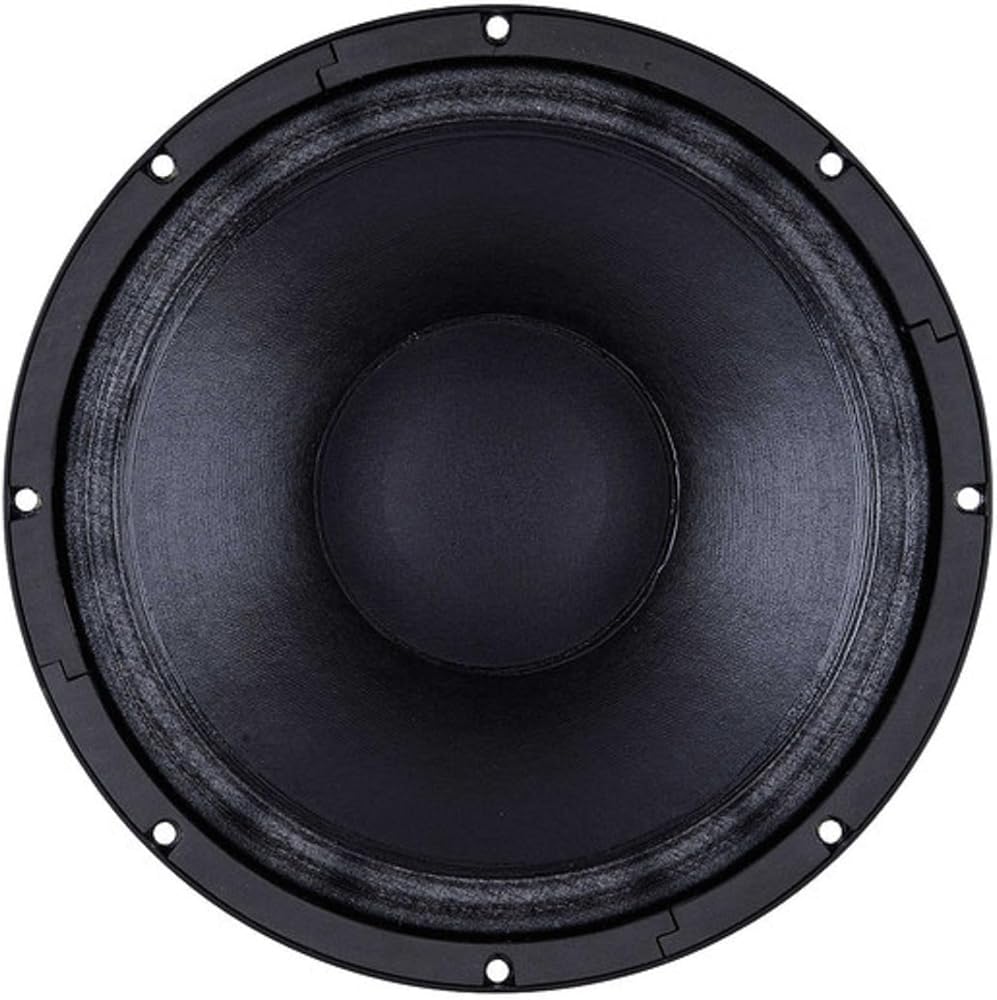

B&C Speakers 12FCX76-8 12-inch Coaxial Midbass 8 Ohms Impedance 350 Watts Rms 700 Watt Max Pro Audio Component Speaker Driver for Motorcycle Car || HIGHLIGHTS 700 W continuous program power capacity | 80° nominal coverage | 47 - 18000 Hz response | 98 dB sensitivity | 50.5 mm (2”) HF unit exit diameter | Single Ferrite magnet assembly | Aluminium demodulating ring allows a very low distortion figure | || SPECIFICATIONS Nominal Diameter : 320 mm (12.0 in) | Nominal Impedance : 8 Ω | Minimum Impedance LF : 6.3 Ω | Minimum Impedance HF : 7.8 Ω | Frequency Range : 47 - 18000 Hz | Dispersion Angle1 : 80 ° | Woofer Cone Treatment : WP Waterproof Front Side | Magnet Material : Ferrite | || SPECIFICATIONS LF UNIT LF Sensitivity2 : 98.0 dB | LF Nominal Power Handling3 : 350 W | LF Continuous Power Handling4 : 700 W | LF Voice Coil Diameter : 76 mm (3.0 in) | LF Winding Material : Copper | LF Flux Density : 1.0 T | Former Material : Glass Fibre | Winding Depth : 16.5 mm (0.65 in) | Magnetic Gap Depth : 8.0 mm (0.31 in) | || SPECIFICATIONS HF UNIT HF Sensitivity5 : 106.0 dB | HF Nominal Power Handling6 : 80 W | HF Continuous Power Handling7 : 160 W | HF Voice Coil Diameter : 75 mm (3.0 in) | HF Winding Material : Aluminium | HF Flux Density : 1.6 T | Diaphragm Material : Titanium | Recommended Crossover8 : 1.2 kHz | Inductance : 0.14 mH | || MOUNTING AND SHIPPING INFO Overall Diameter : 315 mm (12.5 in) | Bolt Circle Diameter : 298 mm (11.7 in) | Baffle Cutout Diameter : 282 mm (11.1 in) | Depth : 169 mm (6.65 in) | Flange and Gasket Thickness : 14 mm (0.55 in) | Net Weight : 8.0 kg (17.6 lb) | Shipping Units : 1 | Shipping Weight : 9.3 kg (20.5 lb) | Shipping Box : 425x425x224 mm (16.73x16.73x8.82 in) |
