مميزات خاصة

Input Voltage: DC36V 48V (30V-60V DC) ; Output: DC 13.8V; Non-isolated DC/DC Power Converter.
Made of Imported Main Components and Aluminum Shell, HighTransfer Efficiency of 95% Max, Low Heat Generated and Stable Performance.

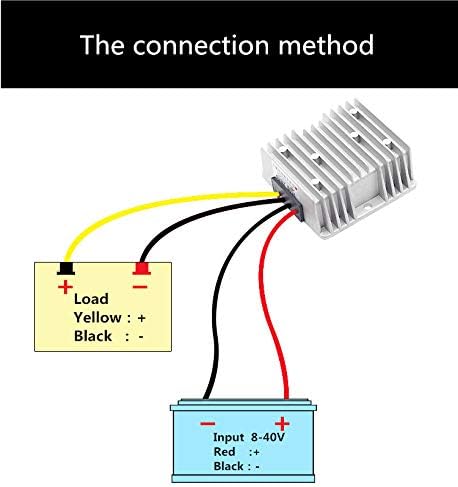

Easy Installation: There are four wires,Red wire is for the input + ;Black wire is for the input ;Yellow wire is for the output + ;Black wire is for the output -

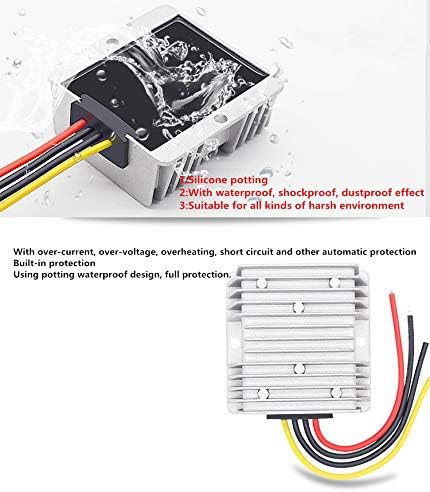

Safe for Usage: 100% waterproof and shockproof,damp-proof and anti-dust,overheat protection,overload protection,over current protection,can automatic return to normal condition.
Kindly Note: In order to functioned short-circuit protection,please connect the fuse at the input side; No reverse polarity protection,please install the positive wire and negative wire correctly.

وصف

Input Rated Voltage:36V 48 DC
Input Voltage Range: 30V-60V DC
Output voltage: DC13.8V 15A
Output Rated Power: 207W
Efficiency: 97% (half load); 95% (full load)
Weight: 260g

Features:
1. 100% full power and stable current output, non-isolated module.
2. Industry grade DC24V to DC 13.8V step-down converter, efficiency up to 95%.
3. Die-cast aluminum shell, epoxy potting, cooling by free air convection; Waterproof level IP68 and anti-shock protection.
4. Protections: Over-current, Over-voltage, Over-temperature, Over-load and Short-circuit, auto-recovery when device is back to normal operating.
5. Certificates: CE/RoHS, 1 year warranty, lifetime up to 100,000 hours.

Package included:
1 x DC 36V 48V -13.8V 15A Voltage Converter
