PACKAGE INCLUDED
1 x Electric Linear Stage slider Table
2 x EE-SX674 NPN Micro Photoelectric Switch

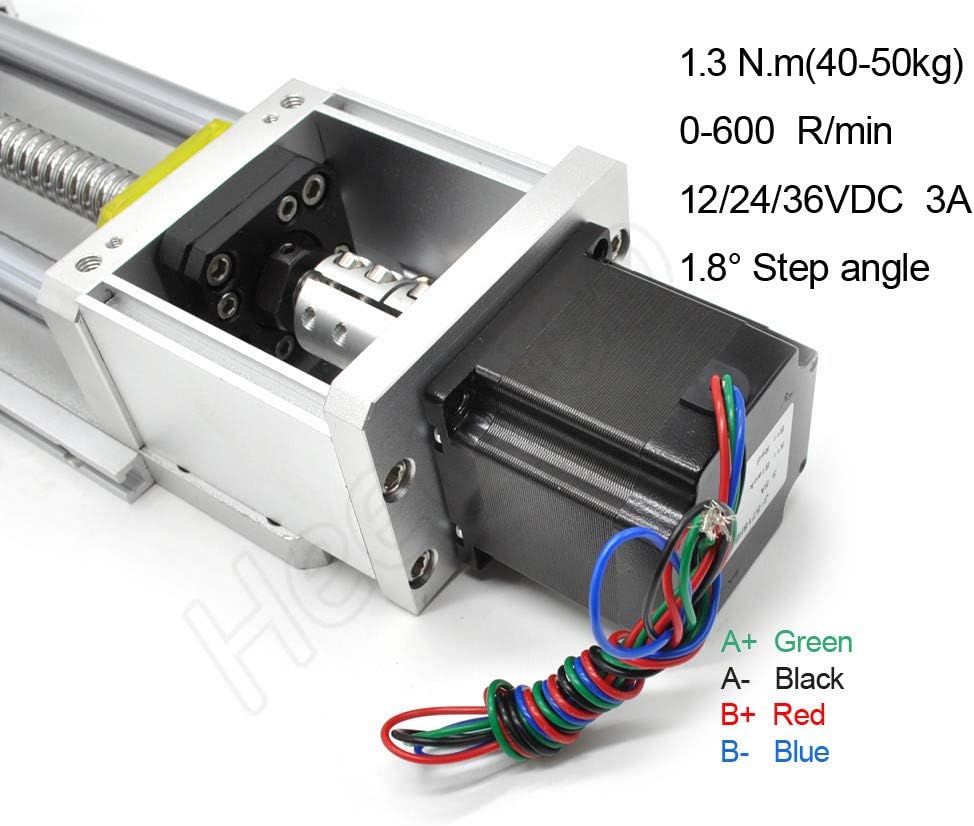

1 x 1.3N.m Stepper motor

We have 3D drawings and CAD drawings.Please contact (heechooservice@gmail.com) for STP files

BALLSCREW FEATURES

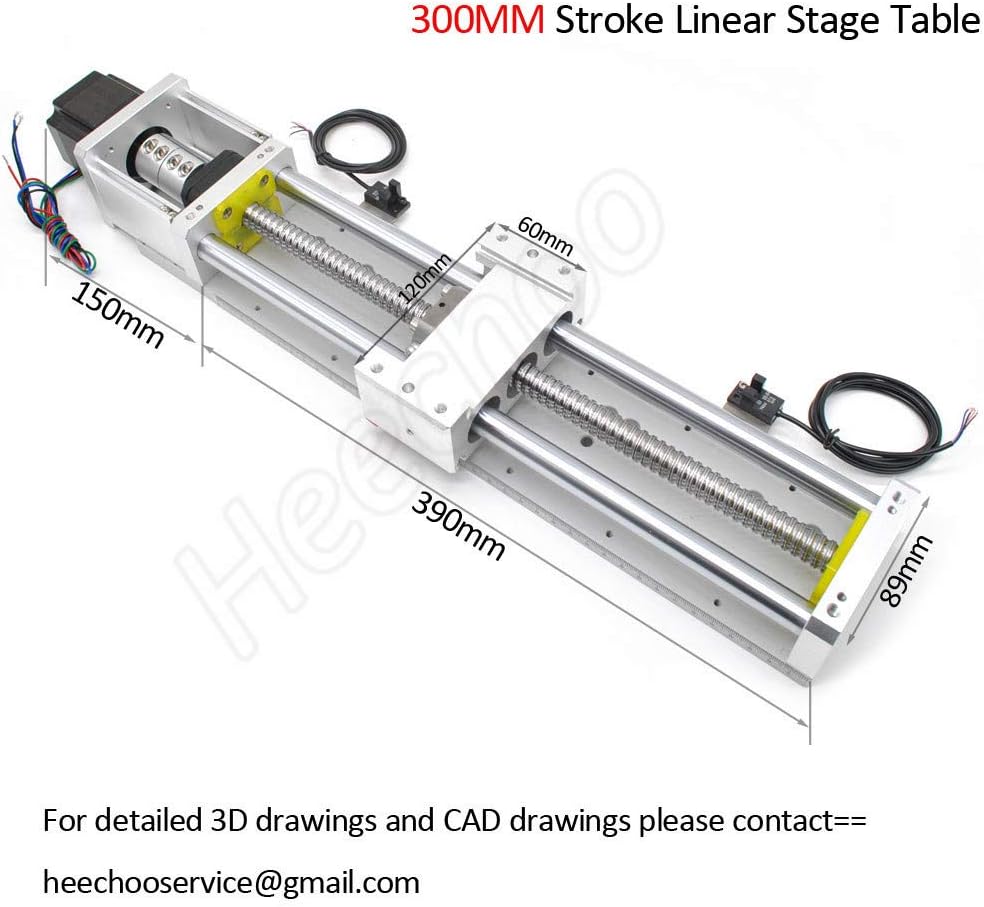

Stroke--300 MM / Total length L2--389 MM
Horizontal load(max)--35kg Vertical load(max)--10kg Product weight--4.2 kg

PARAMETERS
1. Aluminum Profile (wide* high): 89x11mm
2. Front panel height :89mm, rear plate height: 61mm

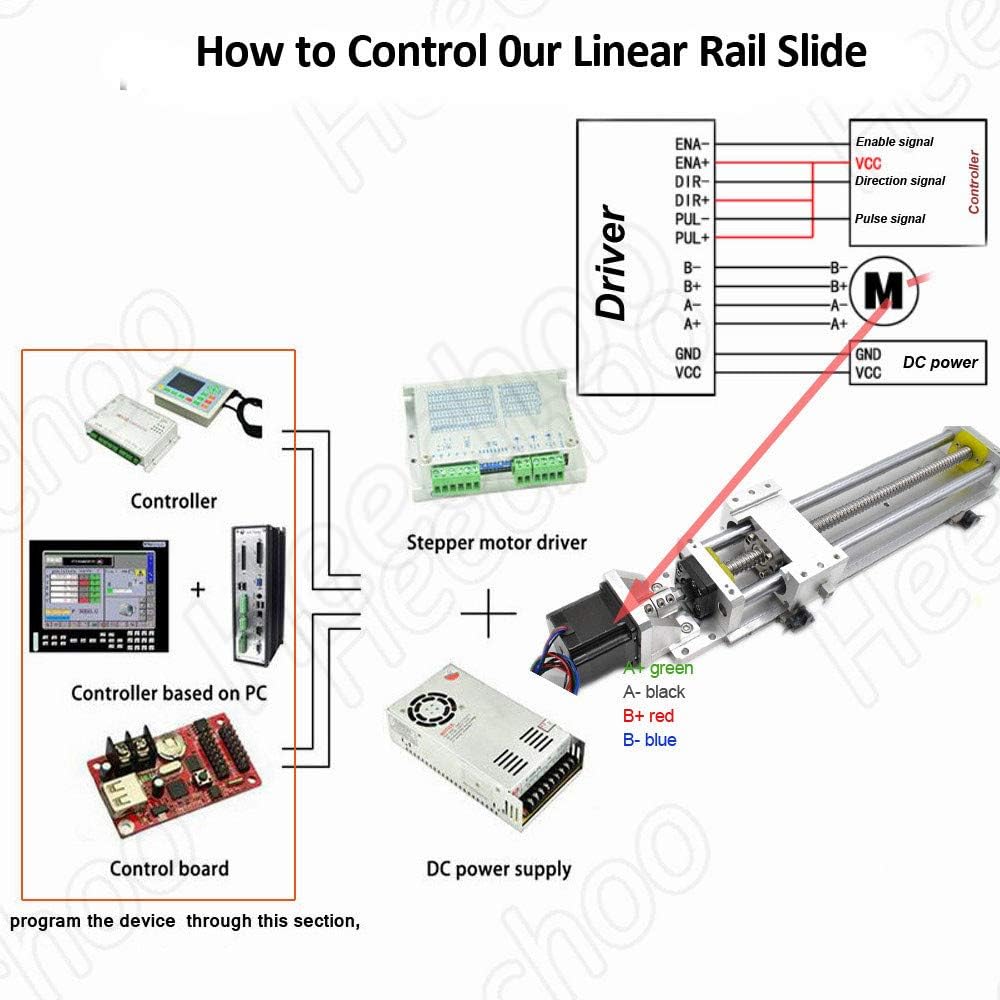

3.Dual Micro Photoelectric Switch can be installed in any position on the side, used to provide the controller with the position information of the slide, with a millisecond response speed.
4. Professional screw support is installed before and after to improve the linear actuator's high life and accuracy.

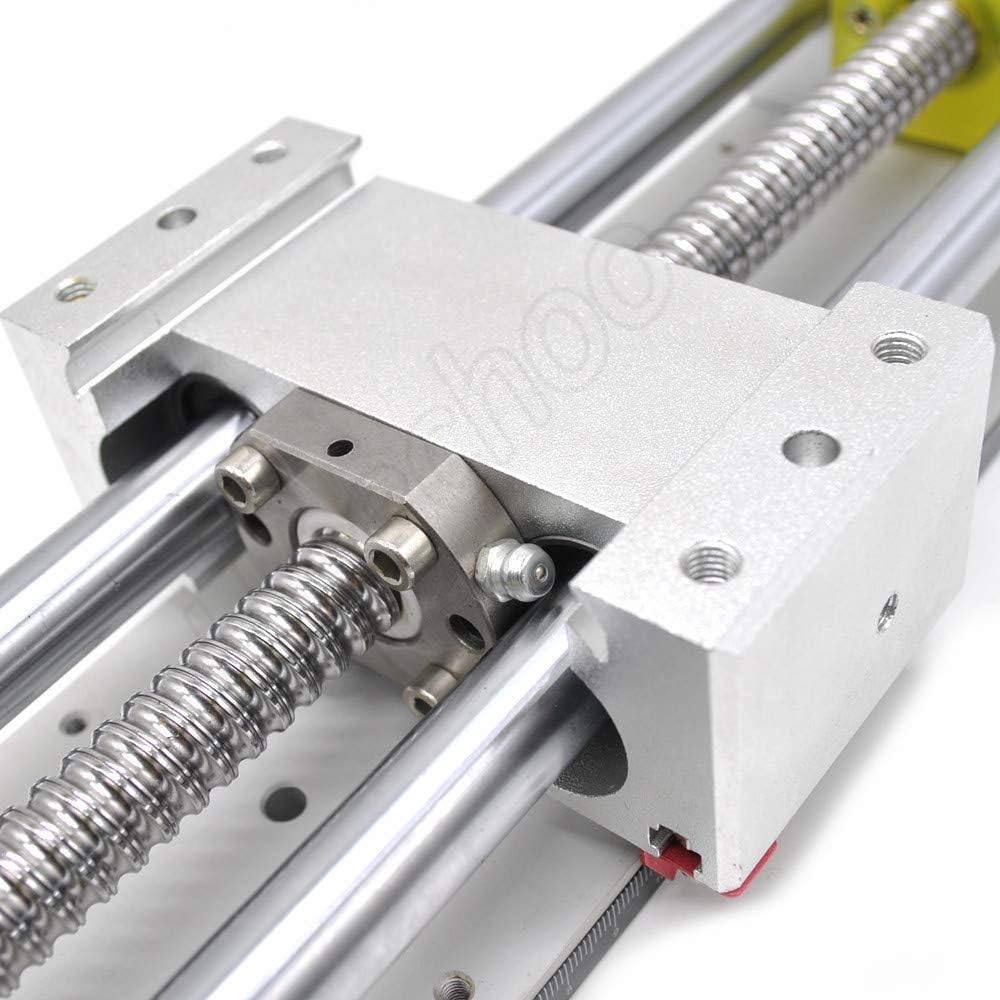

5. Ball screw type: 1605 (diameter 16mm, lead 5mm , 1610 screw / 1620 screw can be replaced.)
6. Ball screw accuracy: C7,Repeat positioning accuracy: ± 0.02mm
7. Material: Aviation Aluminum 6061,sandblasted on the surface
8. Can be equipped with electric: Nema34 stepper motor, 60 ST servo motor (customer needs different flexible configuration)
9.Install dust cover ,please search: ASIN：B07ZY4GBMS
