مميزات خاصة

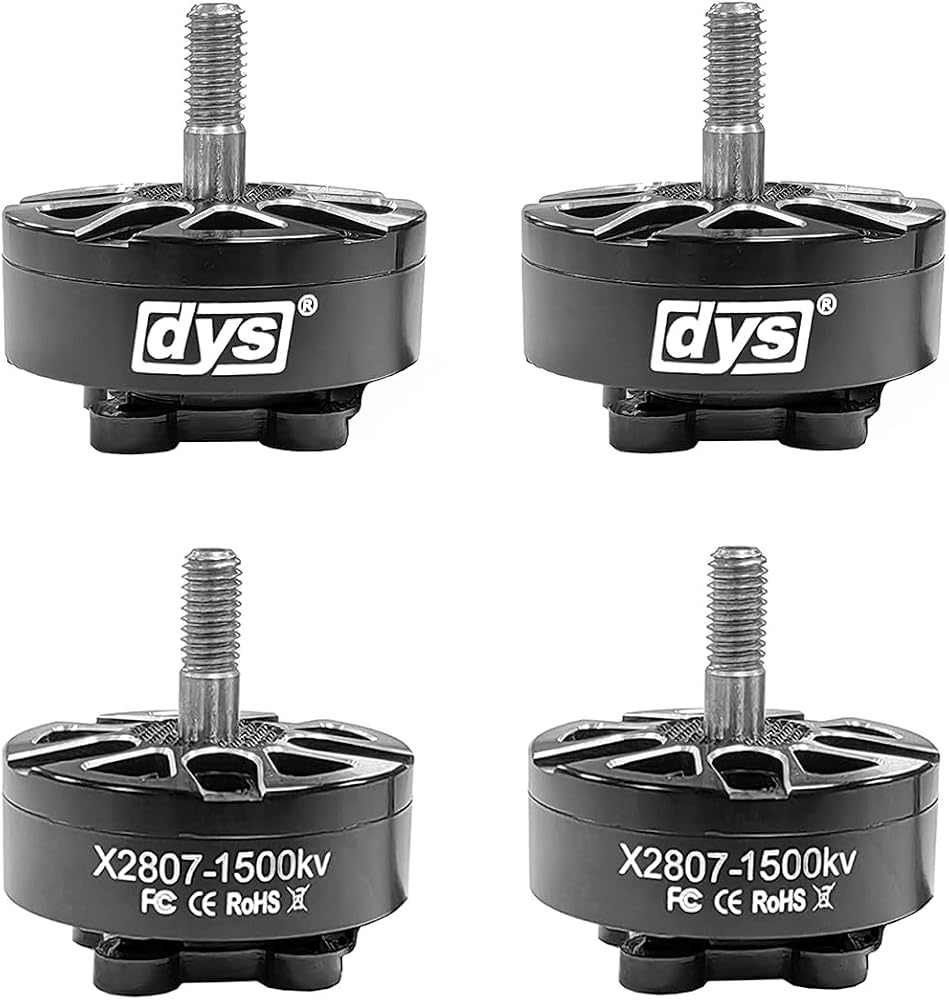

1. X2807 brushless motor is the upgraded motor, 12N14P high torque motor design, which is smooth, reliable and powerful.
2. The motor is characterized by support 2~6S lipo. Suitable for multicopter, RC aircraft, drone.
3. X2807 Motor KV 1300/1500/1700KV, shaft size 4 x 14mm, motor mount M3*19, which is compatible with 6-7inch propeller.
4. FPV brushless motor provides the most incredible power and thrust in the lightest weight. Give you a more satisfied experience with your model.
5. Each rotor was dynamically balanced with high speed. High purity copper windings maximize efficiency, good insulation and heat resistance.

وصف

Descriptions:
This X2807 1300/1500/1700KV brushless motor, support 2-6s lipo battery, more powerful and better faster. Featuring 12N14P high torque design, strong thrust, more powerful than other ordinary brushless motors, high working efficiency. Widely use in RC aircraft, drone, helicopter, plane, multicopter and so on.

Specifications:
Test item:X2807(1300KV)
No.of cells: 2S-6S
Weight:48.6g W/0 Silicone Wire
Bearing Shaft:4mm
Max.Power (6S):1400W
Lead:18#AWG200mm
Motor Dimensions:33.5mm*17.5mm
Idle Current (10V):1A
Propeller:6"-7"
Framework:12N 14P
Peak Current (6S):55A
Internal Resistance:60mΩ

Test item:X2807(1500KV)
No.of cells: 3S-5S
Weight:48.6g(W/0 Silicone Wire)
Bearing Shaft: 4mm
Max.Power (6S):1300W
Lead:18#AWG200mm
Motor Dimensions:33.5mm*17.5mm
Idle Current (10V):1.2A
Propeller: 6"-7"
Framework:12N 14P
Peak Current (6S):63A
Internal Resistance:55mΩ

Test item:X2807(1700KV)
No.of cells: 3S-4S
Weight:47.9g(W/0 Silicone Wir
Bearing Shaft:4mm
Max.Power (6S):900W
Lead:18#AWG200mm
Motor Dimensions:33.5mm*17.5mm
Idle Current (10V):1.9A
Propeller:6"-7"
Framework:12N 14P
Peak Current (6S):55A
Internal Resistance:45mΩ

Package included:
4pc x X2807 motor
