مميزات خاصة

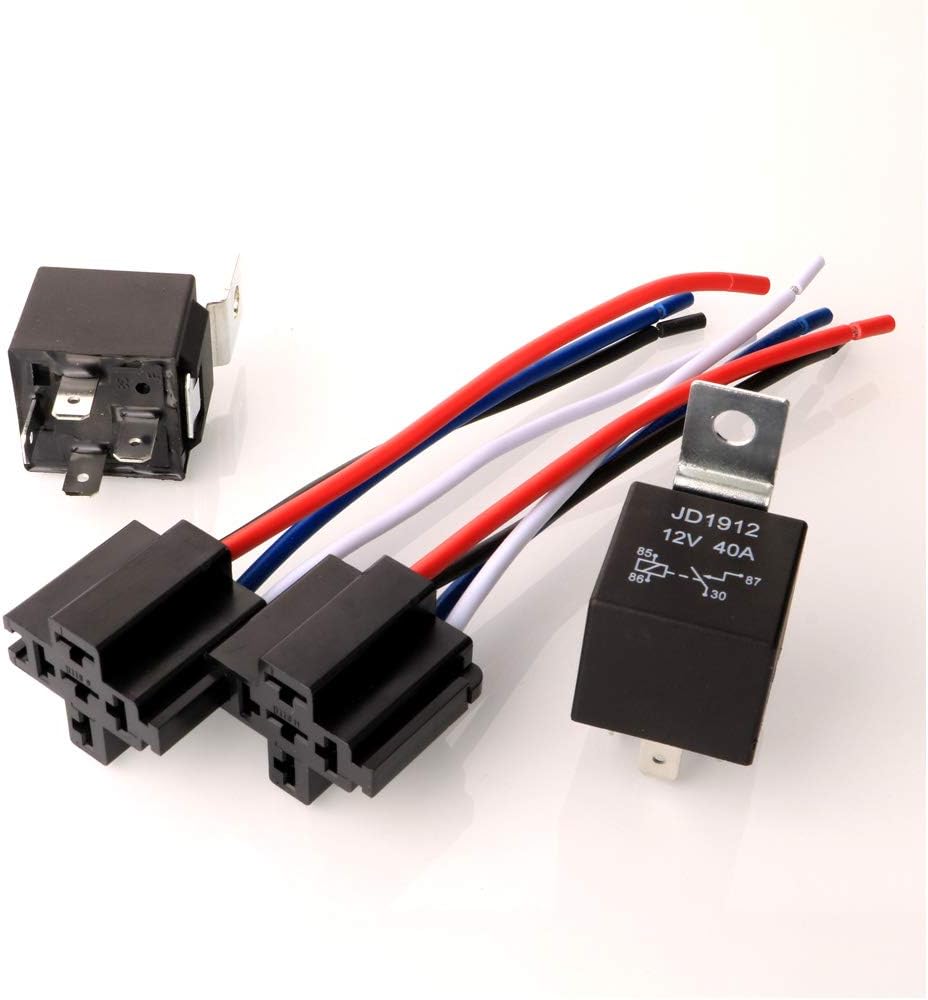

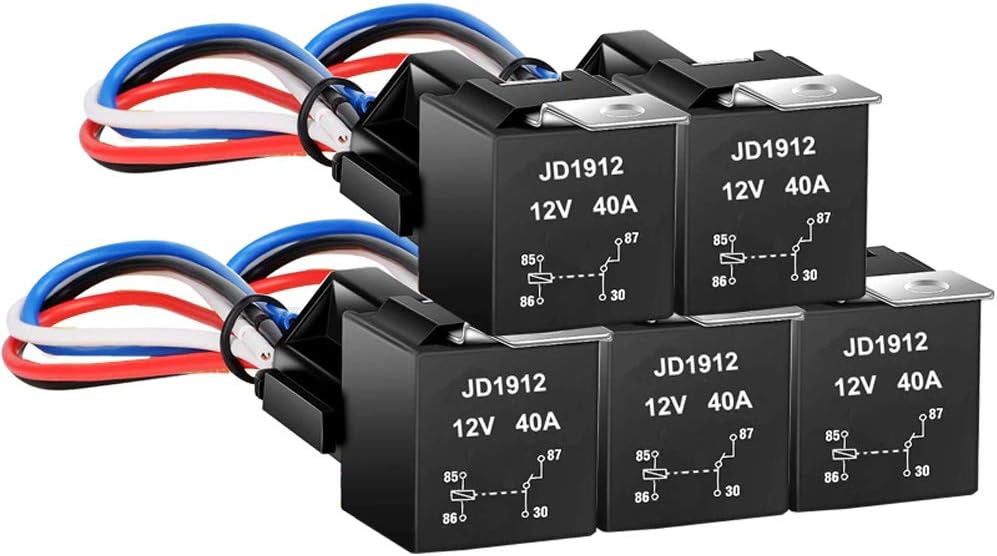

12 V DC automotive waterproof relay (max 14 V). Note: 12 V and 14 V are coil voltages, they are not the voltage that triggers the switch.

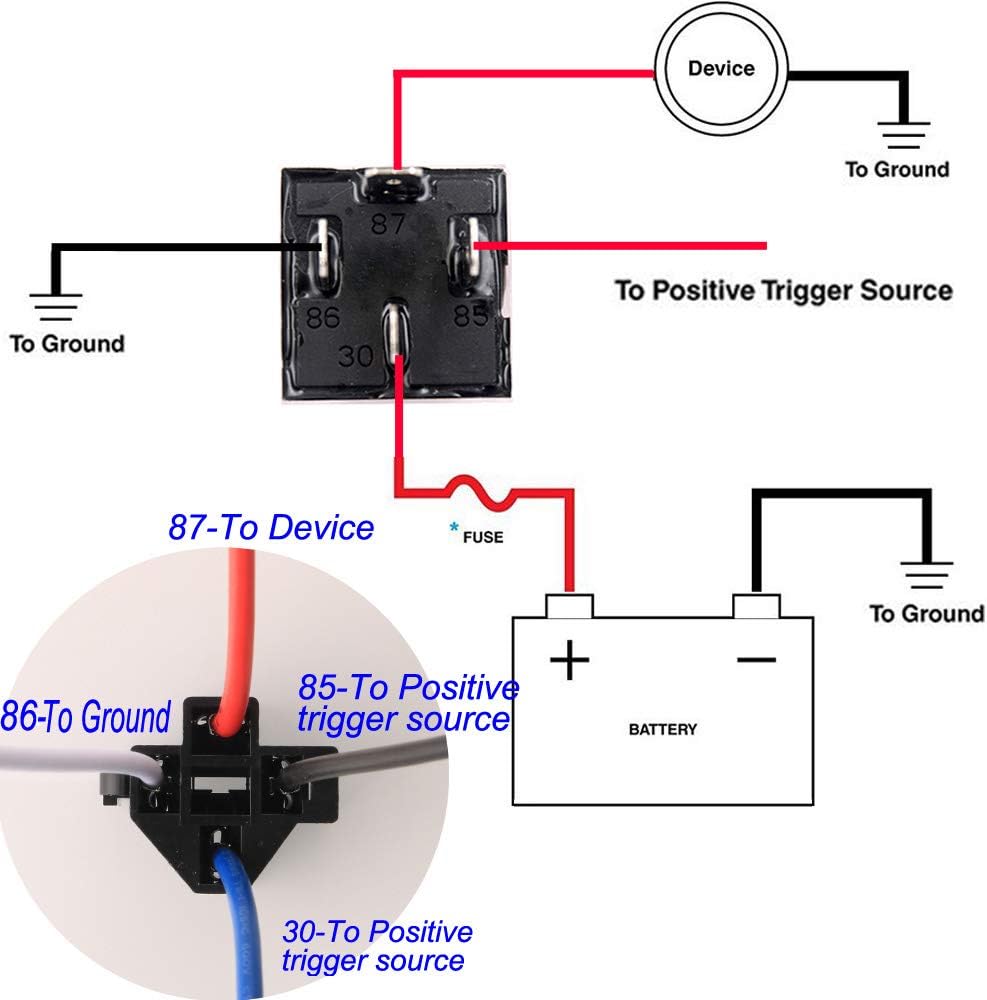

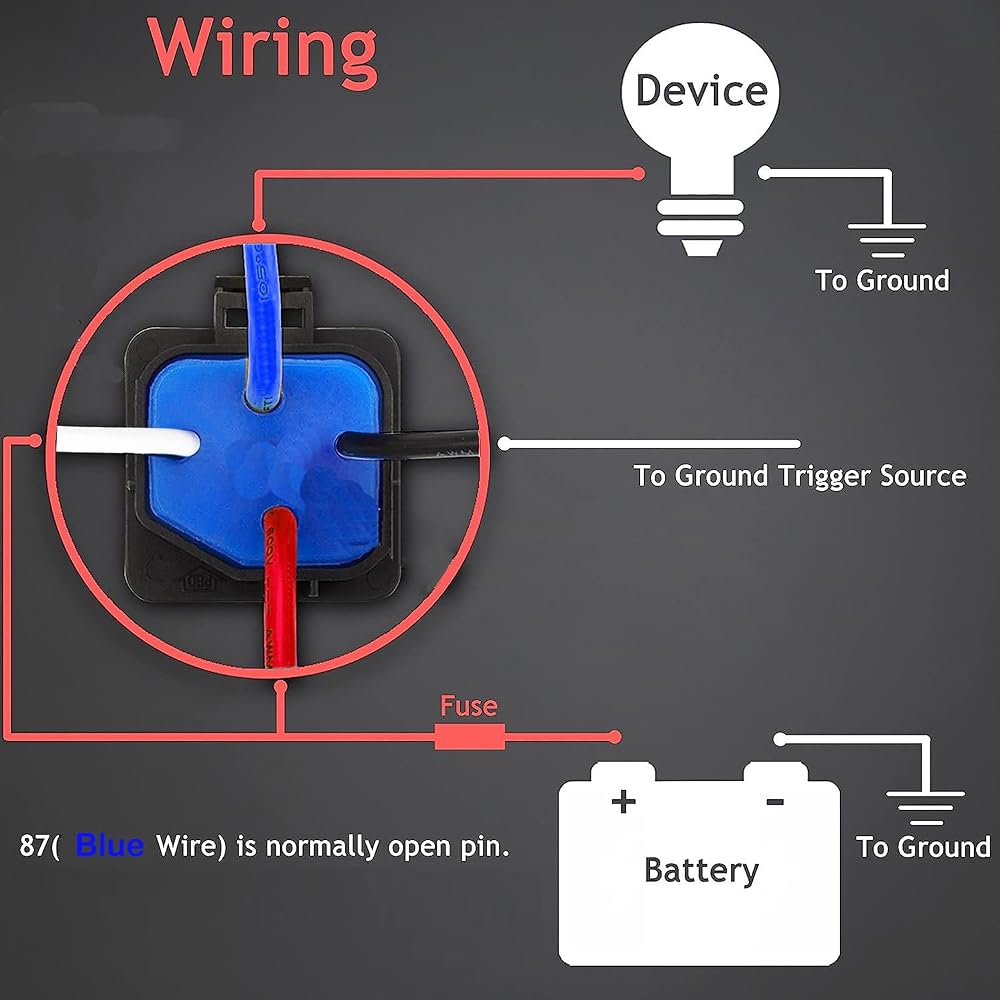

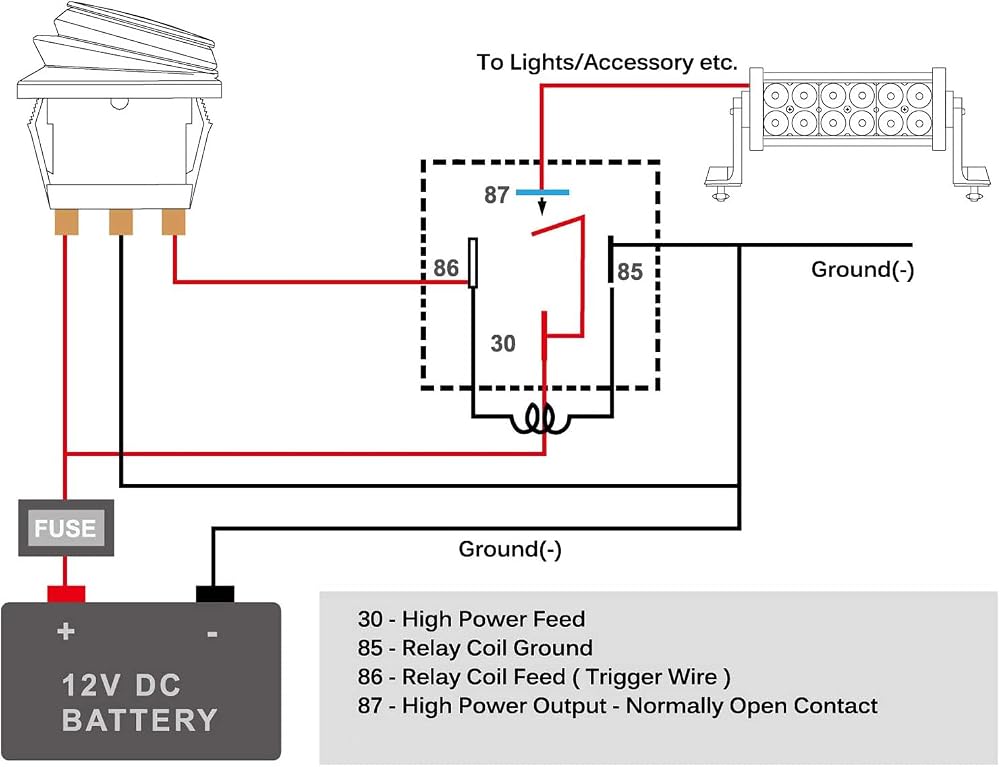

Wire Specifications: Black - Ground (85), Red - VDC (30), White - Trigger (86) and Blue - Output N/O (87).
Excellent waterproof performance, high quality in any weather conditions.

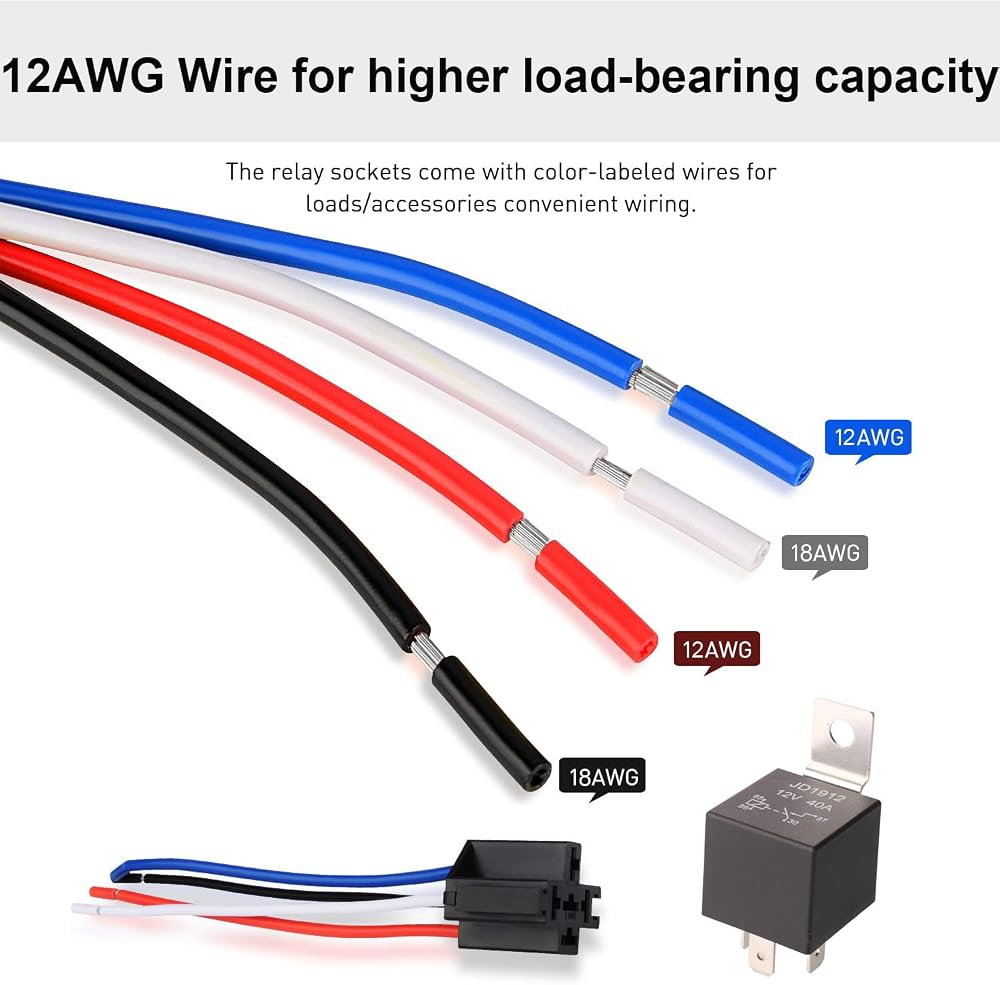

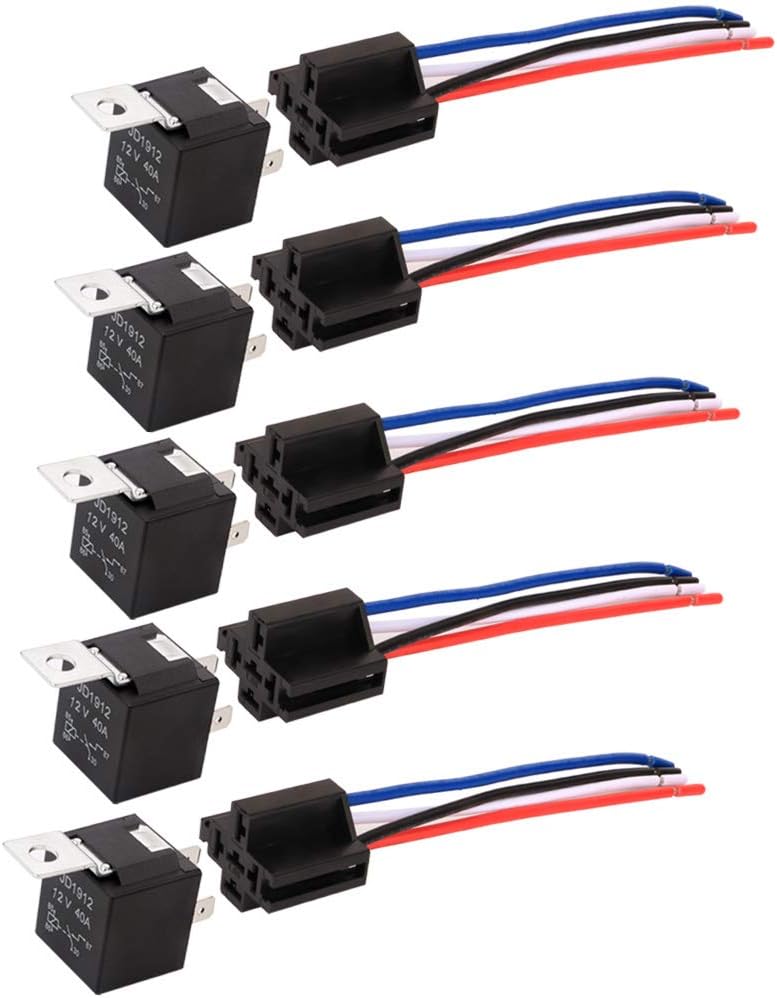

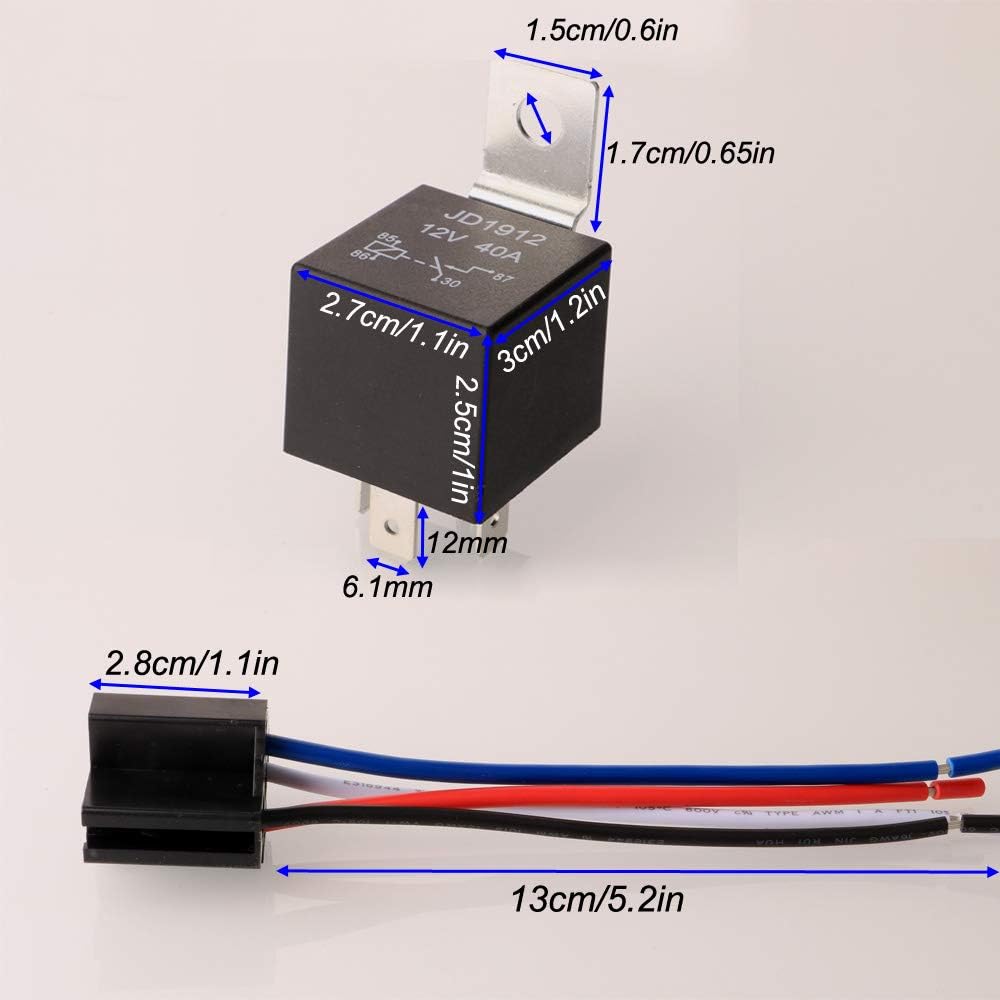

Easy Wiring - The relay sockets come with color-labeled wires for loads/accessories convenient wiring. Metal mounting tab on the relay for easy installation.
Customer satisfaction is our greatest pursuit, if you found that our products do not work or quality not as good as you think, please contact us without hesitation.

وصف

Specifications:
Coil Voltage: 12V DC
Coil Current: 160 mA
Switching Voltage: 14V DC Max
Contact Current Rating:
- NO 40A 14V DC
- NC 30A 14V DC
Ambient Temperature: -40 ~ +125 degree C (no condensation)

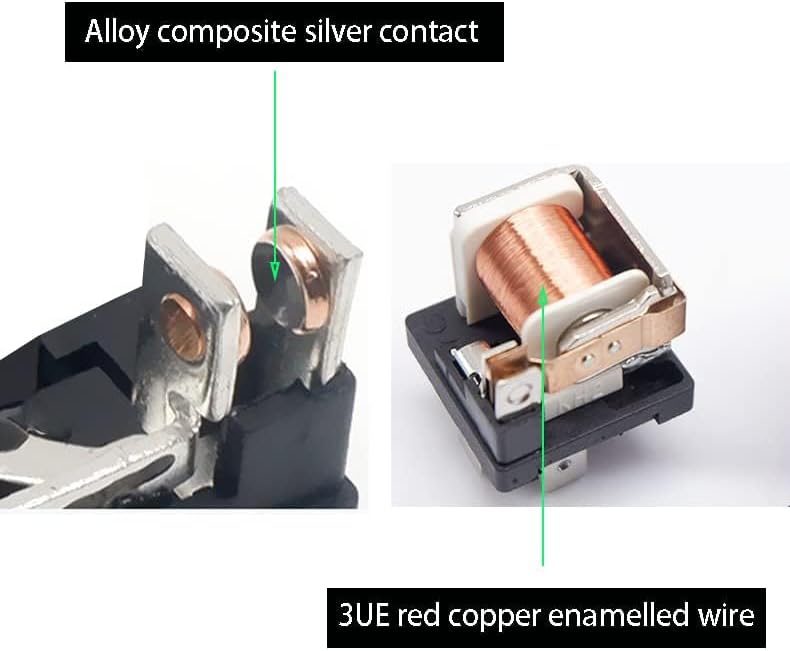

Initial contact resistance (at 6VDC 1A): 50mΩ¸ Max.
Initial insulation resistance: 100MΩ¸ Min. (DC500V)
Initial dielectric strength:
- Between open contacts: AC500V, 50/60 Hz 1Min.
- Between coil and contact: AC500V, 50/60 Hz 1Min.
Endurance (operations):
- Mechanical (at 7,200 ops./h): 10,000,000
- Electrical (at 600 ops./h): 100,000

Please Note:
--- Easy to mount - No instructions were included - You do need to know a little about electrical.
--- For your and others' safety, let professional technicians to install the equipment.
