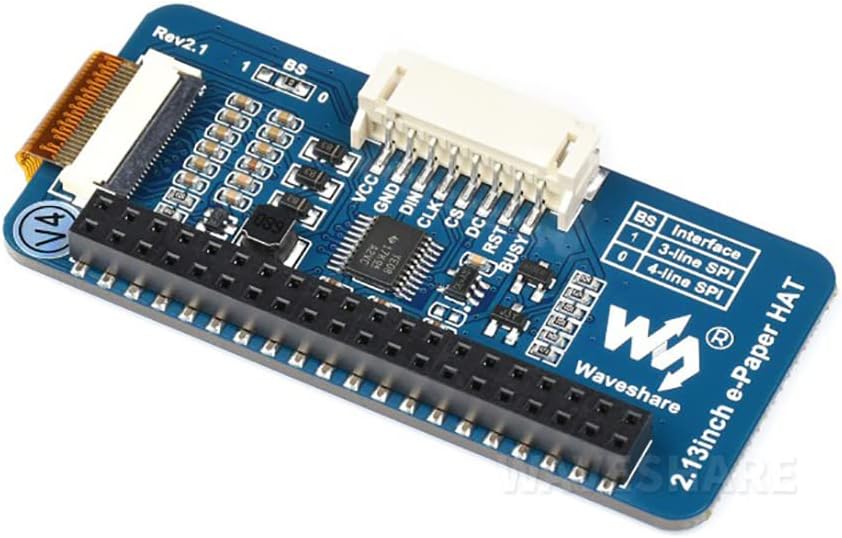

Overview

This is an E-Ink display HAT for Raspberry Pi, 2.13inch, 250x122 resolution, with embedded controller, communicating via SPI interface, supports red, black,
and white three-color display.

Due to the advantages like ultra low power consumption, wide viewing angle, clear display without electricity, it is an ideal choice for applications such as shelf
label, industrial instrument, and so on.

2.13inch e-Paper HAT (B) Features

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing

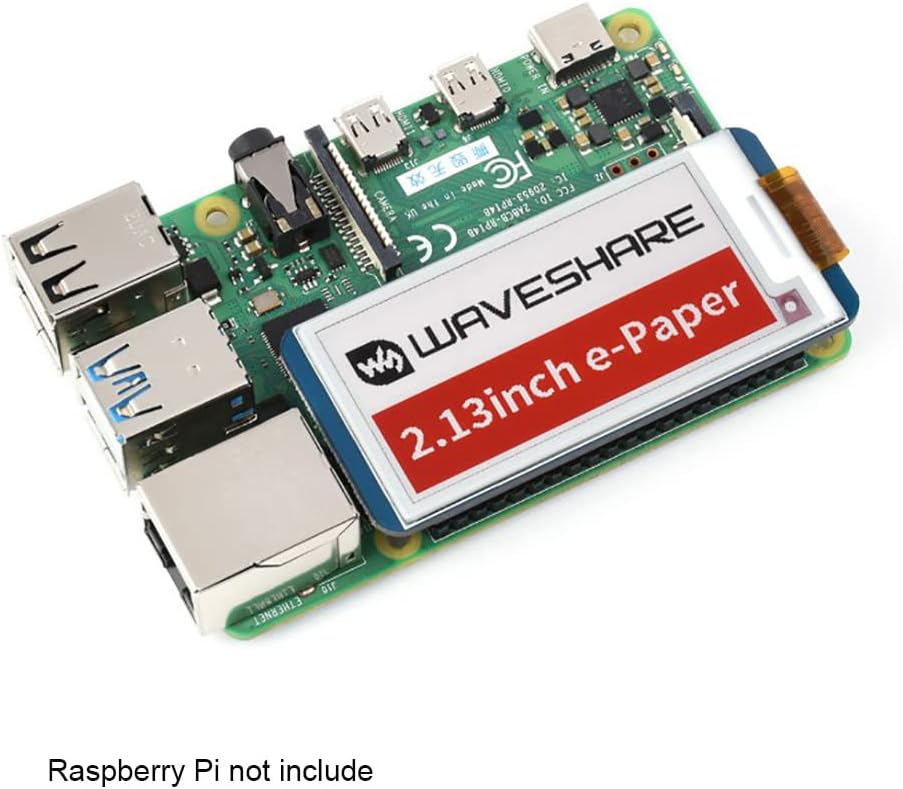

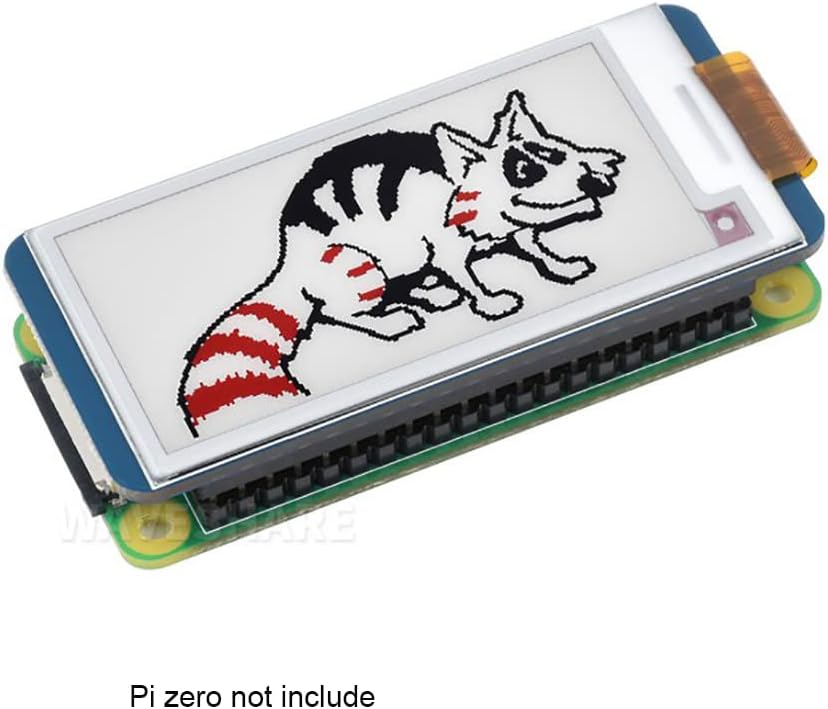

Standard RPi 40PIN GPIO extension header, fits Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with other controller boards like Ardui/Nucleo, etc.
Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Ardui/STM32)

2.13inch e-Paper HAT (B) Specifications

Operating voltage: 3.3V/5V
Interface: 3-wire SPI, 4-wire SPI

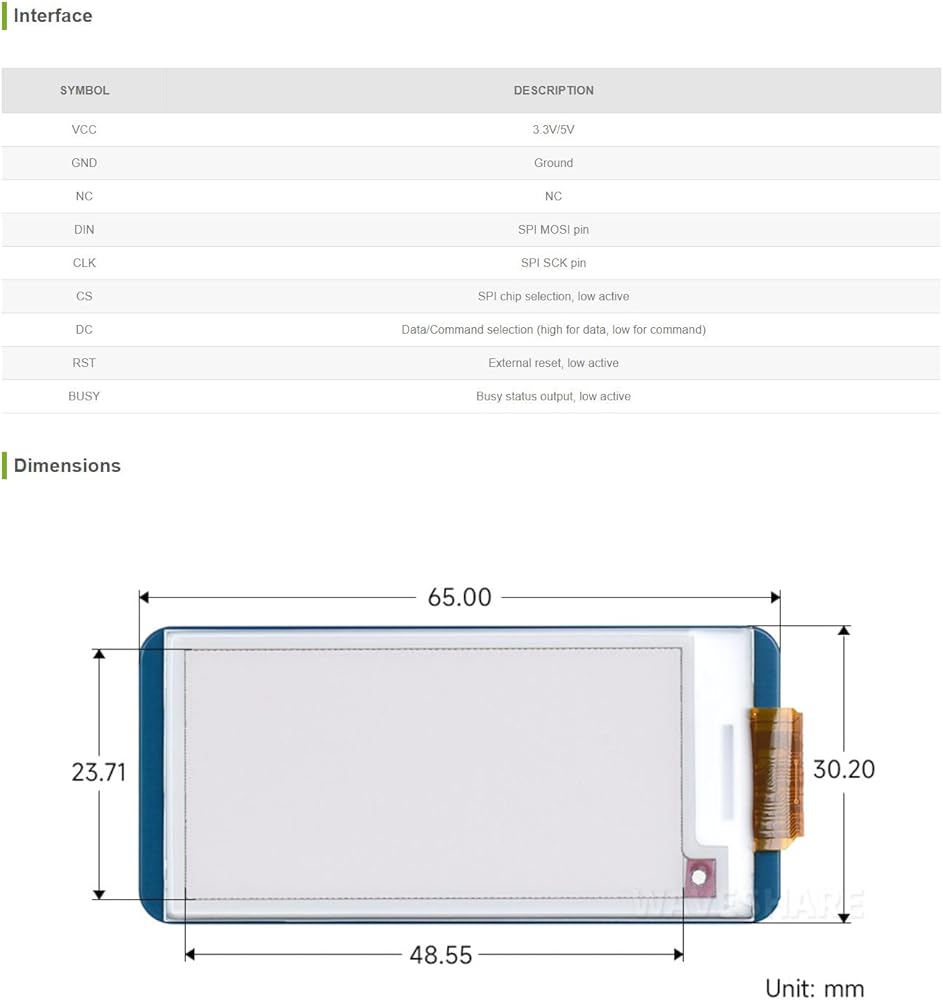

Outline dimension: 65mm × 30.2mm

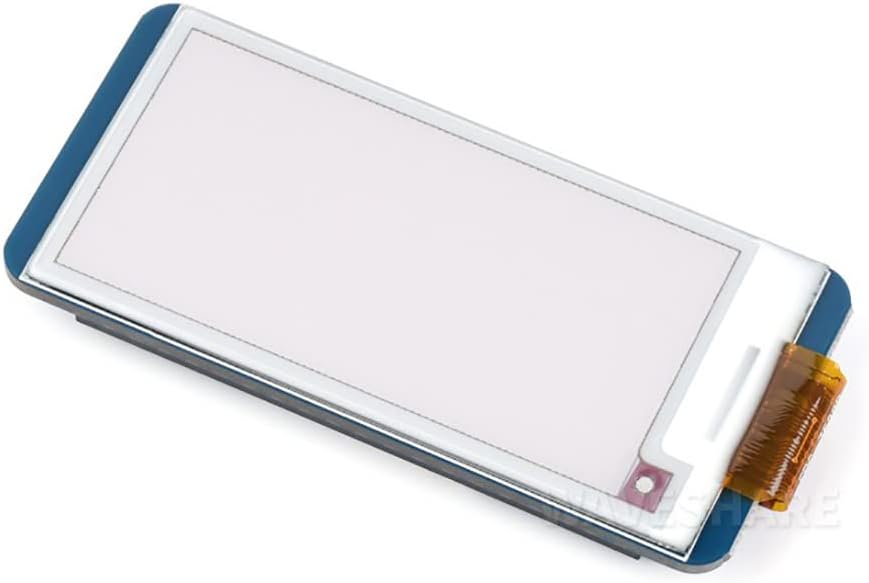

Display size: 23.71mm × 48.55mm
Dot pitch: 0.229 × 0.228
Resolution: 250 × 122
Display color: red, black, white
Grey level: 2
Full refresh time: 15s
Refresh power: 26.4mW(typ.)
Standby power: Viewing angle: >170°

Package include

1. 2.13inch e-Paper HAT (B) x1
2. RPi screws pack (2pcs) x1
3. PH2.0 20cm 8Pin x1
