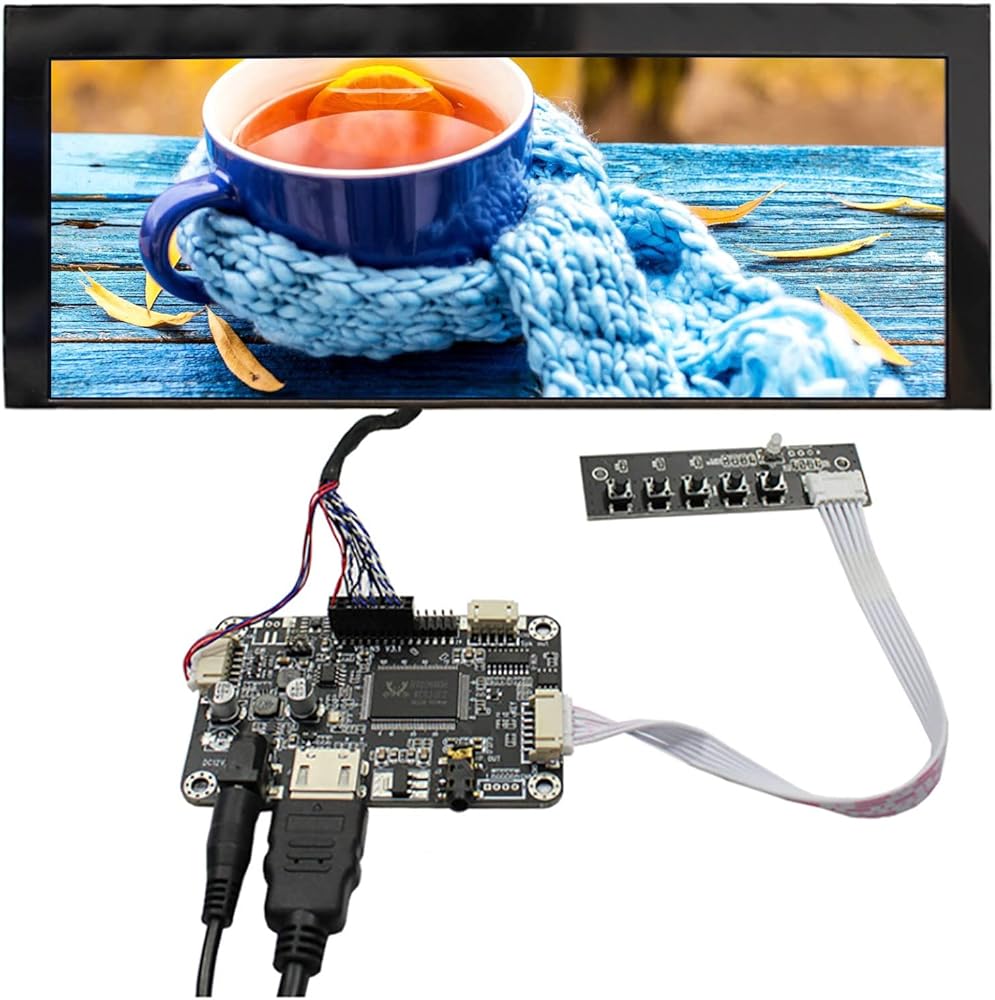

【Screen Advantage】7.8 inch WLED wide screen monitor ,with special resolution ,high brightness and contrast ratio(had been set well ,can't be adjusted) ,IPS 178 degree full view angle ,Display Area 187.8(H)×72.3(V) mm,Input Voltage 12.0V.
【LCD Controller Board 】 Video Input: HD-MI,Audio Output: Speaker earphone

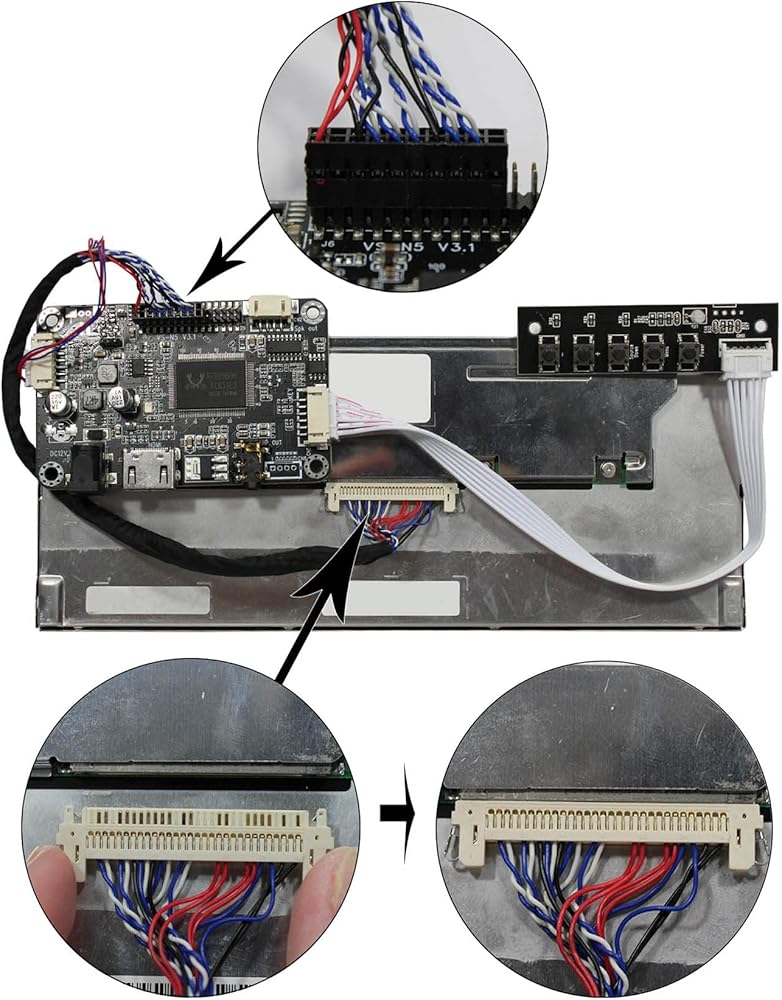

【Plug and play】Connecting the cables and port as link picture details ,power on ,LED light green ,Then enter HDMI signal ,with correct resolution :800x300 ,60HZ ,choose full screen ,Then the screen can work well .
【Input Power Supply 】12V DC more than 2A ,Port size :5.5x2.1mm, pls prepare power adapter by yourself.
Any problem ,Pls provide some connecting pictures and specify the problem .We will give you best solution in 12 hours.

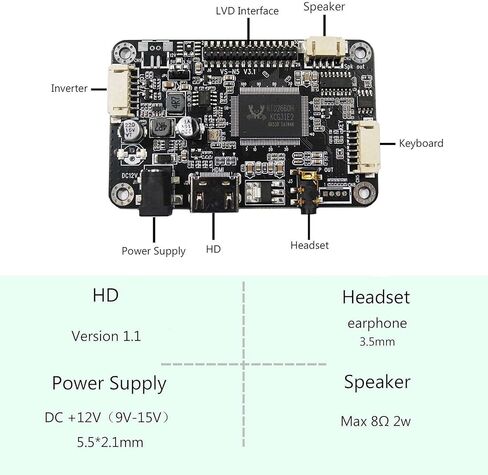

LCD Controller Board:

HD-MI LCD Board Work for LVDS Interface LCD Screen

Input Power Adapter: 12Vdc More than 2A.

Come In Standby Model When Not Input Signal

Standby Model
Video Input: HD-MI

Audio Output: Speaker earphone

OSD: Volume only

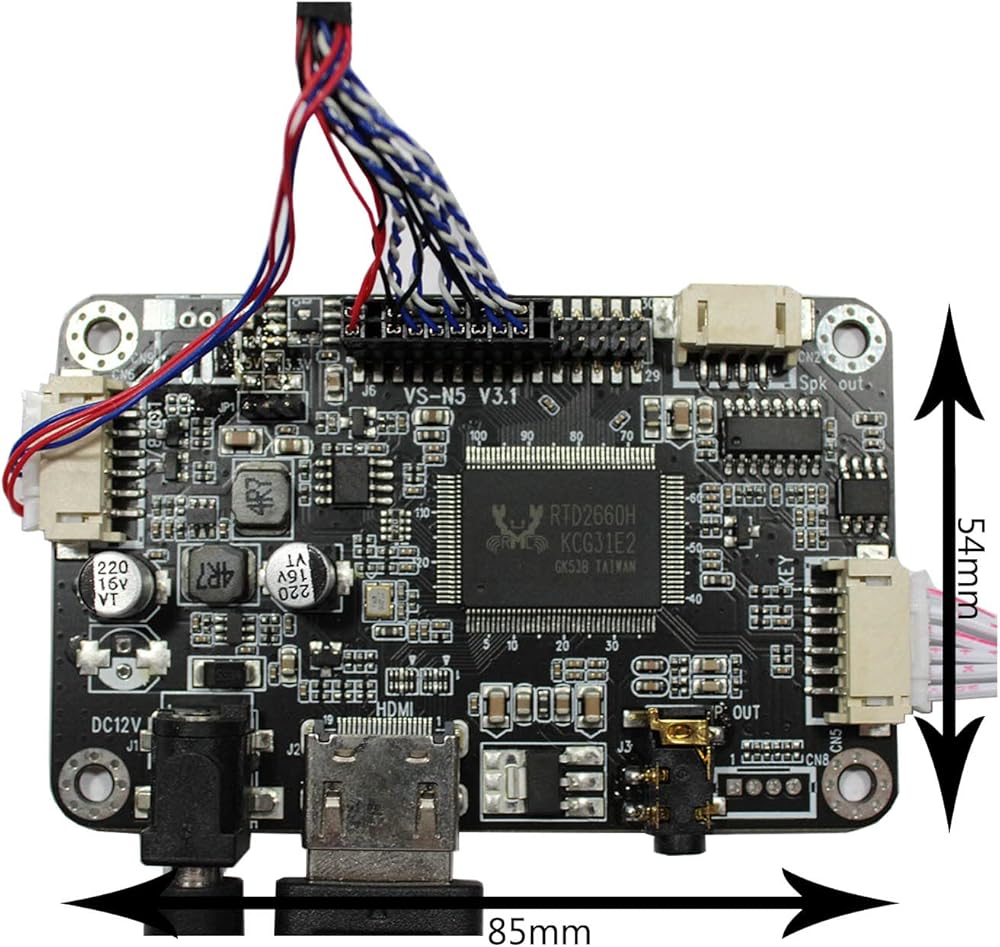

Board Size: 85mm x 54mm x 14mm

7.8" AA078AA01 800x300 LCD Screen:

Display Mode IPS Pro, Normally Black, Transmissive

Resolution 800(RGB)×300 109PPI

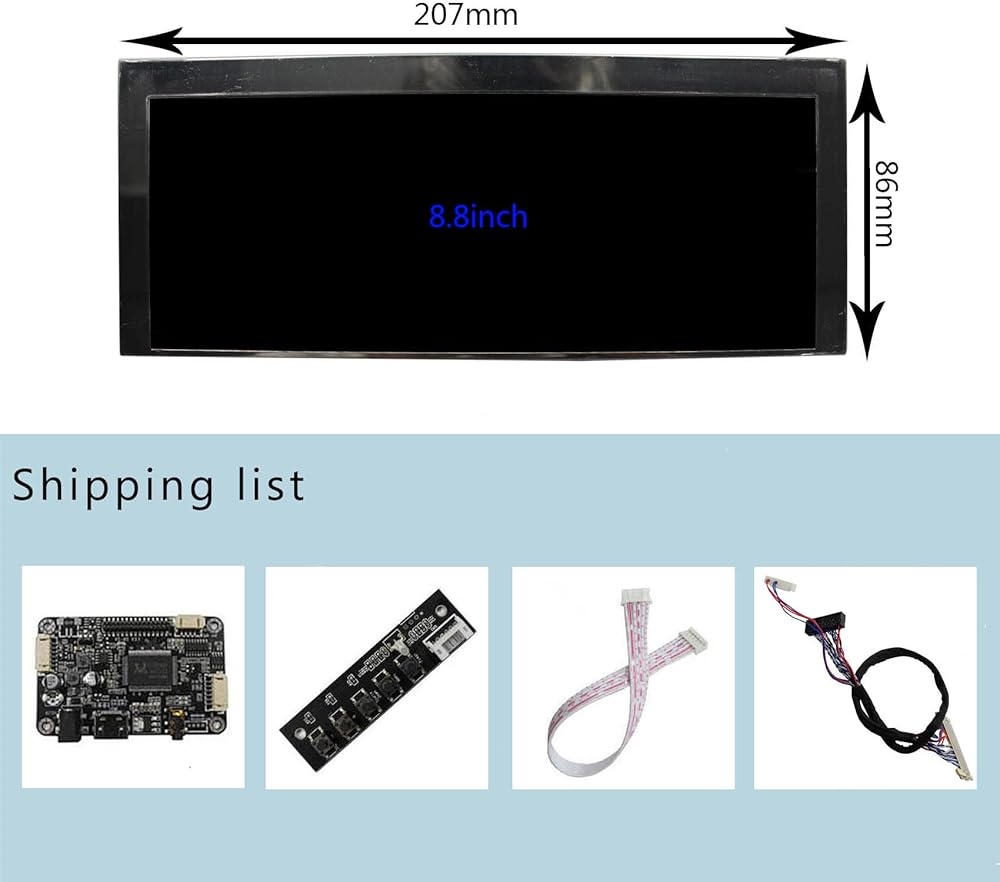

Outline Size 207(H)×86(V) mm

Display Area 187.8(H)×72.3(V) mm

Brightness 500 cd/m² (Typ.)

Contrast Ratio 1000:1 (Typ.) (TM)

Viewing Angle 88/88/88/88 (Typ.)(CR≥10)

LVDS (1 ch, 6/8-bit) , 30 pins Connector

Backlight WLED

Input Voltage 12.0V (Typ.)

Packing list:

1×HD-MI Audio LCD Controller Board VS-N5V3.1

1×7.8" AA078AA01 800x300 LCD Screen

1× LVDS Cable

1× Keyboard With Cable
