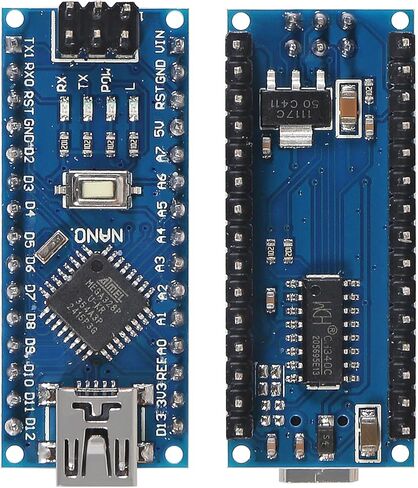

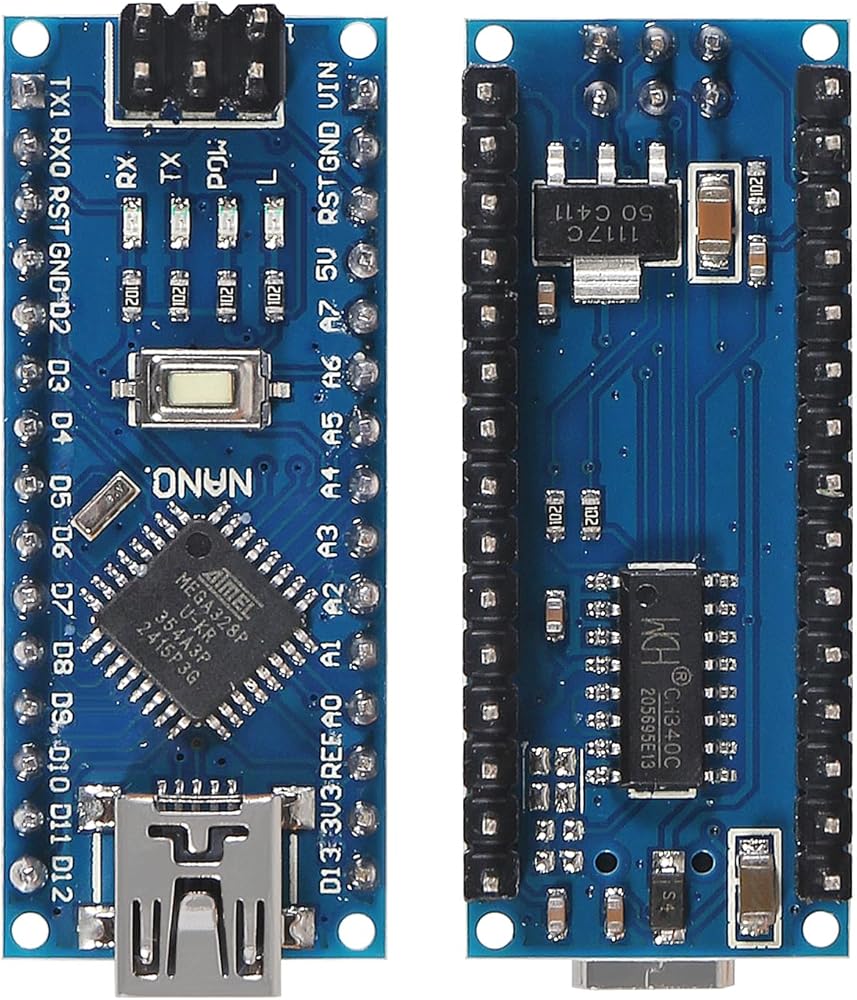

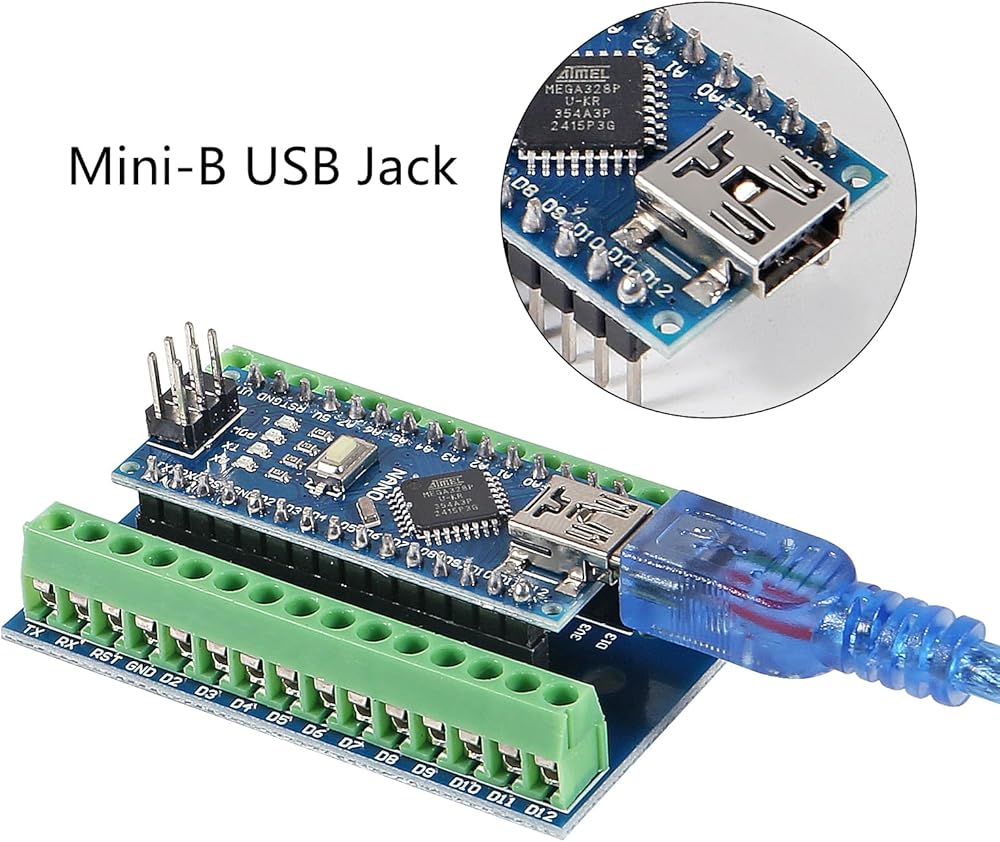

The Nano is a small, complete, and breadboard-friendly board based on the ATmega328P (for Arduino Nano 3.x). It has more or less the same functionality of the for Arduino Duemilanove, but in a different package. The Nano can be powered via the Mini-B USB connection, 6-20V unregulated external power supply (pin 30), or 5V regulated external power supply (pin 27). The power source is automatically selected to the highest voltage source.
Nano V3. 0 ATMEGA328P Improved version with 3pcs pin headers soldered (2pcs 15pin headers +1pcs 6pin headers). Each of the 14 digital pins on the Nano can be used as an input or output.They operate at 5 volts. Each pin can provide or receive a maximum of 40 mA and has an internal pull-up resistor (disconnected by default) of 20-50 kOhms. In addition, analog pins 6 and 7 cannot be used as digital pins, some pins have specialized functions.
The Nano has a number of facilities for communicating with a computer, another for Arduino, or other microcontrollers.Such as UART TTL (5V) serial communication and I2C (TWI) and SPI communication.

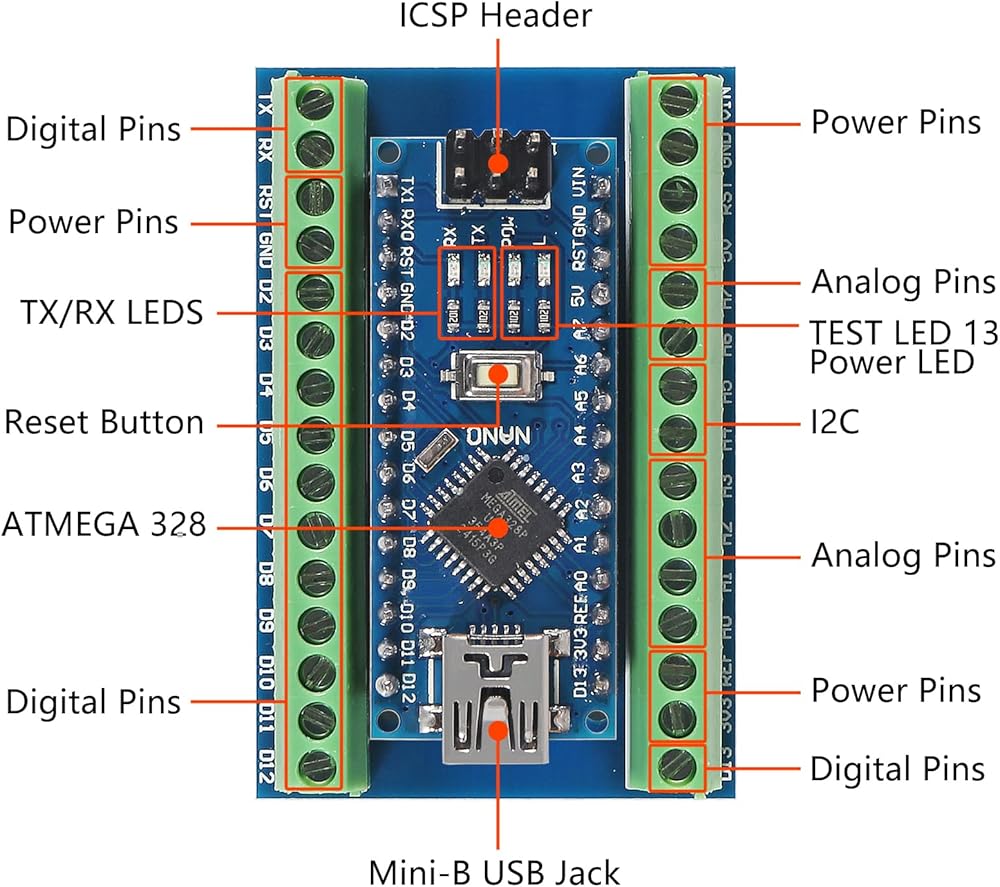

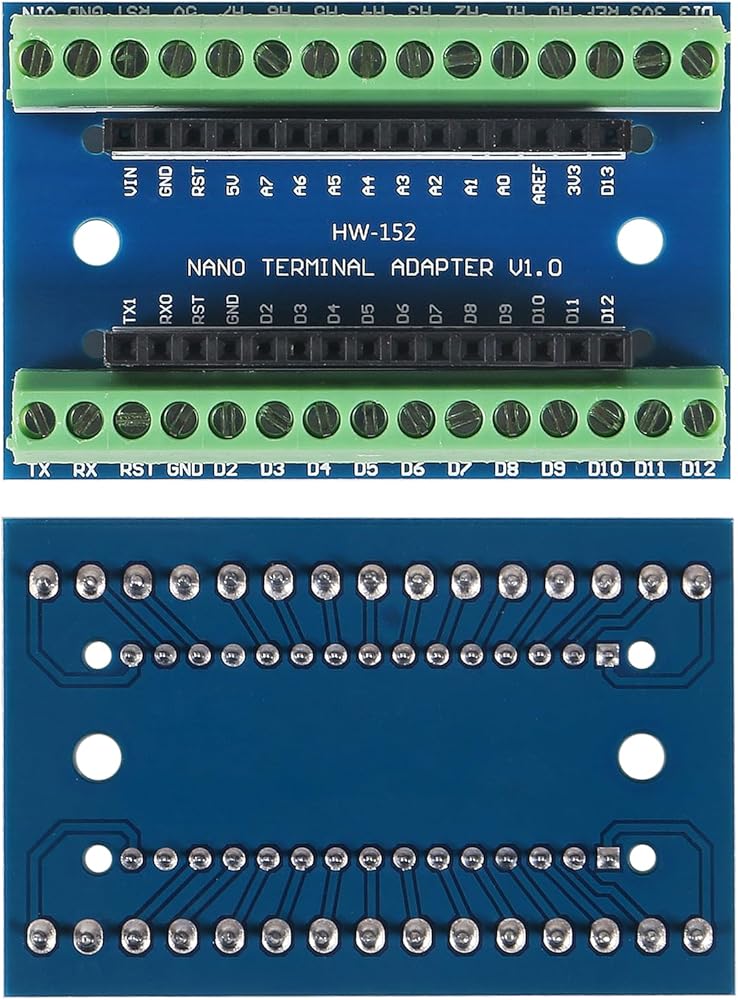

An additional expansion board which brings the I/O out to a series of screw terminals that can be handy for projects that are interfacing with a lot of wiring.
Note: Download for aduino IDE ATmega 328P (old bootloader) the USB chip driver first.

وصف

Specifications:
Operating Voltage（logic level）：5V
8 analog inputs ports:A0 ~ A7
14 Digital input / output ports:TX,RX,D2 ~ D13
6 PWM ports:D3, D5, D6, D9, D10, D11
1 pairs of TTL level serial transceiver ports RX / TX
Using Atmel Atmega328P-AU MCU
There is bootloader installed in it
Support USB download and Power
Support for external 5V ~ 12V DC power supply
Support power supply by 9V battery
Instructions:
1. Download aduino IDE ATmega 328P (old bootloader)
2. Download the USB chip driver
3. Plug in the NANO development board, the driver will be installed automatically
4. Select the board NANO in the die
5. Select the COM port, you can check it in My Computer
6. It is best to choose, NANO's own routine program, burn it in

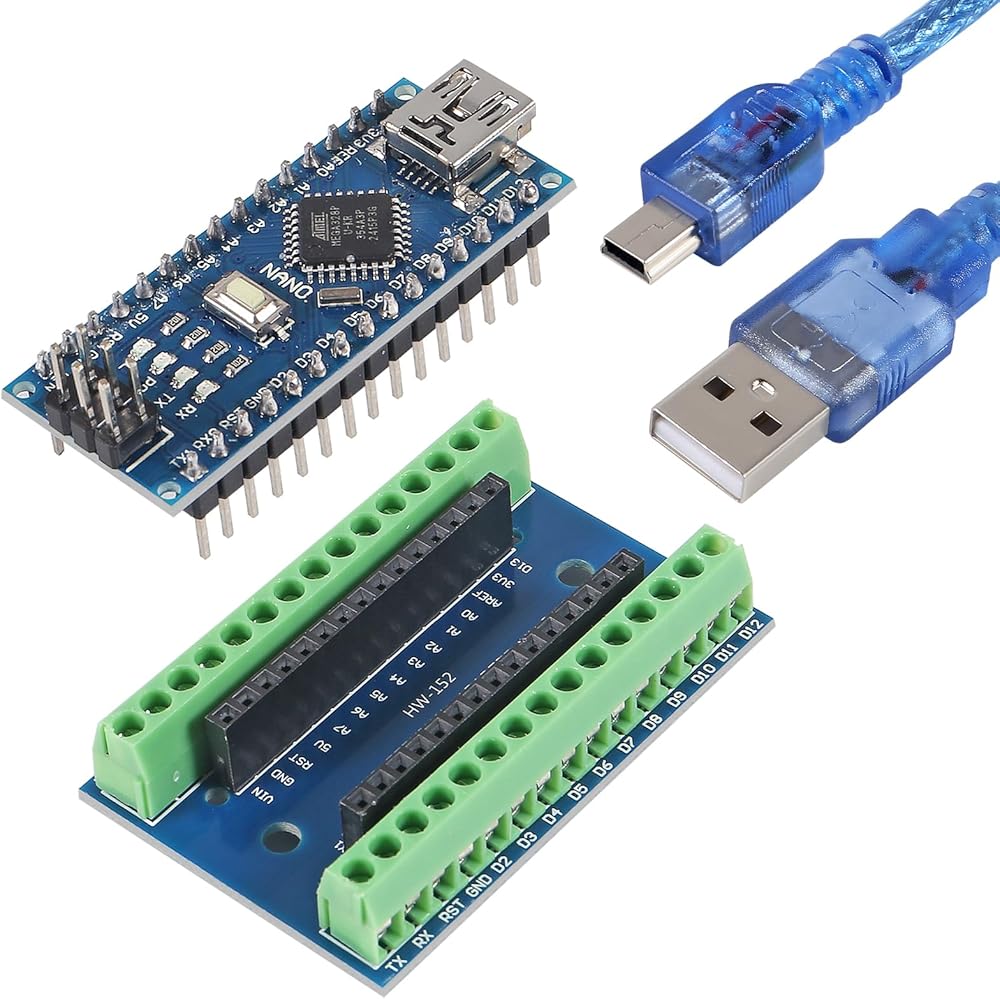

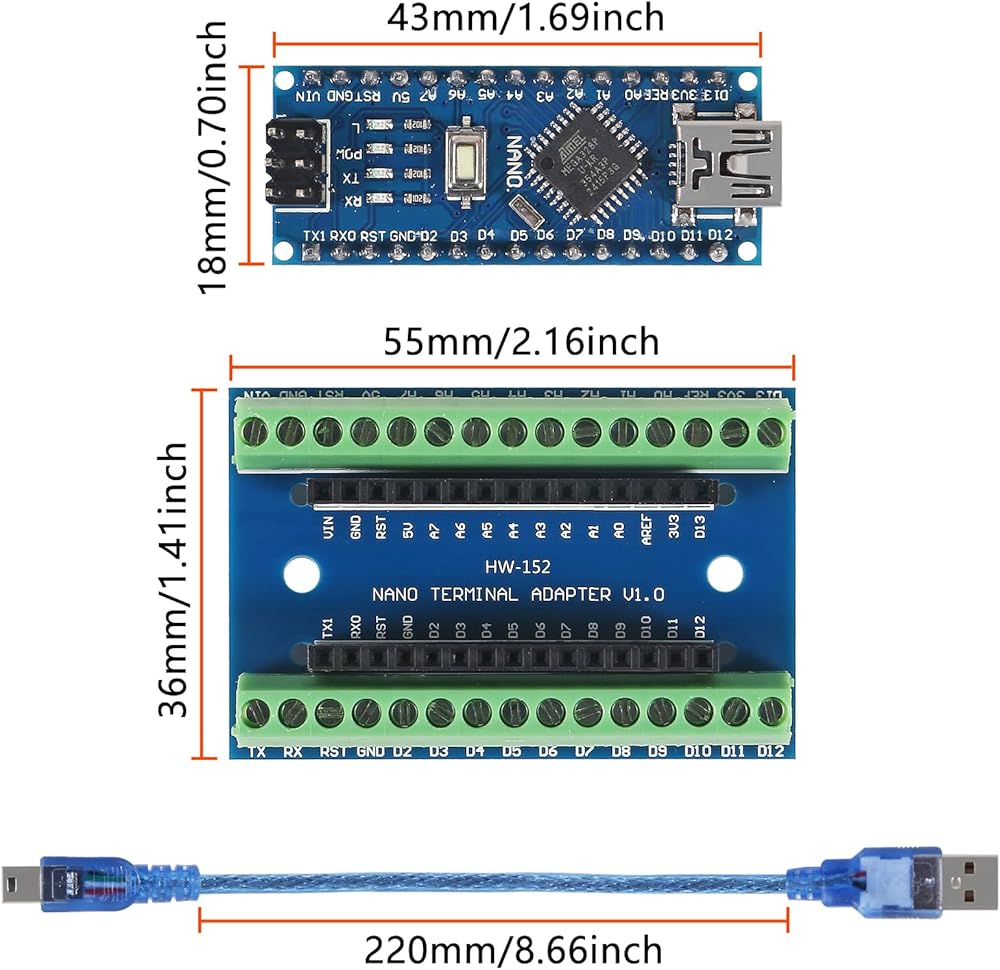

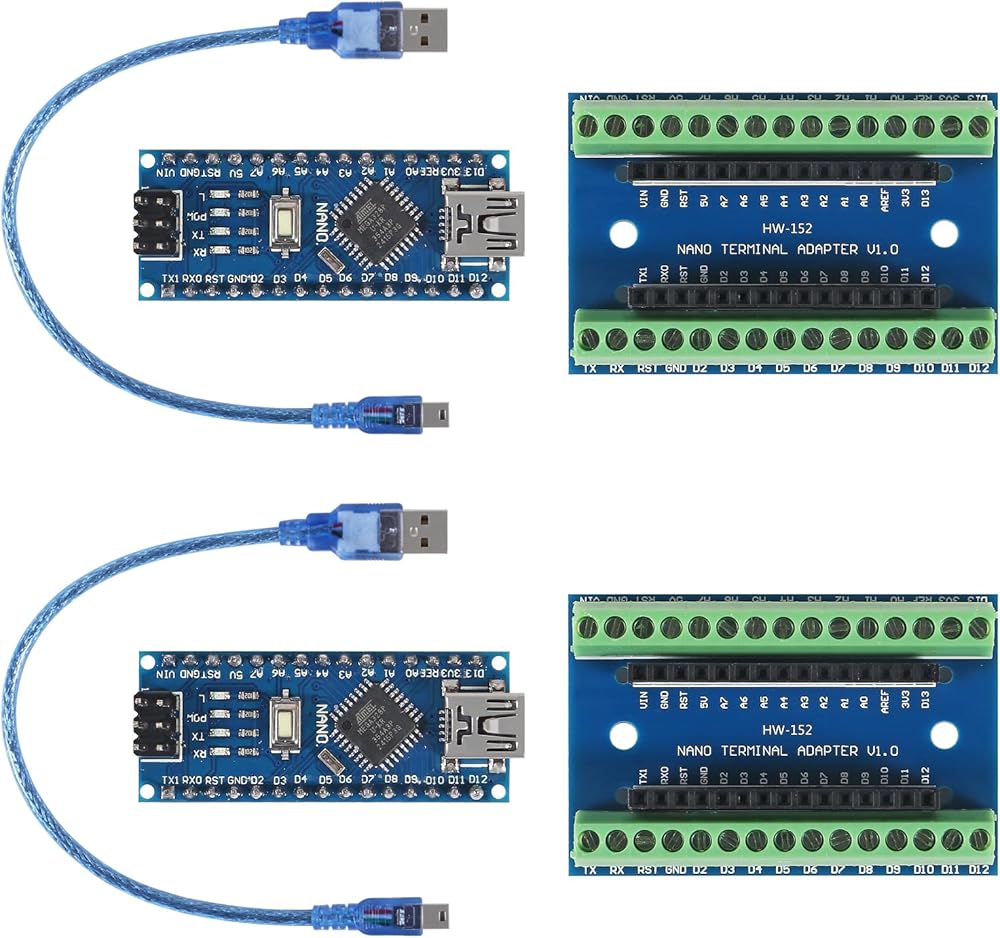

Package included:
2x Mini Nano V3. 0 ATMEGA328P
2x USB Cable
2x Expansion I/O Shield Board
