Features
with Raspberry Pi 40PIN GPIO header, compatible with Raspberry Pi 5/4B/3B+/Pi3B/2B/Raspberry Pi Zero WH/Zero 2W,etc.
The new generation SX1262 has higher power efficiency and longer transmission distance than the SX1278
Suitable for Sub-GHz band, combined with the gateway, can be quickly connected to a cloud server such as TTN to build a LoRaWAN network
Onboard L76K module with GPS/BD support, provides accurate clock and location info for node module
Onboard button cell holder, supports ML1220 rechargeable cell, for preserving ephemeris information and hot starts
Onboard 4 LED indicators for module operating status

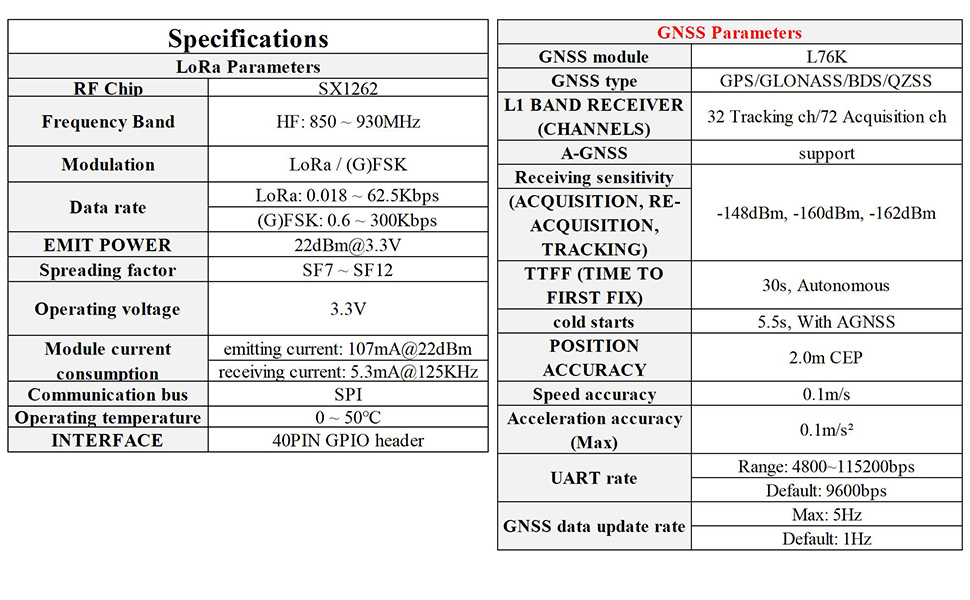

Specifications

LoRa parameters

RF Chip: SX1262
Frequency Band : 850 ~ 930MHz
Modulation:LoRa / (G)FSK
Data rate: LoRa: 0.018 ~ 62.5Kbps, (G)FSK: 0.6 ~ 300Kbps
EMIT POWER: 22dBm@3.3V
Spreading factor: SF7 ~ SF12
Operating voltage: 3.3V
Module current consumption:
emitting current: 107mA@22dBm
receiving current: 5.3mA@125KHz
Communication bus: SPI
Operating temperature: 0 ~ 50℃
INTERFACE: 40PIN GPIO header

GNSS parameters

GNSS module: L76K
GNSS type: GPS/GLONASS/BDS/QZSS
L1 BAND RECEIVER (CHANNELS): 32 Tracking ch/72 Acquisition ch
A-GNSS: support
Receiving sensitivity (ACQUISITION, RE-ACQUISITION, TRACKING): -148dBm, -160dBm, -162dBm
TTFF (TIME TO FIRST FIX) cold starts: 30s, Autonomous. 5.5s, With AGNSS
POSITION ACCURACY: 2.0m CEP
Speed accuracy: 0.1m/s
Acceleration accuracy (Max): 0.1m/s²
UART rate: Range: 4800~115200bps. Default: 9600bps
GNSS data update rate: Max: 5Hz, Default: 1Hz

Package Content

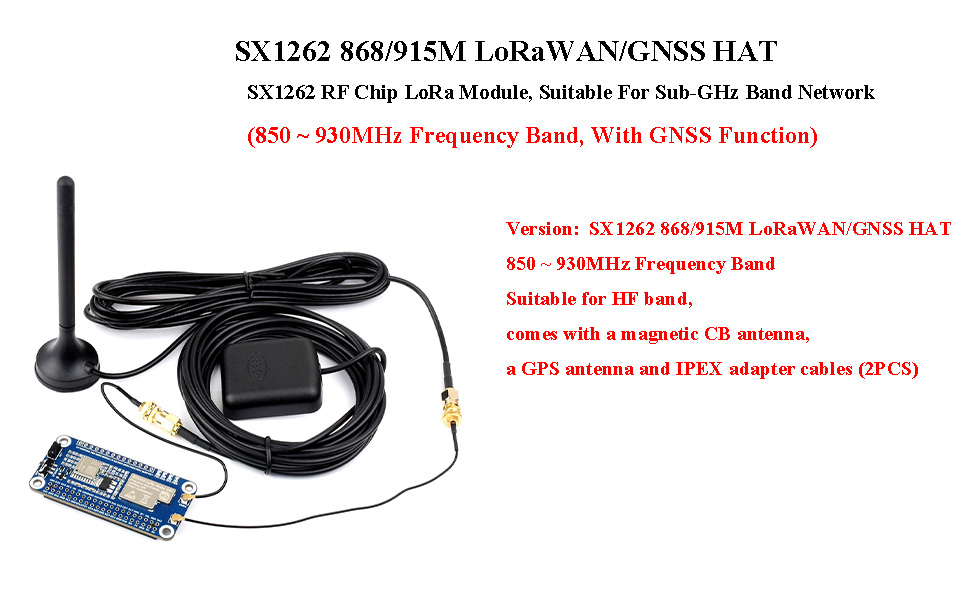

SX1262 868/915M LoRaWAN/GNSS HAT x1
868/915M Magnetic CB antenna x1
GPS antenna x1
IPEX to SMA adapter cable ~17cm x2
Screws pack x1
2×20PIN female pinheader x1
