1) The radio is built on the principle of SDR-the function is determined by loaded software;
2) Frequency range: 50Khz~250Mhz and 400Mhz~2000Mhz (Registered already)

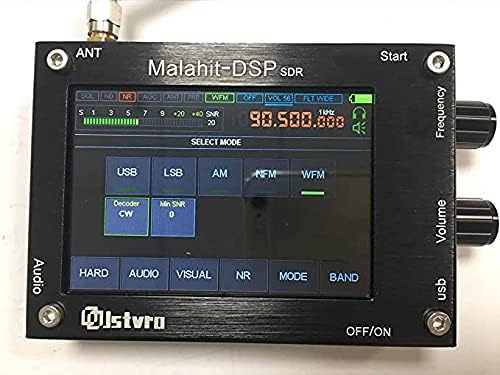

3) All types of analog modulation: AM, LSB, USB, NFM, WFM, CW
4) Powerful functions: variable filter width, adaptive noise suppressor, threshold noise suppressor, for Noise Blanker, AGC, equalizer;
5) fully functional chip msi001;
6) The powerful stm32H 743VIT6 with a clock frequency of 480 MHz is applied;

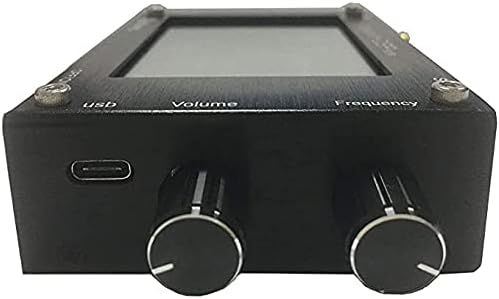

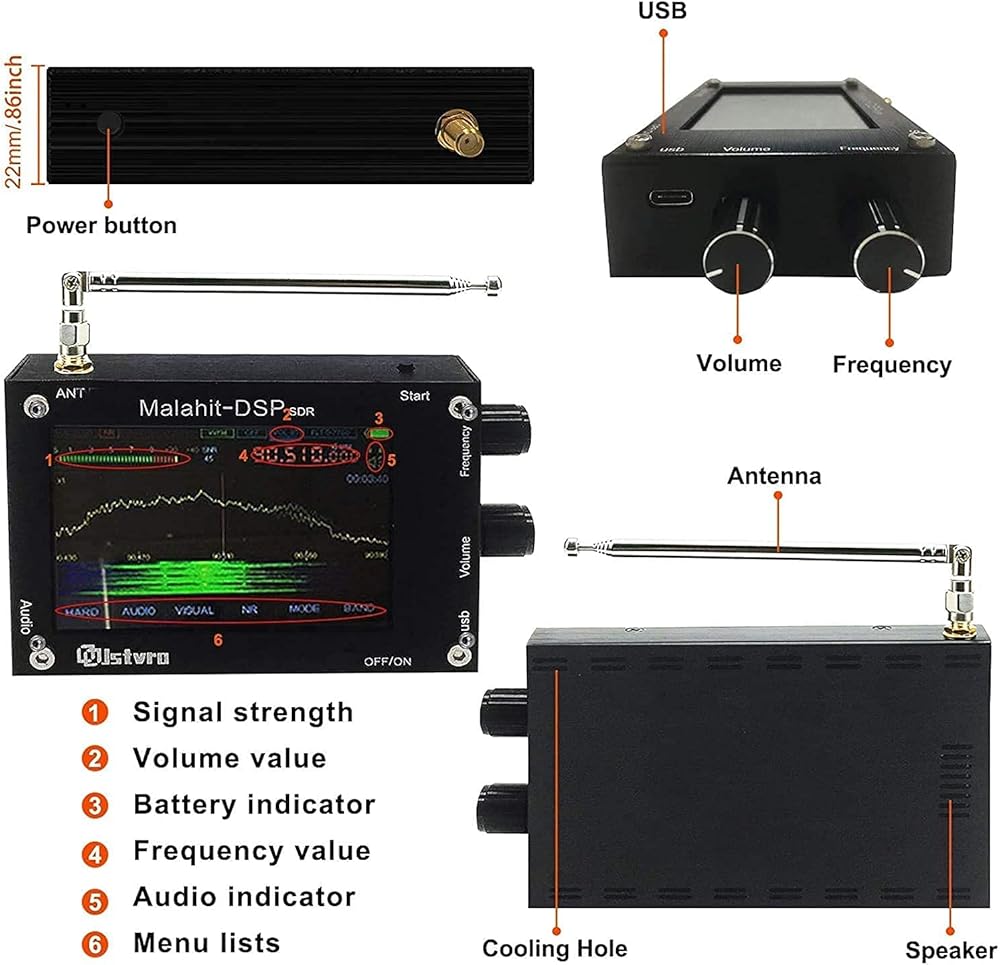

7) Controls: 2pcs; encoders with buttons and touch screen;
8) It is powered by an external TYPE-C interface or battery (Built-in battery 3800mah )
9) Connect to computer via USB, which can transfer CAT, IQ and audio.
10) 160 kHz span, with scalability;
11 ) Sensitivity: Under the condition of up to 250MHz, s/w is 0.3μV = 10dB; due to lack of measurement equipment, so the above measurements were not taken;
12) Due to the characteristics of msi001 chip used, dynamic blocking range is about 85dB.
13) SMA female antenna socket;
Package:
* Malahit Receiver (battery included )
* Antenna x1
* Usb cable x1
Tips:The Antenna come with this receiver is a 80Mhz~500Mhz antenna. WFM is nice sound.
If you need to receive AM or LSB radio, please buy the right Antenna.
