Features:
In the harsh environment can provide a safe and reliable connection.
SD20(Threaded Coupling) connector is ideal for any equipment for watertight, indoor / outdoor applications, such as outdoor electric tools or appliances, medical device, communications, Marine equipment, under water equipment, outdoor led lighting, outdoor LED panels, solar energy system, outdoor security cameras, transformer, control box, machines and equipment, packing machines, for data and power.

Specifications:
SD20:
Material: Plastic
IP Rating: IP68
Panel Cutout Diameter: 20mm
Cable Outer Diameter Range:8-12mm
Coupling Type: Threaded Coupling
Shell: Thermoplastic Nylon66, Fire Resistance: V-0
Insert Material: Thermoplastic PPS max temperature 260℃
Contact Material: Brass with Gold Plating
Termination: Solder
Mating Cycle: >500 times
Temperature Range: -40~+100℃
Humidity: +40℃ 95±3%
Vibrator: 10~500Hz, acceleration 100m/s²
Shock: 40~80times/min, acceleration 250m/s²

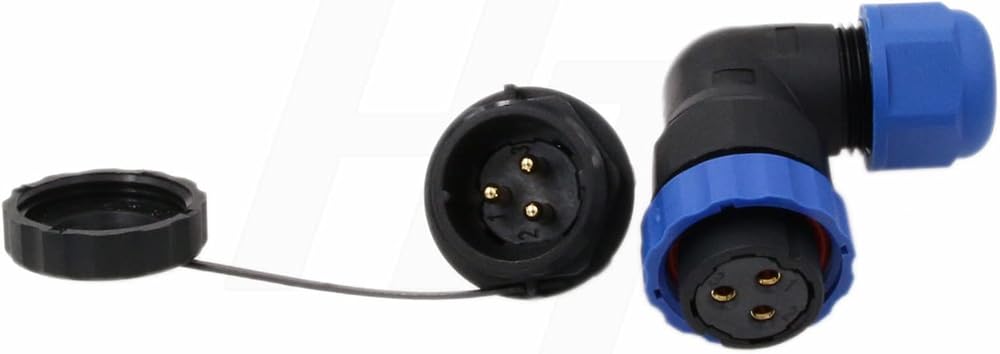

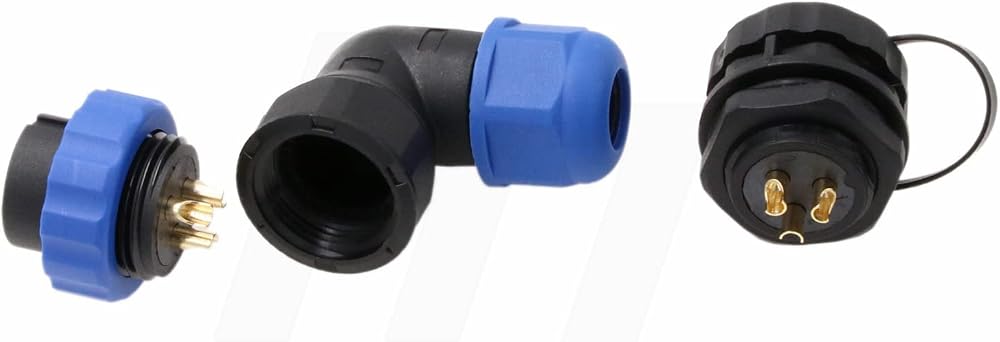

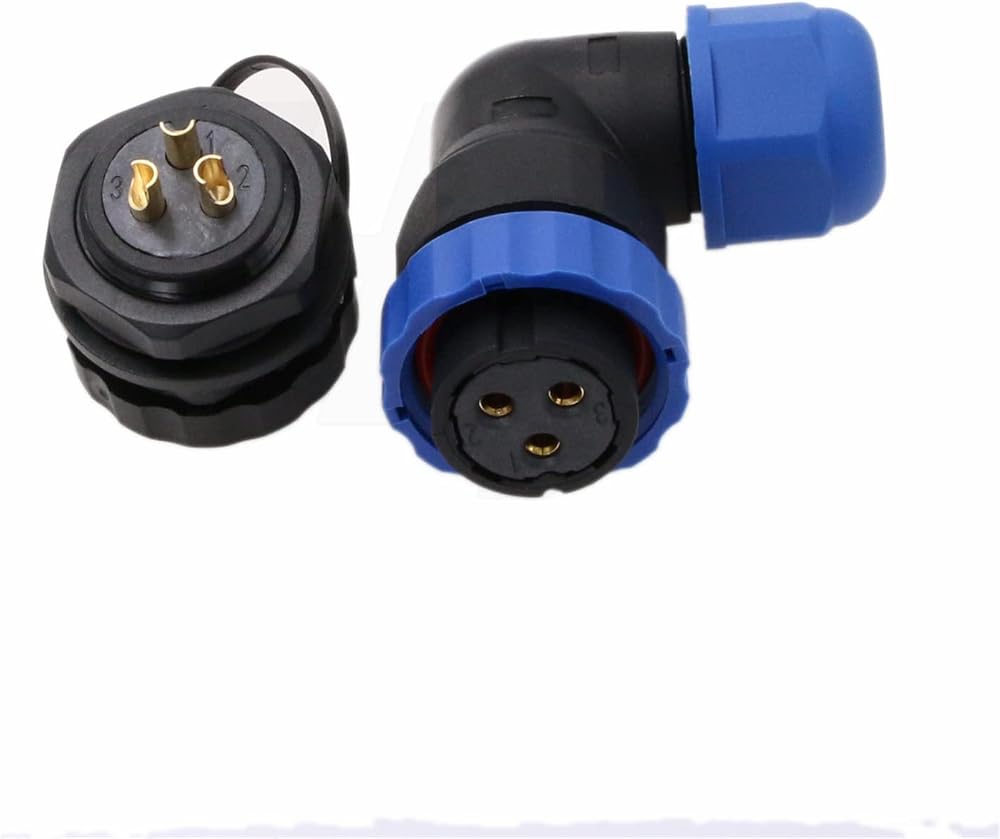

Package Includes:
1 x Right Angle Cable Plug with Female Pins
1 x Chassis Socket with Male Pins
1 x Waterproof / Dustproof Cap
