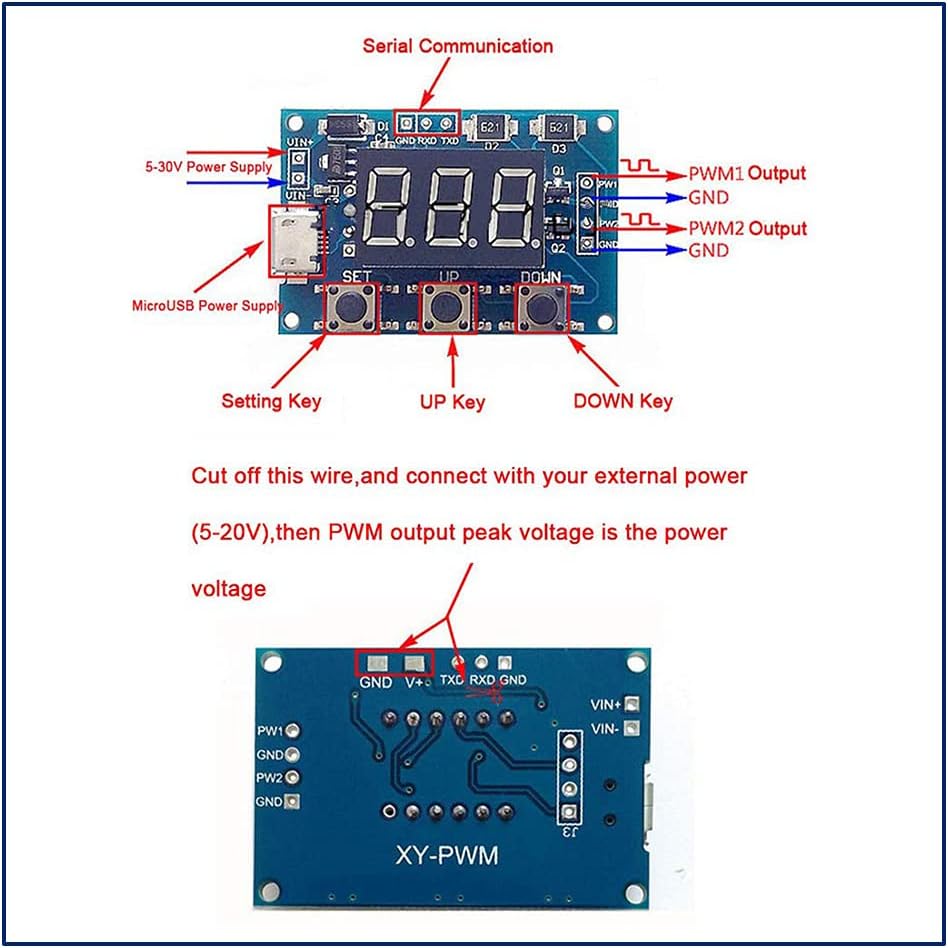

Setting Instructions:
1. Short press"Set" to interchange display the 4 values(FR1:PWM1 frequency;dU1:PWM1 duty cycle;FR2:PWM2 frequency;dU2:PWM2 duty cycle)

2. press"Up" and "Down" to set the current value

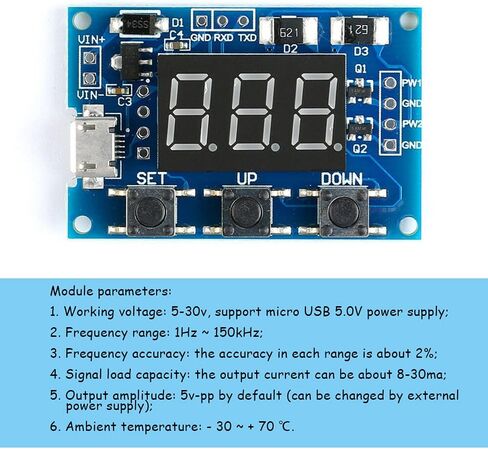

Display Instructions:
There are 3 display range:
1:XXXX--the unit is 1Hz, range is 1Hz-999Hz
2.XX.X--the unit is 0.1KHz,range is 0.1KHz-99.9KHz
3.X.X.X.--the unit is 1KHz, range is 1KHz-150KHz
e.g.:100--100Hz;54.1--54.1KHz;1.2.4.--12KHz

Serial Control:
Baud Rage: 9600pbs; Date Bit: 8; Stop Bit: 1;
1. Set the PWM frequency: "S1FXXXT": set the PWM1 frequency as XXX HZ(0001-999); "S1FXX.XT": set the PWM1 frequency as XXX KHZ(00.1-99.9); "S1FX.X.X.T": set the PWM1 frequency as XXX KHZ(0.0.1.-1.5.0.)(S1--PWM1; s2--PWM2; F--frequency; D--duty cycle; T--Stop bit)
2.Set the PWM duty cycle: "S1DXXXT": set the PWM1 duty cycle as XXX(001-100); "S2DXXXT": set the PWM2 duty cycle as XXX(001-100)
3.DOWN: set successful; FALL: set fail.

Manual measurement, with small error. Please check size in detail before purchase.
Real colors may slightly differ from the pictures, as it depends on specific monitor settings and light brightness.

We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

Package included: 1Pcs
