مميزات خاصة

❃❃WIFI development board, 4M bytes. 5V 1A switching power supply (switching power supply) on board.
❃❃New ESP32 D1 mini, mini NodeMcu Lua WiFi board based on ESP-8266.
❃❃Compatibility: this internet development board is nicely suitable for Arduino, and can be programmed for the IDE and support OTA online; It has a similar pin layout to the D1 Mini ESP32, therefore pin-compatible with most accessories.
❃❃On-board 5V 1A switching power supply, all I/O pins have interrupt, PWN, I2C and 1-wire (except D0), which compatible with Arduino.
❃❃The WeMos Mini family of boards is one of the latest additions to the ESP32- and ESP8266-based Internet Of Things (IoT) ecosystem.

وصف

Compatible with:

This internet development board is nicely suitable for Arduino, and can be programmed for the Arduino IDE and support OTA online. It has a similar pin layout to the ESP8266-12F, therefore pin-compatible with most accessories.

Feature:

Power supply voltage (USB) 5V DC

Input/Output voltage 3.3V DC

Operating current min. 500mA

CPU Xtensa single-dual-core 32-bit-LX6

RAM 512kB

I/O Pins 34

ADC channels 18

ADC Resolution 12-bit

DAC channels 2

DAC Resolution 8-bit

Communications interfaces SPI, I2C, CAN, UART

Max current drawn per GPIO pin 40mA

WiFi protocols 802.11 b/g/n (802/11n up to 150 Mbps)

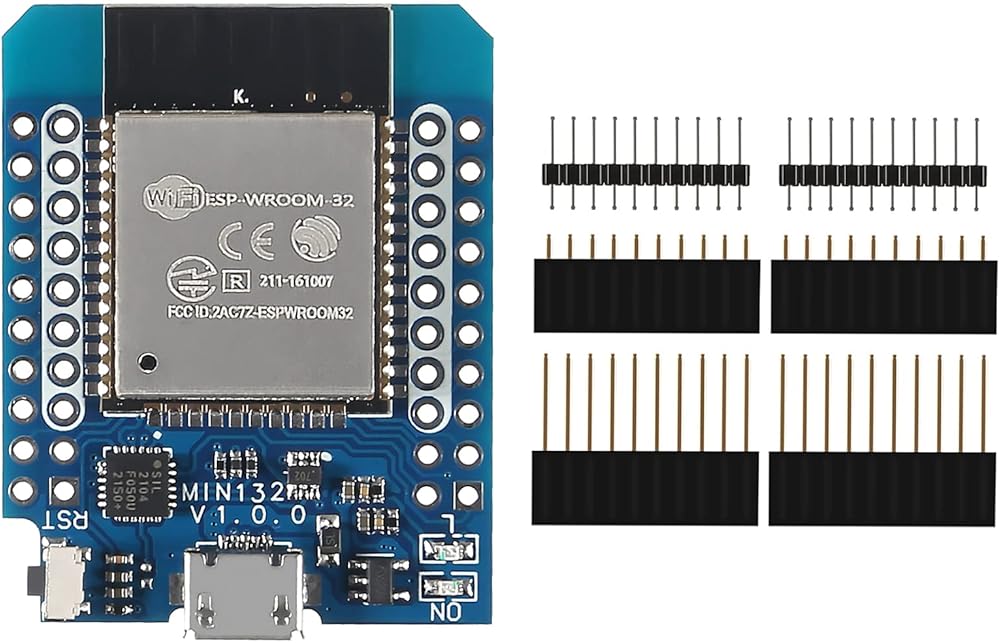

Package: 2PCS ESP32 D1 Mini ESP-32 WiFi+Bluetooth Development Module Board
